CYP CDPS-84HB Bedienungsanleitung

CDPS-84HB

8 by 4 Digital Presentation Scaler

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 October 2009

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 05/05/14 Preliminary Release

RDV2 09/15/14 Add RS-232 Commands

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Remote Control ...............................5

6.4 IR Pin Assignment .............................6

6.5 RS-232 Pin Assignment .....................7

6.6 RS-232/Telnet Commands...............8

6.7 OSD Menu.......................................11

7. Connection Diagram .......................... 15

8. Specications ...................................... 16

8.1 Input Resolution Support ...............17

8.2 Output Resolution Support ...........18

9. Acronyms ............................................. 19

1. INTRODUCTION

This HDBaseT™ capable 8 by 4 Digital Presentation Scaler can switch

and scale HDMI/HDBaseT/PC/Composite Video signals from any one

of its eight inputs and simultaneously display it on any of its HMDI or

HDBaseT outputs. The unit has and HDMI bypass output, allowing local

monitoring of any of the HDMI or HDBaseT inputs, and features full

5play™ convergence for easy integration of compatible transmitters

and receivers. It has the added benet of control via IR remote

control, RS-232, IP/Telnet and WebGUI, with all information including

system status presented on its comprehensive LCD display.

2. APPLICATIONS

• Home Theater/Entertainment

• Lecture Room/Hall Presentation

• Show Room/Demo Room

• Public Commercial Display

• Information Board

3. PACKAGE CONTENTS

• 1 x 8 by 4 Presentation Scaler

• 1 x IR Extender Cable

• 1 x IR Receiver Cable

• 1 x Remote Control with Battery

• 1 x 24V/ 2.7A DC Power Adaptor

• 1 x Power Cord

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box

and output HDMI TV/Display and or audio amplier with connection

cables.

5. FEATURES

• HDMI, HDCP and DVI compliant

• Full 5Play™ convergence: Video, Audio, LAN serving, Power over

Cable (PoC) and Control (IR & RS-232 bypass)

• Supports distances of up to 100 meters over industry standard

CAT5e/6/7 cable

• Supports scaling of any input signals to a wide range of HDTV and

PC output resolutions up to 1080p and WUXGA (RB)

• Digital to Analog and Analog to Digital Audio conversion (DAC/

ADC)

• Simultaneous video output of the selected source through the

HDBaseT and HDMI outputs and audio output through the digital

coaxial and analog L/R outputs

• Features four HDMI inputs with corresponding L/R audio inputs

(3.5mm mini-jack), two HDBaseT CAT5e/6/7 inputs, PC (15-pin D-Sub)

with L/R audio (3.5mm mini-jack) and Composite Video and L/R

audio (3 RCA)

• Features two HDMI outputs, one HDBaseT CAT5e/67 outputs, one

Digital Coaxial audio output and one L/R audio 3.5mm mini-jack

output

• Supports switchable HDMI bypass allowing local monitoring of any

of the HDMI or HDBaseT inputs

• Supports Power over Cable on the CAT5e/6/7 output to a

compatible Receiver

• Supports control via IR, Remote control, RS-232, Telnet WebGUI and

on-panel controls

• Supports HDBaseT LAN serving function to compatible Receivers

Note: The PoC function is only designed for powering compatible

Receiver units only---non-PoC Receiver will need their own

power supply. Receivers of another brand may not be

compatible.

6. OPERATION CONTROLS AND FUNCTIONS

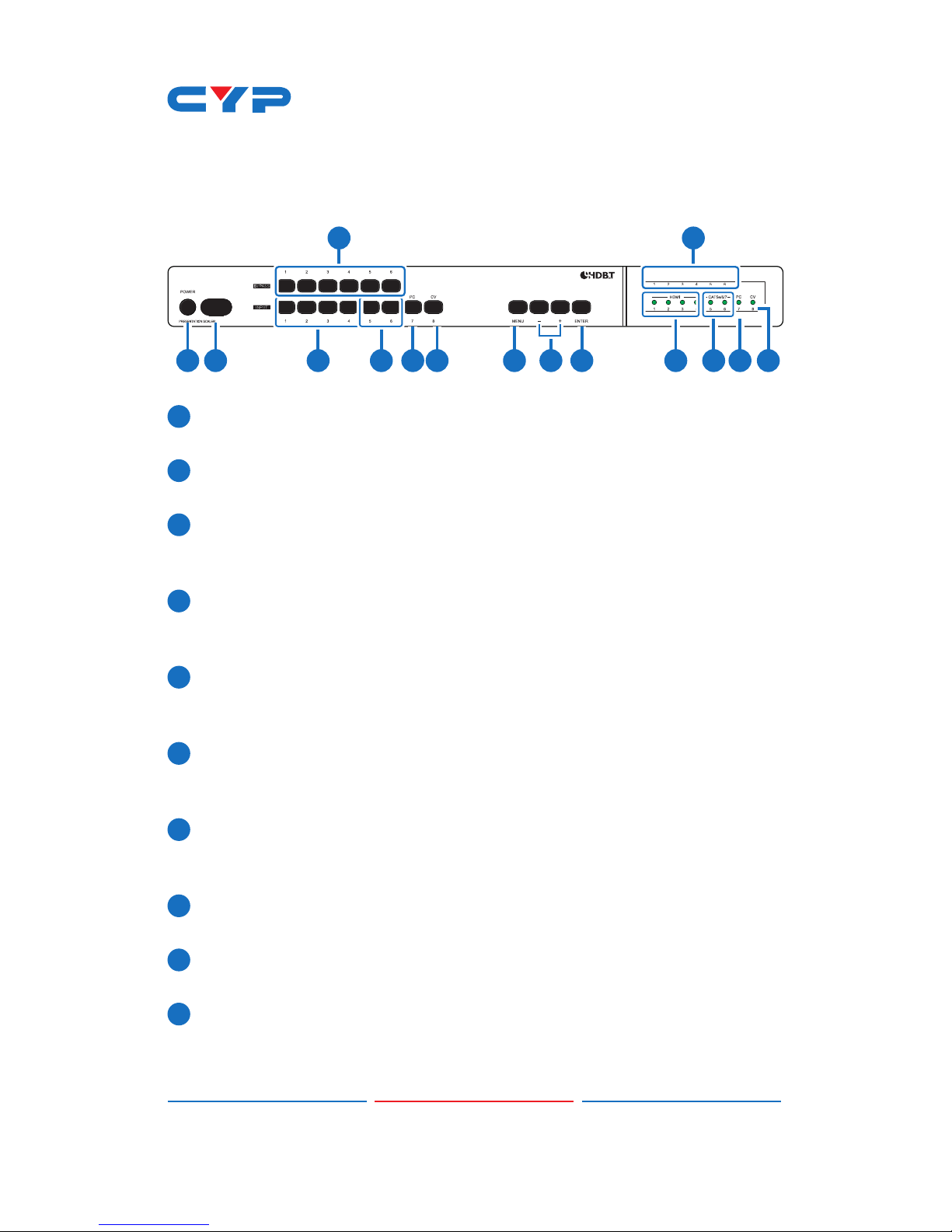

6.1 Front Panel

1 2 3 65 7 8 9 10 3

4 4

65 7

1POWER: Press this button to turn ON the device and the LED will

illuminated.

2IR Window: This IR receiver receives only the remote control signal

from the packaged included remote control.

3INPUT HDMI 1~4 & LED: Press the IN buttons to select an input source

signal from the 4 HDMI input sources to be display for output ports.

The LED will illuminate according to the selection.

4BYPASS & LED: Press these buttons to select an input source signal

from the 6 input sources to be display for BYPASS output port. The

LED will illuminate according to the selection.

5INPUT CAT5e/6/7 5~6 & LED: Press the IN buttons to select an input

source signal from the 2 CAT5e/6/7 input sources to be display for

output ports. The LED will illuminate according to the selection.

6INPUT PC & LED: Press this button to select PC input source signal to

be display for PC output port. The LED will illuminate according to

the selection.

7INPUT CV & LED: Press this button to select CV input source signal s

to be display for CV output port. The LED will illuminate according

to the selection.

8MENU: Press this wheel to enter into the menu and press it again to

conrm the selection.

9+/-: Press these buttons to move up/down under menu selection or

under volume control to adjust audio volume up/down.

10 ENTER: Press this button to conrm menu selection.

6.2 Rear Panel

IR IN

HDMI 1HDMI 2

SERVICE 2

COAX

AUDIO

AUDIO AUDIO 7AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4

HDMI

BYPASS

CAT5e/6/7CAT5e/6/7 CAT5e/6/7 PC

HDMI 1 HDMI 2HDMI 3HDMI 45 67

INPUT RLCV

LAN

RS-232

DC 24 V

OUTPUT

IR OUT

SERVICE 1

ON OFF

DSP PROG.

2 6 8 13 14 16

5 7

3 4 7 9 10 12 15 1711

1IR OUT: Connect to the supplied IR Blaster cable for IR signal

transmission. Place the IR Blaster in direct line-of-sight of the

equipment to be controlled.

2IR IN: Connect to the supplied IR Extender cable for IR signal

reception. Ensure that remote being used is within the direct line-

of-sight of the IR Extender.

3OUTPUT CAT5e/6/7: Connect to the Receiver unit with a Single

CAT5e/6/7 cable for transmission of all data signals.

4OUTPUT HDMI: Connect to a HDMI equipped TV/monitor for display

of the HDMI input source signal.

5OUTPUT COAX: Connect to audio sound equipment such as

speaker or amplier for audio sound output.

6OUTPUT AUDIO: Connect to audio sound equipment such as

speaker or amplier for audio sound output.

7SERVICE 1& 2: These slots are reserved for rmware update use

only.

8DSP PROG Switch: This switch is reserved for rmware update use

only. Default setting is on OFF.

9BYPASS: Connect to a HDMI equipped TV/monitor or DVI equipped

monitor with audio sound equipment such as speaker for both

video and audio output display.

10 INPUT HDMI 1~4 & AUDIO 1~4: Connect to HDMI source equipment

such as DVD or Blu-ray player along or to DVI source equipment

along with audio source signal.

11 INPUT CAT5e/6/7: Connect this port to HDMI to CAT5e/6/7

Transmitter with CAT5e/6/7 cable to extend the signal up to 100m.

12 INPUT PC & AUDIO: Connect this port to PC/Laptop with audio

signal for input signal selecting.

13 INPUT CV: Connect this port to source equipment such as video

player or Set-Top-Box for input signal selecting.

14 RS-232: Connect from PC/Laptop for RS-232 command sending to

control the device.

15 LAN: Connect from PC/Laptop with active internet service for Web

GUI control with RJ-45 terminated cable.

16 POWER Toggle: Switch this toggle to turn ON and OFF the device’s

power.

17 DC 24V: Connect the adaptor with power cord included in the

package and connect to AC wall outlet for power supply.

6.3 Remote Control

1POWER:

Press this button to switch the device

ON or to put the device into Standby

mode.

2MUTE:

Press this button to mute output audio

sound.

3INPUT:

Press these buttons one time each

to select input source for outputs

display.

4MENU:

Press this button to enter into the On-

Screen Menu.

5EXIT:

Press this button to exit menu

selection.

6 ▲▼◄►& OK:

Press OK to conrm the selection

or use the directional buttons to

navigate the On-Screen-Menu.

MUTE

CAT5e/6/7

POWER

EXIT MENU

RESET ADJUST

CR-135

HDMI 1 CAT5e/6/7 1

HDMI 2

HDMI 3

CAT5e/6/7 2

HDMI 4

HDMI 1 1PC

HDMI 2 2CV

HDMI 3

INPUT

BYPASS

7ADJUST:

Press this button when output image is not tting the display's

screen perfectly. The device will auto adjust the image to full

screen.

8RESET:

Press this button to set the deivice back into the fatory default

setting.

9BYPASS:

Press these buttons to select an input source for Bypass output port

to display.

6.4 IR Pin Assignment

Power

IR Blaster Signal

IR Signal

Power

Grounding

IR Receiver

IR Blaster

Inhaltsverzeichnis

Andere CYP Medienkonverter Handbücher

CYP

CYP CPRO-2E4KS Bedienungsanleitung

CYP

CYP CDPH-1S Bedienungsanleitung

CYP

CYP CPT-386 Bedienungsanleitung

CYP

CYP CLUX-11HB Bedienungsanleitung

CYP

CYP CP-259HN Bedienungsanleitung

CYP

CYP CSO-T2 Bedienungsanleitung

CYP

CYP CPT-385AM Bedienungsanleitung

CYP

CYP CPLUS-VPE2DD Bedienungsanleitung

CYP

CYP n-TECH SOLUTIONS nT15BX02/CLUX-11CD Bedienungsanleitung

CYP

CYP CM-398M Bedienungsanleitung

CYP

CYP CP-1261D Installationshandbuch

CYP

CYP CLUX-16EN Bedienungsanleitung

CYP

CYP CLUX-SDI2VS Bedienungsanleitung

CYP

CYP CP-304 Bedienungsanleitung

CYP

CYP AU-1 Bedienungsanleitung

CYP

CYP CSC-200RS Bedienungsanleitung

CYP

CYP DCT-3 Bedienungsanleitung

CYP

CYP CSC-5500 Bedienungsanleitung

CYP

CYP CMDPH-1A Bedienungsanleitung

CYP

CYP CH-322 Bedienungsanleitung

CYP

CYP AU-11HB Bedienungsanleitung

CYP

CYP CHD-380 Bedienungsanleitung

CYP

CYP CSC-210 Bedienungsanleitung

CYP

CYP AU-D9 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung

Expert

Expert EX-9543 Bedienungsanleitung
