CYP DCT-15 Bedienungsanleitung

DCT-15

Audio Converter

with Optical

Operation Manual

DCT-15

DRAFT MANUAL

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

Copyright Notice

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

© Copyright 2009 by Cypress Technology.

All Rights Reserved.

Version 1.0 October 2009

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

re, electrical shock and injury to persons.

 To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

V1 20100607 Preliminary Release

Table of Contents

1. Introduction..................................................................................1

2. Applications.................................................................................1

3. Package Contents ...................................................................... 1

4. System Requirements..................................................................1

5. Features........................................................................................1

6. Specifications ..............................................................................1

7. Operation Controls and Functions............................................. 2

7.1 Front Panel..................................................................... 3

7.2 Rear Panel ..................................................................... 3

8. Connection and Installation .....................................................4

1. Introduction

USB Audio converter with optical is an useful device for your external audio

output. It is designed to easy t with the current most use sources with input

of USB or optical and powered by USB. The optical output can be linked with

amplier or any sound system that’s with SPDIF input in the meantime, the R/L

can still be linked to display or speakers for the simultaneous stereo output. The

USB Audio Converter with Optical is your best choice for sound entertainment.

2. Applications

• External audio performance

• Digital to analog audio conversion

• USB to audio conversion

3. Package Contents

• Audio Box

• Operation Manual

4. System Requirements

PC or laptop with USB ables and or other source input such asDVD player with

optical cable. Output to amplierand or active speaker with optical and RCA

cables.

5. Features

• USB 2.0 full speed compatible

• USB audio device class specication v1.0 Compatible

• USB High performance 16-bit Stereo, 48/44.1 kHz sampling rate for audio

playback

• Optical sampling rate supports up to 192 kHz, 24bit

• Low power consumption

1

Input Port Optical and Mini USB

USB Sampling Frequency 48/44.1KHz / 16 bits

Optical Sample Frequency Up to 192 kHz / 24 bits

Output Port Optical and R/L

ESD Protection Human body model: ± 8kV (air-gap discharge)

± 6kV (contact discharge)

Dimensions(mm) 90 (W) x 120 (D) x 25(H)

Weight(g) 250

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0°C~40°C/ 32°F~104°F

Storage Temperature -20°C~60°C/ -4°F~140°F

Power Consumption 1W

Relative Humidity 20 ~ 90% RH (non-condensing)

6. Specications

2

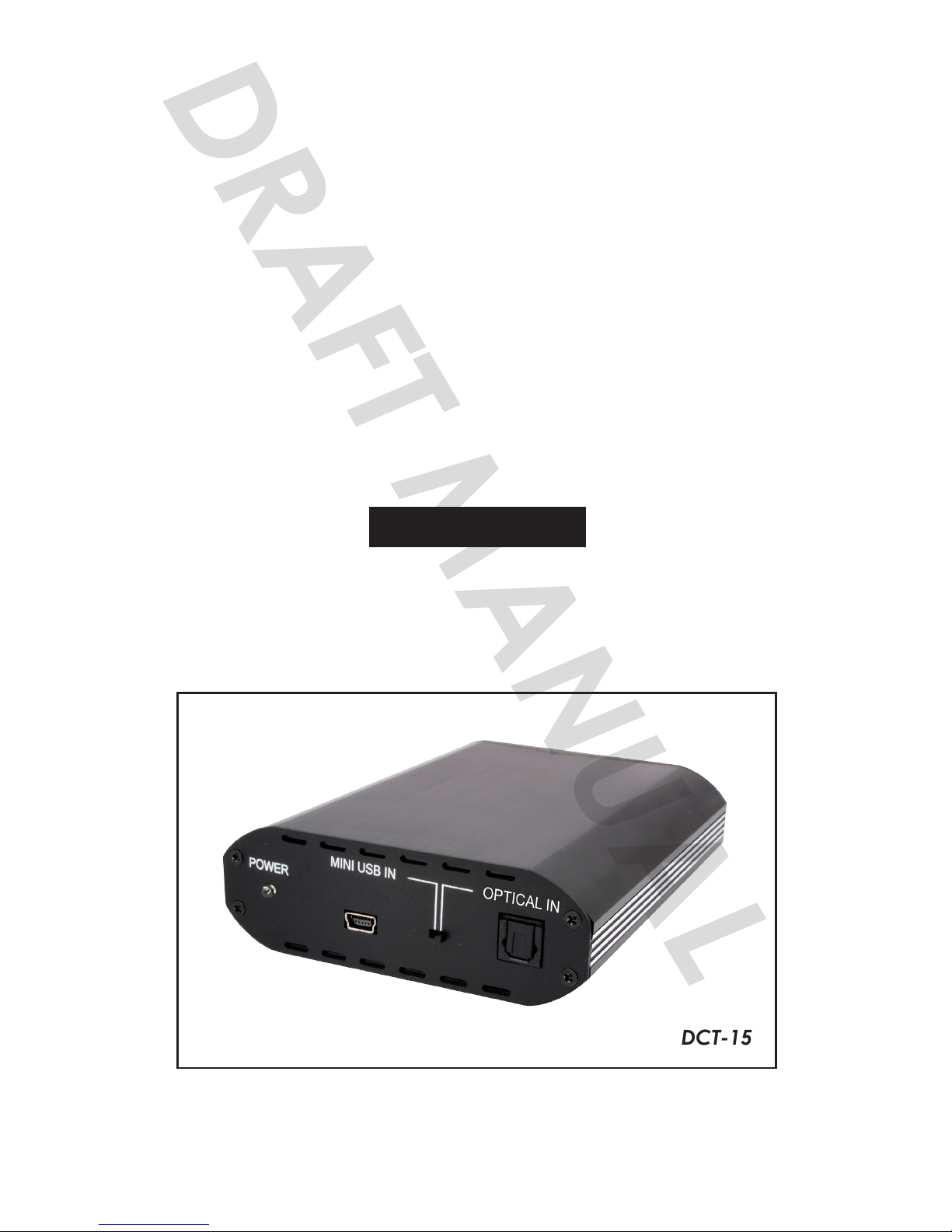

7. Operation Controls and Functions

7.1 Front Panel

1 2 3 4

1. Power LED: This red LED will illuminate when the device is connected with

power supply.

2. Mini USB In: This slot is where you connect input audio source .signal or for

power supply with USB cable from the PC or notebook.

3. USB & OPTICAL Switch: This switch allows user to choose input audio

source from USB or from Toslink.

4. OPTICAL IN: This slots is where you connect the input audio source

signal from DVD or PS3 and etc with optical cable.

7.2 Rear Panel

1 2 3

1. OPTICAL OUT: This slot is where you connect the amplier or speaker with

optical cable for audio output.

2. L/R OUT: These slots are where you connect the speaker with RCA cables

for audio output.

3

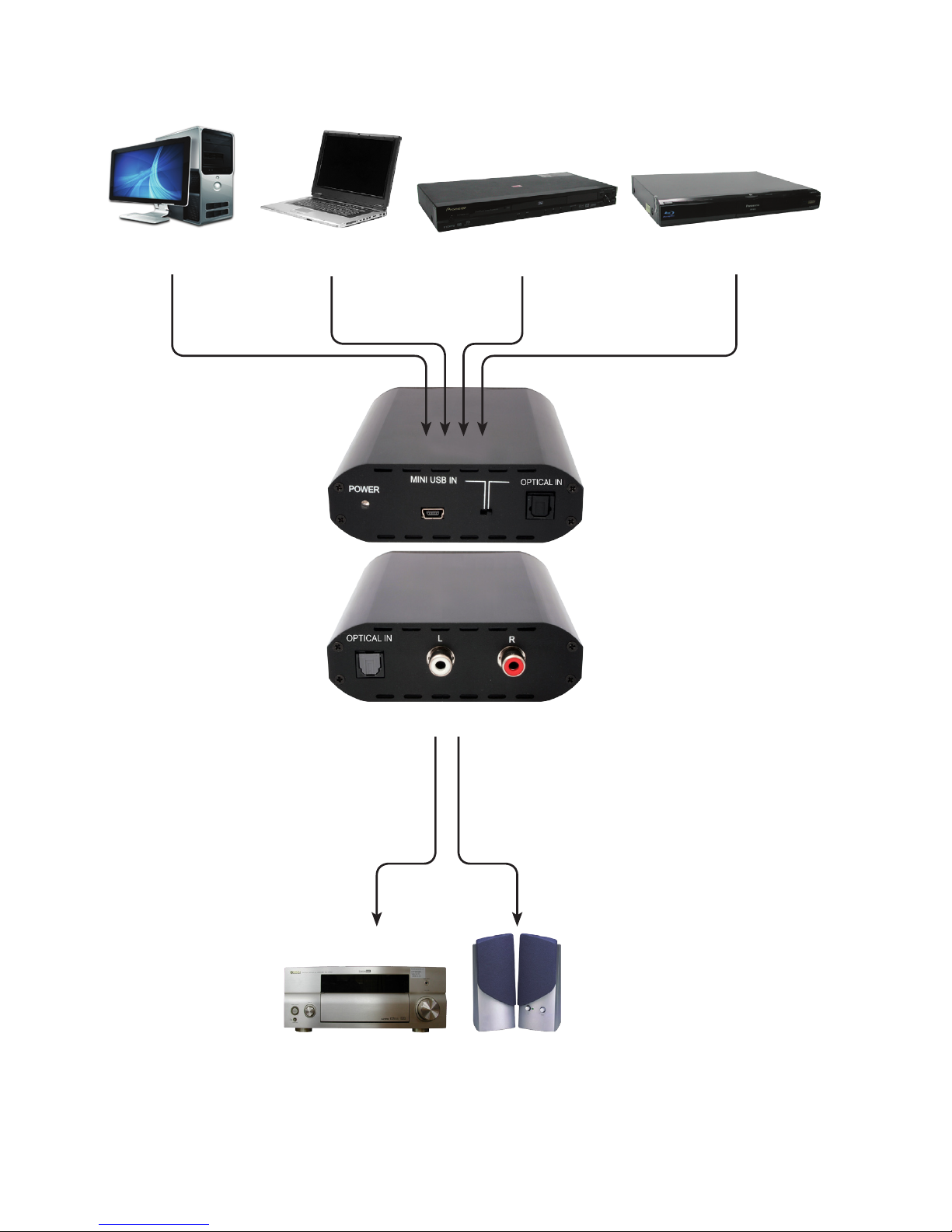

8. Connection and Installation

PC

DCT-15

NB DVD BlueRay

ONKYO AMP Active Speaker

4

Acronyms A

Acronym Complete Term

USB Universal Serial Bus

5
