CYP DCT-4 Bedienungsanleitung
DCT-4
Stereo Analog to Dual Outputs
Digital Converter (ADC)
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 24/12/12 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel.........................................2
6.2 Rear Panel .........................................2
6.3 Left Panel ...........................................3
6.4 Top Panel ...........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The Stereo Analog to Dual Outputs Digital Converter (ADC) is
designed to convert analog stereo audio to Coaxial and TOSLINK
Optical digital outputs. The digital output is 2 channels uncompressed
LPCM with a sampling rate of 48 kHz. Both Optical and Coaxial cables
connected to the output ports of the unit can run up to 5 meters while
still providing a reliable and lossless audio signal transmission. The unit
is both compact and easy to install, which makes it a very handy
device, perfect for converting audio signals in the home or workplace.
2. APPLICATIONS
• Convert analog audio to digital to connect to optical or coaxial
digital AV receiver input
• Convert and distribute an analog audio signal to 2 digital outputs (1
Coaxial and 1 Optical)
3. PACKAGE CONTENTS
• Stereo Analog to Dual Outputs Digital Converter (ADC)
• 5 V DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Analog audio source device such as DVD or CD player and audio
output device such as an amplier or AV receiver with digital audio
input (Coaxial/Optical).
5. FEATURES
• Supports uncompressed output of 2 channels LPCM digital audio
signals
• Supports an output sampling rate of 48 kHz
• Provides electromagnetic-noise-free transmission
• Easy to install and operate
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
L
-
IN
-
R
1
1
L/R IN: Connect this input to the stereo output of an audio
streamer, AV receiver, LCD TV, or DVD player, using stereo RCA
cables.
6.2 Rear Panel
COAX
-
OUT
-
OPTICAL
1 2
1
COAX OUT: Connect this output to the Coaxial input of an
audio equipment such as an amplier or A/V receiver, using a
compatible cable.
1
OPTICAL OUT: Connect this output to the Optical input of an
audio equipment such as an amplier or A/V receiver, using a
compatible cable.
3
6.3 Left Panel
1
DC 5V
1
DC 5V: Plug 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
6.4 Top Panel
ANALOG TO DIGITAL
AUDIO CONVERTER
1
1
POWER LED: The LED will illuminate when the power is connected.
4
7. CONNECTION DIAGRAM
ANALOG TO DIGITAL
AUDIO CONVERTER
DVD Player
Digital Audio
Output (Optical)
AV Receiver AV Receiver
Analog
Stereo
Input
Digital Audio
Output (Coaxial)
Power
Supply
5
8. SPECIFICATIONS
Input Ports 1×Analog Stereo (RCA connectors)
Input Format Analog Stereo 2 CH
Output Format LPCM 2 CH
Output Sample Frequency 48 kHz
Output Ports 1×Coaxial
1×Optical (TOSLINK connector)
Output SNR >90 dB
Output THD+N < 0.01 % at 1 kHz
Output Frequency Response < ±0.5 dB 20 Hz–20 kHz
Output Crosstalk < −85 dB
Power Supply 5 V/0.36~0.5 A DC (US/EU standards,
CE/FCC/UL certied)
Dimensions 57 mm (W)×45.5 mm (D)×23.5 mm (H)
Weight 30 g
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0 °C~ 40 °C
Power Consumption 0.6 W
Andere Handbücher für DCT-4
1
Inhaltsverzeichnis
Andere CYP Medienkonverter Handbücher
CYP
CYP AU-D9 Bedienungsanleitung
CYP

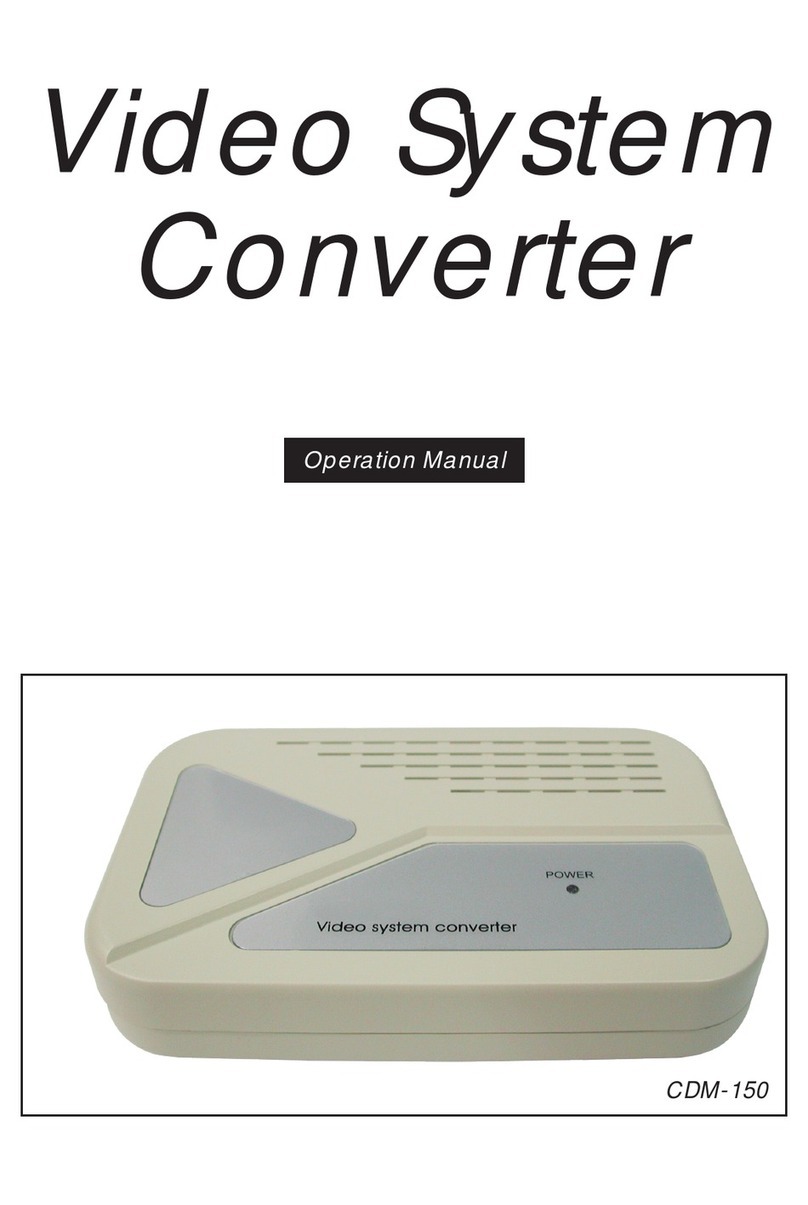

CYP CDM-150 Bedienungsanleitung
