CYP PUV-1830TX-AVLC Bedienungsanleitung

PUV-1830TX-AVLC

HDBaseT™ HDR Transmitter

(4K, HDCP2.2, PoH, LAN, OAR, 18Gbps)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 25/05/2018 First release

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................7

5. Features..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panel................................................... 8

6.2 Rear Panel..................................................... 9

6.3 Right Panel.................................................10

6.4 IR Cable Pinouts .......................................10

6.5 RS-232 Control..........................................11

6.6 RS-232 Commands..................................11

6.7 EDID Management..................................13

7. Connection Diagram .......................... 18

8. Specifications...................................... 19

8.1 Technical Specifications ........................19

8.2 Video Specifications................................20

8.3 Audio Specifications...............................21

8.4 Cable Specifications ...............................22

8.5 HDBaseT Features....................................22

9. Acronyms............................................. 23

1. INTRODUCTION

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for ex-

tending HD audio and video as well as Ethernet and control via a single

run of Cat.5e/6/7 cable over distances of up to 100 metres. Multiple data

and control interfaces are provided, including IR, RS-232 and LAN connec-

tions. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0

standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x stan-

dards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI

video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-

bit sources with HDR, are able to be processed and extended by the use

of AVLC (Adaptive Visually Lossless Compression) when connected to a

compatible AVLC Receiver.

Beyond video, data, and control this unit also contains useful audio

features. The Optical Audio Return (OAR) feature supports transmitting

optical audio back from a compatible Receiver for local playback. Round-

ing out the feature set is robust EDID management as well as automatic

HDBaseT clock stretching and TMDS re-clocking support. This Transmit-

ter (PSE) can provide 48V PoH (Power over HDBaseT) to a compatible

Receiver (PD), allowing for greater exibility within dierent installation

scenarios.

2. APPLICATIONS

48V PoH from Transmitter (PSE) to Receiver (PD)

Household entertainment sharing and control

Lecture room display and control

Showroom display and control

Meeting room presentation and control

Classroom display and control

3. PACKAGE CONTENTS

1×HDMI over HDBaseT Transmitter with HDR & OAR

1×48V/0.83A DC Power Adapter

1×Power Cord

1×3.5mm to IR Blaster Cable

1×3-pin Terminal Block to 9-pin D-sub Adapter Cable

1×Rackmount Ears (Set of 2)

1×Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source equipment such as a media player, video game console

or set-top box.

A compatible HDBaseT Receiver with AVLC and 48V PoH support is

recommended.

The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly

recommended.

The use of “Premium High Speed HDMI” cables is highly recommended.

5. FEATURES

HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible

HDCP 2.2 and HDCP 1.x compliant

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output

Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

and Deep Colour input and output up to 12-bit

Supports CEC bypass

Simultaneous transmission of uncompressed video, audio and data

over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and

70m/230ft at 4K

HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V

PoH, and Control (bidirectional IR/RS-232 pass-through)

Integrated AVLC (Adaptive Visually Lossless Compression) activates

when the bandwidth requirements of the source are beyond 10.2Gbps

(340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a

compatible Receiver with no loss of visual quality

The AVLC feature allows manual selection between High Quality Mode

(Full bandwidth) and Standard Mode (Lower bandwidth, useful for

longer cable runs with 4K sources)

Supports the Optical Audio Return (OAR) function to transmit optical

audio from a compatible Receiver to the Transmitter

Comprehensive EDID management support including 6 pre-defined

EDIDs, 9 user EDIDs and an EDID bypass mode

PC-based EDID management software allows for the uploading of

customised user EDIDs via USB

Supports HDMI DDC bus clock stretching for improved compatibility

with certain Blu-ray players

Performs TMDS re-clocking and signal re-generation for improved

signal integrity

Ultra-thin design (16mm thickness) for convenient installation

Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD)

(compatible Receivers only)

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

CONSOLE/

BYPASS

RS-232SERVICE

OPT. OUT

DC 48V

POWER

LINK

IR BLASTER 2IR EXTENDER 1

1 2 3 4 5 6 7 8

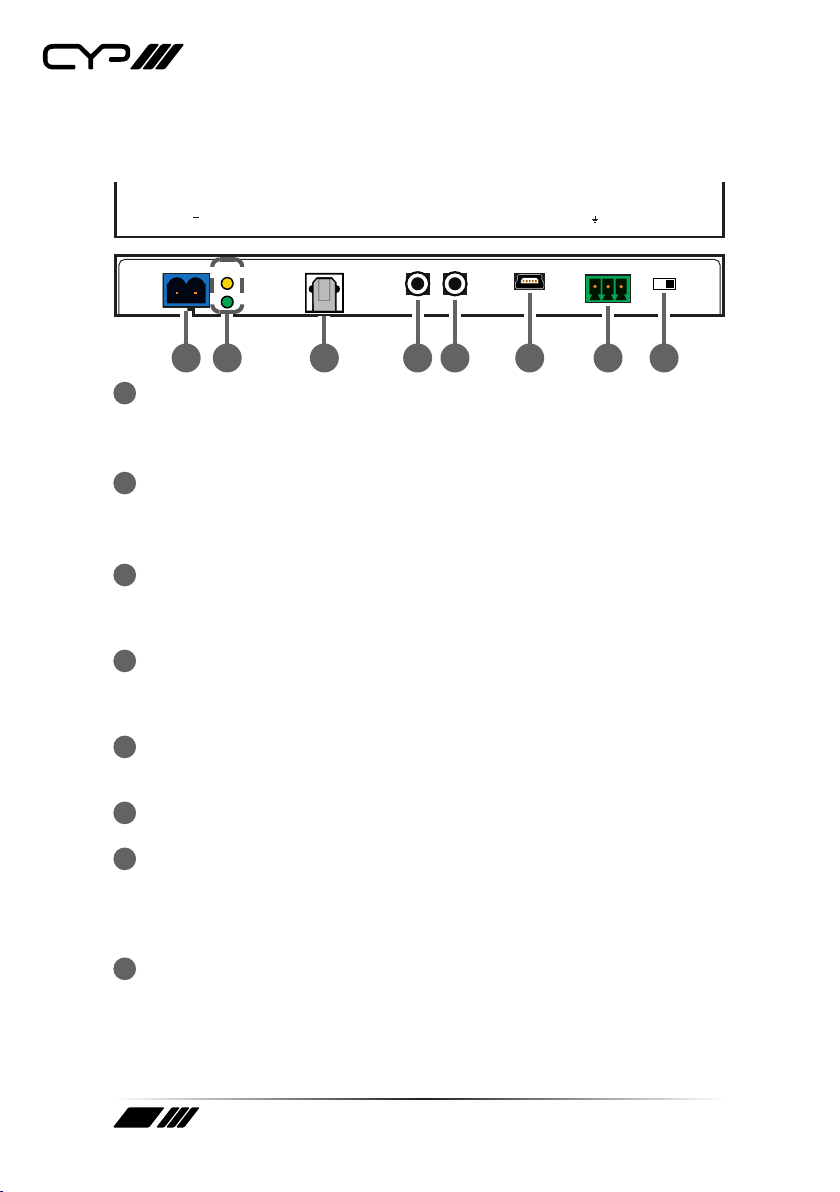

1DC 48V: Plug the 48V DC power adapter into this port and connect it

to an AC wall outlet for power.

Note: Please be sure to follow the polarity labels on the unit and the

adapter’s wires.

2POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

LINK LED: This LED will illuminate solidly when a live connection with

a compatible Receiver is active.

3OPT. OUT: Connect to powered speakers or an amplifier for digital

audio output using an appropriate optical cable. Audio is sourced

from the Optical Audio Return input on a connected compatible

Receiver.

4IR EXTENDER 1: Connect to an IR Extender to extend the IR control

range of devices connected to the other end of the HDBaseT

connection. Ensure that the remote being used is within direct line-of-

sight of the IR Extender.

5IR BLASTER 2: Connect to the provided IR Blaster to transmit IR

signals from the other end of the HDBaseT connection to devices

within direct line-of-sight of the IR Blaster.

6SERVICE: This USB port is reserved for firmware update and user EDID

upload use.

7RS-232: Connect to a PC, laptop or other serial control device with a

3-pin adapter cable for the extension of RS-232 signals to the Receiver

in "Bypass" mode, or for control this unit when in "Console" mode.

Note: Depending on the controlled device connected to the Receiver side,

the Tx and Rx pins might need to be reversed.

8CONSOLE/BYPASS: This switch controls the operational mode of the

RS-232 port. When set to “Bypass”, RS-232 signals will be passed to the

connected Receiver. When set to “Console”the RS-232 port may be

used to send commands directly to the Transmitter.

Note: RS-232 bypass requires both the Transmitter and Receiver to be set

to “Bypass” mode.

6.2 Rear Panel

CAT5e/6/7 OUTHQ / STD

SWITCH

STD

HDMI IN LAN

1 2 3 4 5

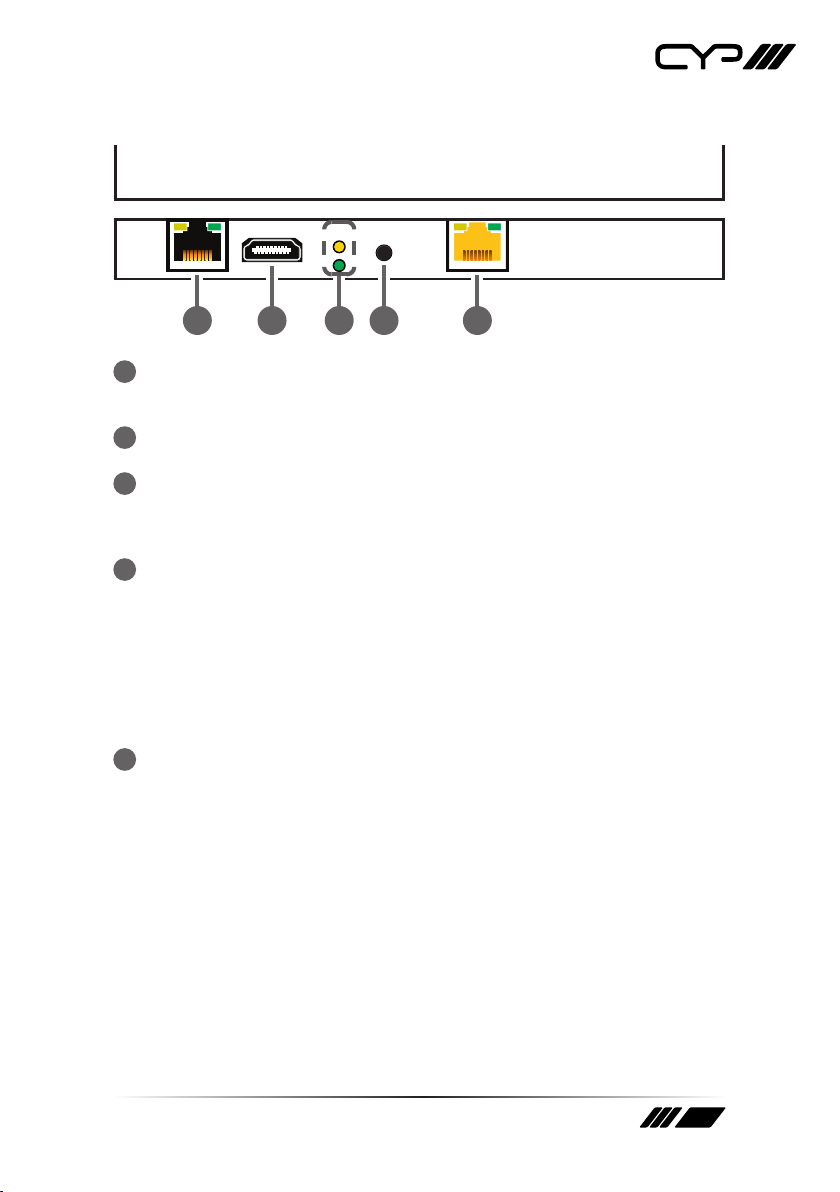

1LAN: Connect to an Ethernet supporting device or to your local

network, as appropriate, to extend the network to both ends of the

HDBaseT connection.

2HDMI IN: Connect to HDMI source equipment such as a media player,

game console or set-top box.

3HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode

will be used when AVLC is required. The lower green LED indicates that

AVLC will use HQ (High Quality) mode. The upper yellow LED indicates

that AVLC will use STD (Standard) mode.

4HQ/STD SWITCH: This switch allows the user to select which

compression mode to use when AVLC is active, High Quality or

Standard.

Note: HQ (High Quality) mode uses the least amount of compression

and provides the highest possible visual quality (perceptually identical

to the original). STD (Standard Quality) mode applies additional signal

reduction methods to lower the bandwidth requirements of 4K sources

further, improving transmission reliability over longer cable runs at the

cost of some visual fidelity.

5CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a

single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH

will also be supplied when connected to a compatible PD Receiver.

Note: The 48V PoH function is designed for powering compatible Receiver

units only. Non-PoH Receivers will need their own power supply. Receivers

from other brands may not be compatible.

6.3 Right Panel

EDID

1234

1EDID: The EDID dipswitch block provides a way to select the EDID

to use with the connected source. By using a combination of on and

off settings for the dipswitches, there are a total of 16 possible EDID

selections across 3 different operation modes.

The three modes are “Internal EDID”, “User EDID” and“External EDID”.

There are a total of 6 built-in internal EDIDs and 9 User EDIDs (which

can be modified via USB upload). The “External EDID” setting will copy

the EDID from the sink that is connected to the Receiver. (See “EDID

Management” for more details.)

6.4 IR Cable Pinouts

Infrared

Power

Ground

IR Extender

IR Blaster Power

Infrared

Inhaltsverzeichnis

Andere CYP Sender Handbücher

CYP

CYP PU-507-KIT Bedienungsanleitung

CYP

CYP PUV-1730PLTX-AVLC Bedienungsanleitung

CYP

CYP COH-RX2 Installationshandbuch

CYP

CYP CH-527TXPLVBD Bedienungsanleitung

CYP

CYP CH-2538TXM-TB Bedienungsanleitung

CYP

CYP PU-103 Bedienungsanleitung

CYP

CYP PU-8H8CTXIR Bedienungsanleitung

CYP

CYP CA-HDMIAT Bedienungsanleitung

CYP

CYP CH-1527TXV Bedienungsanleitung

CYP

CYP CH-1107 TX Bedienungsanleitung

CYP

CYP PU-1103 Bedienungsanleitung

CYP

CYP CH-1602RX Bedienungsanleitung

CYP

CYP PUV-1510TX Bedienungsanleitung

CYP

CYP CH-1106TX & RX Bedienungsanleitung

CYP

CYP PU-107 Bedienungsanleitung

CYP

CYP CH-507TXBD: CH-507RXBD Bedienungsanleitung

CYP

CYP CH-1527TXPLV Bedienungsanleitung

CYP

CYP CH-306TXA & RXA Bedienungsanleitung

CYP

CYP CH-516TXAS Bedienungsanleitung

CYP

CYP DCT-30TX Bedienungsanleitung

CYP

CYP IP-7000TX Installationshandbuch

CYP

CYP EL-2600V Bedienungsanleitung

CYP

CYP AVX-101F-TX Bedienungsanleitung

CYP

CYP PUV-1510RXWP Bedienungsanleitung

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
