Cypress CDVI-41 Bedienungsanleitung

4-in 1-out

DVI Switcher

Operation Manual

CDVI-41

1 4 2 3

RS-232

DVI IN 4 DVI IN 3 DVI IN 2 DVI IN 1

DC 5V

DVI OUT

123 4

INPUT1 2 3 4 POWER

SIGNAL ENHANCE

CDVI-41 4x1 DVI Switcher

Introduction

Cypress CDVI-41 is a high performance DVI switcher with remote control. It allows

your various DVI sources to share one DVI display.

Simply pressing one button to select your desired DVI source for display on the

HDTV.

Features

* HDMI 1.1, HDCP 1.1 and DVI 1.0 compliant.

* Signal enhancement feature allows you to improve signal quality after long

distance transmission.

* LED indicators.

* Ideal for home theater integration.

* Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)&

HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

* Remote control.

* Easy to install and simple to operate.

Operation Controls and Functions

Front Panel

1. Remote control sensor.

2. Input select/Indicators: Press the " INPUT" button repeatedly to switch to your

desired input source and the LED will illuminate to indicate which input source

is being selected.

3. Signal Enhancement/Indicator: Press the " Signal Enhance" button to turn on

this feature to improve signal quality after long distance transmission.

Press again to turn off. The LED will illuminate when the signal is enhanced.

4. Power LED Indicator: The LED will illuminate when the power is connected.

Operation Controls and Functions

Rear Panel

CR-22

1. DVI output: Connect the DVI output to the DVI input of your display using DVI cable.

2.DVI inputs: Connect your various DVI sources to each of the DVI input of the

unit using DVI cables.

3. Power: Plug the supplied 5VDC power supply into the unit.

4. RS232: 9-pin D-sub female connector for connecting to your other control

console for remote control.

Remote Control

1. Power:

Press the button to turn on/off the unit.

2. Direct input selector:

Press numerical number button to select your desired

input source.

3. Void buttons (No function). If the button number is

greater than the total input number of the unit then

the button is of no function.

Specifications

* Frequency bandwidth: 1.65Gbps(single link)

* Inputs: 4 x DVI female ports (Type A connector)

* Output: 1 x DVI female port (single link)

* 5VDC universal power supply

* Weight: 1kgs

* Dimension: 240(W) x104(D) x 44(H)mm

RS-232 Remote Control Protocol

The connection between splitter and remote controller with RS-232 modem cable.

ns definition of modem cable

RS-232 transmission format:

Baud Rate : 9600 bps

Data Bit : 8 Bits

Parity: None

Stop Bit: 1 bit

Splitter Remote Controller

PIN Definition PIN Definition

1 NC 1 NC

2 T xD 2 R xD

3 R x D 3 T x D

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

LCD TV DVD 2

DVD 1 DVD 3

STB

Connection and Installation

RS-232 command

* The command is combined with a characters and digits.

* This combination command code has to be separated by ASCII character SPACE

* The command will be executed after ASCII character "CR" input

* After ASCII character "CR" is entered, if the command is legal the unit will reply "OK" message

* If the command is illegal, The unit will reply "NG" message

Command Code Comment

PORT 1 PORT 1 ON

PORT 2 PORT 2 ON

PORT 3 PORT 3 ON

PORT 4 PORT 4 ON

SIGNAL 1 ENABLE SIGNAL ENHANCE

SIGNAL 0 DISABLE SIGNAL ENHANCE

POWER 1 POWER ON

POWER 0 POWER OFF

Inhaltsverzeichnis

Andere Cypress Schalten Handbücher

Cypress

Cypress CHDMI-38C Bedienungsanleitung

Cypress

Cypress CPCD-3A Bedienungsanleitung

Cypress

Cypress CH-1507TX Bedienungsanleitung

Cypress

Cypress CHDMI-31 Bedienungsanleitung

Cypress

Cypress CHDMI-81 Bedienungsanleitung

Cypress

Cypress CHMX-24 Bedienungsanleitung

Cypress

Cypress DVT-17 Bedienungsanleitung

Cypress

Cypress CLUX-21SY Bedienungsanleitung

Cypress

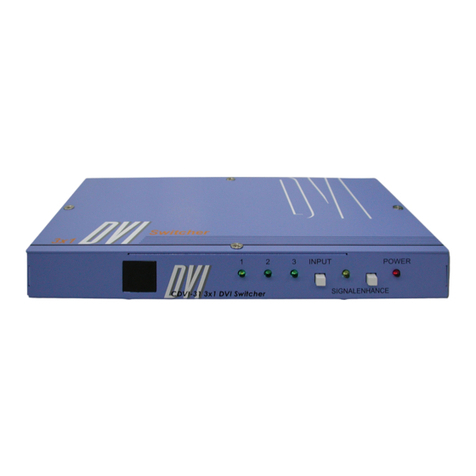

Cypress CDVI-31 Bedienungsanleitung
