Cypress CLUX-C61C Bedienungsanleitung
CLUX-C61C
6 by 1 HDMI V1.3
Switcher with CEC
Operation Manual
CLUX-C61C
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 July 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Version No Date Summary of Change
V1 20090717 Preliminary Release
Revision History
1
1
1
1
2
3
3
4
5
5
5
6
7
8
Table of Contents
1. Introduction…………………………………………................................
2. Applications............................……………………………………………
3. Package Contents.............……………………………………………….
4. System Requirements....................………………………………….…..
5. Features .............................………………………………………………
6. Specications ......................................................………………………
7. Operation Controls and Functions...............…………………....……..
7.1 Front Panel...................……..………..............................…………..
7.2 Rear Panel....................……..………..............................…………..
8. Remote Control...................................................................................
9. RS-232 Protocol...................................................................................
9.1 Pin Denitions...................…..………..............................…………..
9.2 RS-232 Commands..................………............................…………..
10. Connection and Installation..............................................................
1. Introduction
This is a high performance HDMI switcher that allows for various HDMI sources
to share one HDTV display. This device features CEC control functions and
supports deep color, xvYCC and RS-232 control. Simply press one button
select your desired HDMI source to display on the HDTV or use remote control
to control your sources from a distance. Switching from one HDMI input
source to another will no longer be an inconvenience.
2. Applications
Multi-sources with one display
Showroom display
Educational presentation
3. Package Contents
6 by 1 HDMI v1.3 Switcher
Remote Control (CR-63 with battery)
5V DC Power Supply Adaptor
Operation Manual
4. System Requirements
Input source equipments, output displayer with HDMI cables.
1
5. Features
HDMI 1.3 and HDCP 1.1 compliant
Supports deep color display RGB/YCbCr 4:4:4 24/30/36 bits
Supports color space YCbCr 4:2:2 16/20/24 bits
Supports high denition audio – Dolby Digital True HD®and DTS-HD®
Signal Enhancement feature allows signal quality improvement after
long distance transmission
HDMI cable distance test with 1080p/8-bit resolution, the input/output
can reach up to 15/15 meters. If running at 1080p/12-bit, the input/
output can reach at up to 15/6 meters
PC resolution supports: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)
HD resolution supports: 480i ~1080p 50/60 and 1080p 24
With remote control function
Supports RS232 operation
Supports CEC control function
Supports xvYCC
2
6. Specications
Frequency Bandwidth 2.25Gbps(single link)
Input Ports 6 x HDMI female ports (Type A connector)
Output Ports 1 x RS232
1 x HDMI female port (single link)
Color Space YCbCr 4:2:2 16/20/24 bits
Deep Color RGB / YCbCr 4:4:4 24/30/36 bits
ESD Protection Human body model: ±10kV (air-gap discharge)
±6kV (contact discharge)
Input TMDS signal 1.2 Volts (peak-to-peak)
Input DDC signal 5 Volts (peak-to-peak, TTL)
Power Supply 5V/1A
Weight(g) 850
Dimensions(mm) 280(W) x 104(D) x 44(H)
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0ºC~40ºC / 32ºF ~ 104ºF
Storage Temperature -20ºC~60ºC / -4ºF ~ 140ºF
Relative Humidity 20%~90% RH (non-condensing)
Power Consumption 4.1W
3
2 1 3
6
2
5
1 INPUT POWER
4
HDMI IN CEC
ON/Bypass
xvYCC
Deep Color
CEC
HD Audio
Switcherv1.3CLUX-C61C 6x1 HDMI
① ② ③ ④ ⑤
7. Operation Controls and Functions

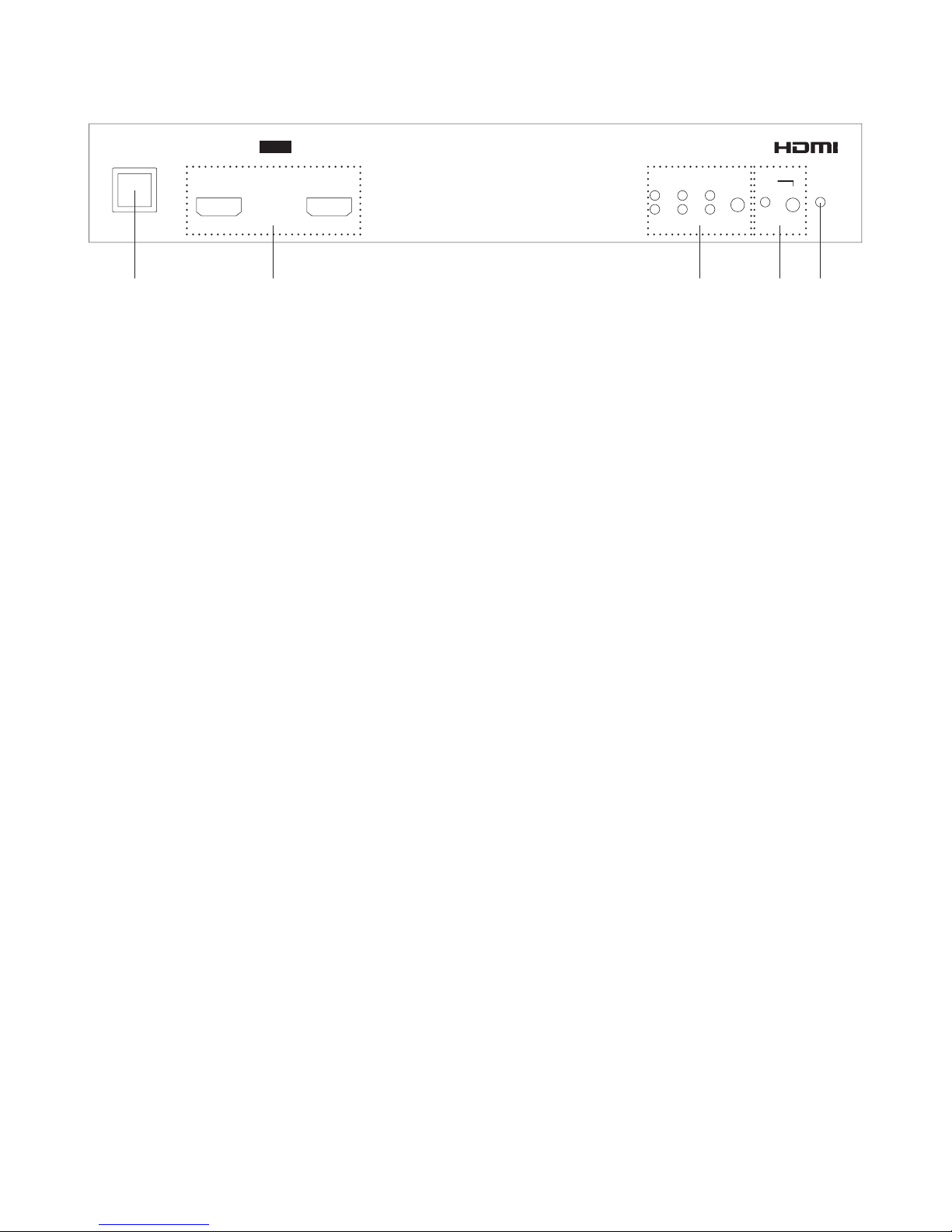

7.1 Front Panel
① Remote control sensor.
② HDMI IN 1~2: These slots connect to the HDMI/DVI output ports of your
source equipments. ie, set- up-box, DVD or Blue Ray.
③ Input select indicators: Press the “INPUT”button repeatedly to switch to
your desired input source. The LED that illuminates indicate the
corresponding input source is selected.
④ CEC button indicator: When the LED illuminate it means CEC is ON. Press
again to switch CEC to bypass mode and the LED will not illuminate
which means the CEC function will be terminate.
Note: Both input source and output display must support CEC function for
the switcher to properly perform CEC.
⑤ POWER indicator: When power is connected to the device,
the device automatically turns on and the power LED will turn red.
Note: To turn ON or switch the device to standby mode, please press the
"POWER" button on the remote control unit.
4
HDMI OUT 6 5 4 3
DC 5V
RS-232
HDMI IN
① ② ③ ④
7.2 Rear Panel
① HDMI OUT: This is the slot where you connect the HDMI output of the
switcher to the HDMI input of your display using a HDMI cable.
② RS-232 input: When doing rmware upgrade and/or PC remote system
control, connect a D-sub 9 pin cable from this RS232 slot to your
computer.
③ HDMI IN 3~6: These slots connect to the HDMI/DVI output ports of your
source equipments. ie, set- up-box, DVD or Blue Ray.
④ DC 5V: Connect the 5V DC power adaptor into this slot and plug the
adaptor to an AC wall outlet.
5
8. Remote Control
① Power: This button turns on the unit or set the device
to standby mode.
② CEC: This button turns on the CEC function of the unit or
set it to bypass mode. Please refer to section 6.1 for
more details.
③ Input selector: Buttons 1~6 to select the desired input
sources. Buttons 7~8 do not functioning for this model.
9. RS-232 Protocol
9.1 Pin Denitions
Baud Rate: 19200 bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Flow Chart: None
CR-63
POWERCEC
INPUT
3 4
1 2
5 6
7 8
①
③
②
Switcher Remote Controller
PIN Assignment PIN Assignment
1 NC 1 NC
2 TxD 2 RxD
3 RxD 3 TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
6
