D-Link DHP-P306AV Bedienungsanleitung
2D-Link DHP-P306AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2012 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
4.0 July 20, 2012 • Text Modication
Preface
3D-Link DHP-P306AV User Manual
Table of Contents
Preface .........................................................................................2
Manual Revisions .......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview ......................................................................4
Package Contents ......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................5
Hardware Overview ..................................................................... 6
LEDs ........................................................................................... 6
Connection ............................................................................. 7
Hardware Installation ...............................................................8
Push Button Security ................................................................... 9
Conguration .......................................................................... 12
Using the Setup Wizard ............................................................12
Conguration ...............................................................................13
Main .................................................................................................14
Security ..........................................................................................16
Installation Considerations .................................................. 18
PowerLine Installation Considerations ...............................18
Troubleshooting ..................................................................... 20
Technical Specications ........................................................ 21
Table of Contents
4D-Link DHP-P306AV User Manual
Section 1 - Product Overview
DHP-P306AV
• D-Link DHP-P306AV PowerLine AV Passthrough Adapter
• Ethernet Cable
• CD-ROM with User Manual and Utility
• Quick Install Guide
DHP-P307AV
• D-Link DHP-P306AV PowerLine AV Passthrough Adapter X2
• Ethernet Cable X2
• CD-ROM with User Manual and Utility
• Quick Install Guide
System Requirements
• Windows® 7, Windows Vista®, XP (with Service Pack 3)
• Ethernet interface (10/100/1000 Mbps)
• PC with 1.5GHz Processor
• 1 GB Memory
Product Overview
Package Contents
5D-Link DHP-P306AV User Manual
Section 1 - Product Overview
Introduction
D-Link announces a fast, 200Mbps* PowerLine AV Passthrough Adapter which allows you to connect your home computers,
networking devices and gaming devices through the most pervasive medium in your house - the electric PowerLines - and
share Internet connections, printers, transfer les, play games, and more.
Features
• Provides Ethernet to PowerLine Connection
• Fast Data Transfer Rate of Up to 200Mbps*
• One Ethernet port
• Plug & Play, Easy Installation
• Push Button Security
• Integrated Passthrough Power Socket with Noise Filtering
* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume of trac
and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that
do not follow the HomePlug AV and IEEE1901 standard.
6D-Link DHP-P306AV User Manual
Section 1 - Product Overview
Hardware Overview

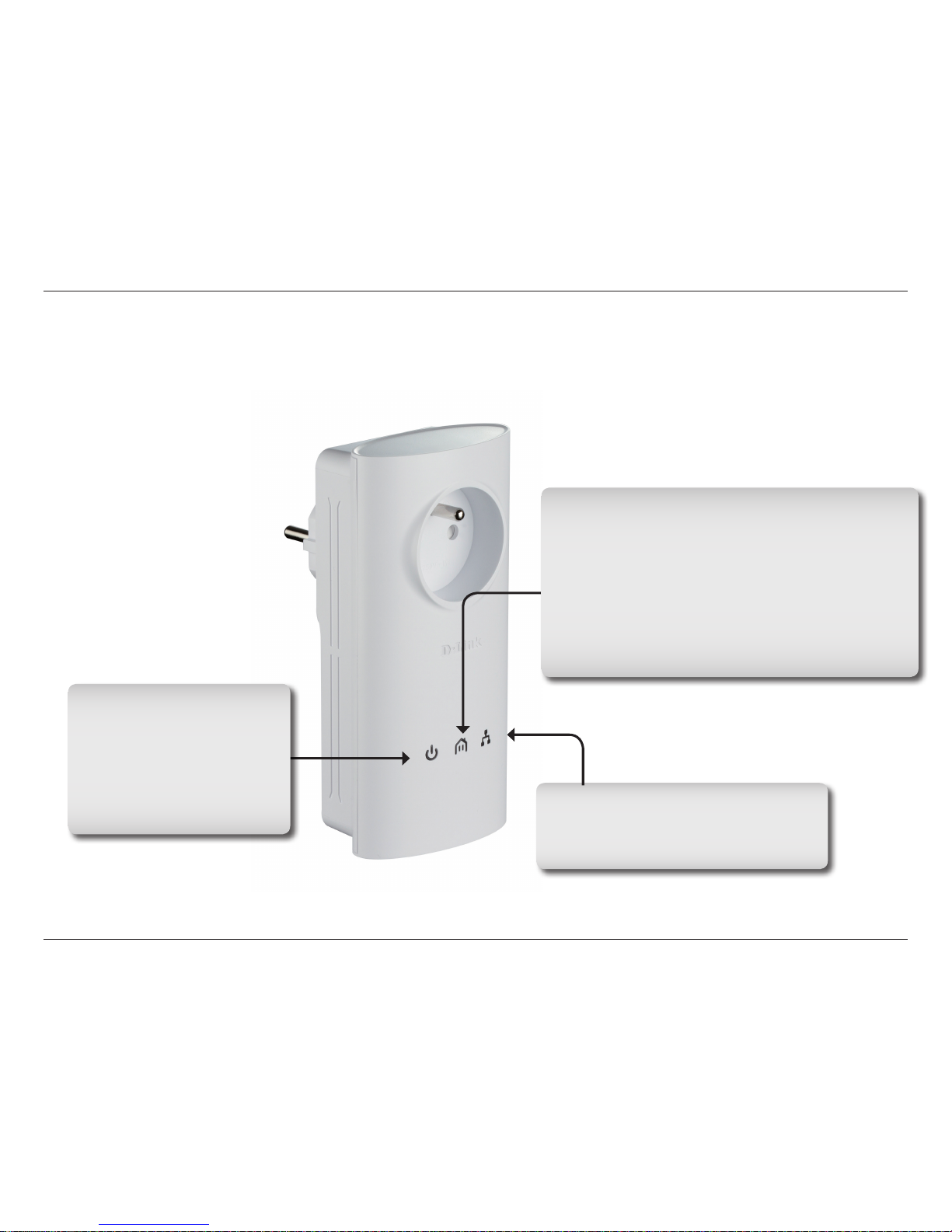

LEDs
Ethernet LED
• Solid. The Ethernet port is linked.
• Blinking. The device is transmitting data.
• O. There is no Ethernet connection.
PowerLine LED
• Solid. The device is connected to a PowerLine network.
• Blinking. The device is transmitting data.
• Off. The device has not found any other compatible
PowerLine devices using the same encryption key.
The color indicates the PowerLine link rate:
• Green. The PowerLine link rate is best.
• Amber.The PowerLine link rate is better.
• Red. The PowerLine link rate is good.
Power LED
• Solid. The device is receiving
electrical power.
• Blinking. The device is setting
itself up after reset or simple
connect button was pressed.
• O. The device is not receiving
electrical power.
7D-Link DHP-P306AV User Manual
Section 1 - Product Overview
Hardware Overview
Connection
Ethernet Port
Connect Ethernet cable to your PC
or Ethernet device.
Simple Connect Button
Press to secure your network. Refer
to page 9 for more information.
Reset Button
Press and hold the button for 1
second to reset to factory default.
Passthrough Power Socket
Rating: 250V/16A maximum
Please do not plug devices into
the power socket that exceed the
product rating.
8D-Link DHP-P306AV User Manual
Section 2 - Installation
DHP-P306AV
Hardware Installation
Power
Plug in the DHP-P306AV into an AC wall outlet or power strip.
Note: Power source is conrmed when the Power LED on the DHP-P306AV is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network
cable connector located on the DHP-P306AV and attach
the other end of the Ethernet cable to the network or PC.
Network Connectivity is conrmed when the Ethernet
LED on the DHP-P306AV are illuminated.

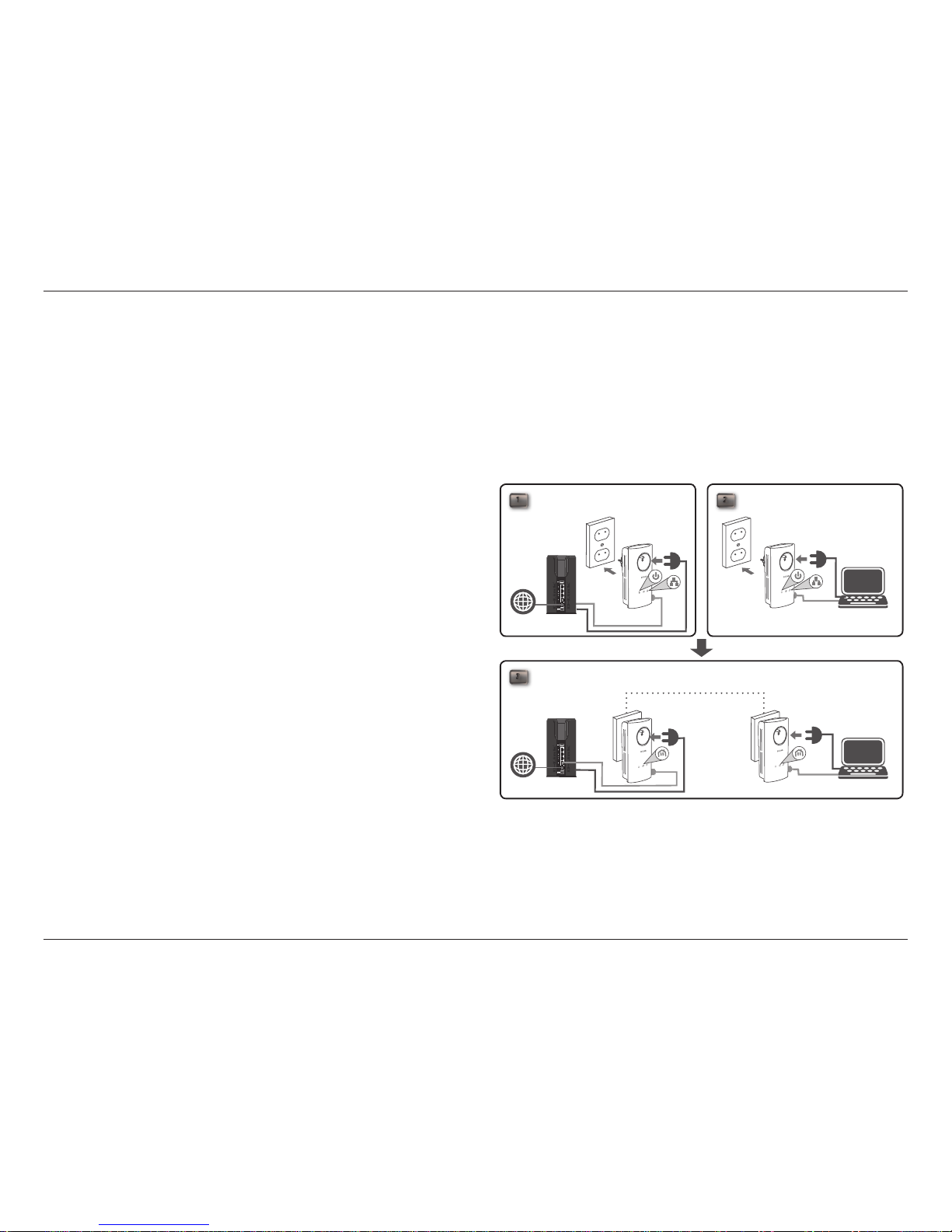

3ROOM A ROOM B
DHP-P306AVDHP-P306AV
RouterInternet NB
1 2
ROOM A ROOM B
DHP-P306AV
RouterInternet
NB
9D-Link DHP-P306AV User Manual
Section 2 - Installation
Understanding PowerLine AV Passthrough Adapter Security
The PowerLine AV Passthrough Adapters on the same network must use an identical encryption key. The default encryption key
of each PowerLine AV Passthrough Adapter is HomePlug AV. All PowerLine AV Passthrough Adapters with default encryption
key can communicate with each other.
It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to
protect your network from unauthorized access via the PowerLine network. To create a private encryption key instead of the
default encryption key, please follow below steps:
1. All Adapters
Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlug AV (default value). If
the encryption key is not set to the default value, press the reset button for 1 second for resetting it to the default value.
2. First Adapter
Press Simple connect button of the rst adapter for no more than three seconds.
The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption
key that each PowerLine AV Passthrough Adapter will use.
3. Second Adapter
Push Button Security
10D-Link DHP-P306AV User Manual
Section 2 - Installation
Within two minutes of pushing the Simple connect button of the rst adapter, press Simple connect button of second adapter
in your PowerLine network for no more than three seconds. The Power LED will start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your PowerLine network will be securely congured with the same network encryption
key. The adapters will memorize the security settings even if they are unplugged.
Note: To change the private encryption key, please reset the adapter back to its default value by pressing the reset button for
1 second and then follow the security setup procedure above.
4. Adding More Adapters
If you would like to add more than two adapters, press the button of the additional adapter for no more than three seconds.
The Power LED will start blinking after you release the button.
Then press the button of any adapter in your existing PowerLine network for no more than three seconds. The Power LED will
start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your PowerLine network will be securely congured with the same network encryption
key.
