D-Link AirPlus DI-614+ Bedienungsanleitung

This product can be set up

using a current web

browser, i.e., Internet

Explorer 6 or Netscape

Navigator 6.2.3.

D-Link AirPlus Wireless

Networking Kit

5V DC Power Adapter

specifications subject to change without notice. AirPlus Wireless Networking Kit. Part No. IG-BDWL915+. 05052003

Check Your Package Contents

DI-614+ 2.4GHz Wireless Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

DWL-650+ Wireless Cardbus Adapter

These are the items included with your purchase.

Installation Map

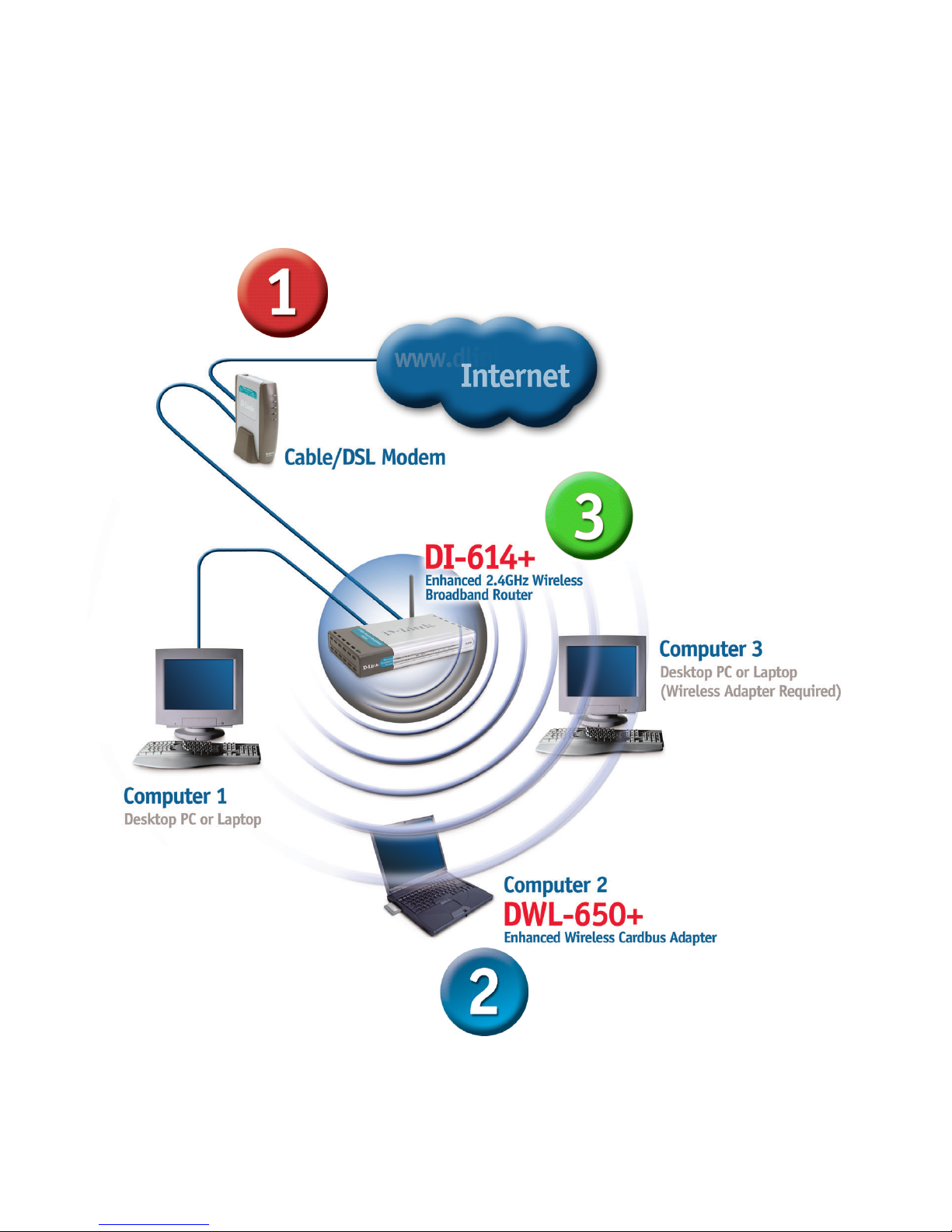

The diagram shown below illustrates a typical installation of this kit.

Please follow the instructions shown on the following page to install your

kit successfully.

Broadband Internet Connection

If you purchased this kit to share your high speed Internet connection

with your laptop and other computers, you must have either an

Ethernet-based Cable or DSL modem with an established Internet

account from an Internet Service Provider (ISP).

Installing the DWL-650+

Section 2 of this Installation Guide will walk you through the installa-

tion of the DWL-650+ on your laptop computer. Once the DWL-650+

is installed you will be able to communicate with other 802.11b

devices on your network.

You must have at least the following to use the DWL-650+:

- A laptop computer with an available 32-bit Cardbus slot

- At least a 300MHz processor and 32MB of memory

- Cardbus Controller properly installed and working in the laptop

computer

Installing the DI-614+

Section 3 of this Installation Guide will walk you through the installa-

tion and configuration of the DI-614+ as a Wireless Router to allow

you to access other 802.11b networked computers and the Internet.

You must have at least the following to configure the DI-614+:

- Internet Explorer 6.x or later

- Netscape Navigator 6.x or later

- Equivalent Java enabled Web Browser.

The step-by-step instructions that follow are

shown in Windows XP. The steps and

screens are similar for the other Windows

operating systems.

Turn on the computer and Insert the

D-Link AirPlus DWL-650+ Driver CD

in the CD-ROM drive.

Do NOT

install the

DWL-650+ Cardbus

Adapter into your

computer before

installing the driver

software .

The Installation Screen will appear.

If the CD Autorun function on your

computer does not automatically

start, go to Start > Run and type

“D:\Setup.exe”. If it does start,

proceed to the next screen.

Type “D:\Setup.exe”

Click Install Driver /PC Utility

The letter “D”

represents the

letter of the

CD-ROM drive. Your CD-

ROM drive may be a

different drive letter.

Click OK

Installing the DWL-650+

Click Next

Select No, I will

restart my computer

later

Click Finish

Shut down your laptop

Insert the DWL-650+ Wireless Cardbus Adapter

into the Cardbus Slot in your Laptop.

Make sure to turn off the

laptop computer.

Locate the Cardbus slot on

your laptop computer.

Gently insert the DWL-650+ into

the Cardbus slot in your

laptop computer (as shown).

Built-in Antenna

Used to wirelessly

connect to 802.11b

(AirPlus, Air) net-

works.

32-bit connector

This is the connector

that fits into the

Cardbus slot of your

laptop

Power LED

Lights to indicate that

the DWL-650+ is

properly inserted.

Link/Activity LED

Blinks when data is being transmitted

through the wireless connection.

When you restart your com-

puter this Found New Hard-

ware Wizard (Windows XP)

screen will appear:

Click Next

Select Install the

software automatically

(Recommended)

Restart your laptop

Note: Please do not remove the driver CD until the DWL-650+ installation is complete!

DWL-650+ Installation is Complete!

For Windows

XP: This Hardware

Installation alert screen

may appear after the

computer restarts.

Click Continue

Anyway to

finalize the

installation

(The D-Link driver software for this device is undergoing Windows Logo testing. Microsoft

certification is pending.)

For Windows 2000, this Digital

Signature Not Found screen may

appear after your computer restarts.

Click Yes to finalize

the installation

For Windows Me and 98SE, after

your computer restarts, this System

Settings Change screen may

appear.

Click Yes to finalize

the installation

Click Finish

Restart Your Computer

Connecting The DI-614+ Wireless Router

To Your Network

A. First, connect the power adapter to the receptor at the back panel of the

DI-614+ and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-614+

should be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-614+ (Power On)

Connect an Ethernet cable to the Ethernet port located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable /

DSL modem by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-614+ (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-614+. The WAN LED light will illuminate to indicate proper connection.

If the WAN LED is not illuminated, please go back to step B1 and repeat the

instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-614+ and an

available Ethernet port on the network adapter in the computer you will use to

configure the DI-614+. The LED light for LAN Port 1 will illuminate to indicate

proper connection. (Note: The LAN Ports on the DI-614+ are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to the LAN

Ports.)

D. Computers equipped with 802.11b wireless adapters will be able to connect to

the DI-614+. The DWL-650+ AirPlus Wireless Cardbus Adapter and the DWL-

520+ AirPlus Wireless PCI Adapter will be able to connect out of the box with

the router using their default wireless settings.

B. WAN PORT

Connect an Ethernet cable

to the Cable/DSL modem.

D. Antennas

Used to

wirelessly

connect to

802.11b

adapters.

C. LAN PORTS

These are the connections for

Ethernet cables to Ethernet

enabled computers.

A. Receptor for

Power Adapter.

Reset Button

Pressing this button restores the Router to its original

factory default settings.

Your Installation is Complete!Your Installation is Complete!

Your Installation is Complete!

After you’ve continued in Windows XP (or after the computer restarts

in the other Windows operating systems), the D-Link AirPlus DWL-

650+ Configuration Utility will automatically start and the utility icon

will appear in the bottom right hand corner of the desktop screen

(systray). If this icon appears GREEN, then you have success-

fully installed the DWL-650+, are connected to a wireless

network and are ready to communicate!

DWL-650+

Click Yes to finalize

the installation

If the utility icon does not appear,

double-click the shortcut icon that has

appeared on your desktop

For Windows XP, if you wish to use the

D-Link AirPlus Utility, please refer to

Appendix B.

Once you have logged in, the Home

screen will appear.

Click Run Wizard

Using The Setup Wizard for the DI-614+

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

Please follow the steps below to configure your Broadband connection

settings.
