D-Link DLB-1200 Bedienungsanleitung

Before You Begin

This Quick Installation Guide (QIG) provides instruction for installing the DLB-1200 and Ethernet configuration for other

PCs. The former part is going to show how to connect DLB-1200 with other Network equipments and Network

configuration of DLB-1200. The latter part is a description for configuring Network setting of other PCs on Ethernet to

make sure the normal function of whole Network.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 5x, Netscape

Navigator 4x.

DLB-1200

Network Load Balancer

Check Your Package Contents

♦ DLB-1200 Quick Installation Guide

♦ Ethernet(CAT5 UTP/Cross over) cablex1

♦ Console Cable

Using a power

supply with a

different voltage

rating will damage and void

the warranty for this product.

♦ 5V DC,3A Power Adapter

♦ Ethernet(CAT5 UTP/Straight-Through) cablex2

♦ CD-ROM(Containing Manual and Warranty)

♦ DLB-1200 Network Load Balancer

Connect the DLB-1200 to Your Ethernet

A、Ensure the DLB-1200 and DSL/Cable Modem are power OFF.

B、WAN port connection

Please use a standard cable or the cable supplied with your DSL/Cable Modem to connect DLB-1200 and DSL/Cable

Modem. If using only one Broadband modem, connect it to the "WAN 1 External Port".

If your WAN (DSL/Cable Modem) has been connected to internal Firewall or Router, please connect the DLB-1200 to the

Firewall or Router.

C、Ethernet port connection

Use 10Base T and 100Base T connections to connect your admin PC with the internal Switch or Hub that connected to the

Ethernet Port on DLB-1200. If you want directly connect the DLB-1200 to this PC, you have to use a Cross Over Line as

connection.

C.Ethernet Port

Please use 10Base T and 100Base T connections to

connect to here. Another end has to be connected to

internal Switch or Hub.

B.WAN Port

Please use a standard cable or the

cable supplied with your DSL/Cable

Modem to connect to here.

DC Power Inlet

Connect the supplied power

adapter here.

Console Port

If you need to configure the admin password or use

name, please connect one PC to this port and

change above items with the terminal linking

applications of the PC.

D、Power up

Power the DSL/Cable modem or modems.

Connect the supplied power adapter to the DLB-1200 and power up.

E、Check the LED

The Power Indicator and WAN 1/2 Indicator should be ON, if the corresponding WAN External Port was connected to a

DSL/Cable Modem、Firewall or a Router.

Ethernet LED

Power LED WAN1 /WAN2 LED

Status LED Activity LED

The corresponding Ethernet Indicator should be ON while a PC connected to the Ethernet Port. If any error condition

shows up, the Error Indicator stays ON.

Connection Legend

Here comes a connection legend, you have to connect your DSL/Cable Modems to WAN 1 and WAN 2 Port with DLB-1200,

then you have to connect DLB-1200 with your internal Switch or Hub. If you need to connect DLB-1200 with administrator's

PC directly, you have to use Cross Line as a connection.

Configure the DLB-1200's IP Address on

Your Ethernet

Select "Control Panel"

-"Network and Dial-up

Connections", then click

"Properties"

Finally, please set up the PC's

IP as 192.168.0.X/

255.255.255.0, the "X" range

could be 0~255. For example

you can enter "192.168.0.1" in

IP Address item, then reboot

the Administrator's PC.

Please choose the TCP/IP

component of this PC's NIC

(Network Interface Card) and

click "Properties".

Configure PC on Your Ethernet

After DLB-1200 installation, for each PC, the following items may need to be configured:

 TCP/IP Network Setting

 Internet Access Configuration

A、TCP/IP Network Setting

Reboot other PCs. For all

non-Server version of Window,

the default TCP/IP setting is to

act as a DHCP client. In

Windows, this called Obtain an

IP address automatically.

If administrator's PC uses the default

Windows 95/98/ME/2000/XP setting,

no changes need to be made. Please

restart or reboot the PC. Then

DLB-1200 will act as a DHCP Server,

automatically providing a suitable IP

Address (and related information) to

each PC.

If using fixed IP

Address on your

LAN, or you want

to check your TCP/IP setting,

refer to Appendix - Windows

TCP/IP Setup.

B、Internet Access Configuration

If you hope any PC on Ethernet can link up Internet through DLB-1200, Please make configurations according to different

environment by following steps.

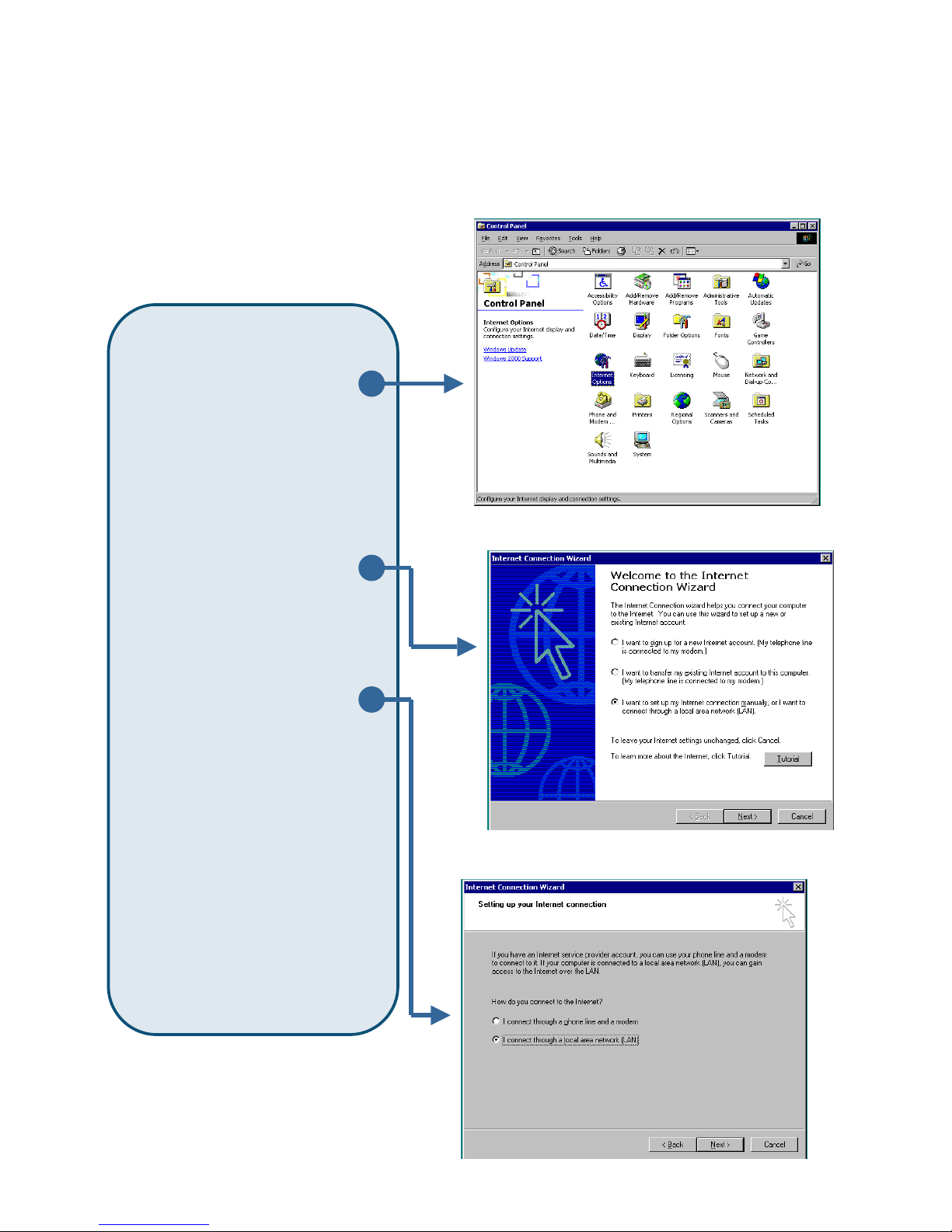

For Windows 9x/2000

1. Select Star Menu - Setting - Control

Panel - Internet Option.

2. Select the Connection Tab, and

click the setup button.

3. Select "I want to set up my Internet

connection manually, or I want to

connect through a local area

Network (LAN)" and click Next.

4. Select "I connect through a local

area network (LAN)" and click Next

5. Ensure the entire box on the

following Local area network

Internet Configuration screen is

unchecked.

6. Please check the "No" option when

prompted "Do you want to set up an

Internet mail account now?

7. Click Finish to close the Internet

Connection Wizard to complete the

setup.

For Windows XP

1. Select Star Menu - Control

Panel - Network and Internet

Connection.

2. Select Set up or change your

Internet Connection.

3. When Internet Properties

Dialogue Box pops up, click

"Setup" button and click "Next"

on the "New Connection

Wizard" screen.

4. Select "Connect to the

Internet" and click "Next".

5. Select "Set up my connection

manually" and click "Next".

6. Check "Connect using a

broadband connection that is

always on" and click "Next".

7. Click Finish to close the New

Connection Wizard to complete

the setup.

For Further Configuration

A、Open WEB Browser

B、Enter the Passwords

If you have done above installation and

configurations, please open WEB Browser

like Microsoft Internet Explore and enter the

administrator's PC IP Address you set up. Fo

example, if you set the IP Address as

"192.168.0.1", please enter "192.168.0.1" in

the Address or Location Box.

When entering the IP Address, you'll find the

following dialogue box on screen. Please

enter "123456" in the "Password" column.

C、Network Configuration

When WEB management interface o

DLB-1200 pops up, please refer to

DLB-1200 User Manual in Product Package

for further network configurations.

Appendix - Windows TCP/IP Setup

Before ensure your TCP/IP settings correct, please check DLB-1200's IP Address with your network administrator, and ask

your ISP for DNS Address or Address before making the following changes.

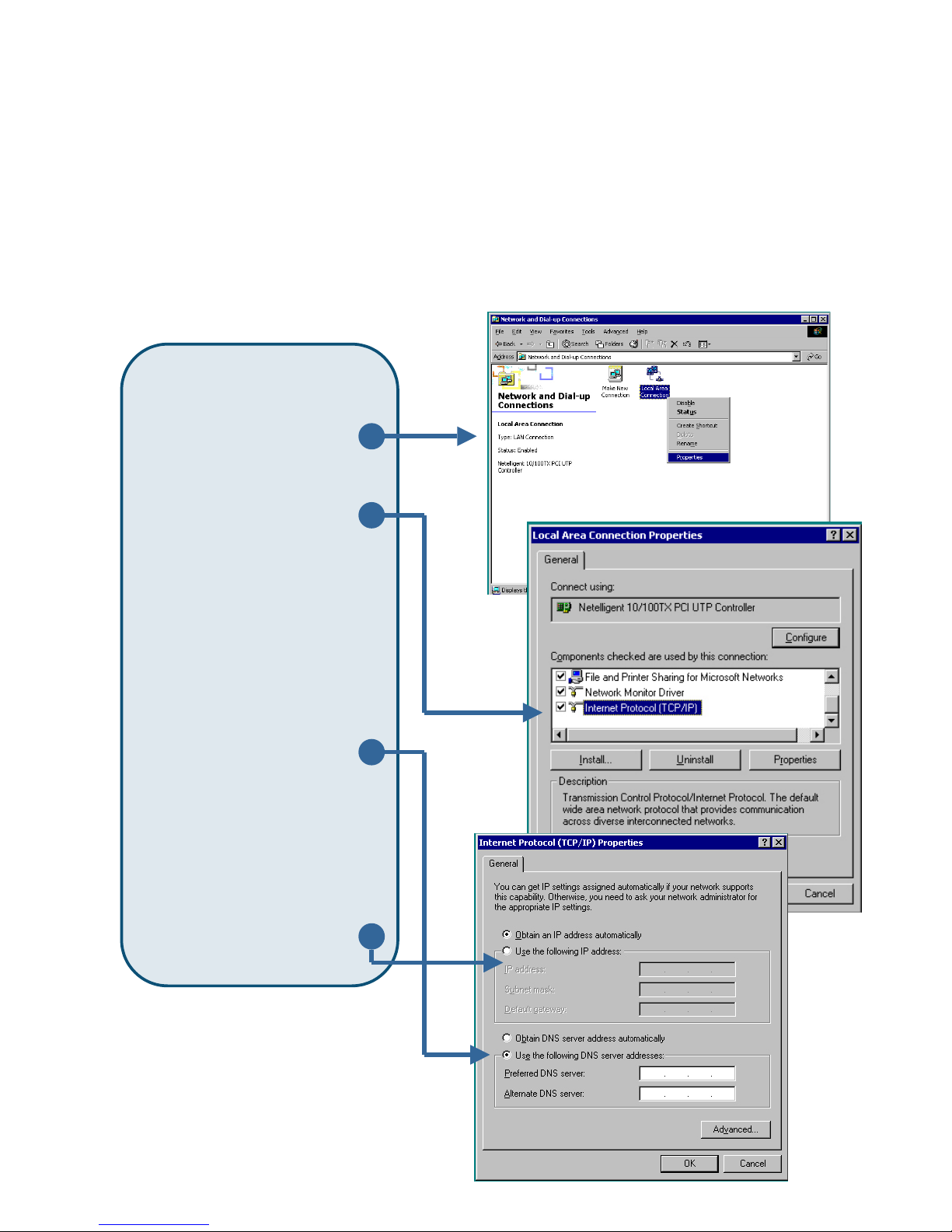

A、Checking TCP/IP Settings - Windows 9x/ME

1. Select "Control Panel" -"Networ

and Dial-up Connections", then

click "Properties".

2. Select the TCP/IP protocol fo

your network card.

3. Click on the Properties button.

4. If the DNS Server fields are

empty, select Use the following

DNS server addresses, and enter

the DNS address or addresses

provided by your ISP, then click

OK.

5. On the Gateway tab, enter the

DLB-1200's IP address in the

New Gateway field and click Add.

(Your LAN administrator can

advise you of the IP Address they

assigned to the DLB-1200.)

B、Check TCP/IP Setting - Windows 2000

1. Select "Control Panel" -"Networ

and Dial-up Connections", then

click "Properties".

2. Right click the "Local Area

Connection" icon and selec

"Properties", then select the

TCP/IP protocol for your networ

card.

3. Click on the Properties button.

4. If the DNS Server fields are

empty, select Use the following

DNS server addresses, and enter

the DNS address or addresses

provided by your ISP, then click

OK.

5. On the Gateway tab, enter the

DLB-1200's IP address in the

New Gateway field and click Add.

(Your LAN administrator can

advise you of the IP Address they

assigned to the DLB-1200.)
