D-Link DMC-1002 Bedienungsanleitung
Rev. 01 (JUN. 2002)
1907MCB10016000
RECYCLABLE
SNMP Module for
Chassis-Based Media Converter
Manual
DMC-1002
1
T
ABLE OF
C
ONTENTS
ABOUT THIS GUIDE
.................................................................. 2
F
EATURES
........................................................................................................2
U
NPACKING
.....................................................................................................2
CONFIGURING THE SYSTEM
.......................................... 3
T
HE
M
EDIA
C
ONVERTER
C
HASSIS SYSTEM
....................................................3
I
NSTALLING THE
M
ANAGEMENT
M
ODULE
......................................................3
C
ONFIGURE THROUGH
W
EB BROWSER
............................................................4
C
ONFIGURATION VIA
S
ERIAL
P
ORT
.................................................................4
S
UPPORT
SNMP
M
ANAGEMENT
.....................................................................5
LED
I
NDICATORS
............................................................................................5
MANAGEMENT SETTING THROUGH WEB
BROWSER
............................................................................................ 6
MANAGEMENT SETTING THROUGH
TERMINAL EMULATOR
...................................................... 13
W
HEN FORGOT THE PASSWORD
.....................................................................19
TECHNICAL SPECIFICATIONS
.................................... 20
2
A
BOUT
T
HIS
G
UIDE
This manual shows you how to configuring your DMC-1002 SNMP Module
for Chassis-Based Media Converter.
Features
Compliant with IEEE802.3u 100BASE-TX standards
Enabl to monitor th modul through t rminal mulation program and
W b brows r
Th n twork administrator can acc ss manag m nt softwar by
conn cting th manag m nt modul ith r to a t rminal mulation
program (through th RS232 int rfac ) or to a r mot n twork
manag m nt station (through th RJ45 int rfac and a hub)
Status indication includ :
1. Id ntification of: M dia Conv rt r typ ; Slot numb r occupi d
2. Status Indication of Chassis: R dundant Pow r status; Pow r Fail status;
Fan Fail status
3. Status Indication of Modul s: Unit Pow r; Link/Activity; Transmit; R c iv
LED Indication: Pow r/Pow r Fail/Fan Fail/MGM/Consol /Link/ACT
Support Hot-swappabl
Auto-n gotiation for half-dupl x/full-dupl x on TX ports
Equipp d with a 19” syst m chassis 16-conv rt r with R dundant Pow r
supply for optional Expansion us .
Unpacking
Open the shipping carton of the SNMP Module and carefully unpack its
contents. The carton should contain the following items:
One DMC-1002 SNMP Module for Chassis-Based Media Converter
One RS232 cable
This Manual
If any item is found missing or damaged, please contact your local reseller for replacement.
3
C
ONFIGURING
T
HE
S
YSTEM
This chapter provides network managers and system administrators with
information about how to configure the Media Converter Chassis system.
The reader of this document should be knowledgeable about network
devices, device configuration, network management, and Internet browsers.
The user is assumed to be a network administrator or manager with an
understanding of network operations.
The Media Converter Chassis system
The chassis’s first slot is for the management module as illustration on figure
1.
Figure 1. Slide in the management module in the first slot of the chassis system.
Installing the Management Module
Before Configure the chassis system, you must do the following:
Install the management module into the chassis. (Figure 1)
Connect the module to the network.
Boot up for SNMP management on Web browser or emulation terminal
program.
4
Configure through Web browser
The Media Converter chassis system is accessible using a Web browser (IE
explorer, Netscape Communications, etc.) to open up the chassis monitoring
system. The default IP Address for the chassis system is “192.168.1.1”, and
the default Login name and password is both “root”.
Configuration via Serial Port
The Media Converter chassis system can be accessible using a terminal or
terminal emulator attached to the RS232 serial port on the Switch too.
NOTE: (1) The serial port cable is attached directly with the device.
(2) It needs to upgrade the Terminal Emulator due to key
malfunction.
1. Locate correct DB9 serial port cable with female DB9 connector.
2. Attach the DB9 serial port female cable connector to the male DB9 serial
port connector on the chassis system.
3. Attach the other end of the DB9 serial port cable to a remote
workstation.
4. By default, the Switch uses the following serial port parameter values:
Bits per second 57600
Stop bits 1
Data bits 8
Parity NONE
Flow Control NONE
5
5. The default Login name and password is both “root”.
Support SNMP Management
The Media Converter Management Module support SNMP management.
LED Indicators
The LED indicators of the Switch include Power, ALERT, HTTP, ICQ,
SMTP, SPEED, LINK/ACT and FDX/COL. The following shows the LED
indicators for the Switch along with an explanation of each indicator.
DMC-1000i
Power On: Lights green when the power is inserted.
Power Fail: Lights Amber when the power is inserted and it is
fail.
Fan Fail: Lights Amber when the fan is fail.
MGM: Blinks green when the device CPU is working and
lights amber when the CPU works fail.
Console: Blinks green when the data is transmitting through
console port and blinks amber when transmitting the
wrong data.
6
Link/Act: Lights green when link to networking Ethernet and
blinks green for activity.
M
ANAGEMENT
S
ETTING
T
HROUGH
W
EB
B
ROWSER
1 Main Menu
Figure (1) Main Menu
1-1 System Function
There are four items in System Function menu, “Software Reboot, Factory
Reset, Image Update and Configuration Update. (Figure 2)
1-2 Configuration
There are three items in Configuration menu, “General Configuration,
System Configuration and SNMP Configuration. (Figure 2)
7
Figure (2) Configuration
1-1-1 Software Reboot
To reboot for the software setting.
1-1-2 CPU Factory Reset
This function is to set the CPU (DMC-1002) back to the default setting in
case of the messy setting.
1-1-3 Factory Reset
This function is to set both CPU (DMC-1002) and all system (all smart
device installed in chassis) back to the default setting in case of the messy
setting.
1-1-4 Image Update
The section is to set the TFTP Server IP Address first, and the default address
was set to “192.168.1.2”. The Image File can be updated by uploading the
image file from the TFTP server. (Figure 3.1)
Note: The content of the image file will write the whole firmware of the
management module, please be sure that the image file is correct.
8
While the file is uploading to the system, it will appear a warning sign.
(Figure 3.2)
Figure (3.1)
Figure (3.2)
9
1-1-5 Configuration Update
Figure (4)
The section is explaining how to upload and download the configure setting
of the module.
The Configuration Upload is to restore a setting file to the management
module.
The Configuration Download is to backup the setting from the management
module.
1-2-1 General Configuration
Andere Handbücher für DMC-1002
2
Inhaltsverzeichnis
Andere D-Link Netzwerk-Hardware Handbücher
D-Link
D-Link ShareCenter DNS-343 Bedienungsanleitung
D-Link
D-Link DNR-2020-04P Bedienungsanleitung
D-Link
D-Link SharePort DIR-825 Bedienungsanleitung
D-Link
D-Link xtreme n duo dap-1522 Bedienungsanleitung
D-Link
D-Link ShareCenter DNS-320L Bedienungsanleitung
D-Link
D-Link ShareCenter Pulse DNS-320 Bedienungsanleitung
D-Link
D-Link DIR-505 Bedienungsanleitung
D-Link
D-Link DWL-922 - AirPlus G Wireless Network Starter Bedienungsanleitung
D-Link
D-Link DUB-M420 Bedienungsanleitung
D-Link
D-Link DHP-343 Bedienungsanleitung
D-Link
D-Link ShareCenter Shadow DNS-325 Bedienungsanleitung
D-Link

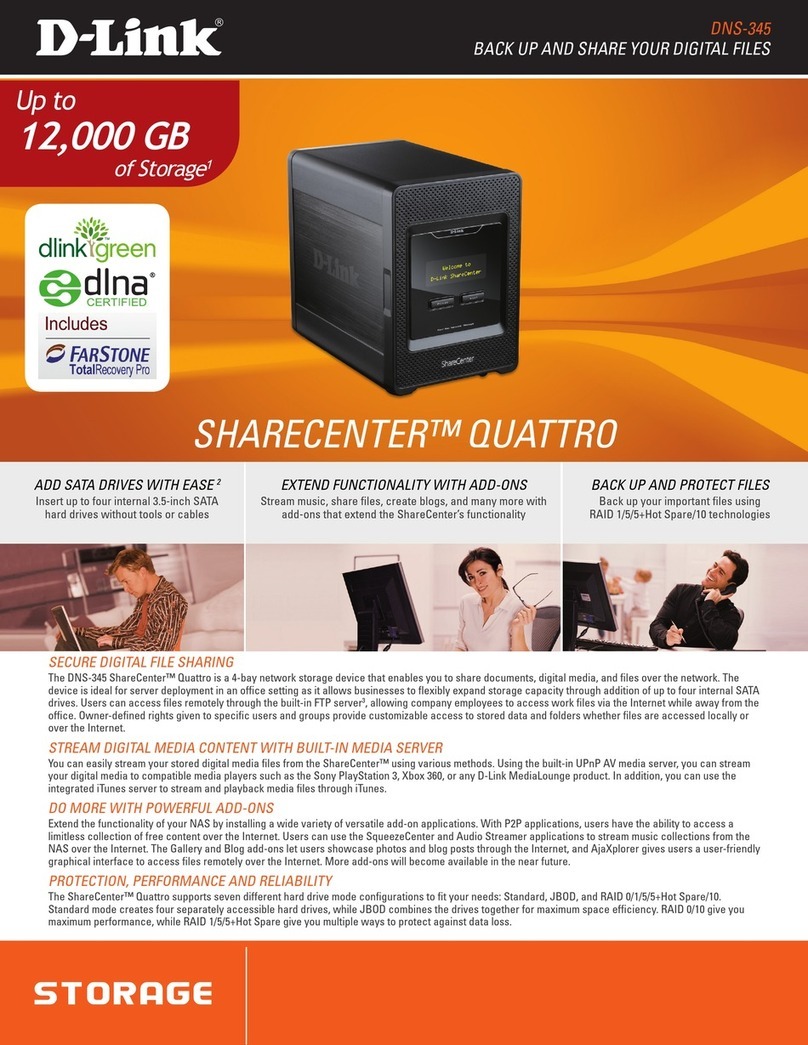

D-Link ShareCenter Quattro DNS-345 Bedienungsanleitung
