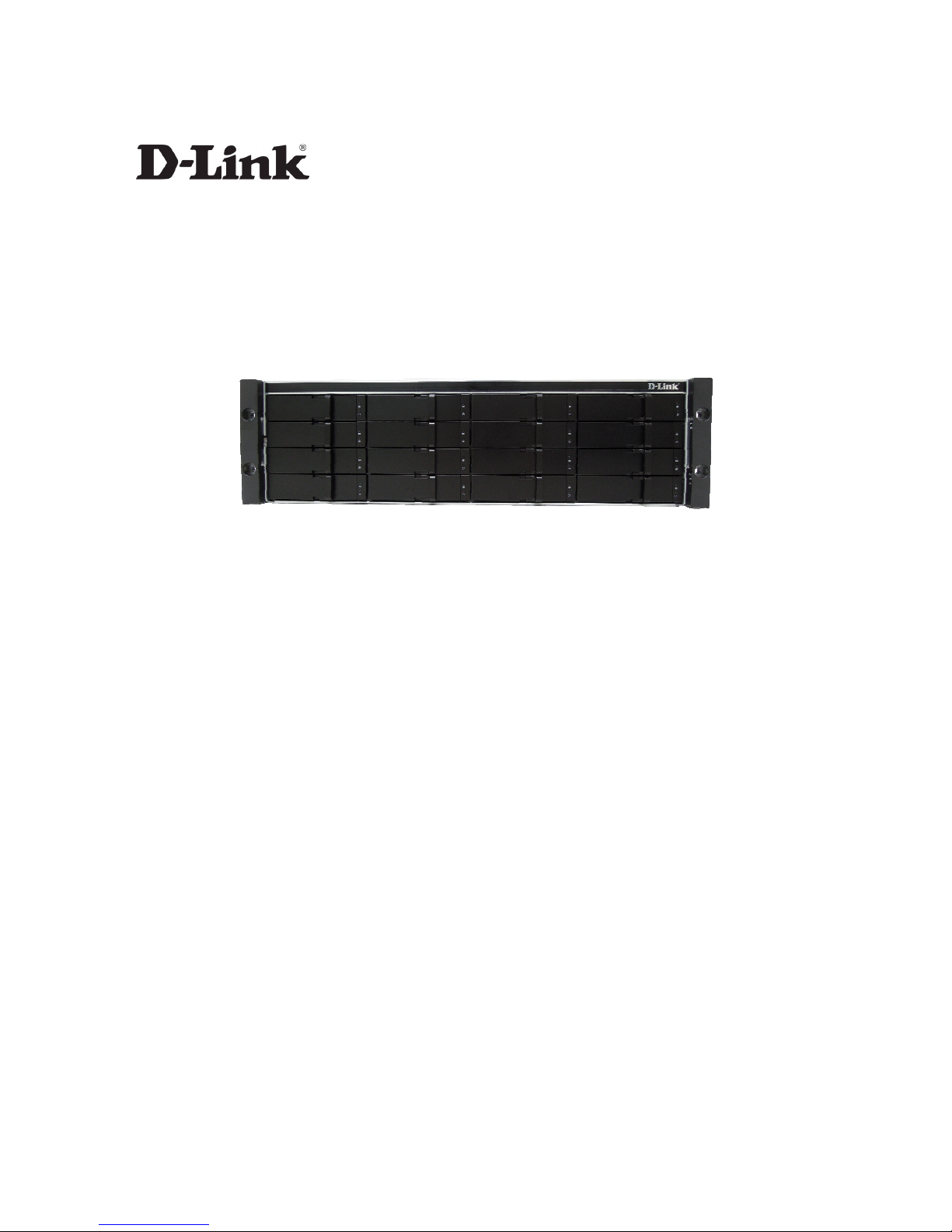

D-Link XStack Storage DSN-4000 Series Bedienungs- und Wartungshandbuch

D-Link xStack Storage iSCSI SAN Array

Managed SAN Solution

DSN-4100, DSN-4200 and DSN-4000

Hardware Reference Guide

Version 1 0

xStack Storage

D-Link Systems, Inc. makes no warranty of any kind with regard to this material, including,

but not limited to, the implied warranties of merchantability and fitness for a particular

purpose. D-Link Systems, Inc. shall not be liable for errors contained herein or for incidental

or consequential damages in connection with the furnishing, performance, or use of this

material.

This document contains proprietary information, which is protected by copyright. o part of

this document may be photocopied, reproduced, or translated into another language without

the prior written consent of D-Link Systems, Inc.

The information is provided “as is” without warranty of any kind and is subject to change

without notice. The only warranties for D-Link products and services are set forth in the

express warranty statements accompanying such products and services. othing herein

should be construed as constituting an additional warranty. D-Link shall not be liable for

technical or editorial errors or omissions contained herein.

Patents and Trademarks

Includes one or more of the following United States patents: 6,941,396; 7,353,306;

7,389,462; 7,460,473; 7,512,663 and 7,594,002. Other patents are pending.

D-Link and the D-Link logo are registered in U.S. Patent and Trademark Office. All other

product names mentioned herein may be trademarks or registered trademarks of their

respective companies.

Microsoft Windows is a U.S. registered trademark of Microsoft Corporation.

All other brand or product names are or may be trademarks or service marks, and are used

to identify products or services, of their respective owners.

Important data protection information

You should back up all data before installing any drive controller or storage peripheral. D-

Link is not responsible for any loss of data resulting from the use, disuse or misuse of this or

any other D-Link product.

Notice and Recommendations

Although D-Link has attempted to ensure the accuracy of the content of this manual, it is

possible that this document may contain technical inaccuracies, typographical, or other

errors. D-Link provides this publication “as is” without warranty of any kind, either express

or implied, including, but not limited to implied warranties of merchantability or fitness for

a particular purpose.

D-Link assumes no liability for any error in this publication, and for damages, whether

direct, indirect, incidental, consequential or otherwise, that may result from such error,

including, but not limited to loss of data or profits. The published information in the manual

is subject to change without notice. D-Link reserves the right to make changes in the

product design, layout, and driver revisions without notification to its users.

This version of this manual supersedes all previous versions.

iv Contents

Safety Information

This product uses a lithium coin cell battery. The lithium coin cell battery is a long-life

battery, and it is very possible that you will never need to replace it. However, should you

need to replace it, please consult your service documentation.

There is a danger of a new battery exploding if it is incorrectly installed.

Replace the battery pack only with the same or equivalent type recommended

by the manufacturer. Do not dispose of the battery along with household waste.

Contact your local waste disposal agency for the address of the nearest battery

disposal site.

CAUTION

RISK OF EXPLOSIO IF BATTERY IS REPLACED BY A I CORRECT TYPE. DISPOSE OF USED

BATTERIES ACCORDI G TO THE I STRUCTIO S.

Notice of Export Controls

Export of technical data contained in this document may require an export license from the

United States government. Please contact D-Link, Inc. for any export compliance questions.

Document Revision Level

Revision Date Description

1.0 August 24, 2011

Initial release.

DSN-4000 Series Hardware Reference Guide v

Preface

This document is intended to assist users with installing the primary array and expansion

array of the xStack Storage DS -4000 Series storage system from D-Link, Inc. This document

assumes that users are computer literate, familiar with storage array products, and have a

basic understanding of storage products and concepts. Throughout this document, the term

“DS -4000 series” or “DS -4X00” refers to all of the members of the DS -4000 Series

product family, whereas a reference to a specific model will appear as DS -4100, DS -4200

or DS -4000. For clarity, some illustrations may only show the DS -4200 enclosure, but the

concepts are applicable to all models.

Typographic Conventions

Notes

otes provide information that deserves special attention. They are preceded by:

Cautions

Cautions contain information which, if not followed, can cause damage to the

storage system and possible loss of data. They are preceded by:

Warnings

Warnings contain information which, if not followed, can cause damage to the

storage system and to the person installing it. They are preceded by:

Related Documentation

In addition to this document, the following documents are available from D-Link.



xStack Storage Management Center Software User's Guide. This guide provides the

information needed to configure and manage storage on the xStack Storage system using

the xStack graphical user interface.

vi Contents

Contact Information

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and within

Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link Technical Support through our website, or

by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone

Please see our support site for current number:

• http://support.dlink.com

• Monday to Friday 8:00am – 5:00pm PST/PDT

D-Link Technical Support over the Internet:

• http://support.dlink.com

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone

Please see our support site for current number:

• http://support.dlink.ca

• Monday to Friday 7:30am to 9:00pm EST/EDT

D-Link Technical Support over the Internet:



http://support.dlink.ca

DSN-4000 Series Hardware Reference Guide vii

Contents

Chapter 1 Introduction 1

1.1

Models ............................................................................................... 1

1.2

Features and Benefits ............................................................................. 2

1.3

System Overview ................................................................................... 2

Chapter 2 DSN-4000 Series Primary Array Layout 3

2.1

Front Panel Components ......................................................................... 4

2.2

Rear Panel Components .......................................................................... 6

2.3

Side, Top and Bottom Panel Components ..................................................... 9

Chapter 3 Installing the DSN-4X00 Primary Array 11

3.1

Site Considerations ............................................................................... 12

3.1.1

General Considerations .................................................................. 12

3.1.2

Desktop or Shelf Installation ............................................................ 12

3.1.3

Rack-mount Guidelines ................................................................... 13

3.2

Safety Considerations ............................................................................ 13

3.3

Unpacking the DS -4X00 Primary Array ....................................................... 14

3.4

Items Supplied by the User ..................................................................... 14

3.5

Installing the Hard Disk Drives .................................................................. 15

3.6

Connecting to the iSCSI Data Ports ............................................................ 16

3.7

Connecting to the Management Port .......................................................... 16

3.8

Connecting the AC Power Cords ................................................................ 18

3.9

Connect any DS -4000 JBOD Expansion Arrays (optional) ................................. 18

3.10

Powering-on the DS -4000 JBOD Expansion Arrays ......................................... 19

3.11

Powering-on the DS -4X00 Storage Array .................................................... 20

3.12

Hot-Plugging Additional DS -4000 JBOD Expansion Arrays ................................ 20

Appendix A Replacing and Upgrading FRUs 21

A.1

Installing or Removing Hard Disk Drives ...................................................... 22

A.2

Replacing a Power Supply Module ............................................................. 23

A.3

Replacing a Cooling Fan Module ................................................................ 24

A.4

Replacing the Controller Module in the Primary Array ..................................... 25

A.5

Replacing the Cache Battery Backup Module ................................................ 26

A.6

Connecting to the Diagnostic Serial Port ..................................................... 27

Appendix B Installing the System in a Rack 29

viii Contents

This page intentionally left blank.

DSN-4000 Series Hardware Reference Guide 1

Chapter 1 Introduction

The xStack Storage DS -4000 series storage system is an intelligent, high-performance

multiple Gigabit Ethernet storage solution designed for businesses that want to improve the

reliability, availability, serviceability, and performance of their storage systems. It provides

a range of benefits and features from its ability to use familiar, proven, and widespread

networking technologies like IP and Ethernet for storage solutions.

The DS -4000 series storage system is highly scalable. To add more storage capacity, simply

add additional DS -4000 expansion arrays to the DS -4X00 primary array for up to 80 drives.

This plug-and-play approach to storage expansion enables you to form a scalable enterprise

storage grid of many drives quickly and easily.

Based on an Internet Protocol-Storage Area etwork (IP-SA ) architecture, the DS -4X00

primary array is built around D-Link’s iSCSI RAID processor system-on-a-chip and has the

following features:



Up to 80 Serial Attached SCSI (SAS) or Serial Advanced Technical Attachment (SATA) hard

disk drives per system (including DS -4000 expansion arrays), with a maximum storage

capacity of 2TB per drive



A minimum of 512 MB of System Memory, expandable to 2GB



A minimum of 1024 MB of Buffer Memory, expandable to 4 GB



iSCSI Ethernet Connectors (depending on your specific hardware configuration):

 Eight 1-Gigabit RJ-45 connectors

 Four 1-Gigabit RJ-45 connectors



A 10/100/1000 Mbps Ethernet management port



One SAS expansion connector for attaching additional DS -4000 JBOD expansion arrays



One 3.5mm RS-232-C stereo mini-jack diagnostic port for troubleshooting purposes

Complete configuration and management of the storage system are available through the

intuitive, graphical-based Management Center software.

1 1 Models

The D-Link xStack Storage DS -4000 series storage array is available in various models. The

models differ according to the speed and host network interface, as well as the number of

drive bays. Table 1-1 lists the various DS -4X00 Primary Array models.

Table 1-1 DSN-4X00 Primary Array Models

Model

Drive

Bays

iSCSI Data Ports

iSCSI Data Port Speed

DSN-4200 16 Eight RJ-4 ports 1 Gigabit per second

DSN-4100 16 Four RJ-4 ports 1 Gigabit per second

2 Chapter 1 Introduction

1 2 Features and Benefits



High-performance, low-latency iSCSI storage system, with a highly integrated

multifunction ASIC for fully featured, integrated storage virtualization



Modular design with the ability to add hot-swappable DS -4000 expansion arrays for up

to 80 drives, with each drive having a maximum storage capacity of up to 2TB



Easy setup and configuration – can be installed anywhere on a 1-Gigabit Ethernet

network for improved access to critical information



In-band or out-of-band management via direct connection or the Web



Delivers Ethernet economics to storage for lower total cost of ownership and rapid

deployment using known and trusted technologies



Proven transport infrastructure for increased reliability, investment protection, and

reduced training and administrative costs



Scalability over long distances - ideal for remote data replication and disaster recovery



High availability - redundant cooling fans and 2 redundant, hot-swappable, auto-sensing,

load-sharing power supplies



Intelligent battery pack ensures that a charged battery is on hand to preserve buffer

cache contents if a power failure occurs. Contents are backed up for approximately 72

hours with the standard 2GB data cache (48 hours with the 4GB data cache option).

1 3 System Overview

Figure 1-1 shows a typical DS -4X00 storage system configuration in a Storage Area etwork

(SA ). The SA shown is an Ethernet network used solely for exchanging data between the

customer's host servers and the DS -4000 series array. The Ethernet bandwidth used by the

servers exchanging data with the storage system can be very high. Using a separate

Ethernet to act as a SA keeps that data from interfering with the customer's existing LA

and improves security.

Figure 1-1 Example of a DSN-4000 Series Storage System Configuration

Andere Handbücher für xStack Storage DSN-4000 Series

Dieses Handbuch passt für folgende Modelle

Andere D-Link Netzwerk-Hardware Handbücher

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

D-Link

D-Link DIR-505 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

D-Link

D-Link DNS-313 Bedienungsanleitung

D-Link

D-Link ShareCenter Pro DNS-1550-04 Bedienungsanleitung

D-Link

D-Link DNR-326 Bedienungsanleitung

D-Link

D-Link DLB-1200 Bedienungsanleitung

D-Link

D-Link ShareCenter Pulse DNS-320 Bedienungsanleitung

D-Link

D-Link mydlink DNR-312L Bedienungsanleitung

D-Link

D-Link DNS-323 - Network Storage Enclosure NAS... Bedienungsanleitung

D-Link

D-Link DAP-3711 Bedienungsanleitung

D-Link

D-Link DNS-321 - Network Storage Enclosure Hard Drive... Bedienungsanleitung

D-Link

D-Link Web Smart DES-1210-28P Bedienungsanleitung

D-Link

D-Link ShareCenter Pulse DNS-320 Bedienungsanleitung

D-Link

D-Link JustConnectDNR-2020-04P Bedienungsanleitung

D-Link

D-Link NPP-5E1BLK243 Bedienungsanleitung

D-Link

D-Link Nuclias Connect Hub Plus DNH-200 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

D-Link

D-Link ShareCenter Quattro DNS-345 Bedienungsanleitung

D-Link

D-Link DNS-323 - Network Storage Enclosure NAS... Bedienungsanleitung

D-Link

D-Link ShareCenter Pulse DNS-320 Bedienungsanleitung

D-Link

D-Link DNS-313 Bedienungsanleitung

D-Link

D-Link ShareCenter Pulse DNS-320 Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung

Lanner

Lanner NCA-1525 Bedienungsanleitung

Cantek

Cantek NR310-4 Bedienungsanleitung

D-Link xStack Storage DSN-4000 Series Bedienungs- und Wartungshandbuch

Beliebte Netzwerk-Hardware Handbücher anderer Marken
