Software and speciﬁcations subject to change without notice. DP-G321.06152004

If any of the above items are missing, please contact your reseller.

CD-ROM (Software, Manual and Warranty)

Before You Begin:

DP-G321 AirPlus G Wireless Multi-Port Print Server

Check Your Package Contents

AirPlus™ G 802.11g/2.4GHz

Wireless Multi-Port

Print Server

5V DC, 2.5A Power Adapter

Using a power

supply with a

different voltage

rating will damage this

product and void its

warranty.

This product can be setup using

any current Web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 7.0

You will need an Ethernet-enabled device, such as a laptop or desktop computer and

a USB or LPT printer that will connect to the DP-G321.

IMPORTANT: TURN OFF the power to the printer BEFORE installing the DP-G321

DP-G321

Connecting the DP-G321 to Your Network

USB Ports: Used to

connect USB printers.

Power Receptor:

Connects the AC

Power Adapter

LAN Port: Connects

to a router or switch.

Warning!

Only attach USB printers to the USB ports of the DP-G321. Do not connect any other USB device

to the DP-G321’s USB port! Other devices may damage the unit and void the warranty.

Antenna: Used to wirelessly

connect to 802.11b/g adapters.

LPT Port: Used to

connect a standard

parallel printer.

For Mac OS printing, please refer to manual (.pdf) located on the CD-ROM.

A. Insert one end of a straight-through CAT5 Ethernet cable into the DP-G321’s LAN Port.

Connect the other end to an Ethernet port on your gateway or switch.

B. Make sure that your Printer is turned OFF.

C. Attach one end of your printer cable to the appropriate port on the DP-G321 and the

other end to the corresponding port on your printer.

D. Turn ON the printer. Repeat steps B-D for each printer before proceeding to step E.

E. Plug one end of the power adapter into the DP-G321 and the other end into your electric

outlet. The DP-G321 will turn on and begin a self-test.

Note: Don’t connect the power cord to the DP-G321 until you are advised to do so.

Connecting the DP-G321 to Your

Network (continued)

The factory default IP address of the DP-G321 is 192.168.0.10. The IP address of the

DP-G321 must be in the same range as your network. You can change the IP address

of the DP-G321 to match the IP address scheme of your existing network. To access

the Print Server’s Web conﬁguration interface, assign an IP address on one of the wired

PCs on your network to the same IP scheme as the Print Server.

For additional Windows operating system setup or information on the Web-

management interface, refer to the manual located on the CD-ROM.

Conﬁguring the DP-G321

Go to Start > Right-click on

My Network Places > select Properties >

Right click on the Network Connection

associated with your Network Adapter and

select Properties.

Click Internet Protocol (TCP/IP)

Click Properties

Open your Web browser and

type http://192.168.0.10 into the

URL address box. Then press

the Enter or Return key.

Click OK to apply

the new settings

Conﬁguring the DP-G321 (continued)

Input a static IP address in the

same range as the print server.

(192.168.0.xx)

Click OK

Select Use the following IP address

IP address: 192.168.0.28

Subnet mask: 255.255.255.0

Conﬁguring the DP-G321 (continued)

The IP address of the DP-G321 can

be modiﬁed from the Network option

under the Conﬁguration tab.

This Quick Installation Guide will use

the Print Server’s default IP address

in all examples. Make the appropriate

changes if you have modiﬁed the DP-

G321’s IP address.

Click Site Survey

Click on the Wireless button under

the Conﬁguration tab to view the

wireless settings.

Conﬁguring the DP-G321 (continued)

Select the System button under the

Conﬁguration tab to view the Print

Server and Port names. If you change

the names of the ports, please make

note of them as they will be needed

during the Add Printer Wizard.

A list of available wireless networks will

appear. If you do not see the network

you are looking for, click Rescan at the

bottom of the page.

This screen only appears if you selected

a wireless network with WEP enabled.

If so, you must enter the encryption

information and click OK.

Click Select

Click Next

Select Local Printer and

uncheck Automatically

detect and install my

Plug an Play printer.

The Add Printer Wizard

Click Next

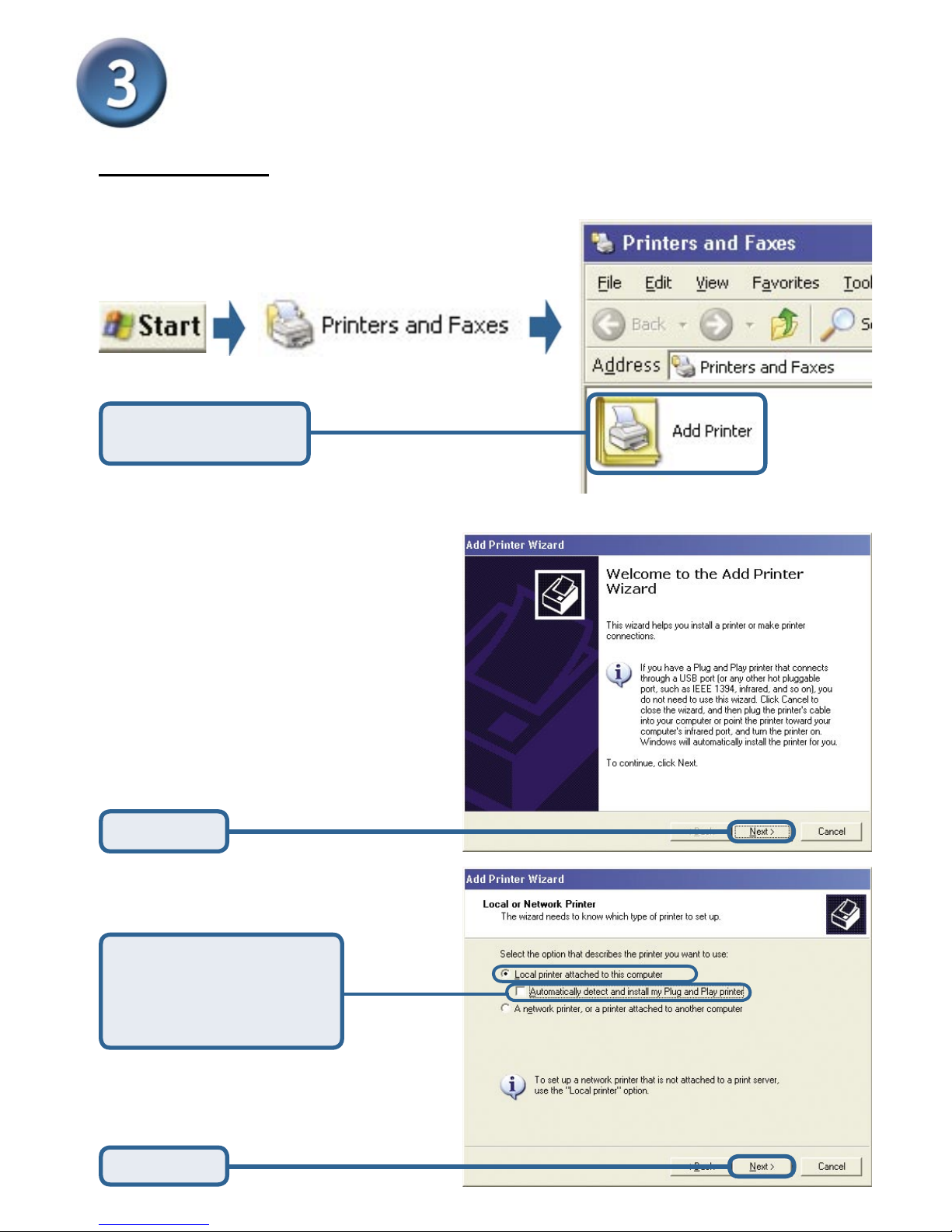

For Windows XP:

Go to the Start menu> Printers and Faxes> Add a Printer

Double-click on the

Add Printer icon

The Add Printer Wizard (continued)

Click Next

The Port Name will ﬁll in automatically.

Click Next

Select Create a new port and

choose Standard TCP/IP Port

from the drop-down menu.

Type 192.168.0.10

Click Next

Click OK

Enter the Port name for the port

the printer is attached to.

Select LPR

Select Custom

and click the

Settings button

Default port names differ with the device MAC ID:

PS-xxxxxx-U1 (for USB Port 1)

PS-xxxxxx-U2 (for USB Port 2)

PS-xxxxxx-P3 (for LPT Port)

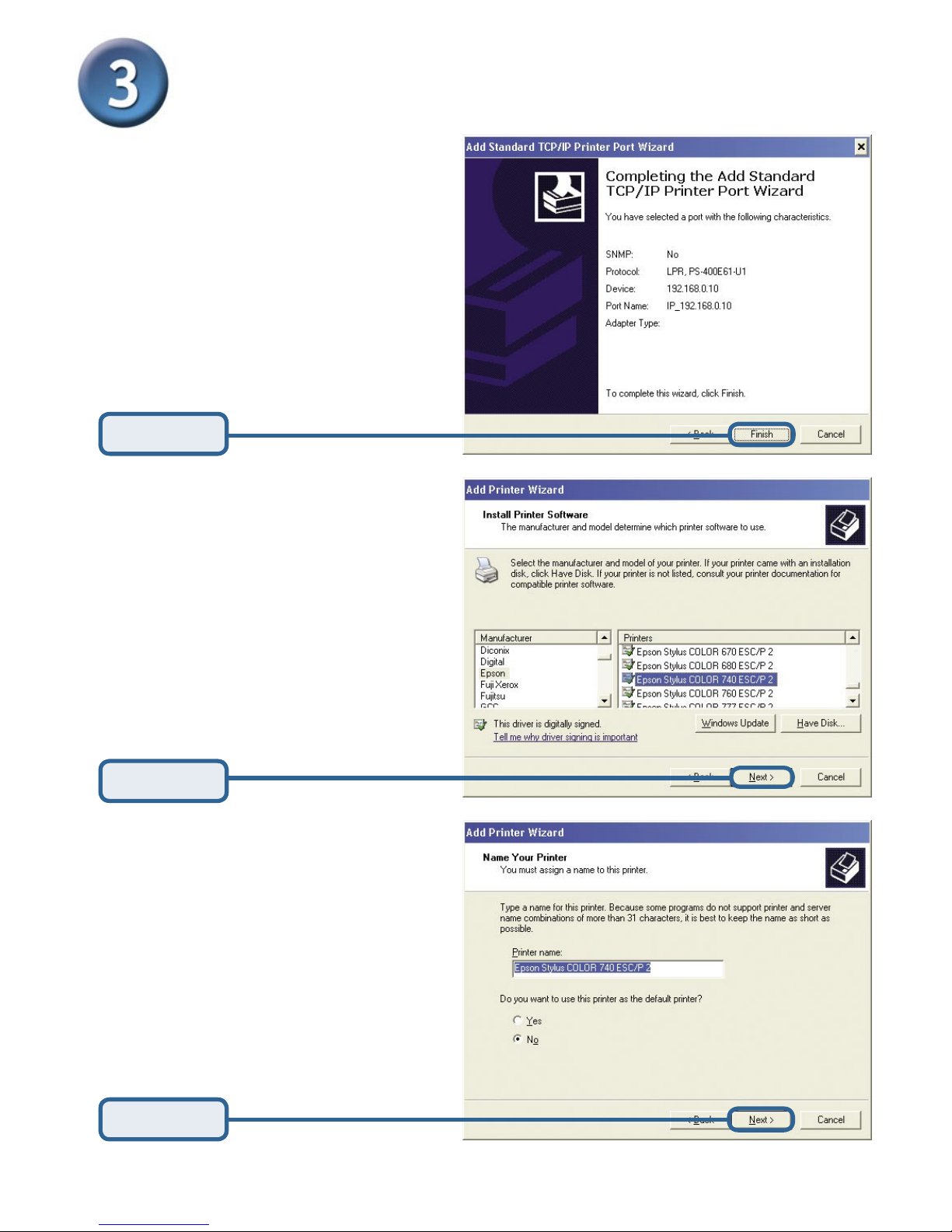

The Add Printer Wizard (continued)

In this window, scroll down and select

your printer manufacturer and model.

(If it is not listed, insert the driver

CD or diskette that came with your

printer and click Have Disk.)

Click Next

Click Finish

The printer name and default printer

settings are conﬁgured here.

Click Next

The Add Printer Wizard (continued)
