2D-Link DPR-1260 Quick Install Guide

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

Manual and Software on CD

D-Link DPR-1260

Multi-Function Print Server

CAT5 Ethernet Cable Power Adapter

Note: Using a power supply with a different voltage rating than the one included with

the DPR-1260 will cause damage and void the warranty for this product.

• 10/100 Fast Ethernet Wired or 802.11b/g Wireless Network

• Printer with USB Port*

• Computer with:

• Windows®XP (SP2) or Windows®2000 (SP4)

• Internet Explorer 6.0 or Mozilla Firefox 1.5 or higher

• CD-ROM Drive

• Network Interface Card

* For a list of compatible printers, visit http://support.dlink.com.

3 D-Link DPR-1260 Quick Install Guide

Hardware Overview

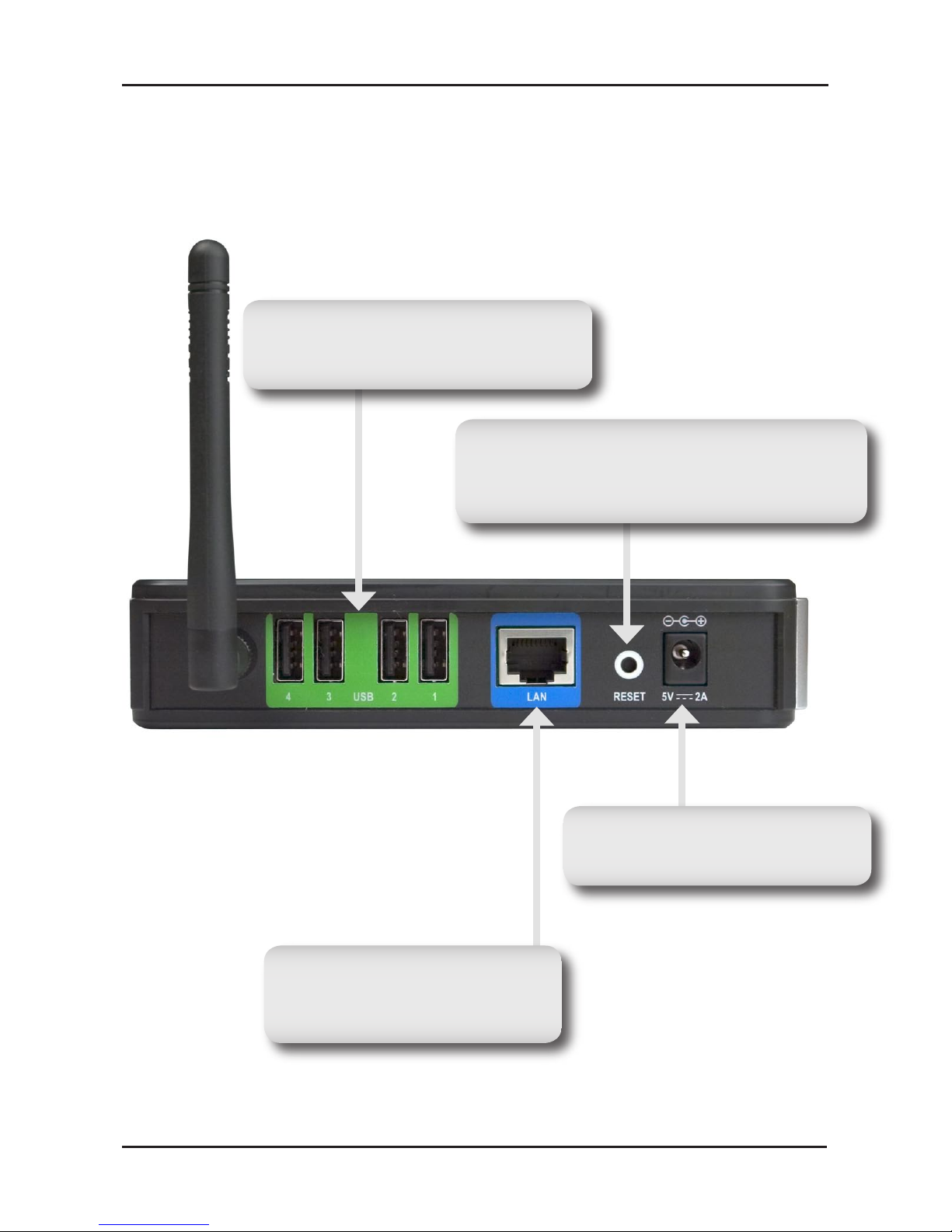

Connections

Power Receptor

Receptor for the Power Adapter.

LAN Port

Connect to a network using an

Ethernet cable.

USB Ports

Connect USB printers using an USB

cable.

Reset Button

Pressing the Reset Button restores the router

to its original factory default settings.

4D-Link DPR-1260 Quick Install Guide

Hardware Overview

LEDs

Power LED

A solid light indicates a proper

connection to the power supply.

LAN LED

A solid light indicates connection on

the LAN port. This LED blinks during

data transmission.

WLAN LED

A solid light indicates that the wireless

segment is ready. This LED blinks during

wireless data transmission.

USB LEDs (1-4)

A solid light indicates connectivity to an

USB printer or scanner.

5 D-Link DPR-1260 Quick Install Guide

Connect an Ethernet cable to the Ethernet connector located on the

Print Server’s back panel and attach it to the network.

Note: It is required that an Ethernet cable is used during initial

setup. Once your wireless conﬁguration is set, you may disconnect

the Ethernet cable and begin communicating wirelessly with your

DPR-1260.

Attach the external power supply to the DC power input connector

located on the Print Server’s bottom panel and connect it to a power

outlet or power strip. Connect your USB printer to an available USB

port on your print server.

The IP address of your print server will be automatically assigned

by your router. To access the print server’s web-based conﬁguration

interface:

Windows XP users:

Double-click on the My Network Places icon on your

desktop. Your print server will be displayed as “DPR-1260:

dlink-xxxxxx” (where xxxxxx is the last 6 characters of your print

server’s MAC address). If you do not see the print server or have

UPnP enabled, please refer to the Installation > UPnP section in

the manual that is on the D-Link CD.

Windows 2000 users:

You will need to write down the MAC address located on the bottom

of the print server (E.G. 00-15-E9-F9-6B-BC).

Installation

6D-Link DPR-1260 Quick Install Guide

Wireless Settings

If you want to connect to a wireless network, click on the Setup tab

and then click Wireless Settings on the left side.

You will be asked to enter a password. Leave the box empty if you

have not set up a password.

Set the Wireless on/off to

On. If you want to disable the

wireless feature, select Off.

Select the Wireless Network Name (SSID) from the drop-down menu.

If you do not see your network in the list, select Enter Manually and

enter the SSID.

If you are connecting to an access point or wireless router, select

Infrastructure. If you are connecting directly to a computer with a

wireless adapter, click Ad-Hoc.

Select None (to use connect to an unsecure network), WEP, or

WPA.

Click Save to update your settings.

Open a web browser and enter

the following:

http://dlink-XXXXXX

XXXXXX = the last six characters of your MAC address.

7 D-Link DPR-1260 Quick Install Guide

WEP Encryption

It is recommended to enable encryption on your wireless router before

your wireless print server. Please establish wireless connectivity

before enabling encryption. Your wireless signal may degrade when

enabling encryption due to the added overhead.

1. Log into the web-based

conﬁguration (refer to page

5). Click on Setup and then

Wireless Settings on the

left side.

2. Next to Security Mode,

select WEP.

3. Next to Authentication,

select Shared Key.

4. Select either 64-bit or 128-bit encryption from the drop-down

menu next to WEP Encryption.

5. Next to Key 1, enter a WEP key that you create. Make sure you

enter this key exactly on all your wireless devices.You may enter

up to 4 different keys.

6. Click Save Settings to save your settings.

8D-Link DPR-1260 Quick Install Guide

WPA Encryption

It is recommended to enable encryption on your wireless router before

your wireless network adapters. Please establish wireless connectivity

before enabling encryption. Your wireless signal may degrade when

enabling encryption due to the added overhead.

1. Log into the web-based

configuration (refer to

page 5).

2. Next to Security Mode,

select WPA.

3. Next to Cipher Mode,

select TKIP, AES, or

TKIP and AES.

4. Next to PSK, enter a key (passphrase). The key is an

alpha-numeric password between 8 and 63 characters long. The

password can include symbols (!?*&_) and spaces. Make sure

you enter this key exactly the same as on your wireless router or

access point.

5. Click Save to save your settings.

9 D-Link DPR-1260 Quick Install Guide

D-Link Setup Wizard

Once you have successfully conﬁgured the wireless settings, you

are now ready to setup your network printer. You can disconnect

the Ethernet cable and configure the printer from a wireless

connection.

Note: You will need to run this wizard from each computer that wishes

to use the printer.

To access the conﬁguration utility, double-click on the My Network

Places icon on your desktop and then double-click on “DPR-1260:

dlink-xxxxxx”.

Windows®2000 users can open a web browser and enter

http://dlink-xxxxxx (where xxxxxx is the last 6 characters of the print

server’s MAC address).

If you get a Page Cannot be Displayed error, please refer to the

Troubleshooting section of the manual for assistance.

From the Status screen, click on the Setup tab, and then click Next

to start the wizard.

10D-Link DPR-1260 Quick Install Guide

Click the radio button next

to the printer you want to

configure. Click Next to

continue.

Click Next to continue.

You may need to insert

your printer driver CD to

load the drivers to your

computer.

If the autorun screen

appears when inserting

your printer driver CD, click

cancel or close.

Click Finish to complete

the setup wizard.
