D-Link Air Premier DAP-2695 Bedienungsanleitung
AC1750 DUAL BAND PoE ACCESS POINT
DAP-2695
Quick Install Guide+
Installations-Anleitung+
Guide d’installation+
Guía de instalación+
Guida di Installazione+
D-Link DAP-2695 Quick Install Guide
2
ENGLISH
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based operating systems
• Installed Ethernet adapter or wireless adapter
• Internet Explorer 7, Chrome, Firefox, or Safari 4 or higher
System Requirements
Package Contents
DAP-2695 802.11n Power over
Ethernet (PoE) Access Point
Ethernet Cable CD-ROM
Console Cable
Mounting Plate
Hardware Overview
LEDs
NOTE no PSU supplied. To power the units use an D-Link PoE switch or the D-Link DPE-101GI
PoE injector.
D-Link DAP-2695 Quick Install Guide 3
ENGLISH
5 GHz - When lit, the access point is operating at 5GHz.
This light will blink when there is wireless trafc.
2.4 GHz - When lit, the access point is operating at 2.4GHz. This light will blink
when there is wireless trafc.
LAN1/LAN2 - Solid light when the Ethernet port is connected to a working port,
such as a router or switch. The light will blink when there is trafc through LAN
port.
POWER - The light will blink during boot up. Once solid, the access point is ready.
Installing the Hardware
LAN Port (PoE)**
Reset Button
Power Receptor***
Console Port
5GHz Antenna Connectors*
LAN Port
2.4GHz Antenna Connectors
* 1 x 5GHz and 2 x 2.4GHz antenna connectors are located on the bottom of the access point.
** PoE kit (injector and adapter) is NOT include in the package and it can be purchased with the model
name “DPE-101GI”.
*** Power Receptor (no longer used, replaced by PoE)
D-Link DAP-2695 Quick Install Guide
4
ENGLISH
To power the access point, you can use one
of the following 3 methods:
Method 1 - Use if you have a
PoE switch.
Method 2 - Use if you do not
have a PoE switch
and do not have a
power outlet near
the location of the
access point.
Method 1
1. Connect one end of your Ethernet cable
into the LAN1 (PoE) port on the DAP-
2695.
2. Connect the other end into one port on
a PoE switch.
Method 2
1. Connect one end of an Ethernet cable
into the Data In port on the PoE base
unit and the other end into one port on
your computer.
2. Connect one end of an Ethernet cable
into the P+Data Out port on the PoE
base unit and the other end into the
LAN1 (PoE) port on the DAP-2695
access point.
3. Use the supplied power adapter.
Connect the power adapter to the
Power In receptor on the PoE adapter.
4. Connect the other end of power
adapter into a power outlet.
Note: Purchase separately a DPE-101GI
PoE injector if you need to connect the
Access Point without a PoE Switch
D-Link DAP-2695 Quick Install Guide 5
ENGLISH
Conguration
Note: It is recommended to congure your DAP-2695 before mounting. The
easiest way is to connect to the Access Point directly to a computer using an
Ethernet cable. Statically assign the IP address of your computer to 192.168.0.2
with a subnet mask of 255.255.255.0.
Step 1: Open a web browser (e.g., Internet Explorer, Chrome, Firefox , or Safari)
and enter http://192.168.0.50.
Step 2: At the login screen, enter admin for the user name and leave the password
blanks. Click Login to continue.
Step 3: After the home page appears, go to Basic Settings > LAN to change
the IP settings of the DAP-2695. Go to Basic Settings > Wireless to congure
your wireless settings.
Note: Make sure you click on Conguration > Save and Activate to save
your settings.
D-Link DAP-2695 Quick Install Guide
6
ENGLISH

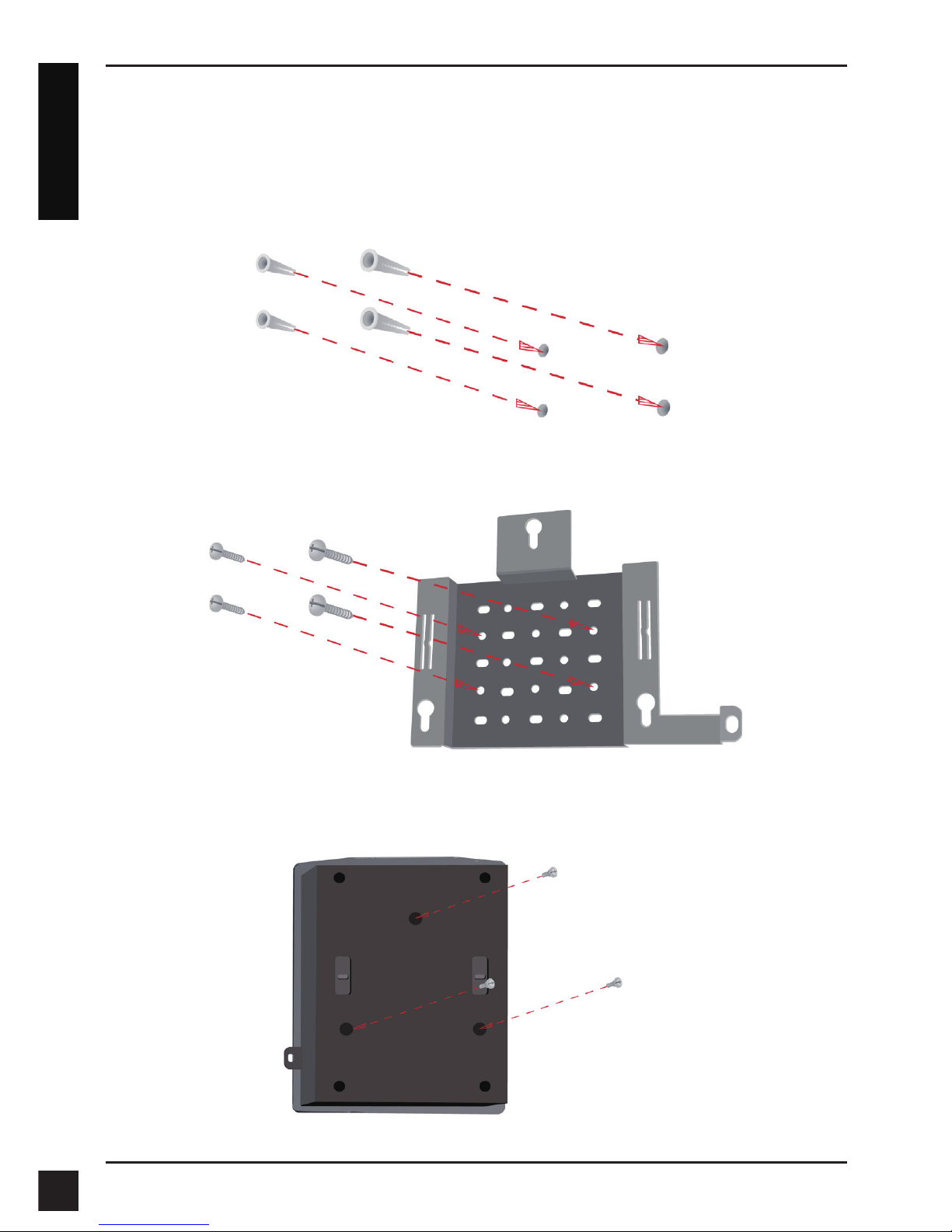

Step 1: Insert the provided wall anchors in the wall where the mounting plate
will be attached.
Mounting Plate Assembly
Step 2: Use the provided screws to secure the mounting plate on the wall.
Step 3: Attach the remaining screws securely to the back of the DAP-2695.
D-Link DAP-2695 Quick Install Guide 7
ENGLISH
Step 4: Attach the DAP-2695 to the mounting plate.
Step 5: Slide the DAP-2695 down into the grooves on the mounting plate to
secure it to the plate.
D-Link DAP-2695 Quick Install Guide
8
ENGLISH
When you have completed the steps in this Installation Guide and congured
your for your network, your network should look similar to this:
Your Setup is Complete
* Maximum Wireless signal rate derived from draft IEEE802.11ac specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network
overhead lower actual data throughput rate.
To setup and manage the DAP-2695 from a computer, use one of the following
methods:
1. Connect a straight through Ethernet cable between the access point and your
computer.
2. Connect the access point to a switch or router and use a computer from a
computer that is also connected to that switch or router.
TECHNICAL SUPPORT dlink.com/support
D-Link DAP-2695 Quick Install Guide 9
Mindestsystemanforderungen:
• CD-ROM-Laufwerk
• Computer mit Windows®, Macintosh®oder Linux-basierten
Betriebssystemen
• Installierter Ethernet-Adapter oder Wireless Adapter
• Internet Explorer 7, Chrome, Firefox oder Safari 4 oder höher
Systemanforderungen

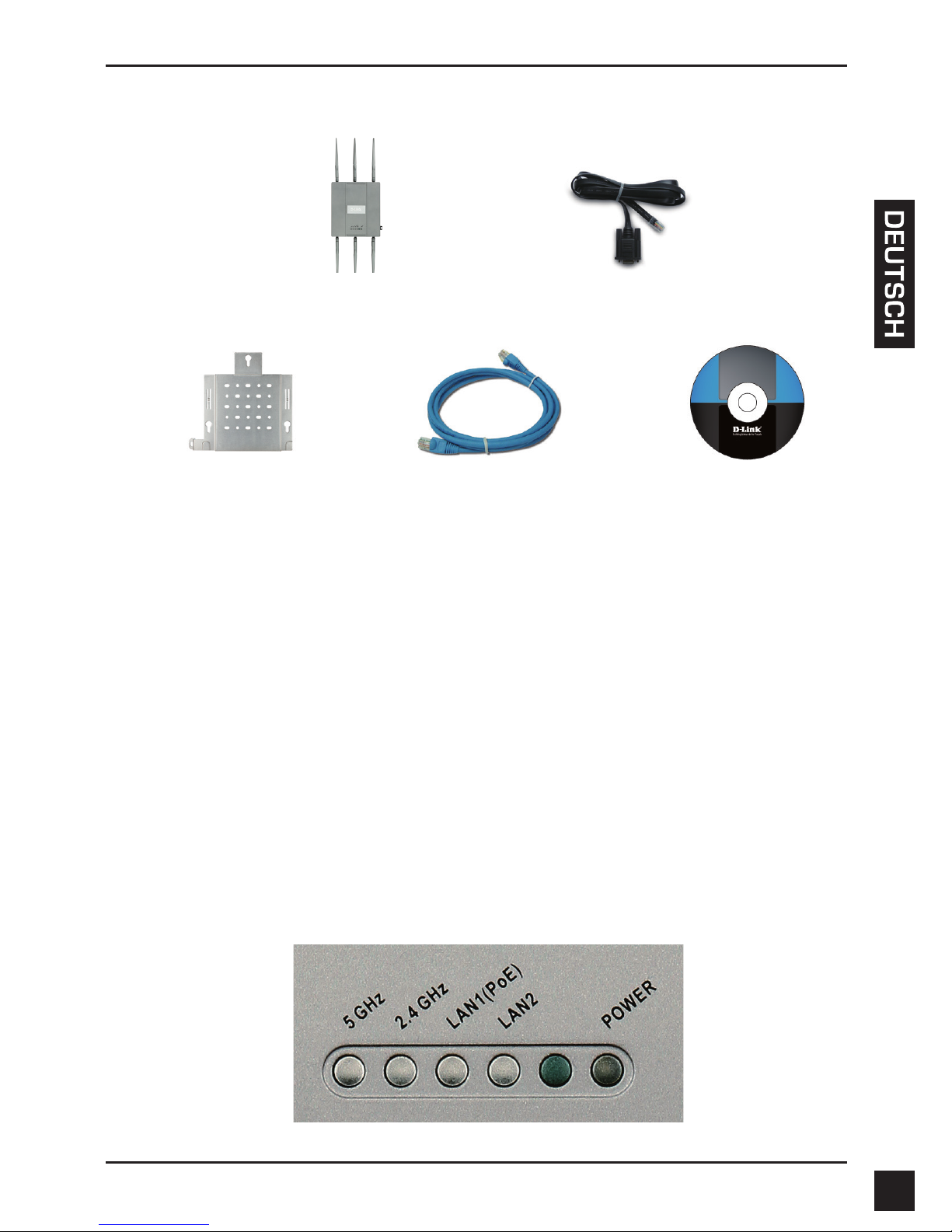

Packungsinhalt
HINWEIS: keine Stromversorgungseinheiten im Lieferumfang. Zur Stromversorgung der Einheiten nutzen Sie einen
D-Link PoE Switch oder den D-Link DPE-101GI PoE-Injektor
DAP-2695 802.11n Power over
Ethernet (PoE) Access Point
Ethernet-Kabel CD-ROM
Konsolenkabel
Montageplatte
Hardware-Überblick
LEDs
D-Link DAP-2695 Quick Install Guide
10
5 GHz – Leuchtet, wenn der Access Point im 5-GHz-Bereich betrieben wird.
Dieses Licht blinkt bei drahtlosem Datenverkehr.
2,4 GHz – Leuchtet, wenn der Access Point im 2,4-GHz-Bereich betrieben
wird. Dieses Licht blinkt bei drahtlosem Datenverkehr.
LAN1/LAN2 - Leuchtet durchgehend, wenn der Ethernet-Port an einen
ordnungsgemäß funktionierenden Port, wie etwa einen Router oder Switch,
angeschlossen ist. Das Licht blinkt bei Datenverkehr über den LAN-Port.
POWER – Das Licht blinkt während des Hochfahrens. Sobald es
durchgehend leuchtet, ist der Access Point betriebsbereit.
Installation der Hardware
LAN-Port (PoE)**
Stromeingangsbuchse***
Konsolenport
5 GHz Antennenanschlüsse*
LAN-Port
2,4 GHz Antennenanschlüsse
* 1 x 5 GHz und 2 x 2,4 GHz-Antennenanschlüsse benden sich auf der Unterseite des Access Point.
** PoE-Kit (Injektor und Adapter) ist nicht im Lieferumfang enthalten und kann unter der
Modellbezeichnung DPE-101GI gesondert erworben werden.
*** Stromeingangsbuchse (Hinweis: wird nicht mehr verwendet und durch PoE ersetzt)
Rücksetztaste/-
knopf (Reset)
