2D-Link DWL-2100AP Quick Install Guide

System Requirements

Package Contents

• Access Point

• Antenna

• CD-ROM (with software, manual, and warranty)

• Ethernet Cable

• 5V/2A Power Adapter

• Rubber Feet

• A Network with 802.11g/b wireless devices

It’s best to use a computer (with an Ethernet adapter)

that is connected to a switch or router for conﬁguring the

DWL-2100AP.The default IP address for the DWL-2100AP

is 192.168.0.50 with a Subnet Mask of 255.255.255.0.

You will need to assign your computer a Static IP address

within the same range as the DWL-2100AP’s IP address

for the purpose of conﬁguring the DWL-2100AP. See the

Appendix if you need assistance in assigning a Static IP

address for your network adapter.

Before You Begin

3 D-Link DWL-2100AP Quick Install Guide

Installation Considerations

D-Link wireless devices allow you access your network using a wireless connection

from virtually anywhere within the operating range of your wireless network. Keep

in mind, however, that the number, thickness and location of walls, ceilings, or

other objects that the wireless signals must pass through, may limit the range.

Typical ranges vary depending on the types of materials and background RF (radio

frequency) noise in your home or business. The key to maximizing wireless range

is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link access point

and other network devices to a minimum - each wall or ceiling can reduce

your adapter’s range from 3-90 feet (1-30 meters.) Position your devices

so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5

feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1

meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!

Position devices so that the signal will travel straight through a wall or

ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum

studs may have a negative effect on range. Try to position access points,

wireless routers, and computers so that the signal passes through drywall

or open doorways. Materials and objects such as glass, steel, metal, walls

with insulation, water (ﬁsh tanks), mirrors, ﬁle cabinets, brick, and concrete

will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as

ceiling fans, lights, and home security systems), your wireless connection

may degrade dramatically or drop completely. Make sure your 2.4GHz

phone base is as far away from your wireless devices as possible. The

base transmits a signal even if the phone in not in use.

4D-Link DWL-2100AP Quick Install Guide

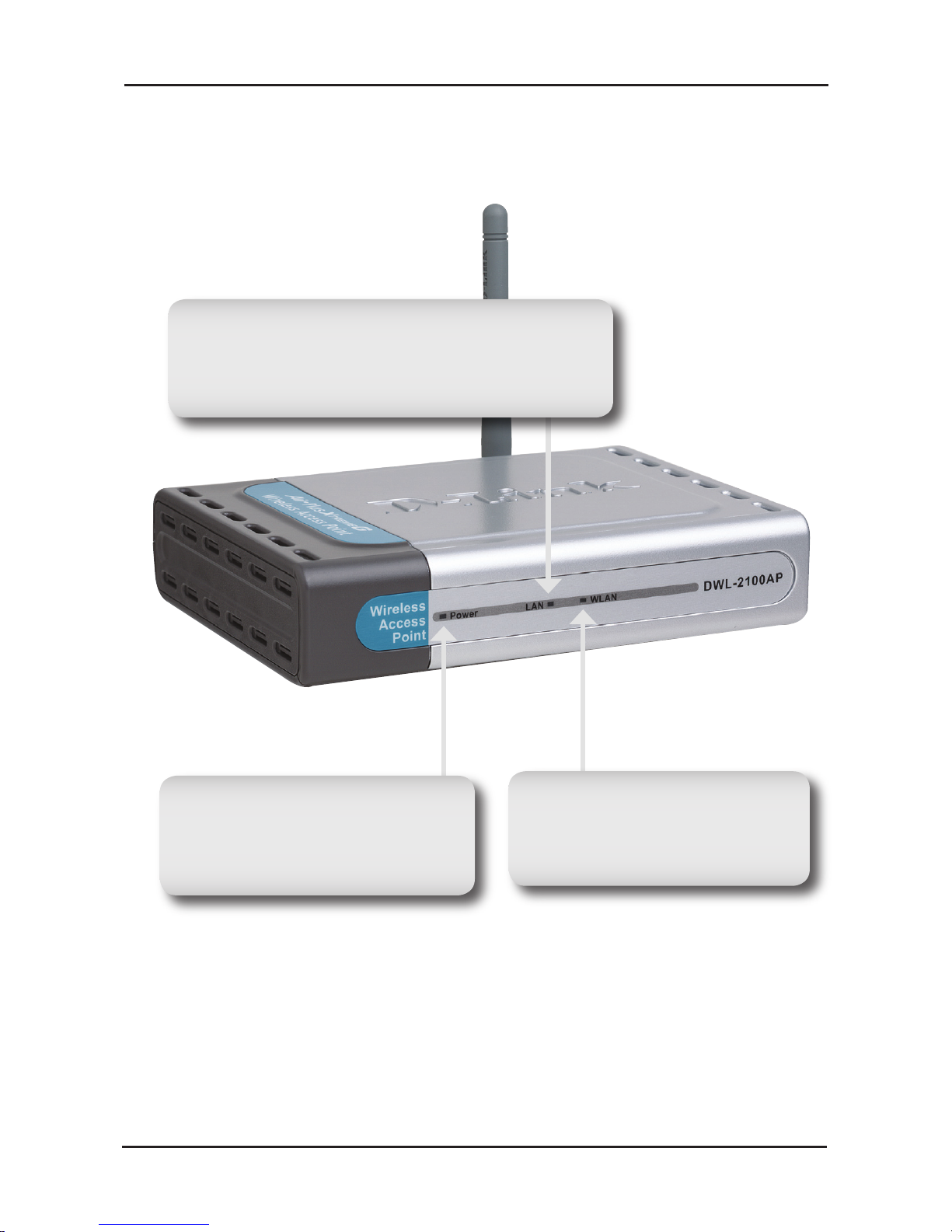

Front Panel

LAN

A blinking light indicates data is being

transmitted via the Ethernet port.

Power

A solid light indicates the

unit is properly powered.

WLAN

Blinking green indicates

wireless network activity.

5 D-Link DWL-2100AP Quick Install Guide

Rear Panel

Ethernet Port

Connects the DWL-2100AP to a

router or switch using an Ethernet

cable.

Reset Button

Pressing this button restores

the Access Point to its original

factory default settings.

Power Receptor

Used to connect the supplied

power adapter.

6D-Link DWL-2100AP Quick Install Guide

A. First, connect the power adapter to the receptor at the

back panel of the

DWL-2100AP and then plug the other

end of the power adapter to a wall outlet or power strip.The

Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable to the Ethernet port on the

back panel of the DWL-2100AP and the other end of the

cable to your network (switch or router).

Note: You also have the option of connecting the

DWL-2100AP directly to the computer that will be used

for configuration. The Link LED light will illuminate

to indicate a proper Ethernet connection. (Note: The

Ethernet Port on the DWL-2100AP is Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover

Ethernet cable to connect to the Ethernet port on the

DWL-2100AP.)

C. The DWL-G650 AirPlus Xtreme G Wireless Cardbus

Adapter and the DWL-G520 AirPlus Xtreme G Wireless

PCI Adapter will connect, out of the box, with the

DWL-2100AP, using their default wireless settings.

Computers with 802.11b wireless adapters can also

connect to the DWL-2100AP.

Connecting the DWL-2100AP Wireless

Access Point to Your Network

7 D-Link DWL-2100AP Quick Install Guide

Open your Web browser and

type http://192.168.0.50

into the URL address box.

Then press the Enter or

Return key.

Type admin for the username

and leave the password ﬁeld

blank.

Click OK

Setup Wizard

8D-Link DWL-2100AP Quick Install Guide

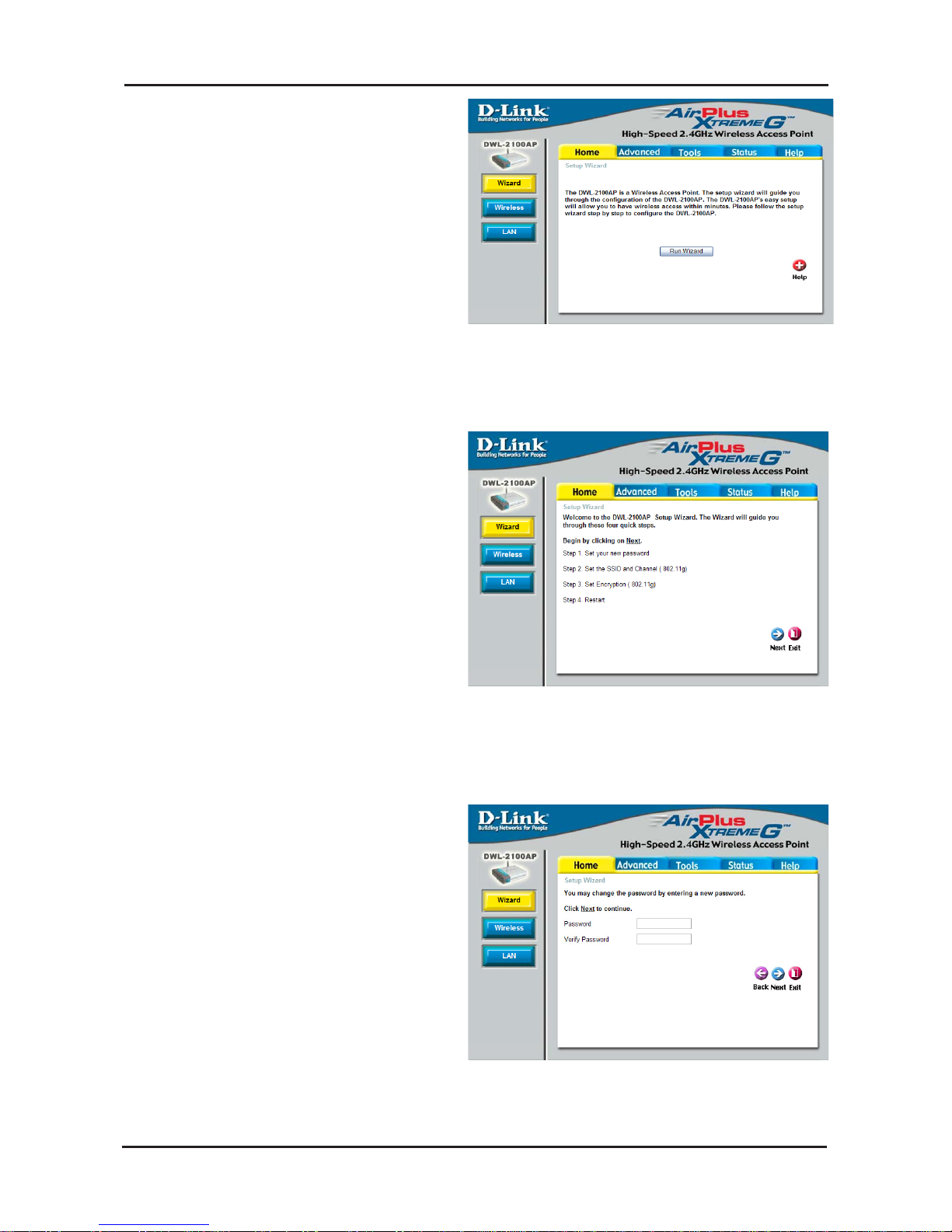

Once you have logged

in, the Home screen will

appear.

You will see the following

screen.

Click Run Wizard

Click Next

Step 1 - Set up your new

password. You have the option

to establish a password.

9 D-Link DWL-2100AP Quick Install Guide

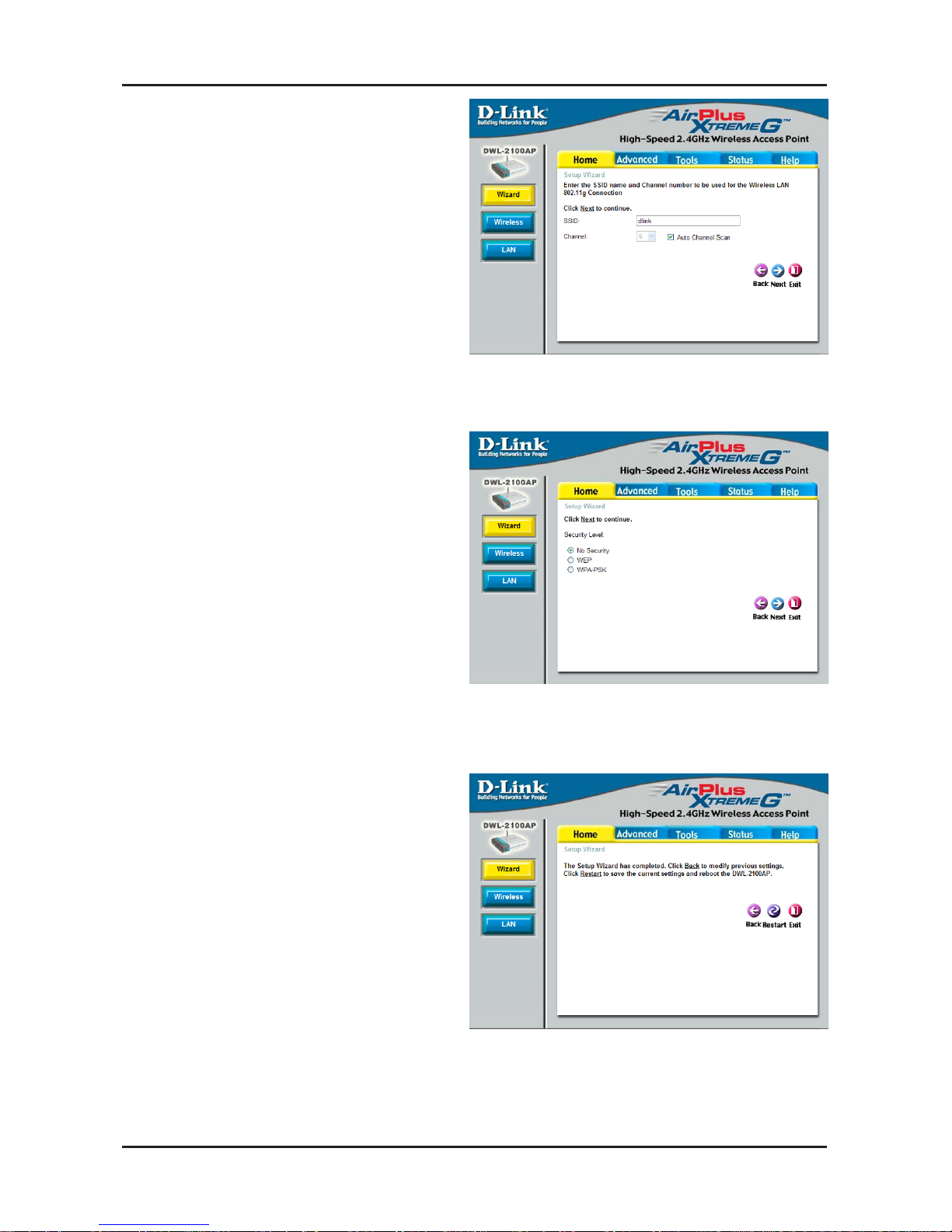

Step 2 - Wireless Setup

The default wireless settings

are:

SSID = dlink

You can change these settings

to match an existing wireless

network.

Click Next

Step 3 - Encryption

The DWL-2100AP is capable of

two levels of wireless encryption

WEP and WPA-PSK. By default

the encryption is disabled. You

can change the encryption

settings for more secure wireless

communication.

Your Setup is Complete!

Click Next

Click Restart

10D-Link DWL-2100AP Quick Install Guide

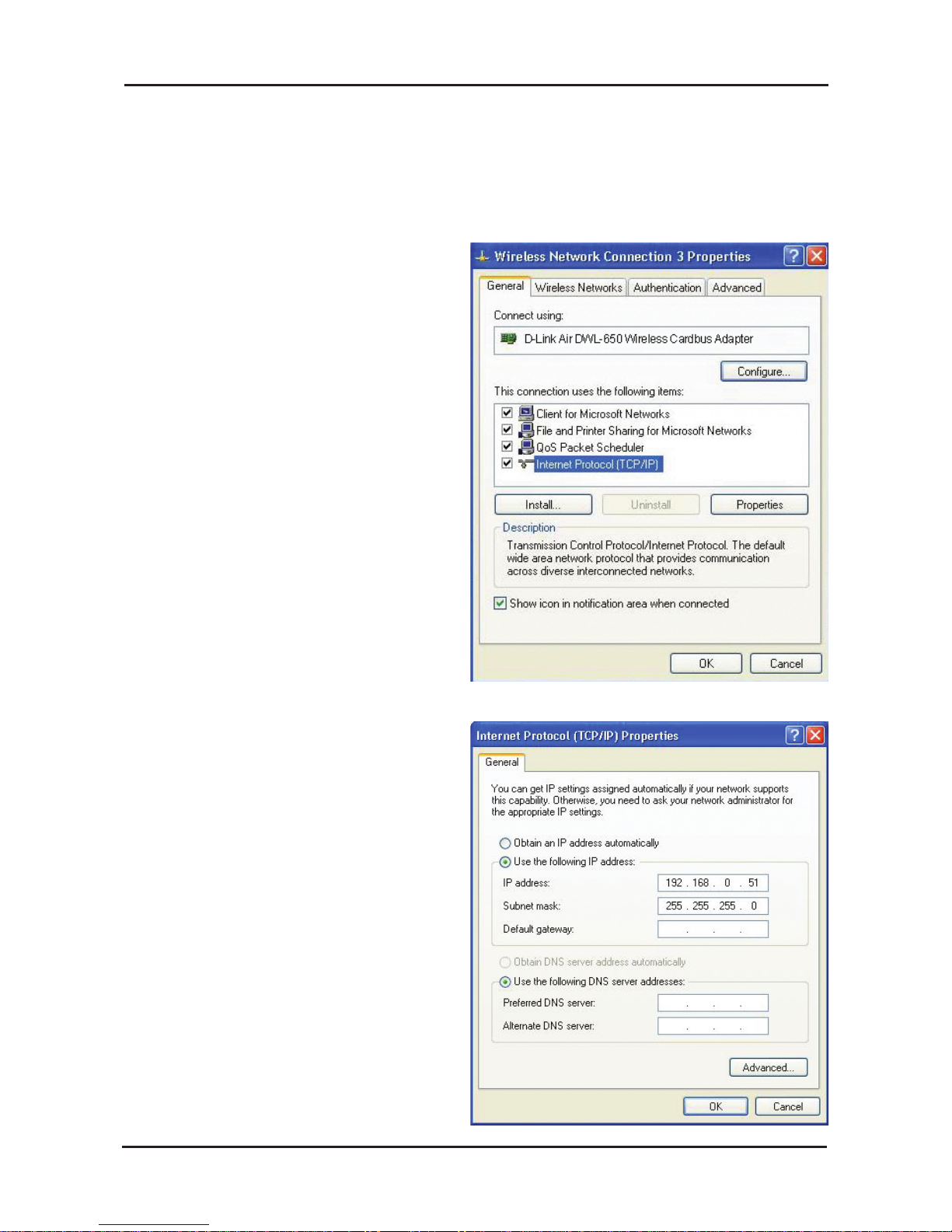

To assign a Static IP Address to the laptop or computer that you are

using to conﬁgure the DWL-2100AP, please do the following:

Assigning a Static IP Address in Windows®

Go to Start > Double-click Control

Panel > Double-click Network

Connections > Right-click on

Local Area Connections > Click

Properties

Highlight Internet Protocol

(TCP/IP)

Click Properties

Select Use the following IP

address in the Internet Protocol

(TCP/IP) Properties window

Click OK

Input your IP address and

subnet mask. (The IP Address

must be within the same range

as the DWL-2100AP. The IP

Address of the DWL-2100AP is

192.168.0.50. You can assign

192.168.0.51 for your computer.

No two computers can have

the same IP Address. Assign a

subnet mask of 255.255.255.0.)
