DWL-8200AP User’s Manual

D-Link Systems, Inc.

Table of Contents

Table of Contents ............................................................................. 2

Package Contents ............................................................................ 3

Introduction ..................................................................................... 4

Features and Beneﬁts ....................................................................... 6

Wireless Basics ................................................................................ 7

Three Operational Modes ............................................................... 10

Getting Started ............................................................................... 11

Using the Conﬁguration Menu ....................................................... 14

Using the AP Manager ................................................................... 59

Networking Basics ......................................................................... 99

Troubleshooting ........................................................................... 115

Technical Speciﬁcations ............................................................... 121

Contacting Technical Support ...................................................... 124

Warranty .................................................................................... 125

Registration ................................................................................. 129

Table of Contents

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Package Contents

 D-Link Air Premier® DWL-8200AP

Managed Dualband Access Point

 Power over Ethernet base unit

 Power Adapter-DC 48V, 0.4A

 Power Cord

 Manual and Warranty on CD

 Quick Installation Guide

 Ethernet Cable

 Mounting Plate

Note: Using a power supply with a different voltage than the one included with the

DWL-8200AP will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

 Computers with Windows, Macintosh, or Linux-based operating systems with

an installed Ethernet Adapter

 Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above

 At least 128MB of memory and a 500MHz processor

Package Contents

Minimum System Requirements

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Introduction

At up to ﬁfteen times the speed of previous wireless devices (maximum wireless

signal rate of up to 108Mbps* in Super A and Super G mode), you can work faster and

more efﬁciently, increasing productivity. With the DWL-8200AP, bandwidth-intensive

applications like graphics or multimedia will beneﬁt signiﬁcantly because large ﬁles are

able to move across the network quickly.

Inclusion of all three standards (802.11a; 802.11b; 802.11g) means that the

DWL-8200AP

is versatile enough to allow connection to almost any 802.11 network

or device.

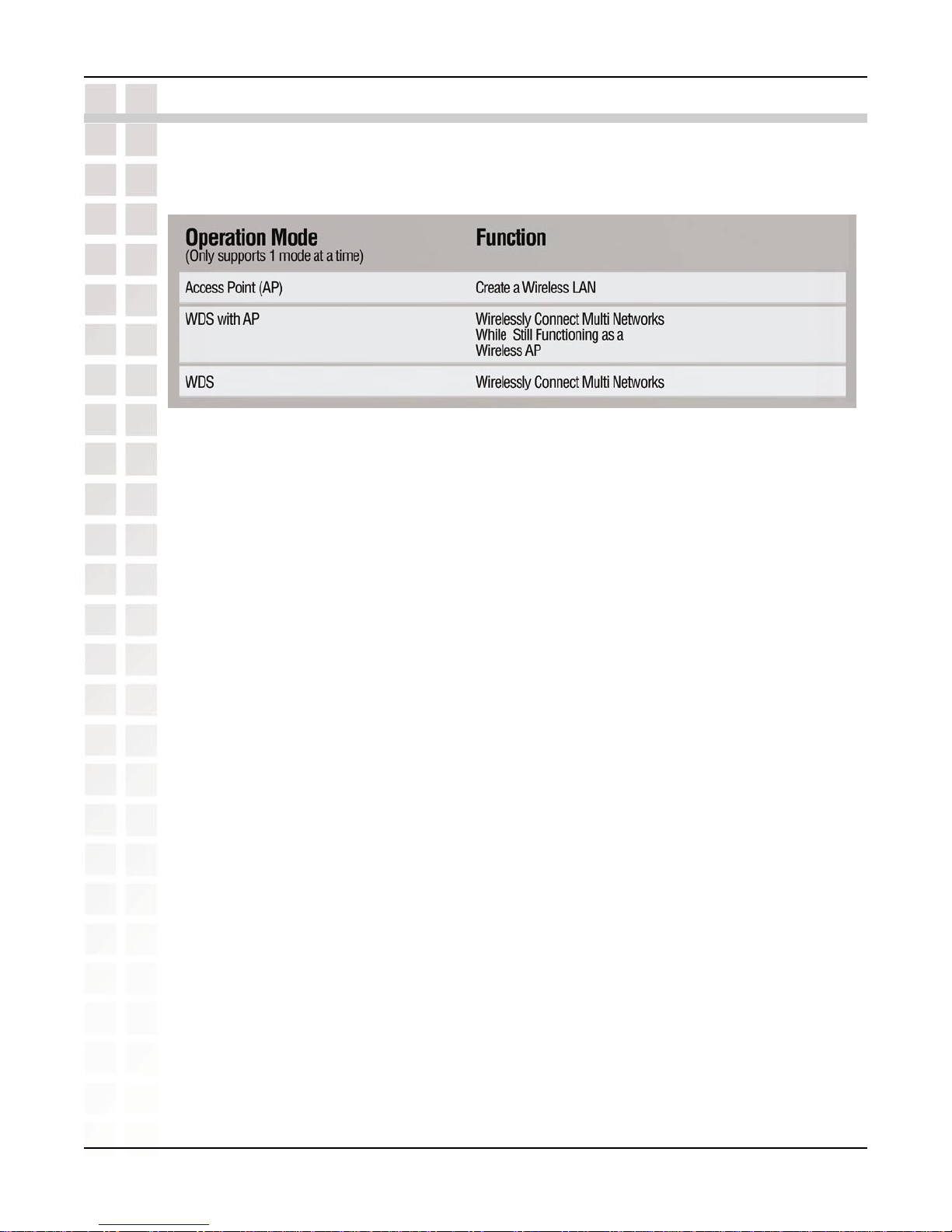

The DWL-8200AP is capable of operating in one of 3 different modes to meet your

wireless networking needs.

The DWL-8200AP can operate as an access point, or in

WDS (Wireless Distribution System) with AP

, or in WDS mode.

Use less wiring, enjoy increased ﬂexibility, save time and money with PoE (Power over

Ethernet). With PoE, the DWL-8200AP shares power and data over the CAT5 cable,

making the setup of your network less expensive and more convenient.

An ideal solution for quickly creating and extending a wireless local area network

(WLAN) in ofﬁces or other workplaces, trade shows and special events, the DWL-8200AP

provides data transfers at up to 108Mbps in Super A and Super G mode when used

with other D-Link

Air Premier® or Air Premier AG® products (The 802.11g standard is

backwards compatible with 802.11b devices).

*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g speciﬁcations. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network

overhead lower actual data throughput rate.

WPA is offered in two ﬂavors: Enterprise (used for corporations), and Personal (used

for home users).

WPA-Personal and WPA2-Personal is directed at home users who do not have the

server based equipment required for user authentication. The method of authentication

is similar to WEP because you deﬁne a “Pre-Shared Key” on the wireless router/AP.

Once the pre-shared key is conﬁrmed and satisﬁed on both the client and access point,

then access is granted. The encryption method used is referred to as the Temporal Key

Integrity Protocol (TKIP), which offers per-packet dynamic hashing. It also includes an

integrity checking feature which ensures that the packets were not tampered with during

wireless transmission. WPA2-Personal is far superior to WPA-Personal, because the

encryption of data is upgraded with the Advanced Encryption Standard (AES).

Introduction

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Introduction

802.1x: Authentication which is a ﬁrst line of defense against intrusion. In the

authentication process, the Authentication Server veriﬁes the identity of the client

attempting to connect to the network. Unfamiliar clients would be denied access.

WPA-Enterprise and WPA2-Enterprise is ideal for businesses that have existing

security infrastructures in place. Management and security implementation can now

be centralized on a server participating on the network. Utilizing 802.1x with a RADIUS

(Remote Authentication Dial-in User Service) server, a network adminstrator can

deﬁne a list of authorized users

who can access the wireless LAN. When attempting to

access a wireless LAN with either WPA-Enterprise or WPA2-Enterprise conﬁgured,

the new client will be challenged with a username and password.

If the new client is

authorized by the administration, and enters the correct username and password, then

access is granted. In a scenario where an employee leaves the company, the network

administrator can remove the employee from the authorized list and not have to worry

about the network being compromised by a former employee. WPA2-Enterprise is

far superior to WPA-Enterprise, because the encryption of data is upgraded with the

Advanced Encryption Standard (AES).

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Features and Beneﬁts

 3 Different Operation modes - Capable of operating in one of three different

operation modes to meet your wireless networking requirements: Access Point;

WDS with AP; or WDS.

 Easy Installation with PoE (Power over Ethernet).

 Faster wireless networking speeds up to 108Mbps* in Super A and Super G

mode.

 Compatible with 802.11a, 802.11b and 802.11g Devices that is fully compatible

with the IEEE 802.11a, 802.11b and 802.11g standards, the DWL-8200AP can

connect with existing 802.11b-, 802.11g- or 802.11a-compliant wireless network

adapter cards.

 Compatible with the 802.11b standard to provide a wireless data rate of up to

11Mbps - that means you can migrate your system to the 802.11g standard on

your own schedule without sacriﬁcing connectivity.

 Better security with WPA - The DWL-8200AP can securely connect wireless clients

on the network using WPA (Wi-Fi Protected Access) providing a much higher level

of security for your data and communications than has previously been available.

 AP Manager Setup Wizard - The new Setup Wizard makes network conﬁguration

quick and simple.



SNMP for Management - The DWL-8200AP is not just fast but it also supports

SNMP v.3 for a better network management. Superior wireless AP manager

software is bundled with the DWL-8200AP for network conﬁguration and ﬁrmware

upgrade. Systems administrators can also setup the DWL-8200AP easily with

the Web-based conﬁguration. A D-Link D-View module will be downloadable

for network administration and real-time network trafﬁc monitoring with D-Link

D-View software.

 Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).

 Operates in the 2.437GHz frequency range for an 802.11a network, and in the

5.26GHz frequency range for an 802.11b and 802.11g network.

 Web-based interface for managing and conﬁguring.

Features & Beneﬁts

*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g speciﬁcations. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network

overhead lower actual data throughput rate.

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and

compatible high-speed wireless connectivity within your home, business or public

access wireless networks. D-Link wireless products will allow you to access the data you

want, when and where you want it. You will be able to enjoy the freedom that wireless

networking brings.

A Wireless Local Area Network (WLAN) is a computer network that transmits and

receives data with radio signals instead of wires. WLANs are used increasingly in both

home and ofﬁce environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people to work

and communicate more efﬁciently. Increased mobility and the absence of cabling and

other ﬁxed infrastructure have proven to be beneﬁcial for many users.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-time

information can signiﬁcantly improve worker efﬁciency.

Low Implementation Costs - WLANs are easy to set up, manage, change and relocate.

Networks that frequently change can beneﬁt from WLANs ease of implementation.

WLANs can operate in locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be fast and easy

and can eliminate the need to pull cable through walls and ceilings. Wireless technology

allows the network to go where wires cannot go - even outside the home or ofﬁce.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventional Ethernet network devices. The DWL-8200AP saves money by providing

multi-functionality, conﬁgurable in one of three different modes.

Scalability - WLANs can be conﬁgured in a variety of ways to meet the needs of

speciﬁc applications and installations. Conﬁgurations are easily changed and range

from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure

networks to accommodate hundreds or thousands of users, depending on the number

of wireless devices deployed.

Wireless users can use the same applications they use on a wired network. Wireless

adapter cards used on laptop and desktop systems support the same protocols as

Ethernet adapter cards.

Wireless Basics

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Wireless Basics

Standards-based Technology

The DWL-8200AP Wireless Access Point utilizes the 802.11a, 802.11b and the 802.11g

standards.

The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the

maximum wireless signal rate of up to 54Mbps* (maximum wireless signal rate of up

to 108Mbps* in Super G mode) within the 2.4GHz band, utilizing OFDM technology.

This means that in most environments, within the speciﬁed range of this device, you will

be able to transfer large ﬁles quickly or even watch a movie in MPEG format over your

network without noticeable delays. This technology works by transmitting high-speed

digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing)

technology. OFDM works by splitting the radio signal into multiple smaller sub-signals

that are then transmitted simultaneously at different frequencies to the receiver. OFDM

reduces the amount of crosstalk (interference) in signal transmissions.

The D-Link DWL-8200AP will automatically sense the best possible connection speed

to ensure the greatest speed and range possible.

The DWL-8200AP offers the most advanced network security features available today,

including WPA and WPA2.

In addition to its compatibility with 802.11g and 802.11a devices, the DWL-8200AP

is compatible with 802.11b devices. This means that if you have an existing 802.11b

network, or a network with a mixture of 802.11g, 802.11a and 802.11b, the devices in

that network will be compatible with the DWL-8200AP.

*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g speciﬁcations. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network

overhead lower actual data throughput rate.

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Wireless Basics

The D-Link Air Premier® DWL-8200AP lets you access your network, using a wireless

connection, from virtually anywhere within its operating range. Keep in mind, however,

that the number, thickness and location of walls, ceilings, or other objects that the

wireless signals must pass through, may limit the range. Typical ranges vary depending

on the types of materials and background RF (radio frequency) noise in your home or

business. The key to maximizing wireless range is to follow these basic guidelines:

Installation Considerations

1 Keep the number of walls and ceilings between the DWL-8200AP and other network

devices to a minimum - each wall or ceiling can reduce your DWL-8200AP’s range

from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or

ceilings is minimized.

2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick

(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a

2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the

signal will travel straight through a wall or ceiling (instead of at an angle) for better

reception.

3 Building materials can impede the wireless signal - a solid metal door or aluminum

studs may have a negative effect on range. Try to position wireless devices and

computers with wireless adapters so that the signal passes through drywall or open

doorways and not other materials.

4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or

appliances that generate RF noise.

DWL-8200AP User’s Manual

D-Link Systems, Inc.

Three Operational Modes

Andere Handbücher für D DWL-8200AP DWL-8200AP

Inhaltsverzeichnis

Andere D-Link Drahtloser Zugangspunkt Handbücher

D-Link

D-Link D DWL-8200AP DWL-8200AP Bedienungsanleitung

D-Link

D-Link D DWL-8200AP DWL-8200AP Bedienungsanleitung

D-Link

D-Link NUCLIAS CONNECT DAP-2680 Bedienungsanleitung

D-Link

D-Link DAP-2553 - Wireless N Dual Band Gigabit Access... Bedienungsanleitung

D-Link

D-Link DAP-1360 Bedienungsanleitung

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

D-Link

D-Link AirPremier DWL-7700AP Bedienungsanleitung

D-Link

D-Link DAP-2553 - Wireless N Dual Band Gigabit Access... Bedienungsanleitung

D-Link

D-Link AirPremier DWL-7700AP Bedienungsanleitung

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Bedienungsanleitung

D-Link

D-Link DWL-2600AP Service-Handbuch

D-Link

D-Link DIS-2650AP Bedienungsanleitung

D-Link

D-Link DAP-2020 Bedienungsanleitung

D-Link

D-Link DWL-3200AP - AirPremier - Wireless Access... Bedienungsanleitung

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

D-Link

D-Link AirPremier N DAP-2555 Bedienungsanleitung

D-Link

D-Link AirPremier N DAP-3690 Bedienungsanleitung

D-Link

D-Link DWL-2200AP - AirPremier - Wireless Access... Bedienungsanleitung

D-Link

D-Link D DWL-G700AP DWL-G700AP Bedienungsanleitung

D-Link

D-Link NUCLIAS CONNECT DAP-2680 Bedienungsanleitung

D-Link

D-Link AirPremier N DAP-2690 Bedienungsanleitung

D-Link

D-Link AirPremier N DAP-2690 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung

Draytek

Draytek VIGORAP 902 Bedienungsanleitung

EnGenius

EnGenius EAP350 Bedienungsanleitung
