DAP-X2850

Quick Installation Guide

Nuclias Connect AX3600 Access Point

Contents

English 1

DAP-X2850 Quick Installation Guide 1

ENGLISH

System Requirements

•Computers with Windows®, Macintosh®,

or Linux-based operating systems with an

installed Ethernet Adapter

•Internet Explorer 11, Safari 7, Firefox 28,

or Google Chrome 33 and above (for

conﬁguration)

Hardware Overview

LED Indicators

Figure 1: Front Panel LED

# LED Description

1Power/

Status

Green (Solid) - Device operational

Red (Flashing) - Device booting

up/Device malfunctioned

Red (Solid) - Device boot up

has failed

Table 1: LED Description

Before You Begin

This installation guide provides instructions

for installing the DAP-X2850 on your network.

Additional documentation is also available on

the D-Link support website.

• Nuclias Connect Manual: For additional

information and instructions on how

to configure the device using Nuclias

Connect.

• DAP-X2850 User Manual: For additional

information and instructions on how to

conﬁgure the device using the web user

interface.

Package Contents

This DAP-X2850 package includes the following

items:

• DAP-X2850 Access Point

• Power Adapter (Optional)

• Mounting Plate and Hardware

• Quick Start Guide

If any of the above items are damaged or

missing, please contact your local D-Link reseller.

Note: Using a power supply with a diﬀerent

voltage than the one recommended for the

device will cause damage and void the warranty

for this product.

Note: No power adapter is supplied with this

product. To power the unit, use an 802.3at PoE

Switch or an 802.3at PoE Injector.

2DAP-X2850 Quick Installation Guide

ENGLISH

Interface Connectors

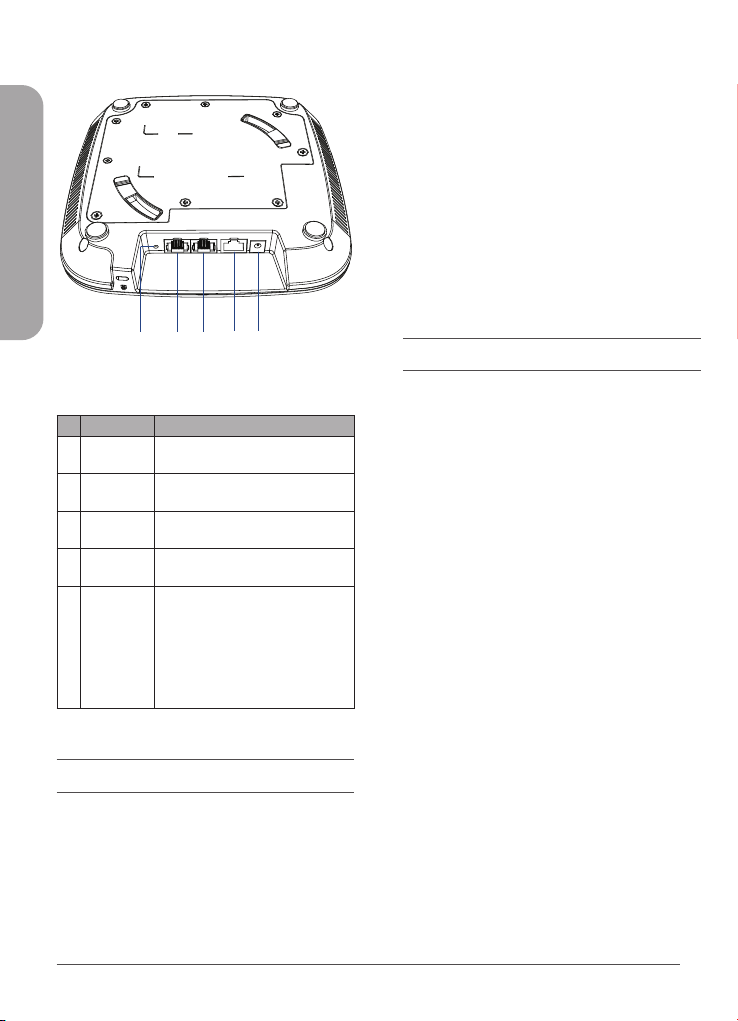

Figure 2: Rear Connectors

# Connector Description

1 Reset Press and hold for 15 seconds to

factory reset the device.

Console

Port

RJ45 console port for connection to

a management computer.

LAN Port 10/100/1000 Mbps Ethernet

LAN port (non-PoE).

4LAN (PoE)

Port

2.5 Gbps Ethernet port for data and

Power over Ethernet (PoE) power.

5Power

Input

Input for the power adapter;

however, the device can also be

powered over Ethernet.

Note: An 802.3at PoE injector is not

included in the package contents,

but can be purchased separately.

Table 2: Interface Description

Installation

The DAP-X2850 can be powered using one of

the following two methods:

Using Power over Ethernet (PoE)

1. Use a standard Ethernet cable to connect

the LAN port on the DAP-X2850 to a PoE

power source device such as an 802.3at

PoE switch or 802.3at PoE injector.

Using a Power Adapter (Optional)

1. Connect the power connector of the

adapter to the power input on the

DAP-X2850 and plug the adapter into a

nearby power outlet.

Conguration

Using Nuclias Connect

The DAP-X2850 is designed to be managed

through Nuclias Connect. Refer to the Nuclias

Connect Manual for detailed configuration

instructions.

Manual Conguration

Note: D-Link recommends manually conﬁguring

the device before mounting it.The management

computer, DHCP server and DAP-X2850 must be

in the same subnet.

Use one of the following methods to access the

web user interface:

Connecting through Ethernet

1. Use an Ethernet cable to connect the

DAP-X2850 to the management computer,

or to the switch or router the management

computer is connected to.

2. Manage the access point from a computer.

Enter dapx2850.local in the address ﬁeld

of your browser.

2 3 4 5

DAP-X2850 Quick Installation Guide 3

ENGLISH

3. Log in to the administration user

interface. The default login information is

Username: admin

Password: admin

Connecting Wirelessly

1. Connect the management computer to

the default SSID of the DAP-X2850,“dlink”.

2. Manage the access point from a computer.

Enter dapx2850.local in the address ﬁeld

of your browser.

3. Log in to the administration user

interface. The default login information is

Username: admin

Password: admin

Mounting

Mounting on a Solid Wall or Ceiling

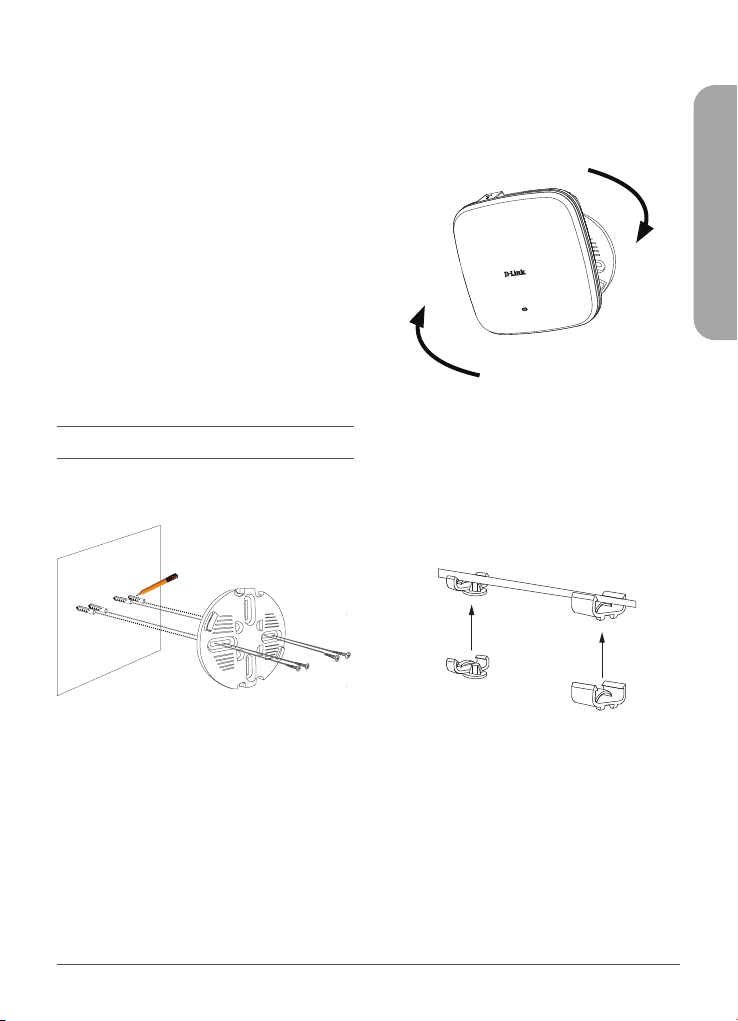

Figure 3: Attaching the Mounting Plate

1. Use the mounting plate to mark the

location where to drill the holes in the

wall or ceiling.

2. Drill holes on the markings and place the

included anchors into the drilled holes.

3. Align and place the mounting plate on

top of the anchors and use the included

screws to secure the mounting plate to

the surface.

4. Plug the Ethernet cable into the LAN

(PoE) port of the device. Note: If you are

powering the device with a power adapter,

plug the adapter into the Power Input port.

Figure 4: Mounting the Device

5. Rotate the DAP-X2850 into the grooves

on the mounting plate to secure it to

the plate.

Mounting with Ceiling Brackets

Figure 5: Attaching the Ceiling Brackets

1. Clip the two ceiling brackets onto a ceiling

crossbar.

4DAP-X2850 Quick Installation Guide

ENGLISH

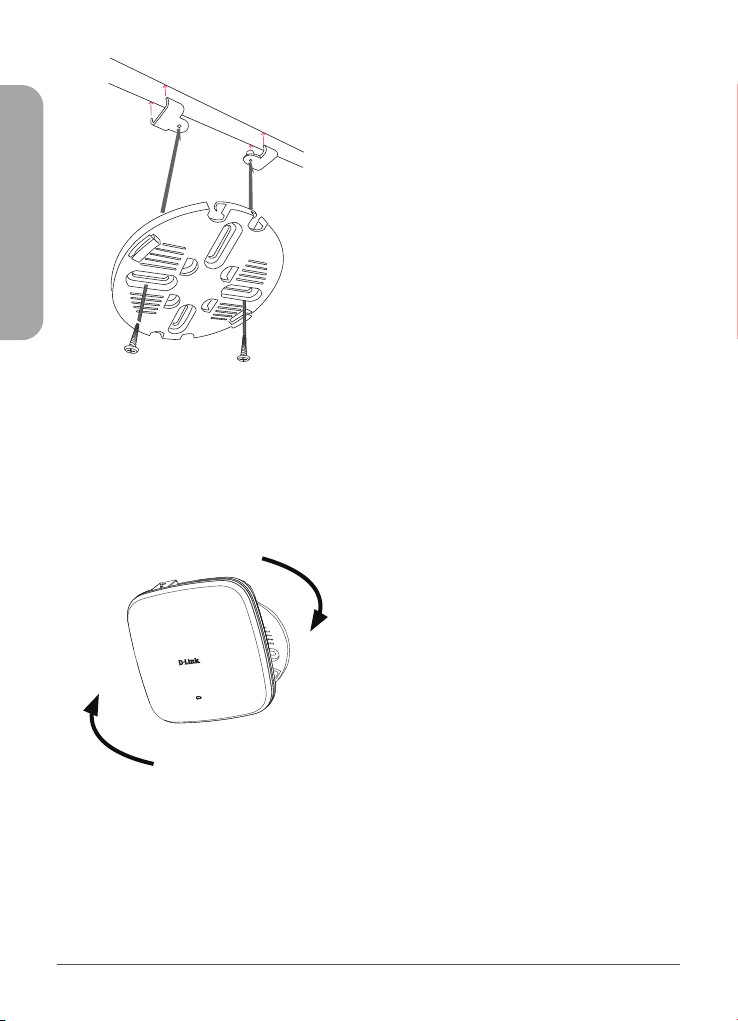

Figure 6: Attaching the Mounting Plate

2. Use the included screws to secure the

mounting plate to the ceiling brackets.

3. Plug the Ethernet cable into the LAN

(PoE) port of the device. Note: If you are

powering the device with a power adapter,

plug the adapter into the Power Input port.

Figure 7: Mounting the Device

4. Rotate the DAP-X2850 into the grooves

on the mounting plate to secure it to

the plate.

ErP Power Usage

This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network

Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a

power switch to save energy when it is not needed.

Network Standby: 5.065 watts

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Non-modications Statement:

Any changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter except in accordance with FCC multi-transmitter product procedures. For product

available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is

not possible.

Note

The country code selection is for non-USA models only and is not available to all USA models. Per FCC

regulations, all WiFi product marketed in the USA must be xed to USA operational channels only.

Appendix - Statements

TECHNICAL SUPPORT dlink.com/support

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

42cm between the radiator & your body.

NCC警語:

取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變

更頻率、加大功率或變更原設計之特性及功能。

低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象

時，應立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理法規定

作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電

機設備之干擾。

使用此產品時應避免影響附近雷達系統之操作。

Ver. 1.00(WW)_130x183

2020/05/14
