D-Link DWL-8710AP Bedienungsanleitung
Quick Installation Guide
Краткое руководство по установке
802.11n/ac Unified Wireless Outdoor PoE Access Point
Внешняя еспроводная двухдиапазонная унифицированная
точка доступа AC1200 с поддержкой РоЕ
DW -8710AP
Introduction
This Quick Installation Guide gives you step-by-step instructions for setting up your DWL-8710AP 802.11n/ac
Unified Wireless Outdoor PoE Access Point. For more detailed information about the access point,
configuring the device, and technical specifications, please refer to the User Manual.
Package Contents
• DWL-8710AP
• 2 antennas (2.4 GHz)
• 2 antennas (5 GHz)
• 4 antenna connector caps
• 2 waterproof seals for Ethernet-cable
• Grounding wire (180 cm)
• Wall/pole mounting kit
• CD-ROM with documentation
• Warranty Certificate
If any of the above items are damaged or missing, please contact your local D-Link reseller.
Connecting to Power
To power the DWL-8710AP, please use any D-Link IEEE 802.3at-compliant PoE switch or a PoE injector
(f.i. DPE-301GI).
System Requirements
• CD-ROM drive
• Computer with Windows, Macintosh, or Linux-based operating system
• Installed and operational Ethernet adapter
• Internet Explorer 6.0, Chrome 2.0, Safari 2.0, or Firefox 3.0 and above
Hardware Overview

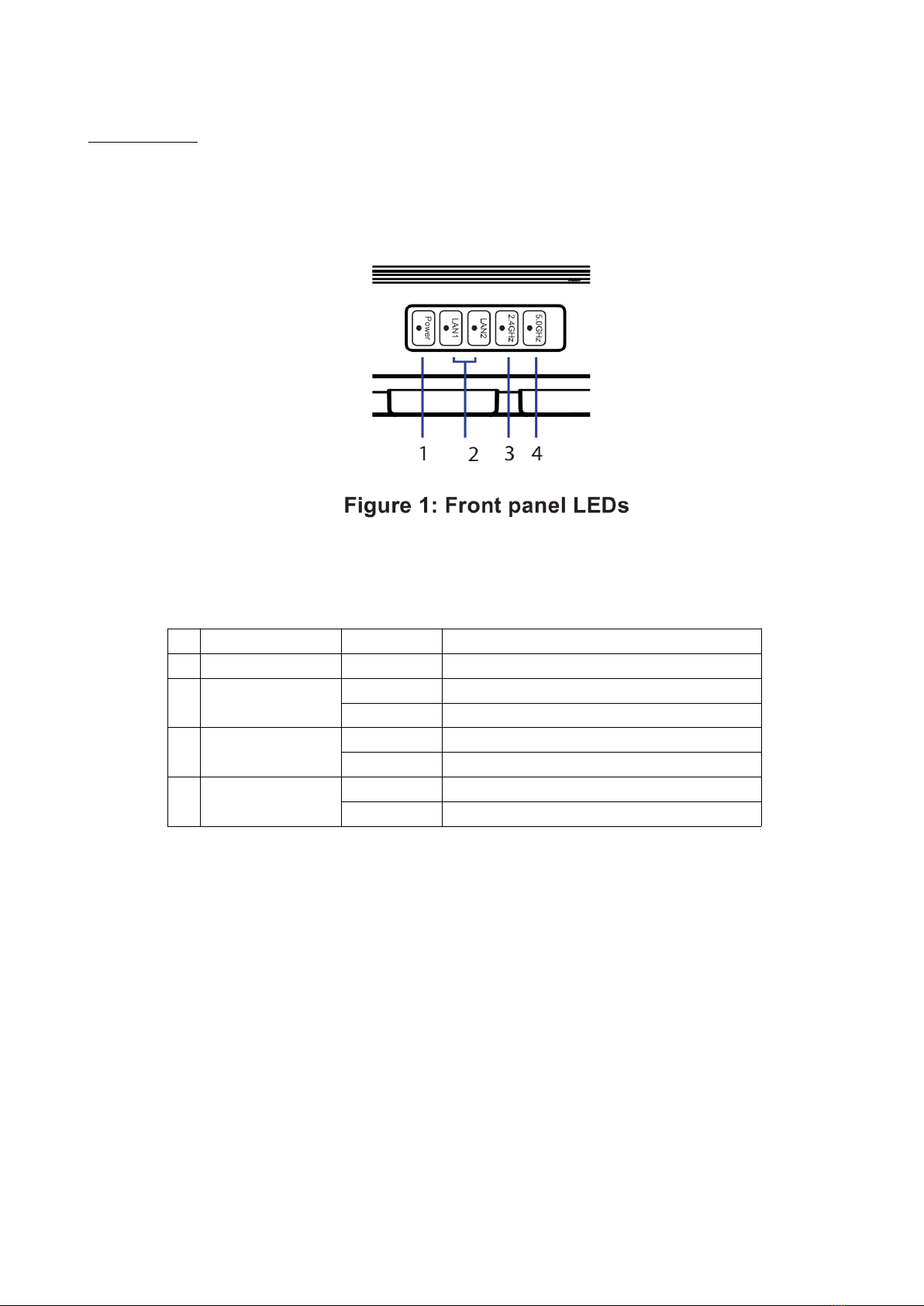

ED Indicators
# ED Status Description
1 Power On Device is powered and working
2 LAN 1 / LAN 2 Blinking Data is being processed
On Port is connected to a device
3 2.4 GHz Blinking Wireless data is being processed
On AP is transmitting over 2.4 GHz
4 5 GHz Blinking Wireless data is being processed
On AP is transmitting over 5 GHz
Table 1. LED overview
Bottom Interface Connectors
# Connector Description
1 5 GHz Antenna connector for the 5 GHz band antenna
2 LAN 1 (PoE Input) LAN and PoE input port
3 LAN 2 Non-PoE LAN input port
4 2.4. GHz Antenna connector for the 2.4 GHz band antenna
Table 2. Connector description
Top Interface Connectors
# Connector Description
1 5 GHz Antenna connector for the 5 GHz band antenna
2 2.4 GHz Antenna connector for the 2.4 GHz band antenna
Table 3. Top connector description
Side Panel
# Item Description
1 Vent Repels liquid and particles while allowing air to pass through
Table 4. Vent description
Grounding
Use the ground connector for grounding the DWL-8710AP.
# Item Description
1 Ground Connector Meant for grounding the Access Point metal case
Table 5. Ground Connector description
Hardware Installation
Powering the Access Point
You can use PoE (802.3at) to power the DWL-8710AP:
1. You can power the DWL-8710AP by connecting a PoE injector’s PoE-OUT to the LAN1 port (PoE-Input)
on the DWL-8710AP. Then connect the PoE injector’s LAN-IN port to an available Ethernet port on your
computer and plug in the injector’s power cord into a power outlet as shown in figure 6.
2. Alternatively, you may directly connect the LAN1 (PoE-Input) port on the DWL-8710AP to any available
PoE-capable port of an 802.3at-compliant PoE switch, as illustrated in figure 7.
Protecting the Network Ports
The DWL-8710AP’s Ethernet ports are equipped with a set of protective sealing caps designed for outdoor
use. Please refer to figure 8 for how to correctly attach and secure the Ethernet cables to the DWL-8710AP.
Mounting the AP to a Wall
The DWL-8710AP can be mounted either horizontally or vertically. However, it is recommended that the AP
is installed with the antennas positioned vertically in order to achieve optimal performance.
1. Use the mounting base plate to mark the location on the surface where you want to mount the
DWL-8710AP. Next, drill a hole of 8 mm wide and 37 mm deep on all 4 markings.
2. Remove the nut and washer from the bolts and place the bolts in the holes as shown below in figure 9.
3. Place and lock the flat washer on the cap screws and attach the mounting plate to the back of the
DWL-8710AP using the screws as illustrated in figure 10.
4. Mount the DWL-8710AP onto the bolts that were placed in the wall, then fasten the bolts’ flat washers and
nuts to secure the mounting plate with the AP to the wall surface.
5. Remove the protective caps covering the antenna ports on the AP, if any. Next, connect the 2 antennas
marked “2.4 GHz” to the designated 2.4 GHz connectors and the antennas marked “5 GHz” to the
designated 5 GHz connectors on the AP. The DWL-8710AP is now ready to be connected to the network.
Mounting the AP to a Pole
The DWL-8710AP can be mounted either horizontally or vertically. However, it is recommended that the AP
is installed with the antennas positioned vertically in order to achieve optimal performance.
1. Place the lock and flat washer on the cap screws and attach the mounting plate to the back of the
DWL-8710AP.
2. Depending on the orientation of the pole you wish to install the AP onto (horizontal or vertical), attach the
pole mounting bracket to the mounting base plate accordingly using the screws. Refer to figure 14 for the
proper position of the pole mounting bracket for each direction.
3. Thread the open end of the pole strap through the two tabs on the pole mounting bracket to secure the
strap to the mounting bracket.
