Dürkopp Adler 767 - Bedienungsanleitung
767
Spezialnähmaschine
Aufstellanleitung
Installation instructions
Instructions d’installation
Instrucciones de instalación
Instruções de montagem
Istruzioni per il montaggio
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 5 21 / 9 25- 00 • Telefax +49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com
Ausg./Edition: 04/2005 Printed in Federal Republic of Germany Teile-Nr.: 0791 767742
GB
D
F
E
P
I
Contents page:
Part 2: Cl. 767 Installation instructions
1. Items delivered ................................. 3
2. Setting up
2.1 Erecting the upper part ............................. 5
2.2 Transport..................................... 5
2.3 V-belttension .................................. 5
2.4 Reelstand.................................... 7
2.5 Workingheight.................................. 7
2.6 Kneelever.................................... 7
3. Electrical connection
3.1 Ratedvoltage.................................. 8
3.2 Checkingdirectionofmotorrotation..................... 8
3.3 Checkingpositioning.............................. 9
4. Pneumatic connection ............................ 10
5. Filling with oil
5.1 Regulation of hook lubrication ........................ 12
5.2 Lubricating wicks and felt ........................... 13
6. Sewing test ................................... 14
GB

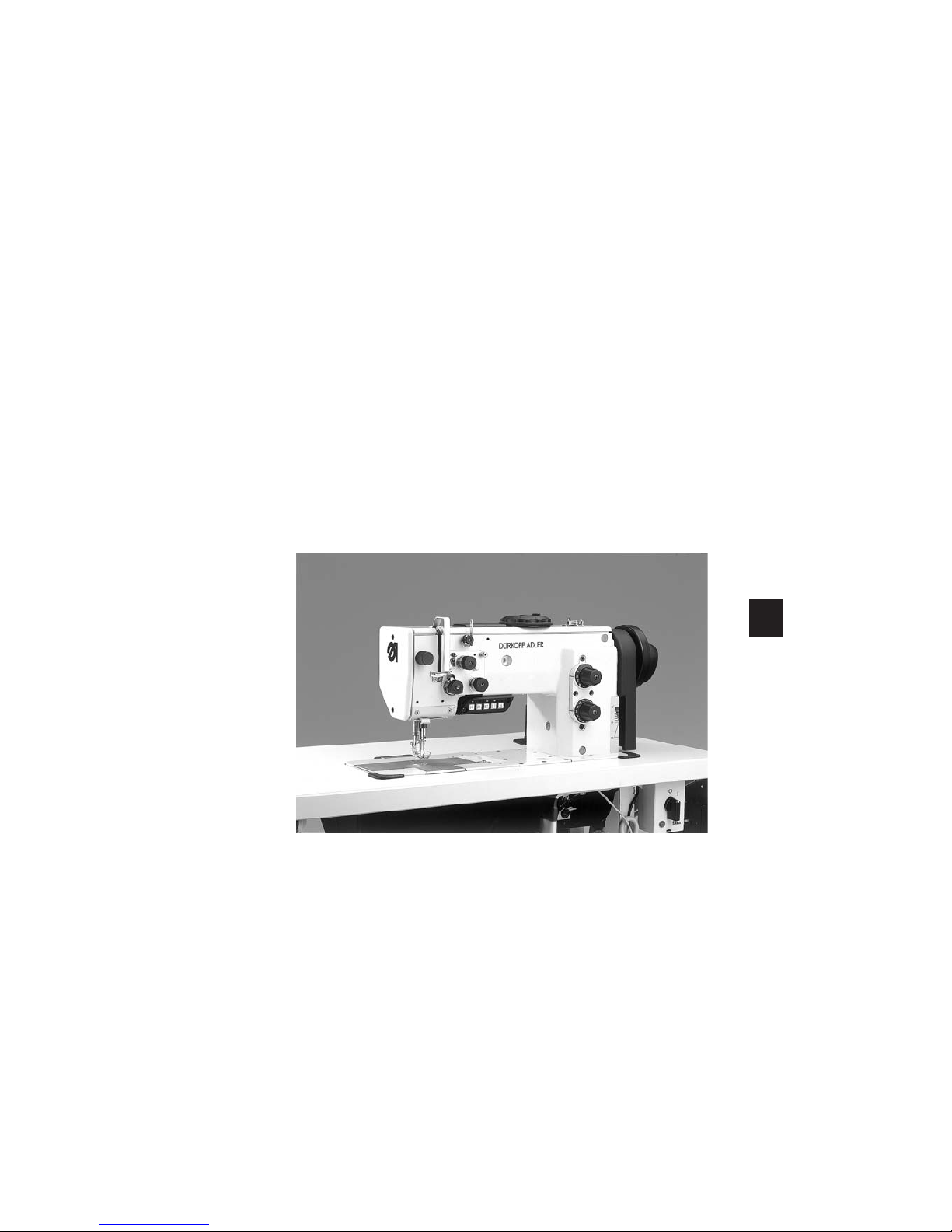

1. Items supplied
Which items are supplied depends on your order. Please check that all the required
components are present before beginning setting-up work.
–Basic machine with one or two needles, with or without thread clipper and with or
without edge cutter.
–frame, drive, reel stand, maintenance unit
–knee lever, lamp
–optional equipment
–pack of minor components
GB
3
4
12 3
4
5
6
78 9
2. Setting up
IMPORTANT !
The special sewing machine may only be set up by trained
specialist personnel.
Packing must be removed prior to setting-up.
–Remove safety bands and wood from upper part, table and frame.
–Remove safety bands and block from motor.
2.1 Erecting the upper part
If the special sewing machine was not delivered fully assembled:
–Screw hinges 2 and 3 to base plate.
Attach upper-part support 1.
–Fit upper part.
–Fit and tension V-belt (see section 2.3).
–Fit belt guard and oil bath.
–Align surge container 9.
The surge container must be turned so that it is vertical when the upper part of the
machine is vertical.
–Place oil-recirculation felt 7 in the depression of the oil bath.
The hose 8 must not make contact with moving parts.
2.2 Transport
For internal transport the sewing machine must be lifted and moved by a suitable
vehicle (e.g. a fork-lift).
2.3 V-belt tension
After the machine has been moved the pre-set V-belt tension must be checked.
The tension in the V-belt 6 must be such that it can be depressed by about 10 mm by
applying finger pressure in the middle.
–Loosen nuts 4 and 5.
–Swivel drive until V-belt tension is correct.
–Retighten nuts 4 and 5.
GB
5
6
1
2
3
1
456 7

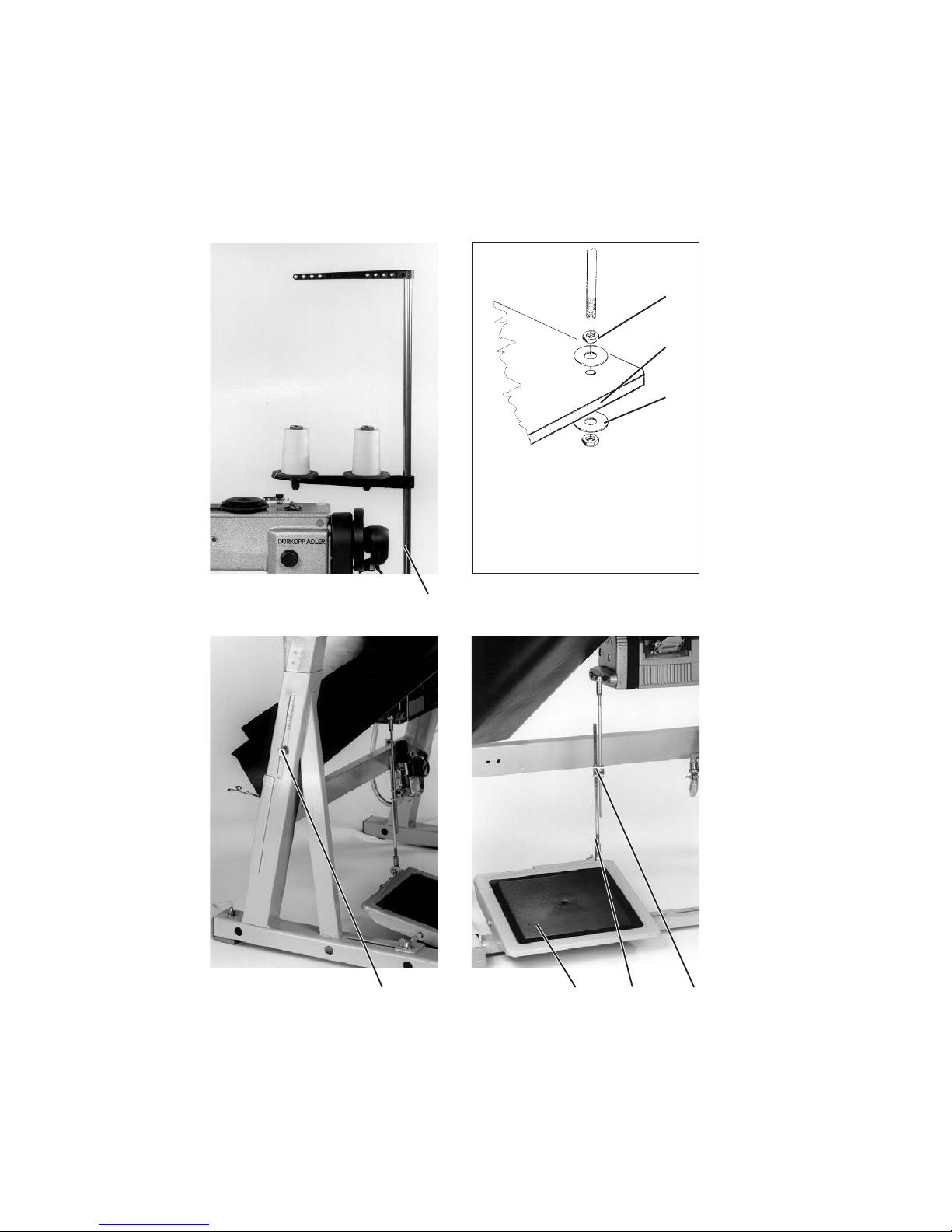

2.4 Reel stand
The structure and position of the reel stand 1 can be seen in the illustration.
–Fit reel stand 1 and secure it with nuts 2 and washers 3.
–Fit reel-stand holder and take-up arms.
The reel-stand holder and take-up arms must be vertically in line.
2.5 Working height
Working height is adjustable between 750 and 900 mm. It is pre-set at 790 mm prior to
delivery.
–Loosen screw 4 on both sides of the frame.
–Place the machine at the desired working height and ensure that it is level.
–Retighten screw 4 on both sides of the frame.
The shift linkage 6 between the pedal and the motor-control cabinet must be adjusted in
line with the working height.
–Loosen screw 7.
–Adjust pedal 5.
Operatives must be able to move the pedal freely forwards and backwards.
–Retighten screw 7.
2.6 Knee lever
The knee lever is used to raise the sewing feet mechanically.
–Fit knee lever with hinges into hollow shaft 8 and engage.
GB
7
8
3. Electrical connection
IMPORTANT !
All work on the electrical equipment of this special sewing
machine may only be carried out by qualified electricians or
other appropriately trained persons.
The mains plug must be removed.
3.1 Rated voltage
IMPORTANT !
The mains voltage must coincide with the rated voltage
specified on the model-identification plate.
3.2 Checking the direction of rotation of the motor
IMPORTANT !
Before the special sewing machine is started it is essential
to check the direction of rotation of the motor.
Switching it on can cause damage if the direction of rotation
is incorrect.
The arrow indicates the correct direction of rotation.
–With 3-phase drives the direction of rotation is determined by the rotatory field.
If the direction of rotation is incorrect, check whether the power supply generates a
clockwise-rotating field. If it is, 2 phases in the connecting plug must be reversed.
–With DC drives the direction of rotation is set at the operating panel.
If the direction of rotation is incorrect it must be reversed at the operating panel.
8
