Daewoo DPAC-133A4 Bedienungsanleitung

MINI DESKTOP AIR COOLER

DPAC-133A4

Instruction Manual

hat's include What's included

Filter cover body Filter

USB +Adapter

READ MANUAL BEFORE USE AND KEEP SAFE FOR FUTURE REFERENCE

WHAT’S INCLUDED

STEP:

1. Place air cooler on a flat surface.

2. Open the water tank door and fill with water (see fig 2). We recommend a pitcher or

measuring cup

3. Plug USB power adapter into an outlet. Then, insert larger USB end of cable into the

adapter and the smaller end into the power port on the back of air cooler (see fig3)

Note: you can plug the larger USB end into a computer to power air cooler as well.

CONTROL PANEL:

HOW TO USE

1. When you connect power with USB: Water tank LED on until USB take off

2. ON/OFF switch: When power connect, LED light on. Press ON/OFF switch

3. Press one time in low speed; Press second time in high speed

4. Timer setting: In 12 hours timer setting. Press the timer when you need

Note: Water tank with water, LED in Green color

Water tank without water, LED in red color

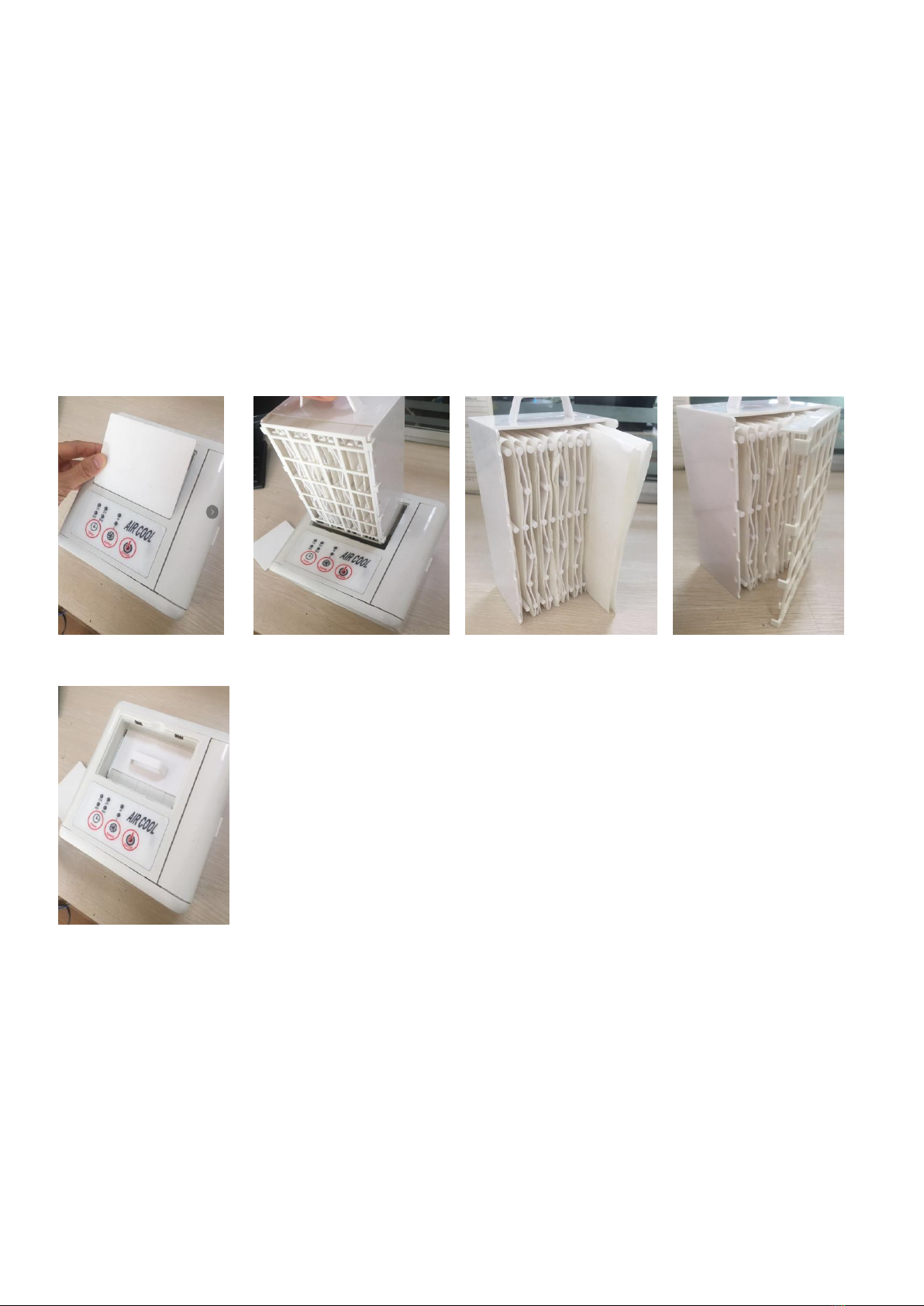

REPLACE FILTER

Pic01 Pic02 Pic03 pic04

Pic05

Step one: Open the top of the cover as pic 01 and take out the filter as pic 02

Step two: Open the net and replace the paper one by one as pic 03

Step three: close the net (pic 04) and put the filter back into water tank as pic 05 and close

the cover.

1.Do not carry air cooler when filled with water. Some water may remain in unit even if

tank is empty

2.Use only clean water. If needed, use distilled water.

3. We recommend use only in dry locations. If using in a moist area or environment, take

care

4.Do not to get water on external areas of the product.

5. If a leak or spill occurs on the surface of device, unplug air cooler and let it dry for 24

hours.

6. Do not place in direct sunlight for extended periods of time

7. Before not using air cooler for extended periods of time, empty the water tank, turn

unit on, and set to highest fan speed for at least 4 hours. This will dry then filter and

inside of your unit.

8. Only use the original power adapter and cord with dry hands.

9. Unplug air cooler when cleaning, removing/replacing filter, or moving the device.

10. For best results, do not place air cooler near a heater or any electrical equipment.

11. Do not allow any foreign objects inside air cooler.

12. Do not place items on top air cooler

13. Do not block the front and back grill of the device

14. Do not submerge the air cooler under water or other liquids.

15. So not place air cooler near open flames or fire sources.

WARNING

Attention: Before normal cleaning, remove the USB plug from the adapter or computer.

Clean the body with soft, slightly damp cloth. Do not use abrasive or corrosive products.

Do not immerse any part of the air cooler in water or other liquid. If this should happen,

do not put your hand in the liquid but first remove the plug from the socket

Carefully dry the appliance and make sure that all electrical parts are dry; incase of doubt,

ask for professionally qualified help

If the air cooler will not be used for long periods, it must be protected from dust and

humidity. We recommend storing in its original packaging.

CONFORMITY WITH DIRECTIVES

This product is CE marked to denote conformity with Directives 2006/95/EC (Low Voltage) and the EMC directive

(2004/108/EC), as amended.

Correct Disposal of this product

This marking indicates that this product should not be

disposed with other household wastes throughout the

EU. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the

return and collection systems or contact the retailer

where the product was purchased. They can take this

product for environmentally safe recycling.

CLEANING AND MAINTENANCE

MINI CLIMATISEUR DE BUREAU

DPAC-133A4

Mode d'emploi

Contenu de l’emballage

Couvercle du filtre Corps Filtre

USB + Adaptateur

LIRE LE MANUEL AVANT UTILISATION ET LE CONSERVER POUR

RÉFÉRENCE FUTURE

CONTENU DE L’EMBALLAGE

ÉTAPE :

1. Placez le climatiseur sur une surface plane.

2. Ouvrez la porte du réservoir d’eau et remplissez-le d’eau (voir fig 2). Nous vous

recommandons d’utiliser un verre mesureur

3. Branchez l'adaptateur secteur USB dans une prise. Puis, insérez l'extrémité la plus

grande du câble USB dans l'adaptateur et l'extrémité la plus petite dans le port

d'alimentation situé à l'arrière du climatiseur (voir fig3)

Note : vous pouvez également alimenter le climatiseur en branchant l’extrémité du

cordon USB la plus grande sur le port USB d’un ordinateur.

PANNEAU DE COMMANDE :

MODE D’EMPLOI

Fig1

Fig2

Fig3

1. Lorsque vous connectez l'alimentation avec l’USB : L’indicateur LED du réservoir d'eau

s’allume jusqu'à ce que l’USB soit débranché

2. Bouton ON/OFF : Lorsque l’alimentation est branchée et que l’indicateur LED est

allumé. Appuyez sur le bouton ON/OFF

3. Appuyez une fois pour la basse vitesse ; appuyez une seconde pour la haute vitesse

4. Réglage du Timer : Réglage du timer sur 12 heures. Appuyez sur le timer lorsque vous

en avez besoin

Note : Réservoir d’eau avec eau, indicateur LED allumé en vert

Réservoir d’eau sans eau, indicateur LED allumé en rouge

REMPLACEMENT DU FILTRE

Pic01 Pic02 Pic03 Pic04

Pic05

Étape un : Ouvrez la partie supérieure du couvercle comme indiqué pic 01 et retirez le

filtre comme indiqué pic 02.
