Dahua A Series HD Wi-Fi Network Camera

Quick Start Guide

V 1.0.3

Dahua Vision Technology CO., LTD

1

1

11

1Packing List

Packing List Packing List

Packing List

Device ×1 QSG ×1

Power Adapter ×1 Screw Package ×1

Quick Installation Board ×1 Installation Position Map×1

2

USB ×1

3

2

22

2Product Appearance

Product Appearance Product Appearance

Product Appearance

Figure 2-1 Figure 2-2

Figure 2-3

Please refer to the following sheet for more details about each port.

Sheet 2-1

SN Name

1 Lens

2 Microphone

3 Reset/WPS (Wi-Fi Protected Setup)button

4 Micro SD card slot

5 Ethernet port

6 Power port

7 Indicator light

8 Speaker

4

Note:

For reset, long press for 8 seconds and then the light off; For WPS (Wi-Fi Protected Setup), one quick

press.

Please refer to the following sheet for more details about status of indicator light.

Device status Indicate light status

Red light spinning Booting, device malfunction, fail to boot up

Green light spinning Booting completed, await Wi-Fi config,

enter smart config status;

Green light flashing

Wi-Fi smart config in progress, including

WPS (Wi-Fi Protected Setup),

management frame, etc.

Blue light stably on Wi-Fi connection succeeded, operate

normally.

Blue light flashing Device upgrade

Yellow light flashing Network disconnection

Red light flashing Alarm or SD card does not work

Sheet 2-2

5

3

33

3Operate by Easy4ip APP

Operate by Easy4ip APPOperate by Easy4ip APP

Operate by Easy4ip APP

Step 1

Power on the device with power adapter.

Step 2

Connect your smart phone to your Wi-Fi network. Scan the “Easy4ip” QR on the packing box,

download and install the Easy4ip APP.

Step 3

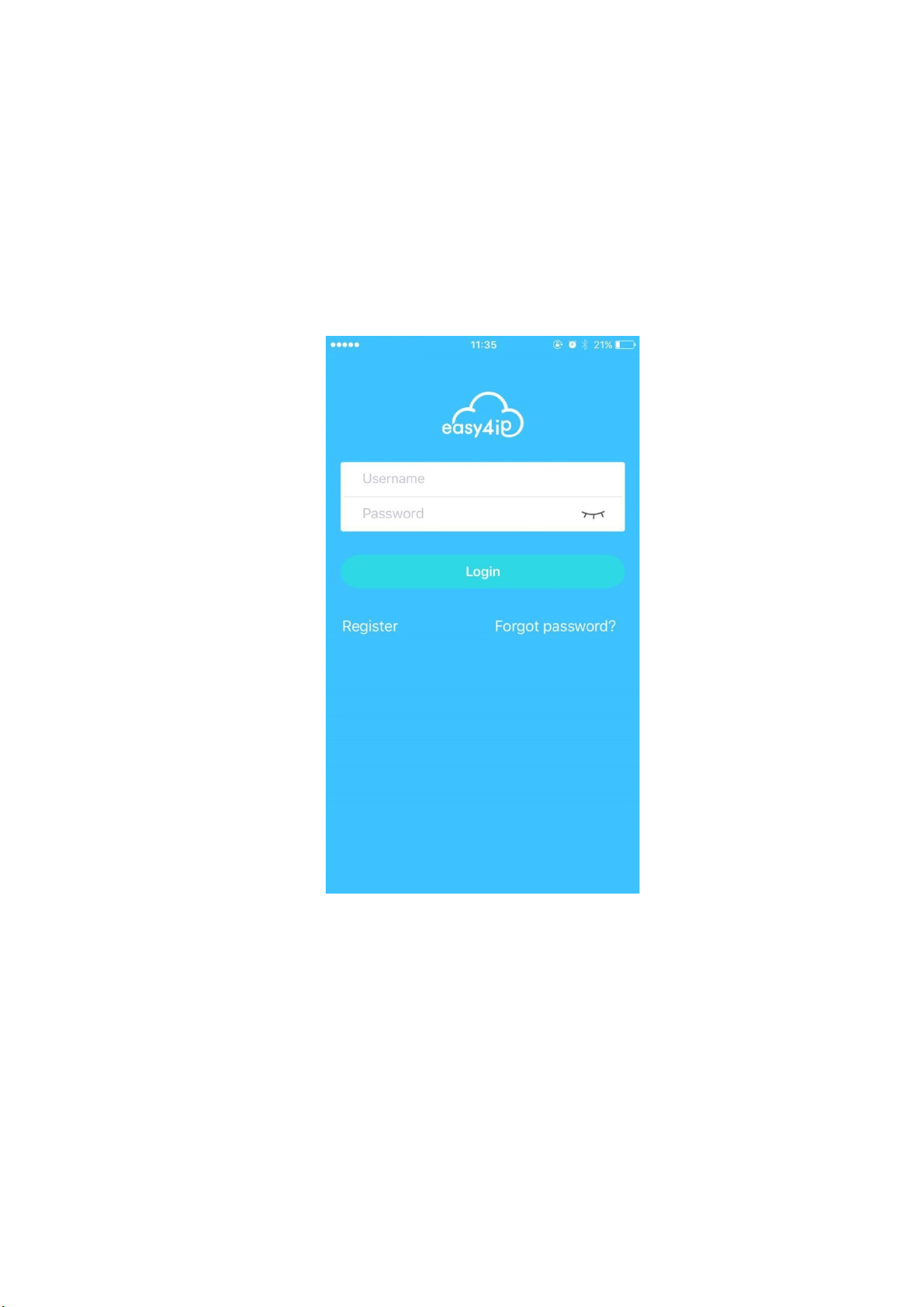

Open Easy4ip APP (take IOS as an example), tap “Login” to login the APP, see Figure 3-1. Please

register an account for your first use.

Figure 3-1

Step 4

Please tap “+” to add new devices after you log in your account.

6

Figure 3-2

Step 5

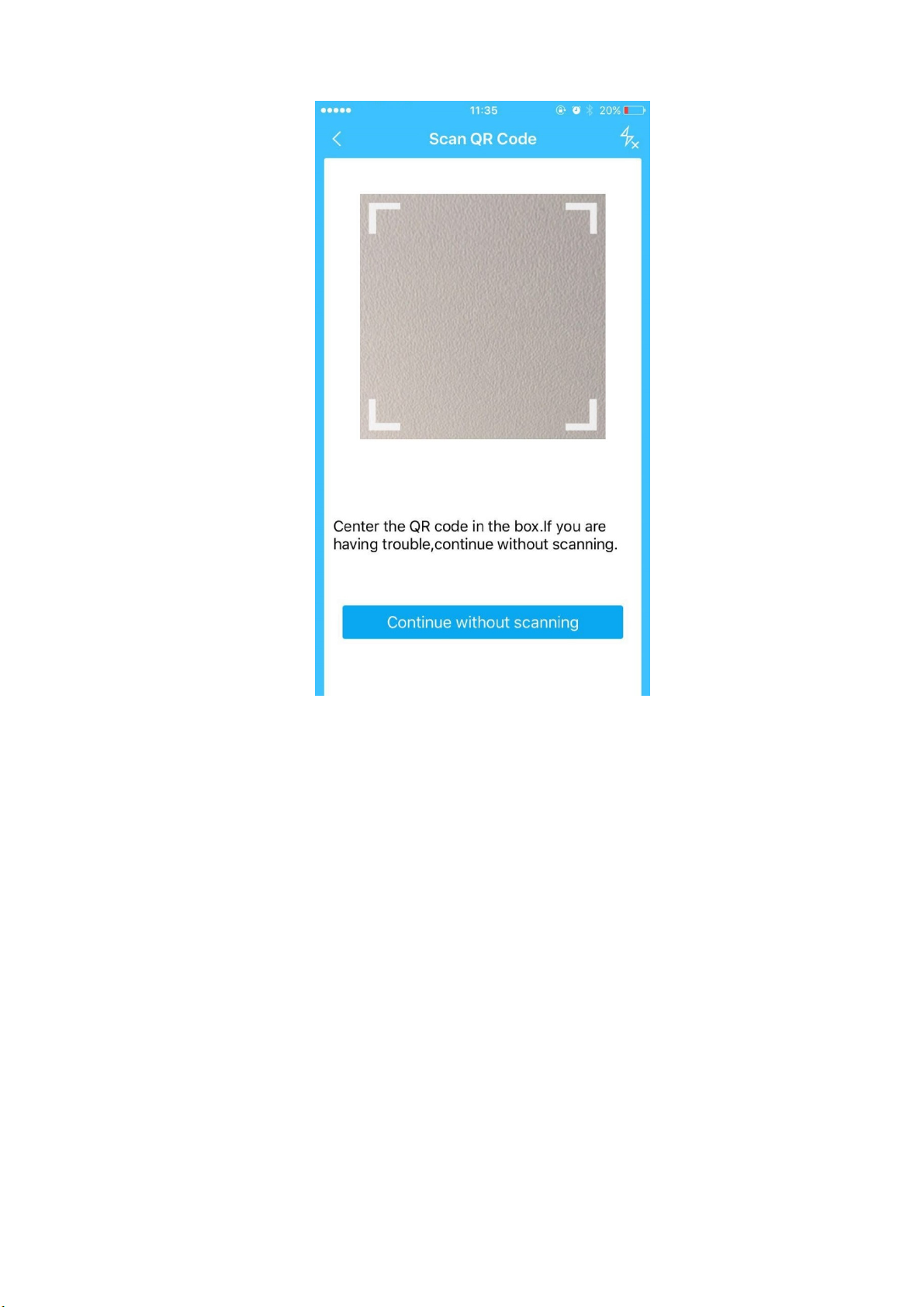

Scan the QR code on the back of the camera to get the SN, you can also tap “Continue without

scanning” and manually input the SN number on the next page.

7

Figure 3-3

Step 6

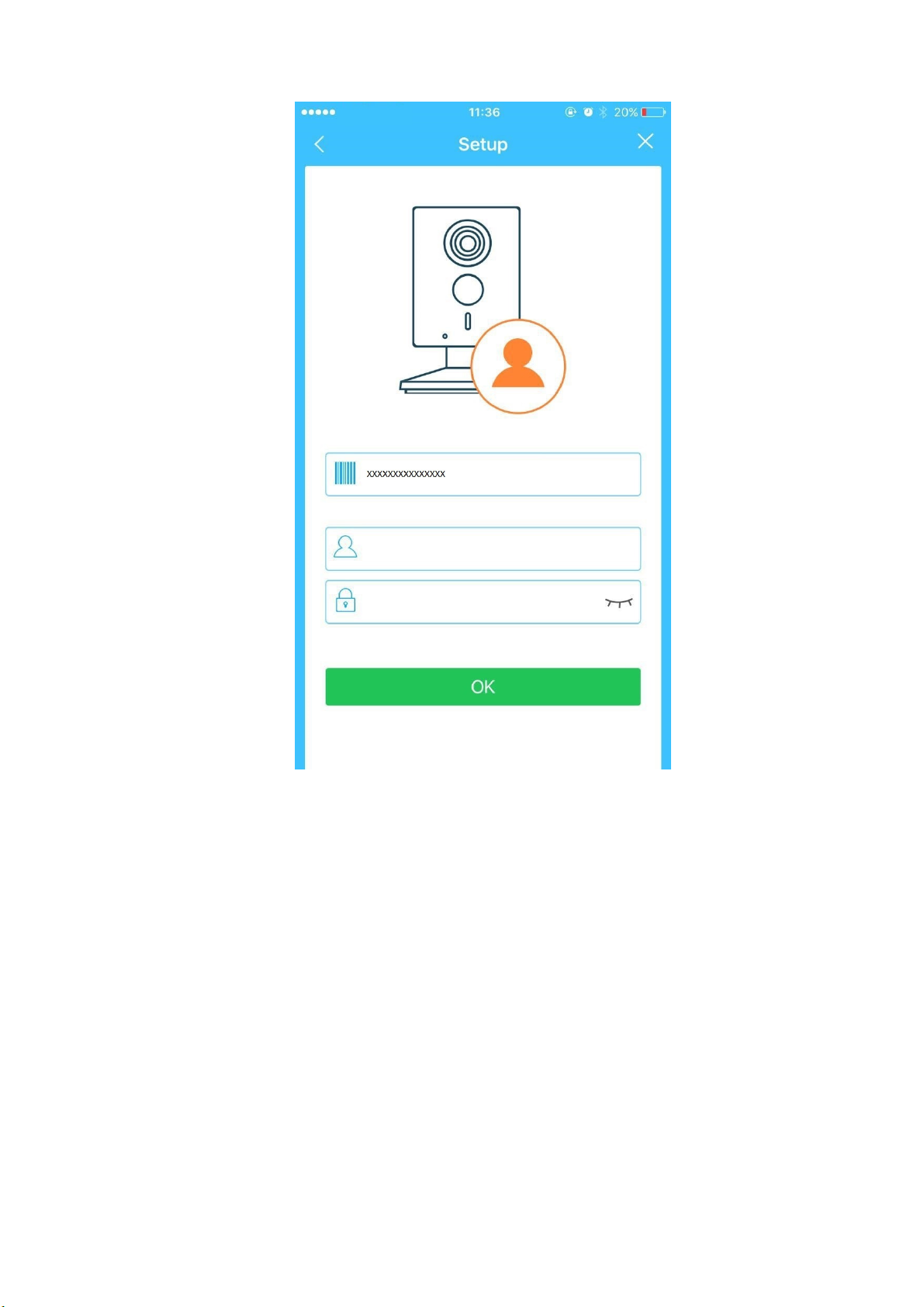

Fill in the Username and Password of the new camera, both of which are admin by default.

8

Figure 3-4

Step 7

Select “Yes, config Wi-Fi”, and fill in your Wi-Fi password, then tap “Next”. During the Wi-Fi connecting

process, please put your smartphone and the camera within 30cm.

9

Figure 3-5 Figure 3-6

Step 8

Your Camera will be added to your account.
