1 Megapixel HDCVI Camera User’s Manual

Version 1.0.0

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Functions .......................................................................................................................1

1.4 Specifications................................................................................................................1

2Framework...................................................................................................................................3

2.1 Dimensions....................................................................................................................3

2.1.1 HAC-HFW2100BP/N ............................................................................................3

2.1.2 HAC-HFW2100DP/N ............................................................................................3

3Installation ...................................................................................................................................4

4Menu.............................................................................................................................................5

4.1 Menu List .......................................................................................................................5

4.2 Note ................................................................................................................................6

Appendix Toxic or Hazardous Materials or Elements .................................................................7

Welcome

Thank you for purchasing our HDCVI camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC in the IEC60950-1.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

If this product is installed in the ceiling, please make sure the installation position can sustain the min

50N.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series HDCVI camera should be installed in a cool, dry place away from direct sunlight or strong

light, inflammable, explosive substances and etc.

The working temperature ranges from -40℃to +60℃. Please keep it away from the electromagnetic

radiation object and environment.

Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it

may result in CMOS optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the

mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.

Please put the dustproof cap to protect the CMOS component when you do not use the camera.

1General Introduction

1.1 Overview

This series megapixel HD camera conforms to the HDCVI standard. It supports video signal

high-speed long distance transmission without any delay. It can be controlled by the DVR

conforming to the HDCVI.

1.2 Features

zHigh-performance CMOS image sensor, megapixel definition.

zHD video, coaxial cable to transmit the control signal.

zSupport 75-3 coaxial cable transmission without any loss. Transmission distance is over

500m.

zSupport HD and standard definition switch.

zSupport 720P@25, 720P@30, 720P@50, 720P@60.

zHigh speed, long distance real-time transmission.

zSupport OSD (on-screen display), suitable for user self-defined setup.

zSupport DC12V power supplying.

zSupport 3D noise reduction(denoise),excellent performance in low illumination

environment.

zIP66 compliance.

zSupport ICR switch to realize surveillance both in the daytime and at night.

zSupport intelligent IR function.

1.3 Functions

HDCVI Specification

HDCVI（High Definition Composite Video Interface）is an over-coaxial –cable HD video

transmission standard. The technology renders two HD video formats by progressive scanning.

OSD

User-friendly on-screen display for you to select the different functions.

ICR

The IR cut removal is to filter the IR light in the daytime and then auto switch to the general

fitter at night. This function allows the camera to output the high sensitivity and clear video.

Smart IR technology

The sensor controls the IR light on/off via the combination work of the hardware and software,

which realizes the automatically IR light compensation according to the environment

illumination.

1.4 Specifications

Please refer to the following sheet for specification.

1 Megapixel HDCVI Camera

Model

Parameter HAC-HFW2100BP/N HAC-HFW2100DP/N

Video Processor 1/3" 1.3 Megapixel CMOS

Video Format PAL/NTSC

Effective Pixel 1280(H)×960(V)

Min Illumination 0.01Lux@(F1.2,AGC ON),0 Lux with IR

Electronic Shutter PAL：4/25s～1/45,000s

NTSC：4/30~1/54,000s

Video Standard HDCVI/CVBS compliance

Video Frame Rate 1280×720@25 fps；1280×720@30 fps；

1280×720@50 fps；1280×720@60 fps

Lens Port M12

Lens Type 2.8/3.6/6/8mm optional 3.6/6/8/12/16mm optional

Day/Night Switch ICR mechanical auto switch

Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition

video output (Can switch.)

Denoise (Noise

Reduction) Support 3D denoise.

OSD Menu Control Support

EXPOSURE Global/Centre/Centre weight/BLC/Front light/Distinguish

WHITE

BALANCE AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPROAL/AWB-AI/AWB-SZ

DAY/NIGHT Auto/B&W/Color

FUNCTION 3DNR

ADVANCED Mirror/Language/RS485/Video format/Version/

IMAGE Sharpness/Contrastness/Saturation/Brightness

OSD

EXIT SAVE/CANCEL/RESET

Max IR Distance 30 m 50 m

Transmission

Distance Over 500m via 75-3 coaxial cable.

Protection Level IP66

Working Temperature

/Humidity -40 ~+60 .℃℃Humidity is less than 95%(no condensation)

Power DC 12V±10%

Power Consumption 6W MAX

(Input: 12V 0.5A)

7.7W MAX

(Input: 12V 0.64A)

Dimension(mm) 200.2×89.1×80.4

Weight 450g

Installation Mode Wall mount

2Framework

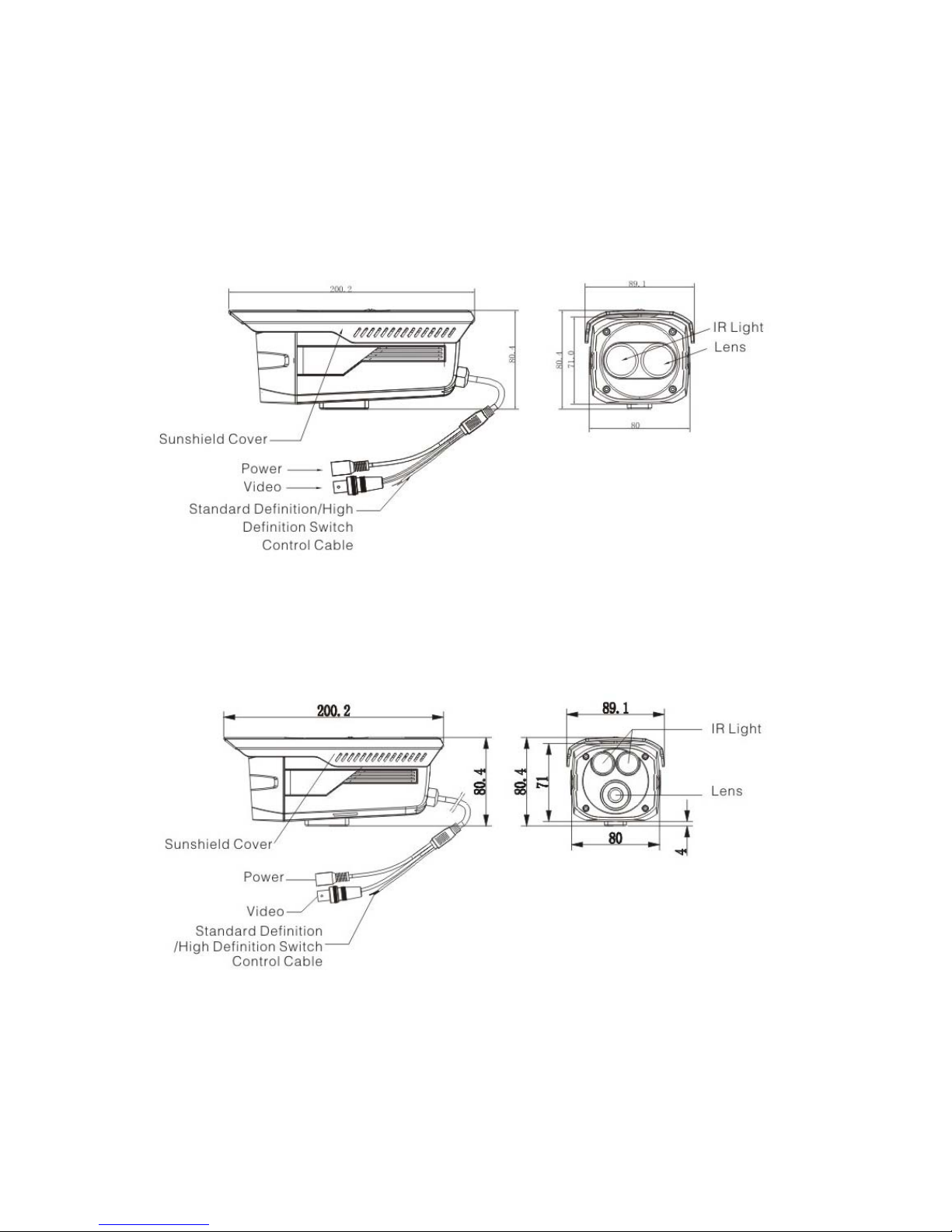

2.1 Dimensions

2.1.1 HAC-HFW2100BP/N

Please refer to the following figures for the dimension information. The unit is mm. See Figure

2-1.

Figure 2-1

2.1.2 HAC-HFW2100DP/N

Please refer to the following figures for the dimension information. The unit is mm. See Figure

2-2.

Figure 2-2

When the standard definition/high definition switch control cable is short circuit, system outputs

standard definition video. Otherwise, when the circuit is open, system outputs the high

definition video.

3Installation

Important

zBefore the installation, please make sure the installation surface can sustain at

least 3X weight of the bracket and the camera.

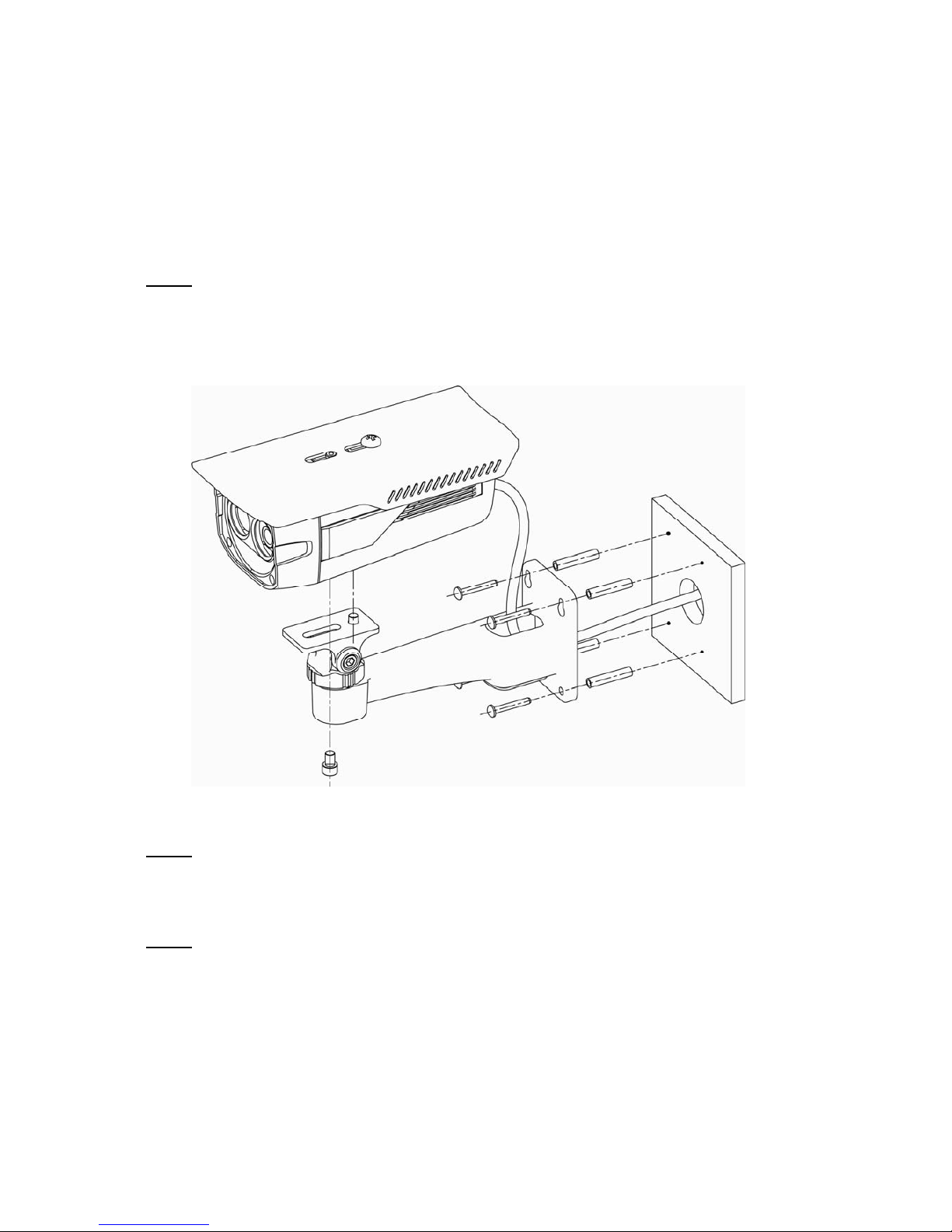

This series product supports wall-mount. Please refer to the steps listed below for installation

information. See Figure 3-1. The follow figure is for reference only.

Step 1

Install the camera bracket. Please install the expansion bolt if you want to install in the cement

wall (Please make sure the installation holes of the expansion bolts are the same with the

bracket.) Then you can install the bracket. If you want to install in the wood surface, please

skip the first step and then use the self-tapping screws to install the bracket directly.

Figure 3-1

Step 2

Install the camera. Use the screws to install the camera to the bracket via the installation

pedestal of the bottom of the camera.

Step 3

Adjust the camera to the proper monitor area and then secure the button of the bracket to

fasten the camera.

Please note the above installation figure is based on the HAC-HFW2100BP/N series product.

The HAC-HFW2100DP/N series product has the same installation steps.

4Menu

4.1 Menu List

The 1st Menu The 2nd Menu The 3rd Menu

GLOBAL

CENTRE

WEIGHT

BLC

FRONT

LIGHT

DISTINGUI

EXPOSU

RE AE

MODE

RETURN

AWB-GW

AWB-CCT

AWB-PRO

AWB-

TEMPORAL

AWB-AI

MODE

AWB-SZ

AUTO

B&W

DAY

&NIGHT

COLOR

3D-NR ON/OFFFUNCTI

RETURN

MIRROR OFF/HORIZ

ONTAL/VER

TICAL/H&V

LANGUA

ENGLISH

ADDRESS 1-254

BAUD RATE 2400-115200

RS485

PROTOCOL PELCOP/PELC

OD/DH-SD

VIDEO 720P@25

720P@30

720P@50

720P@60）

VERSIO

XXXXXXXX

ADVANC

RETURN

DETAIL AUTO/MANUALIMAGE SHARPN

ESS

VALUE 0-15（For

manual mode

only）
