Dakota Alert PR-3000 Bedienungsanleitung
Dakota Alert™
PR-3000
Portable
Receiver
Owner’s Manual
2.

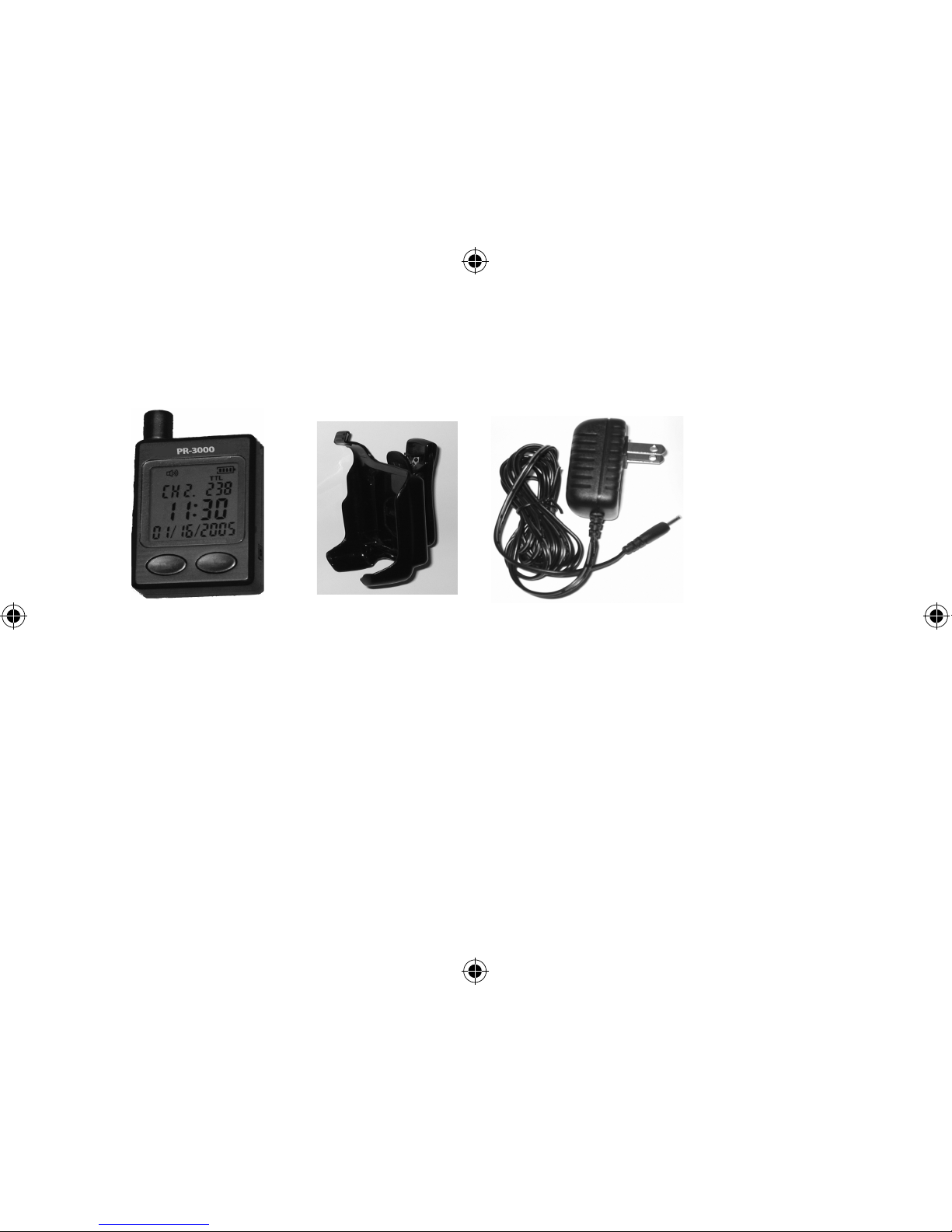

The PR-3000, battery charger, and belt clip. (figure 1)
Figure 1
This device complies with Part 15 of the FCC rules, operation of this device
is subject to the following conditions: 1. This device may not cause harmful
interference. 2. This device must accept any interference, including interfer-
ence that may cause undesired operation.
The PR-3000 receiver is compatible with all Dakota Alert 3000 Series transmit-
ters (WMT-3000, WPT-3000, WHT-3000, UT-3000, and IR-3000). The PR-3000 is
capable of receiving and storing alert signals from four zones.
3.
Push and hold the side button for two seconds to turn on the PR-3000. The
unit will beep and the time display will come on. Push and hold the side
button to turn the unit off again. The unit also has a backlight for viewing
the display in low light situations. Pushing and releasing any button will
turn on the backlight for a few seconds. The backlight will also come on for
a few seconds when the PR-3000 receives an alert signal.
When a signal is received, the zone will be displayed on the LCD screen and
the receiver can be set to give an audible tone or a silent vibrate alert. Each
zone can store up to 400 events with a time and date stamp or up to 999 events
without a time and date stamp. The PR-3000 is powered by a rechargeable Li-
Ion battery which will hold a charge for up to 10 days.
To charge the PR-3000 plug the battery charger into an outlet and insert the
jack into the charger plug (#5 on figure 2). The unit should be charged for
8-10 hours when the battery is low.
4.
(figure 2)
1. LCD display
2. (Side button)
ON/OFF
and Mode button
3. Left Button
4. Right Button
5. Charger plug
6. Reset button
1
34
5
2
6
Figure 2
5.
(Figure 4)
1. Last Channel received
2. Number of alerts stored on
the indicated channel
3. Time stamp of alert
4. Date stamp of alert
Figure 4
1
2
3
4
Figure 3
1
2
35
6
7
(Figure 3)
1. Time and Date mode
2. Audible Tone icon
3. Vibrate Alert icon
4. Lock icon
5. Battery Charge Indicator
6. Time (24 hour mode)
7. Date
4
6.
When the PR-3000 receives an alert, the LCD display changes to alert mode.
The display will remain in alert mode, showing the most recent alert received
until manually reseting to time/date mode. Push the right button to change
from the alert mode to the time/date mode.
Push the side and right buttons at the same time to enter the programming
mode. There are four different programming screens. Pushing the side but-
ton will scroll through the programming screens. The different programming
screens are:
1. Time and Date setting
2. Audible tone ON/OFF
3. Vibrate alert ON/OFF
4. Frequency setting
Pushing the side button again after the frequency setting screen will return
you to the time/date mode. If no button is pushed in programming mode for
8 seconds the display will automatically return to the time/date mode.
NOTE: The display must be in the time/date mode to access the program-
ming screens.
7.
1. Push the side and right button to enter the time/date setting screen in
the programming mode. The hour digits will be flashing.
2. Push the right button to change the hour to
the correct setting. (holding the right button
down will scroll through the numbers quickly.)
3. Push the left button and the minutes will
start flashing.
4. Push the right button to change the minutes
to the correct setting
5. Repeat this process to set the month, day,
and year.
Figure 6
From the time/date setting screen push the side
button to access the audible tone programming
screen. The audible tone icon (see figure 2.)
will flash and there will be “ON” or “OFF” in the
upper right section of the display. Use the right
button to toggle between on and off. (figure 5)
Figure 5
Figure 7
From the audible tone setting screen, push the side button to access the
vibrate alert programming screen. The vibrate alert icon will flash and there
will be “ON” or “OFF” in the upper right section of the display. Use the right
button to toggle between on and off. (figure 6)
From the vibrate alert programming screen, push the
side button to access the frequency programming
screen. There will be eight symbols at the bottom of
the display, each of which will be a 1 or a 0. (figure
7) These eight symbols correspond to the eight dip
switches used to set the frequency on the transmit-
ter (see transmitter owner’s manual.) with 1 repre-
senting “ON” and 0 representing “OFF.” Push the left
button to scroll through the symbols and push the
right button to toggle the symbol between 1 and 0. Make sure the
frequency setting of the transmitter and receiver match.
8.
9.
Pushing the left and right buttons at the same time will lock the display
in the time/date mode. The top of the display (figure 3) and no other
screens can be viewed. Pushing the left and right buttons again will
unlock the display.
Push the side and left buttons at the same time to acess the alert log. The
display will show the channel and the total number of alerts stored for
that channel.(figure 4) Pushing the left button will scroll through the four
channels and then return to the time/date mode. To view the time and
date stamps for a channel, push the left button until the desired channel
is shown on the display, then push the right button. The date stamp for
the most recent alert on the given channel will be shown. Pushing the
right button again will show the date stamp for the next alert. Continue
to push the right button to see the date stamp for all alerts stored for the
channel. If no buttons are pushed for about 8 seconds the display will
revert to the time/date mode.

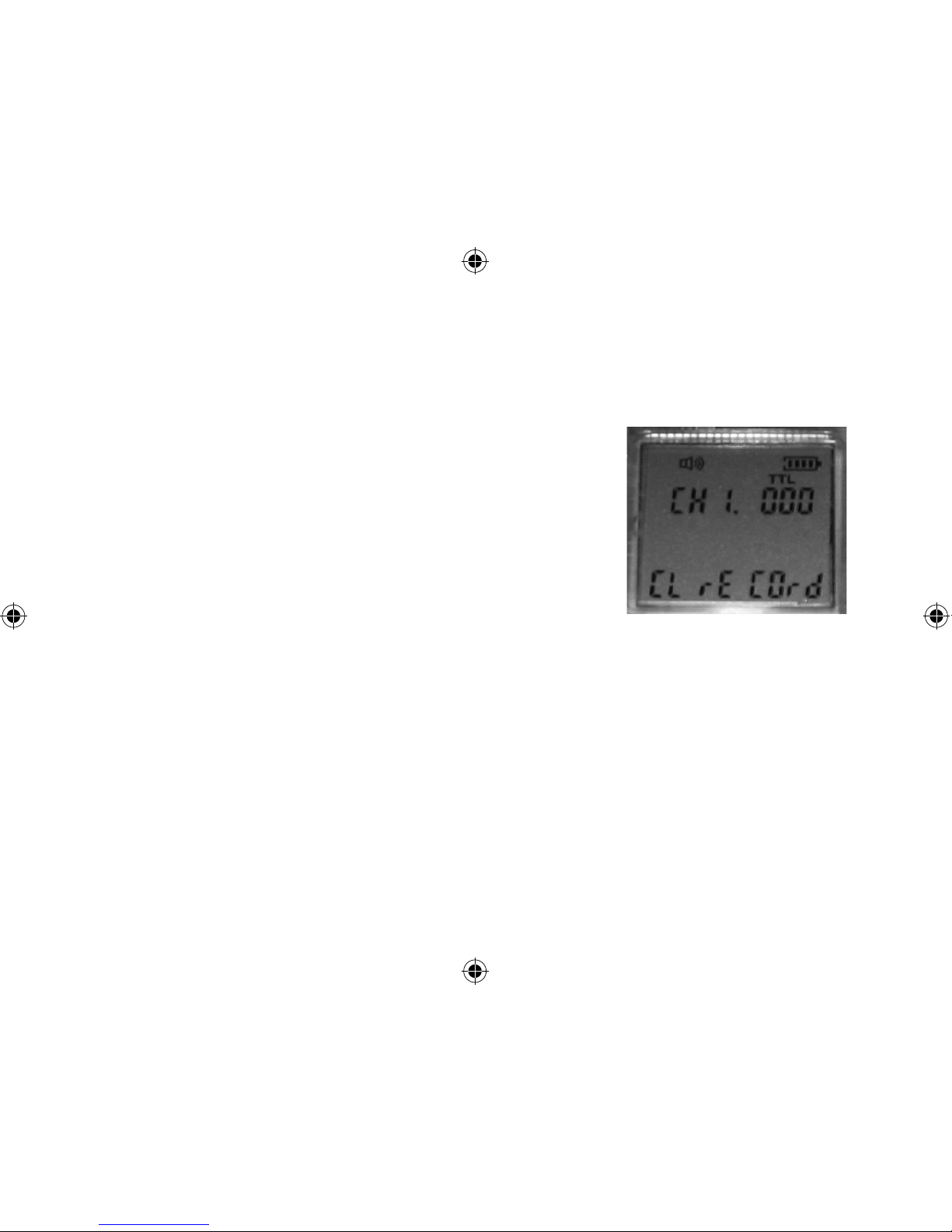

The alerts stored for a channel can be cleared through the alert log screen.
Access the alert log, display the channel to be
cleared, and push the side button. The text CLrE-
COrd (clear record) will appear on the bottom of
the display (figure 8). Push the side button again
and all stored alerts for the chosen channel will be
cleared.
Figure 8
10.
If the PR-3000 stops responding correctly, the reset button should be
pushed. The reset button is located inside the small hole directly below
the side button (figure 2). Insert a pin in the hole and push the button. The
unit will beep and dEFAULt will appear on the bottom of the display (figure
9). Push the side button and the display will show PASS and then enter the
programming mode. The time and date will have been reset to the default,
and will need to be reprogrammed.
