Dakota Digital VHX-68D-STD Bedienungsanleitung

Manual # 650663

VHX-68D-STD

Dakota Digital VHX Instrument Installation

For 1968-70 Dodge/Plymouth B-Body Non-Rallye

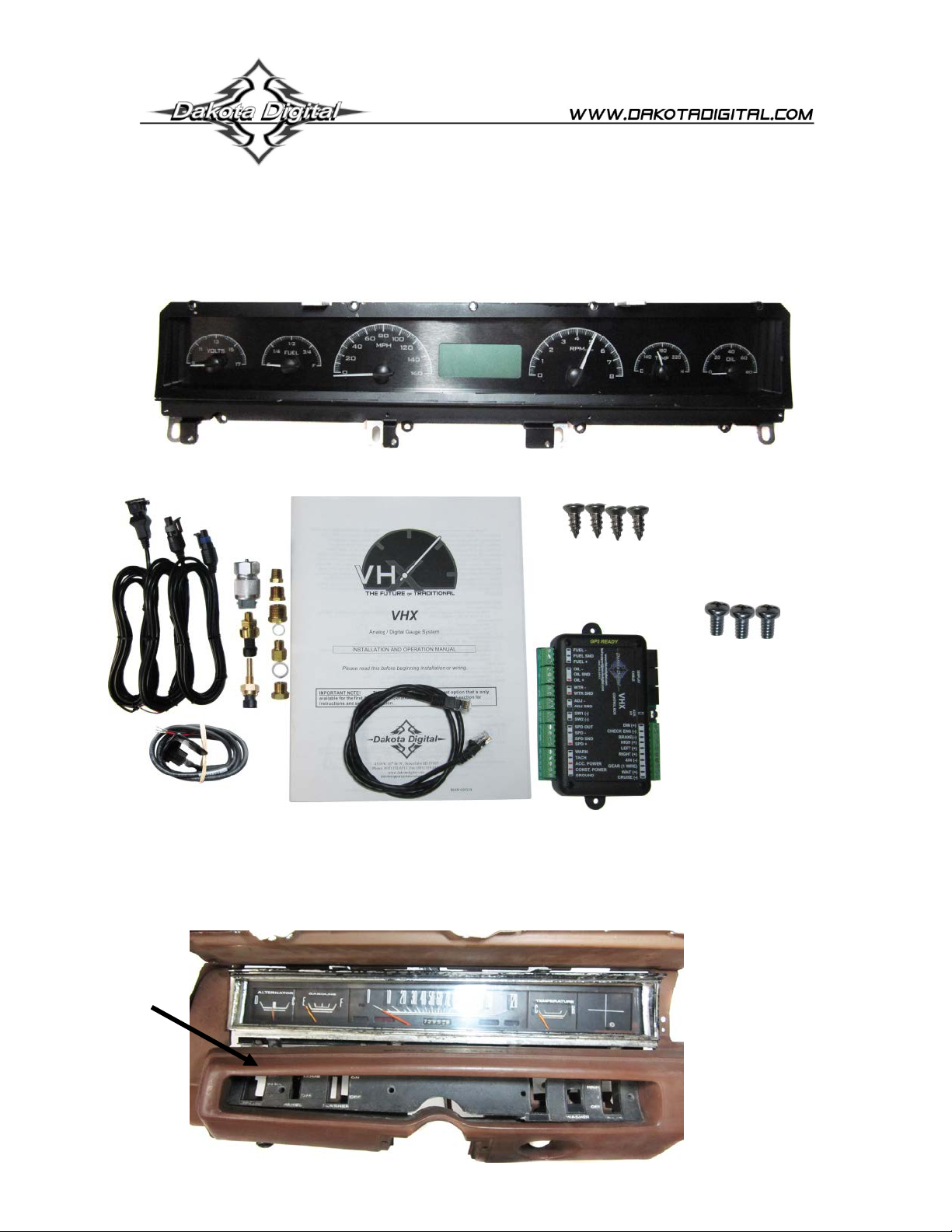

Your new VHX-68D-STD kit includes:

Installation

Installation Manuals

Control Box

36” CAT5 Cable

Universal Sender Pack

VHX Display

1. Remove the lower dash pad and switch panel and retain the hardware for reassembly.

Switch Assembly

(4) ½” Oval Head Screws

(3) ½” Pan Head Screws

Manual # 650663

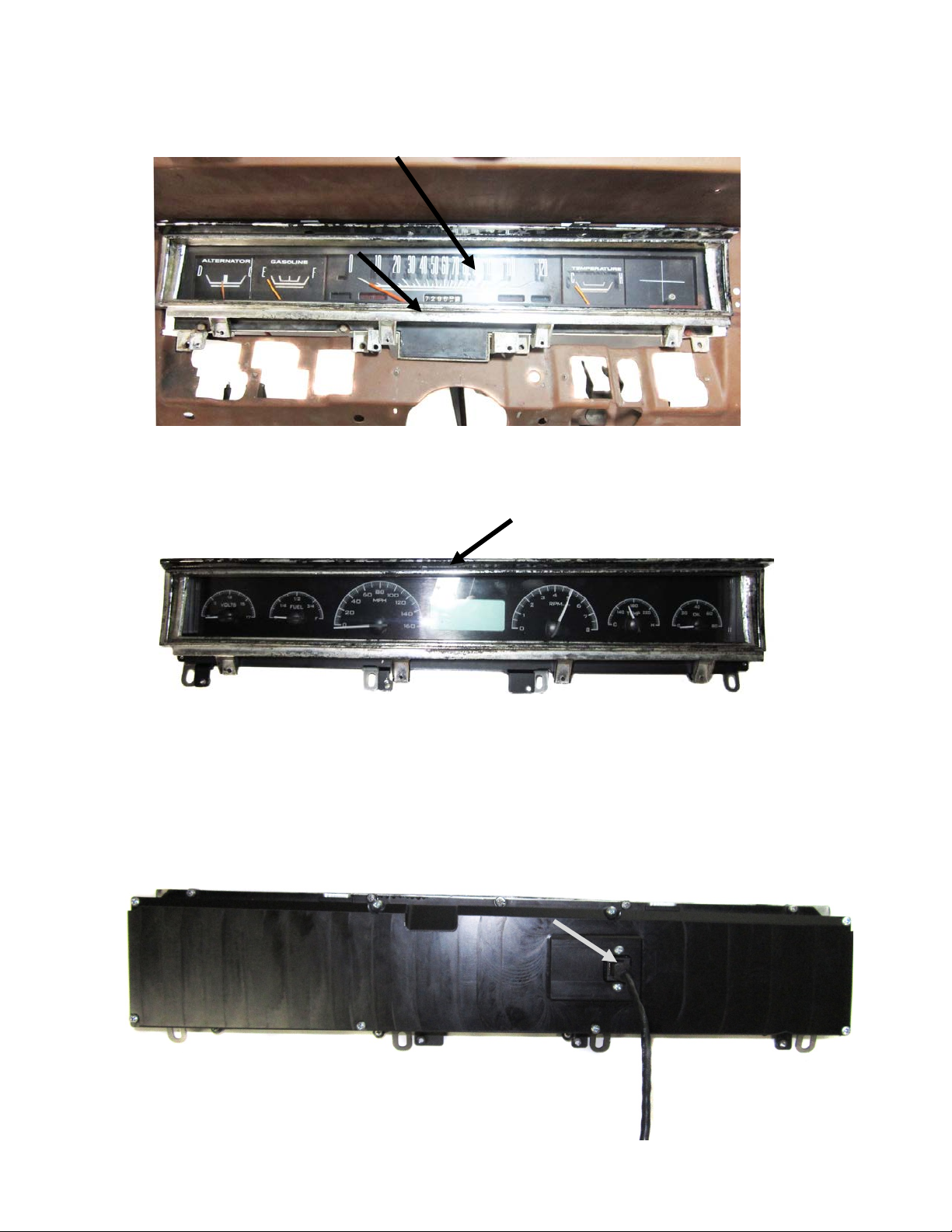

2. Remove the factory gauge cluster from the dash; also remove the gauge cluster bezel from the

gauge cluster. Retain all factory hardware for reassembly.

4. Attach the provided CAT5 cable to the back of the VHX system and carefully route the open

end to the control box mounting location as you mount the VHX system to the dash.

3. Mount the factory gauge bezel to the VHX system by reusing the nine (9) screws that held it to

the factory gauge cluster.

Manual # 650663

6. Re-install the lower dash pad using the three (3) provided pan head screws. Then mount the switch

panel to the dash using the factory hardware from disassembly. Refer to the main manual for wiring

instructions to complete the VHX installation.

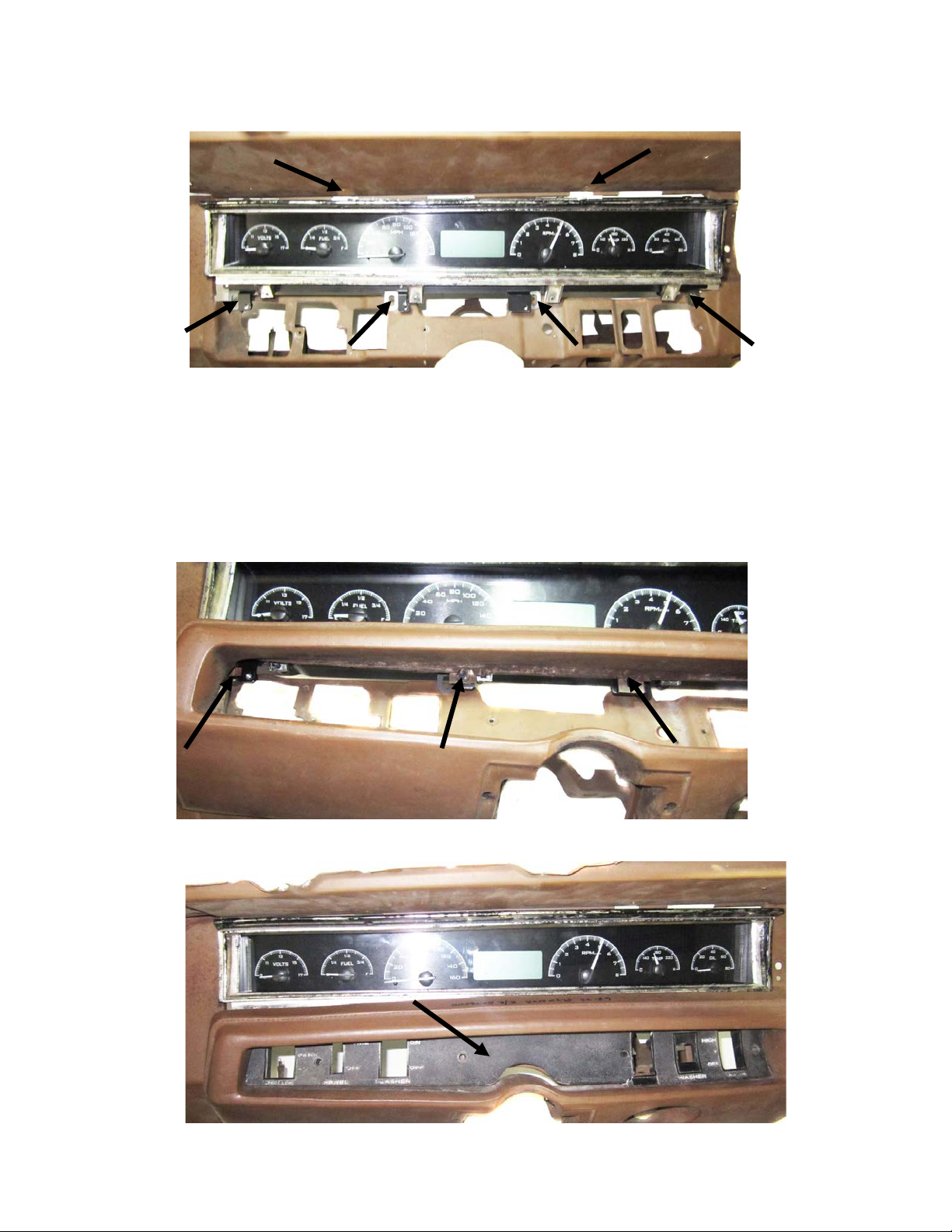

5. Mount the VHX system to the dash using the two (2) factory screws from disassembly for the

upper mounts and the provided four (4) oval head screws for the lower mounts.

Manual # 650663

WARNING: This product can expose you to chemicals including lead, which is known to the State of

California to cause cancer and birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov
