Dancing Wings Hobby Sunbird Bedienungsanleitung

Sunbird Instruction Manual

V2.0 Balsawood Airplane

Suggested Equipment

Motor: MM2212 1100KV

ESC: 20A

Propeller: 8 inch folded propeller

Servos: 9g*4

Battery: 3s 800-1300mAh

Radio≥4CH

Speci�ication

Wingspan: 1600mm

Length: 850mm

Flying Weight≈450-650g

Preparation Tool

F15

F19

F14

1.2

1.3

1.4

1.5

Take down and assemble the

wood pieces of fuselage as per

the following picture,connect

the joints by 502 glue.

Cut the balsa strips with actual

length,assemble them in place

as pitcture shown left;Assemble

in the same way the other side.

Paste the F1 and F2 together,and

fasten the joint with F3.

Paste the F5 and F6 together,and

fasten the joint with F7.

3*4mm balsa strips

1.Fuselage Assembly

Accessories include

All manuals and user guides at all-guides.com

all-guides.com

Sunbird Instruction Manual

V2.0 Balsawood Airplane

F12

F11

F10

F4 F16

F13

Magnet

Assemble the tail as per the 1:1 plan,and take care of the straightness of the tail.

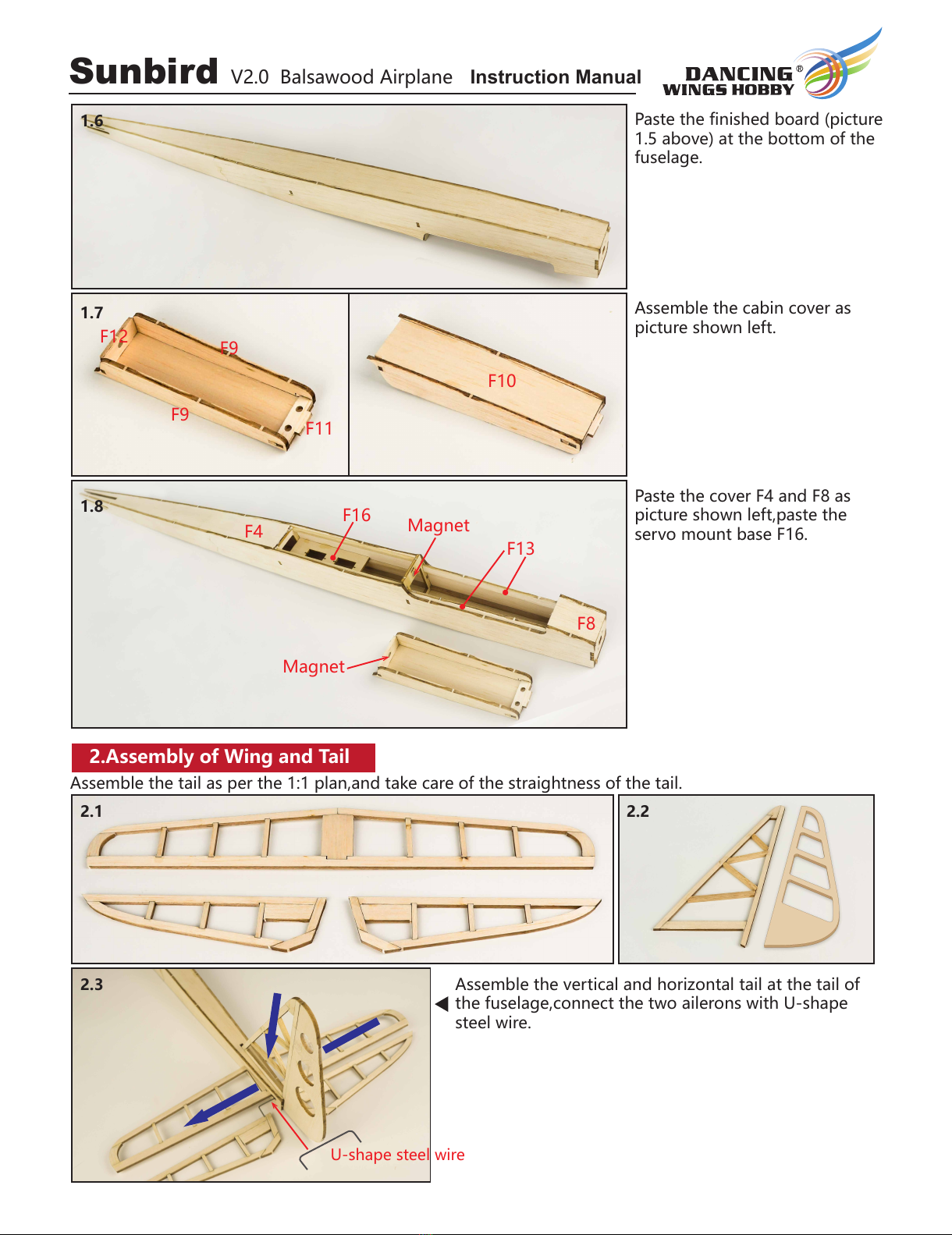

Paste the finished board (picture

1.5 above) at the bottom of the

fuselage.

Assemble the cabin cover as

picture shown left.

Paste the cover F4 and F8 as

picture shown left,paste the

servo mount base F16.

Assemble the vertical and horizontal tail at the tail of

the fuselage,connect the two ailerons with U-shape

steel wire.

1.6

1.7

1.8

2.1 2.2

2.3

U-shape steel wire

2.Assembly of Wing and Tail

All manuals and user guides at all-guides.com

Sunbird Instruction Manual

V2.0 Balsawood Airplane

Assemble the wing as per the 1:1 plan,and take care of the straightness of the wing.

Paste the balsa cover onto the wing.

Assemble the connection part W20,connect and glue the two parts of the

wing together.

Assemble the left and right wing,connect both with the carbon tubes as picture shown below,

glue at the joints.

2.4

2.5

2.6

2.8

W26

W28-1 W28

W20

W27

Paste the W17 on the wing as

picture shown,cut and polish

by knife with curve.

Cut the balsa strips with

actual length,assemble them

in place as pitcture shown

below;Assemble in same way

the other wing.

2.9

2.7

All manuals and user guides at all-guides.com

Sunbird Instruction Manual

V2.0 Balsawood Airplane

Assemble the wing onto the fuselage,drill

a hole on the wing as per the F17

position,finally fasten the wing with screw.

Paste together the F17 and F18,assemble the nut onto the F18.

F18

F17

3.1

3.2

3.3

3.4

C.G

≈56mm

3.Assembly of Wing and Fuselage

Assemble the finished part (picture 3.2) onto the fuselage.
