Dancover Multipavillon 3x6m Bedienungsanleitung

20-01-2016

Manual

for

Marquee

Multipavillon

3x6m

6

6

6

5

3

2

4

8

1

3m

7

1

8

2 2

4

Each package must contain

No.

1

No.

2

No.

3

No.

4

No.

5

No.

6

No.

7

No.

8

4

pcs.

8

pcs.

4

pcs.

4

pcs.

4

pcs.

8

pcs.

1

pcs.

4

pcs.

It is easy to assemble

your marquee

Multipavillon

ASSEMBLY INSTRUCTION

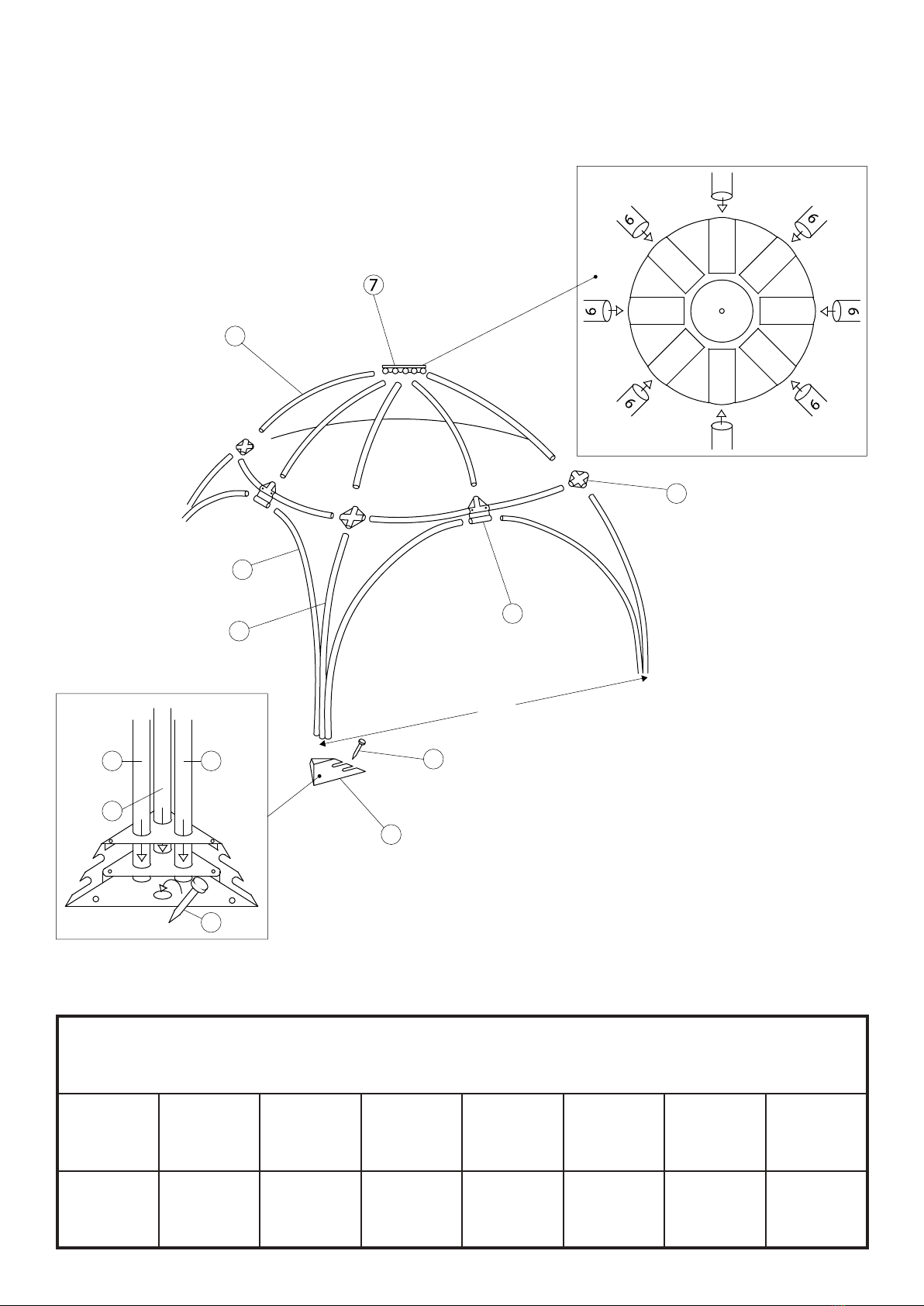

Place the four corner bases (1) at the corners of a

square measuring 3x3 m.

If the marquee is mounted outside, use ground pegs

(8) inserted into the ground with a hammer.

If the marquee is mounted on a concrete or wooden

oor, the corner base can be fastened with concrete

nails or screws.

Ensure that you fasten only one corner until the

entire frame has been assembled in order to ensure

that the other corner bases are placed correctly within

the square.

1

4

22

1

4

2

3 5

6

7

1

8

Place the longest tubes (2) in the two outermost holes

in each corner base and the shorter tube (4) in the

middle hole. Mount the tubes so the snap-and-click

features points upwards.

Mount the tubes (2) in (3) for a complete arch.

Mount the connector (5) with the middle tube (4).

Mount the horizontal tubes (3) with the connectors

(5) to make a ring.

Assemble and mount the top section consisting of (6)

and (7).

Now you can fasten the remaining corner bases if

necessary.

Finally, mount to cover onto the frame. Fasten the

four straps at the ends of the cover to the four corner

bases.

Each marquee consists of

No. 1 4 pcs.

No. 2 8 pcs.

No. 3 4 pcs.

No. 4 4 pcs.

No. 5 4 pcs.

No. 6 8 pcs.

No. 7 1 pcs.

No. 8 4 pcs.

Cover 1 pcs.
