Danfoss VLT HVAC Basic Drive FC 101 Bedienungsanleitung

Operating Guide

VLT® HVAC Basic Drive FC 101

Contents

1 Introduction 6

1.1 Purpose of this Operating Guide 6

1.2 Trademarks 6

1.3 Additional Resources 6

1.3.1 Other Resources 6

1.3.2 MCT 10 Setup Software Support 6

1.4 Document and Software Version 6

1.5 Certificates and Approvals 7

1.6 Disposal 8

2 Safety 9

2.1 Safety Symbols 9

2.2 Qualified Personnel 9

2.3 Safety Precautions 9

2.4 Motor Thermal Protection 11

3 Installation 12

3.1 Mechanical Installation 12

3.1.1 Side-by-side Installation 12

3.1.2 Drive Dimensions 13

3.2 Electrical Installation 15

3.2.1 Electrical Installation in General 15

3.2.2 IT Mains 16

3.2.3 Mains and Motor Connection 18

3.2.3.1 Introduction 18

3.2.3.2 Connecting to Mains and Motor 19

3.2.3.3 Relays and Terminals on Enclosure Sizes H1–H5 19

3.2.3.4 Relays and Terminals on Enclosure Size H6 20

3.2.3.5 Relays and Terminals on Enclosure Size H7 21

3.2.3.6 Relays and Terminals on Enclosure Size H8 21

3.2.3.7 Connecting to Mains and Motor for Enclosure Size H9 22

3.2.3.8 Relays and Terminals on Enclosure Size H10 25

3.2.3.9 Enclosure Size I2 26

3.2.3.10 Enclosure Size I3 27

3.2.3.11 Enclosure Size I4 28

3.2.3.12 IP54 Enclosure Sizes I2, I3, I4 29

3.2.3.13 Enclosure size I6 29

3.2.3.14 Enclosure size I7, I8 31

3.2.4 Fuses and Circuit Breakers 31

3.2.4.1 Branch Circuit Protection 31

ContentsOperating Guide | VLT® HVAC Basic Drive FC 101

3.2.4.2 Short-circuit Protection 31

3.2.4.3 Overcurrent Protection 31

3.2.4.4 UL/Non-UL Compliance 31

3.2.4.5 Recommendation of Fuses and Circuit Breakers 32

3.2.5 EMC-correct Electrical Installation 34

3.2.6 Control Terminals 36

3.2.7 Electrical Wiring 37

3.2.8 Acoustic Noise or Vibration 38

4 Programming 39

4.1 Local Control Panel (LCP) 39

4.2 Setup Wizard 40

4.2.1 Setup Wizard Introduction 40

4.2.2 Setup Wizard for Open-loop Applications 42

4.2.3 Setup Wizard for Closed-loop Applications 48

4.2.4 Motor Setup 55

4.2.5 Changes Made Function 60

4.2.6 Changing Parameter Settings 60

4.2.7 Accessing All Parameters via the Main Menu 60

4.3 Parameter List 61

5 Warnings and Alarms 63

5.1 List of Warnings and Alarms 63

6 Specifications 66

6.1 Mains Supply 66

6.1.1 3x200–240 V AC 66

6.1.2 3x380–480 V AC 67

6.1.3 3x525–600 V AC 71

6.2 EMC Emission Test Results 73

6.3 Special Conditions 74

6.3.1 Derating for Ambient Temperature and Switching Frequency 74

6.3.2 Derating for Low Air Pressure and High Altitudes 74

6.4 General Technical Data 75

6.4.1 Protection and Features 75

6.4.2 Mains Supply (L1, L2, L3) 75

6.4.3 Motor Output (U, V, W) 75

6.4.4 Cable Length and Cross-section 75

6.4.5 Digital Inputs 76

6.4.6 Analog Inputs 76

6.4.7 Analog Outputs 76

6.4.8 Digital Output 77

6.4.9 Control Card, RS485 Serial Communication 77

ContentsOperating Guide | VLT® HVAC Basic Drive FC 101

6.4.10 Control Card, 24 V DC Output 77

6.4.11 Relay Output 77

6.4.12 Control Card, 10 V DC Output 78

6.4.13 Ambient Conditions 78

ContentsOperating Guide | VLT® HVAC Basic Drive FC 101

1 Introduction

1.1 Purpose of this Operating Guide

This operating guide provides information for safe installation and commissioning of the AC drive. It is intended for use by qualified

personnel. Read and follow the instructions to use the drive safely and professionally. Pay particular attention to the safety instructions

and general warnings. Always keep this operating guide available with the drive.

1.2 Trademarks

VLT® is a registered trademark for Danfoss A/S.

1.3 Additional Resources

1.3.1 Other Resources

Other resources are available to understand advanced drive functions and programming.

• The VLT® HVAC Basic Drive FC 101 Programming Guide provides information on how to program and includes complete parameter

descriptions.

• The VLT® HVAC Basic Drive FC 101 Design Guide provides all technical information about the drive. It also lists options and

accessories.

The technical documentation is available in electronic form online at www.danfoss.com.

1.3.2 MCT 10 Setup Software Support

Download the software from the service and support section on www.danfoss.com.

During the installation process of the software, enter access code 81463800 to activate the VLT® HVAC Basic Drive FC 101 functionality.

A license key is not required for using the VLT® HVAC Basic Drive FC 101 functionality.

The latest software does not always contain the latest updates for drives. Contact the local sales office for the latest drive updates (in

the form of *.upd files), or download the drive updates from the service and support section on www.danfoss.com.

1.4 Document and Software Version

The operating guide is regularly reviewed and updated. All suggestions for improvement are welcome.

The original language of this manual is English.

Table 1: Document and Software Version

Edition Remarks Software version

AQ275641848264en-000101 Update to new software version. 4.4x

Introduction

Operating Guide | VLT® HVAC Basic Drive FC 101

AQ275641848264en-000101 / 132R0078

From software version 4.0x and later (production week 33 2017 and after), the variable speed heat sink cooling fan function is

implemented in the drive for power sizes 22 kW (30 hp) 400 V IP20 and below, 18.5 kW (25 hp) 400 V IP54 and below, and 11 kW (15 hp)

200 V IP20 and below. This function requires software and hardware updates and introduces restrictions with regards to backwards

compatibility for H1–H5 and I2–I4 enclosure sizes. Refer to the following table for the limitations.

Table 2: Software and Hardware Compatibility

Software compatibility Old control card (production week 33

2017 or before)

New control card (production week

34 2017 or after)

Old software (OSS-file version 3.xx and be-

low)

Yes No

New software (OSS-file version 4.xx or

higher)

No Yes

Hardware compatibility Old control card (production week 33

2017 or before)

New control card (production week

34 2017 or after)

Old power card (production week 33 2017

or before)

Yes (only software version 3.xx or below) Yes (MUST update software to ver-

sion 4.xx or higher)

New power card (production week 34 2017

or after)

Yes (MUST update software to version 3.xx

or below, the fan continuously runs at full

speed)

Yes (only software version 4.xx or

higher)

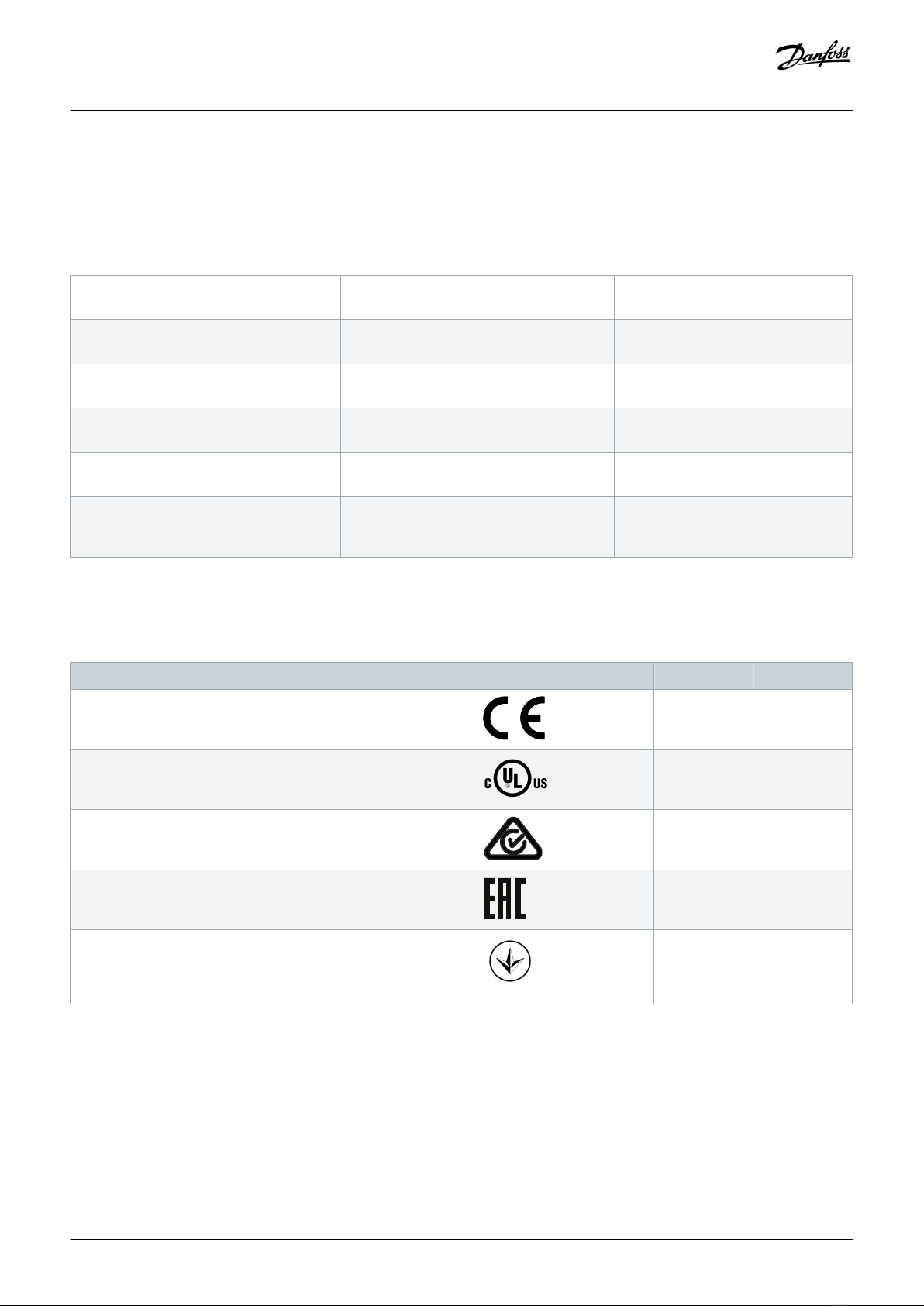

1.5 Certificates and Approvals

Table 3: Certificates and Approvals

Certification IP20 IP54

EC Declaration of Conformity ✓ ✓

UL Listed ✓–

RCM ✓ ✓

EAC ✓ ✓

UkrSEPRO

089

✓ ✓

The drive complies with UL 508C thermal memory retention requirements. For more information, refer to the section Motor Thermal

Protection in the product-specific design guide.

Introduction

Operating Guide | VLT® HVAC Basic Drive FC 101

AQ275641848264en-000101 / 132R0078| 7

1.6 Disposal

Do not dispose of equipment containing electrical components together with domestic waste.

Collect it separately in accordance with local and currently valid legislation.

Introduction

Operating Guide | VLT® HVAC Basic Drive FC 101

AQ275641848264en-000101 / 132R0078

2 Safety

2.1 Safety Symbols

The following symbols are used in this manual:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates information considered important, but not hazard-related (for example, messages relating to property damage).

2.2 Qualified Personnel

To allow trouble-free and safe operation of the unit, only qualified personnel with proven skills are allowed to transport, store,

assemble, install, program, commission, maintain, and decommission this equipment.

Persons with proven skills:

• Are qualified electrical engineers, or persons who have received training from qualified electrical engineers and are suitably

experienced to operate devices, systems, plant, and machinery in accordance with pertinent laws and regulations.

• Are familiar with the basic regulations concerning health and safety/accident prevention.

• Have read and understood the safety guidelines given in all manuals provided with the unit, especially the instructions given in the

Operating Guide.

• Have good knowledge of the generic and specialist standards applicable to the specific application.

2.3 Safety Precautions

WARNING

HIGH VOLTAGE

AC drives contain high voltage when connected to AC mains input, DC supply, or load sharing. Failure to perform installation,

start-up, and maintenance by qualified personnel can result in death or serious injury.

-Only qualified personnel must perform installation, start-up, and maintenance.

Safety

Operating Guide | VLT® HVAC Basic Drive FC 101

AQ275641848264en-000101 / 132R0078| 9

WARNING

UNINTENDED START

When the drive is connected to AC mains, DC supply, or load sharing, the motor may start at any time. Unintended start during

programming, service, or repair work can result in death, serious injury, or property damage. Start the motor with an external

switch, a fieldbus command, an input reference signal from the local control panel (LCP), via remote operation using MCT 10

software, or after a cleared fault condition.

-Disconnect the drive from the mains.

-Press [Off/Reset] on the LCP before programming parameters.

-Ensure that the drive is fully wired and assembled when it is connected to AC mains, DC supply, or load sharing.

WARNING

DISCHARGE TIME

The drive contains DC-link capacitors, which can remain charged even when the drive is not powered. High voltage can be

present even when the warning indicator lights are off.

Failure to wait the specified time after power has been removed before performing service or repair work could result in death

or serious injury.

-Stop the motor.

-Disconnect AC mains, permanent magnet type motors, and remote DC-link supplies, including battery back-ups, UPS, and

DC-link connections to other drives.

-Wait for the capacitors to discharge fully. The minimum waiting time is specified in the table Discharge time and is also

visible on the nameplate on top of the drive.

-Before performing any service or repair work, use an appropriate voltage measuring device to make sure that the capacitors

are fully discharged.

Table 4: Discharge Time

Voltage [V] Power range [kW (hp)] Minimum waiting time (minutes)

3x200 0.25–3.7 (0.33–5) 4

3x200 5.5–11 (7–15) 15

3x400 0.37–7.5 (0.5–10) 4

3x400 11–90 (15–125) 15

3x600 2.2–7.5 (3–10) 4

3x600 11–90 (15–125) 15

WARNING

LEAKAGE CURRENT HAZARD

Leakage currents exceed 3.5 mA. Failure to ground the drive properly can result in death or serious injury.

-Ensure the correct grounding of the equipment by a certified electrical installer.

Safety

Operating Guide | VLT® HVAC Basic Drive FC 101

AQ275641848264en-000101 / 132R0078
