Danfoss Basic Plus2 Bedienungsanleitung

MAKING MODERN LIVING POSSIBLE

User Guide

Basic Plus2Room Thermostats Floor Heating

www.heating.danfoss.com

The English language is used for the original instructions.

Other languages are a translation of the original instructions.

(Directive 2006/42/EC)

Table of Contents

1 Functional Overview .............................................................. 3

2Power ON/OFF .................................................................. 3

3Set Desired Temperature ........................................................... 3

4Select Away Mode ................................................................ 4

5Set Timer ...................................................................... 4

6Advanced Programmable Timer ...................................................... 4

7Check Floor Temperature ........................................................... 4

8Child Safety Lock ................................................................ 5

9Set Control Parameters ............................................................ 5

10 Error Messages .................................................................. 5

1Functional Overview

Symbols Function description

Room temperature

Floor temperature

Temperature indication

Set temperature

Floor heating - Active

Frost protection - Active

Away mode

Child safety lock

Power ON/OFF

Timer and program operation

Symbols Function description

Mode change/check floor temp./child safety lock/ pa-

rameters setting

Up/down selectors

2 Power ON/OFF

▪Turn the thermostat ON or OFF by pressing .

3 Set Desired Temperature

▪Press “<” or ”>” at any time to change the desired tempera-

ture value. "SET" is shown in the display.

▪When releasing “<” or ”>”, the display returns to showing the

actual temperature.

▪The adjustment step is 0.5 °C.

User Guide Basic Plus2Room Thermostats Floor Heating

Danfoss Heating Solutions VUCUA102 3

4 Select Away Mode

▪Press “M” to enter away mode and will be displayed.

▪Press ”<” or ”>”. “SET” appears; set the away mode setpoint.

▪Press “M” again to exit away mode.

5 Set Timer

For WT-P and WT-PR variants only

▪Press ; “hh” flashes. Press”<” or ”>” to adjust hour. Press

again; ”mm” flashes. Press ”<” or ”>” to adjust minute. Press

again; “week” flashes. Press ”<” or ”>” to adjust week.

▪Complete all adjustments. Press any other button to exit (au-

tomatic exit after 6 seconds with no operation).

6 Advanced Programmable Timer

For WT-P and WT-PR variants only

The Advanced Programmable Timer mode enables the setting of a

timer-controlled program for automatic comfort temperature, and

an energy-saving lower setback temperature if standard room

comfort temperature is not required.

▪The function consists of 2 programs:

▪Program 1: 4 events in 5 days (Mon. Tue. Wed. Thu. Fri.)

▪Program 2: 4 events in 2 days (Sat. Sun.)

▪Program 1: Press to display Mo. Tu. We. Th. Fr.

▪Program 1, Event 1:

▪Use ”<” or”>” to select the required start time.

▪Press to accept setting.

▪Use ”<” or ”>” to select the required temperature.

▪Press to accept setting.

▪Program 1, Event 2-4:

▪Repeat the Event 1 procedure for programming Event

2-4.

▪Program 2: Sa. Su. are now shown in the display.

▪Program 2, Event 1:

▪Use ”<” or ”>” to select the required start time.

▪Press to accept setting.

▪Use ”<” or ”>” to select the required temperature.

▪Press to accept setting.

▪Program 2, Event 2-4:

▪Repeat the Event 1 procedure for programming Event

2-4.

▪The thermostat will continue the 4-event program based on

the present time and day.

▪To set and change the desired room temperature temporari-

ly:

▪Press “<” or ”>” at any time to change the desired tem-

perature value. "SET" is shown in the display.

▪When releasing the “<” or ”>”, the display returns to

showing the actual temperature. This temperature

change is only temporary and will be maintained only

until the next programmed setting!

▪A default program provides timer control if the customer

does not set own programs. The default program is as fol-

lows.

Weekday/

Weekend

Event 1 Event 2 Event 3 Event 4

Start time/temp.

Weekday,

Mon-Fri.

6:30/20 °C 8:30/15 °C 16:30/20 °C 22:30/15 °C

(27 °C)* (25 °C)* (27 °C)* (25 °C)*

Weekend,

Sat. -Sun.

7:30/20 °C 9:30/20 °C 16:30/21 °C 22:30/15 °C

(27 °C)* (27 °C)* (28 °C)* (25 °C)*

* Floor temperature control mode.

7 Check Floor Temperature

Press “M” and hold. Press “<” within 6 seconds.

flashes and the current floor temperature is displayed. Operate

again, then exit (automatic exit after 6 seconds with no operation).

User Guide Basic Plus2Room Thermostats Floor Heating

VUCUA102 Danfoss Heating Solutions

8 Child Safety Lock

Press “M” and hold. Press “>” within 6 seconds to lock all buttons.

Operate again to exit the child safety lock.

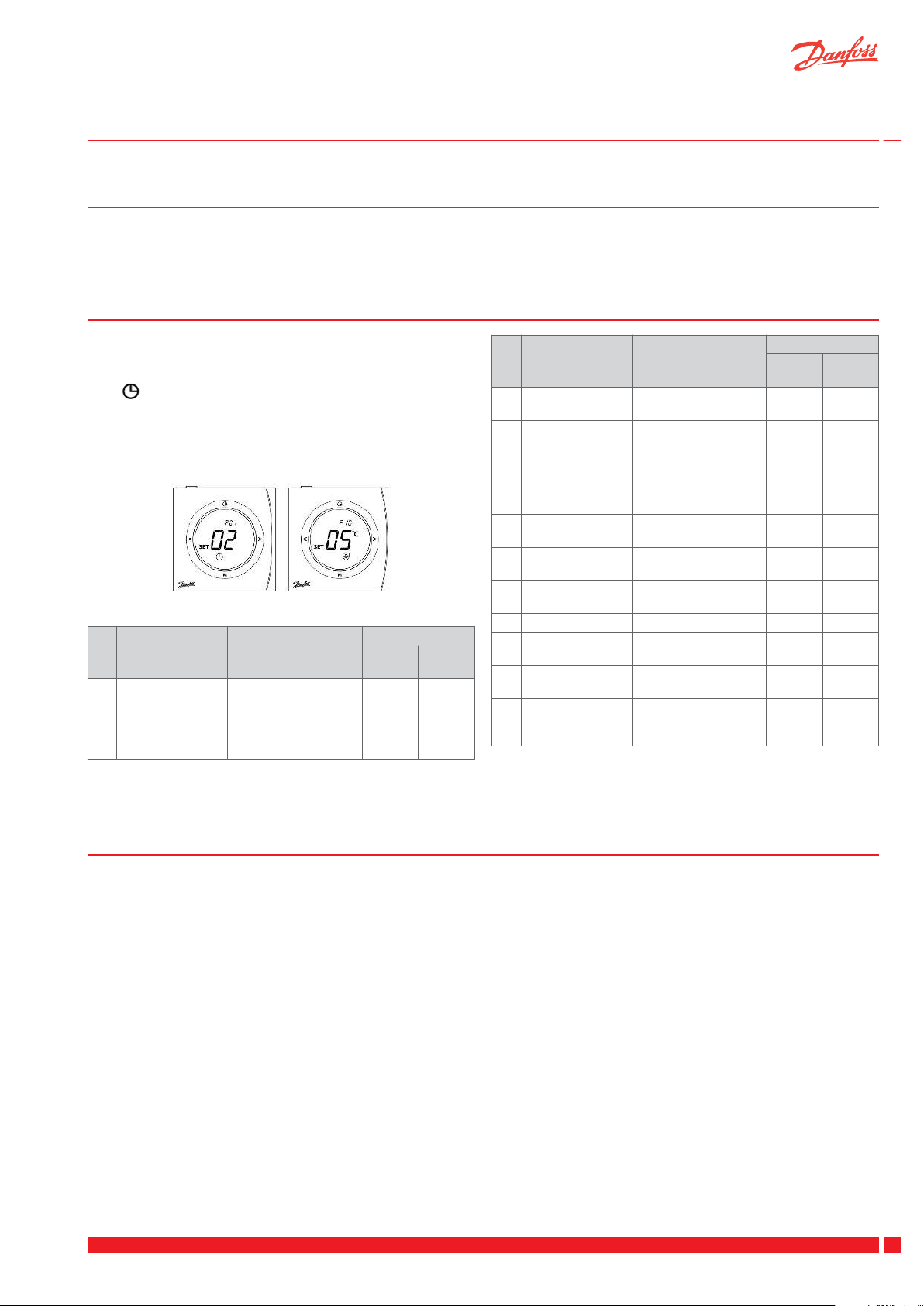

9 Set Control Parameters

Press "M" button for 6 seconds to enter the parameter setting

mode. Press "M" for parameter selection and set the parameter

range via "<" or ">". Complete all adjustments. To exit WT-P/PR,

press , which is available for this purpose (automatic exit after

30 seconds with no operation). To exit WT-D/DR, wait for automat-

ic exit (30 seconds). The upper digits indicate the parameter num-

ber. The digits indicate the set value as follows.

No. Parameter set-

tings

Settings range Factory default

WT-

D/DR

WT-

P/PR

P01 Working mode 01: Manual ; 02: APT NA 02

P02 Temperature con-

trol mode

01: Only room temp.;

02: Room and floor

temp.; 03: Only floor

temp.

01 01

No. Parameter set-

tings

Settings range Factory default

WT-

D/DR

WT-

P/PR

P03 High room temp.

limit

5-35 °C (only for 01and

02 in P02)

30 °C 30 °C

P04 Low room temp.

limit

5-35 °C (only for 01and

02 in P02)

5 °C 5 °C

P05 Floor temp. limita-

tion mode

01: High temp. limita-

tion: 02: Low temp. lim-

itation (only for 02 in

P02)

01 01

P06 Floor temp. limita-

tion setpoint

20-45 °C (only for 02 in

P02)

35 °C 35 °C

P07 High floor temp.

limit

20-45 °C (only for 03 in

P02)

35 °C 35 °C

P08 Low floor temp.

limit

20-45 °C (only for 03 in

P02)

20 °C 20 °C

P09 Frost protection 01: Enable; 02: Disable 01 01

P10 Frost protection

setpoint

5-17 °C 5 °C 5 °C

P11 Timer display op-

tion

01: 24 h; 02: 12 h NA 01

P12 Room temp. dis-

play option at

shutdown

01: No display current

temp.; 02: Display cur-

rent temp.

01 01

P03 to P08 appear on relevant temperature control mode.

10 Error Messages

Error messages are displayed as follows:

▪E1 = room sensor failure

▪E2 = floor sensor failure

▪EE = EEPROM failure

▪Lo = temperature lower than 0 °C

▪HI = temperature higher than 50 °C

All relay output will be turned off in all cases.

User Guide Basic Plus2Room Thermostats Floor Heating

Danfoss Heating Solutions VUCUA102 5

User Guide Basic Plus2Room Thermostats Floor Heating

VUCUA102 Danfoss Heating Solutions

User Guide Basic Plus2Room Thermostats Floor Heating

Danfoss Heating Solutions VUCUA102 7

User Guide Basic Plus2Room Thermostats Floor Heating

Danfoss A/S

Heating Solutions

Haarupvaenget 11

8600 Silkeborg

Denmark

Phone: +45 7488 8000

Fax: +45 7488 8100

Email: [email protected]

www.heating.danfoss.com

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products

already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective

VUCUA102 Produced by Danfoss Heating Solutions © 08/2014
