Danfoss WP75-RF Bedienungsanleitung

SPECIFICATION

Radio Controlled Programmable Room Thermostat

Receiver Module for TP75-RF (Independentl Surface Mounted)

Supply Voltage 24 Vac

Construction BS EN 60730-2-9

Maxi u A bient Te perature 114°f (45°C)

Switch Type RX1 - 1 x SPDT, type 1B

RX2 - 1 x SPDT, 1 x SPST, type 1B

RX3 - 1 x SPDT, 2 x SPST, type 1B

Switch Rating 3 (1) A, (Total current)

IP Rating IP 40

Max. Range 30 etres

Operating Frequency 433.92 MHz

FCC Identifier PO7 TP75RF

1. 2. 3. 4.

30 VDS (typical)

TP75-RF, WP75-RF, RX-1, RX-2, RX-3 Instructions

TP75-RF/WP75-RF RX-1, RX-2, RX-3

Wiring Details

COM ON OFF

ABC234

Electronics

COM

OFF

24v

Com

COM ON OFF

ABC234

Electronics

ZONE 1 ON

ZONE 2 ON

COM

ZONE 1 OFF

ZONE 2 ON

ZONE 1 ON

ZONE 3 ON

Electronics

COM

ZONE 1 OFF

RX1 RX2 RX3

24v

Live

24v

Com

24v

Live 24v

Com

24v

Live

ABC23456

FCC Notice: This evice complies with Pt 15 of the FCC

rules. Operation is subject to the following con itions:

1) This evice may not cause harmful interference

2) This evice must accept any interference receive

inclu ing that which may cause un esire operation.

5 Min. (max)

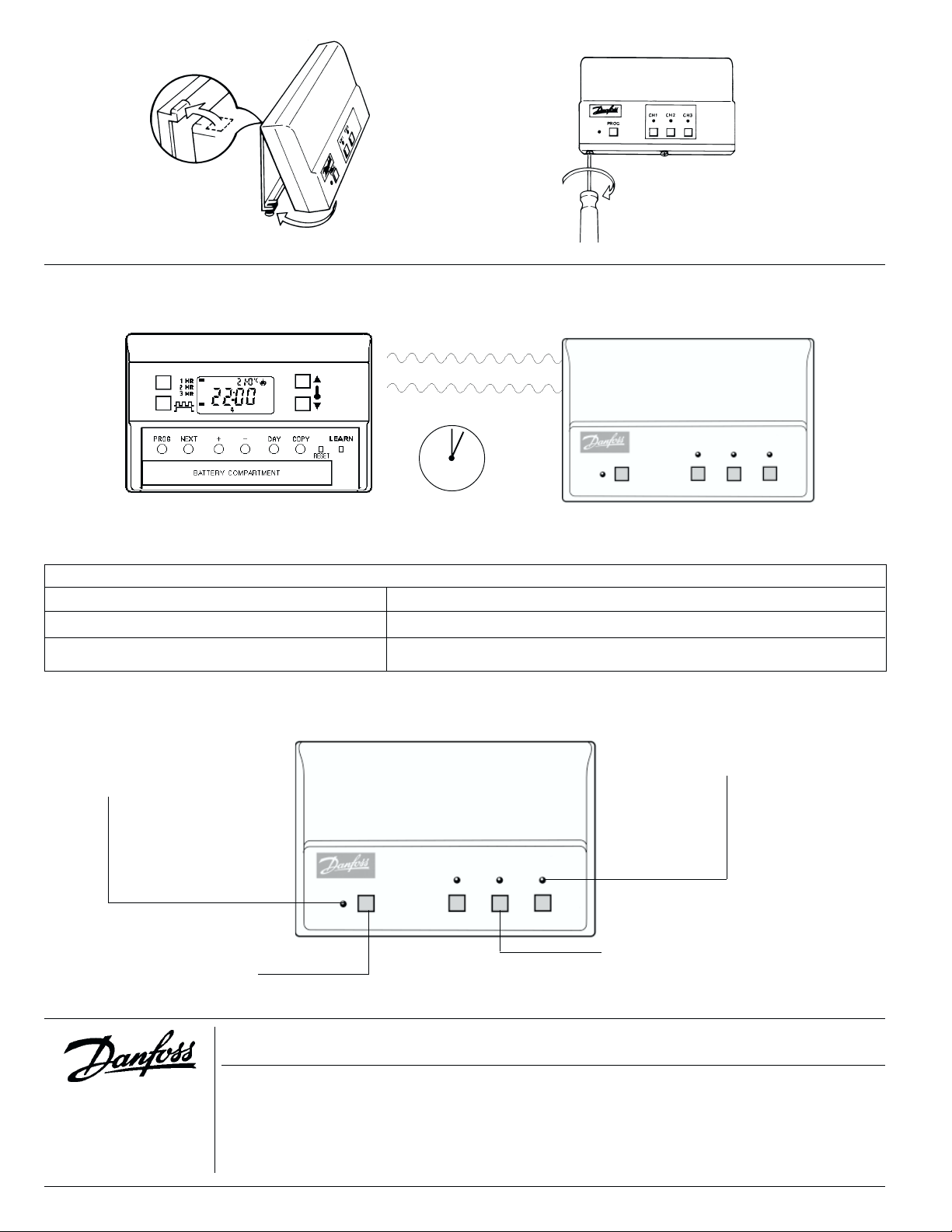

Commissioning Instructions

Step 1 TP75-RF Press and hold the "LEARN" button for 3 seconds

Step RX1 Press and hold buttons PROG and CH1 for 3 seconds

Step 3 RX / RX3 For RX or RX3 repeat steps 1 and for each thermostat and channel

433.92 MHz

Battery Compartment Flap lowered

TP75-RF/WP75-RF RX-1, RX-2, RX-3

Use only during programming

Receiver status LED,

lit when receiveing

Emergency ON button, press if communication

fails, turns on heat, returns to AUTO when

communication is re-established

Zone status LEDs, lit when ON

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material, and reserves the right to alter its products without

notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications

already agreed.

Part No: 34049 Iss 02 06/01

5. 6.

Danfoss Comfort and Building Controls

3435 Box Hill Corporate Center Drive

Suite C

Abingdon, Maryland 21009

USA

Tel: 00 1 443 512 0266 Fax: 00 1 443 512 0270

Danfoss Mfg Co Ltd

7880 Tranmere Drive

Mississauga

Ontario

Canada

Tel: 001 905 676 6000 Fax: 001 905 676 0279
