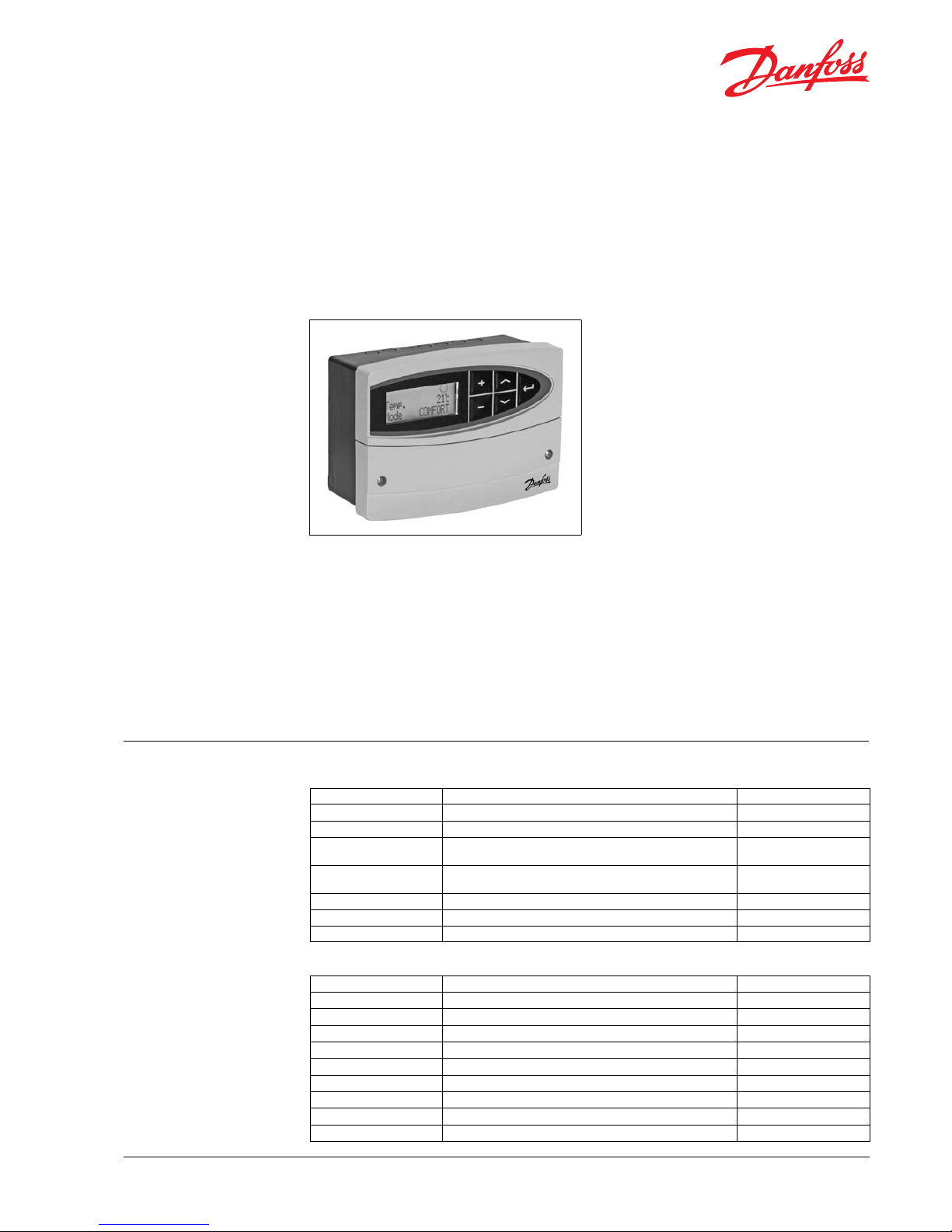

Data sheet ECL Comfort 110
230 V a.c. and 24 V a.c.
DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 1
Description and application The controller is designed for easy installation:
one cable, one connector.
The ECL Comfort 110 controller has a custom-
designed display with backlight. For a quick
overview, the display readouts are based on
graphic symbols as well as text.
The controller has triac outputs for motorized
control valve and relay outputs for pump
control.
It is possible to connect up to 4 temperature
sensors (Pt 1000 types) and it has 1 input for
override. Room panel or remote control (ECA 60
/ 61) can be connected.
The ECL Comfort 110 controller can be used as
master or slave in controller systems.
It is prepared for mounting on a DIN rail, a wall
or in a panel.
The ECL Comfort 110 is a universal 1-circuit
controller for use in district heating substations
and district heating systems as well as boiler-
based systems.
The product is an electronic controller for
• weathercompensatedowtemperature
control (heating)
• constanttemperaturecontrol(domestichot
water e.g.)
and prepared for new applications by means of
chip card and communication interface.
Ordering Controllers
Type Designation Code no.
ECL Comfort 110 Universal hardware - 230 V a.c. 087B1261
ECL Comfort 110 Universal hardware - 24 V a.c. 087B1251
ECL Comfort 110 with timer
program Universal hardware - 230 V a.c. 087B1262
ECL Comfort 110 with timer
program Universal hardware - 24 V a.c. 087B1252
Panel mounting kit For ECL Comfort 110 087B1249
Instructions, appl. 116 User guide and quick guide (English) 087B8151
Instructions, appl. 130 User guide and quick guide (English) 087B8152
Pt 1000 temperature sensors
Type Designation Code No.
ESMT Outdoor temperature sensor 084N1012
ESM-10 Room temperature sensor 087B116 4
ESM -11 Surface sensor 087B1165
ESMB-12 Universal sensor 087B118 4
ESMC Surface sensor incl. 2 m cable 087N0 011
ESMU-100 Immersion sensor, 100 mm, copper 087B1180
ESMU-250 Immersion sensor, 250 mm, copper 0 87B1181
ESMU-100 Immersion sensor, 100 mm, stainless steel 087B1182
ESMU-250 Immersion sensor, 250 mm, stainless steel 087B1183
Data sheet
DH-SMT/DK
VD.KT.C3.02 © Danfoss 09/2008
2
Ordering, continued Accessories
Type Designation Code no.
ECA 60 Room panel with sensor 087B1140
ECA 61 Remote control with 1 zone clock and sensor 087B1141
ECA 110* Timer program for ECL Comfort 110 (chip card) 087B1248
*
The ECA 110 is a supplement to the ECL Comfort 110 versions without a timer program, e.g., the code nos. 087B1261 and
087B1251 (see page 1). With the ECA 110 it will be possible to set personal schedules in terms of start and stop times of
the system and thereby optimize the energy supply.
Domestic hot water (DHW)
(Application 116)

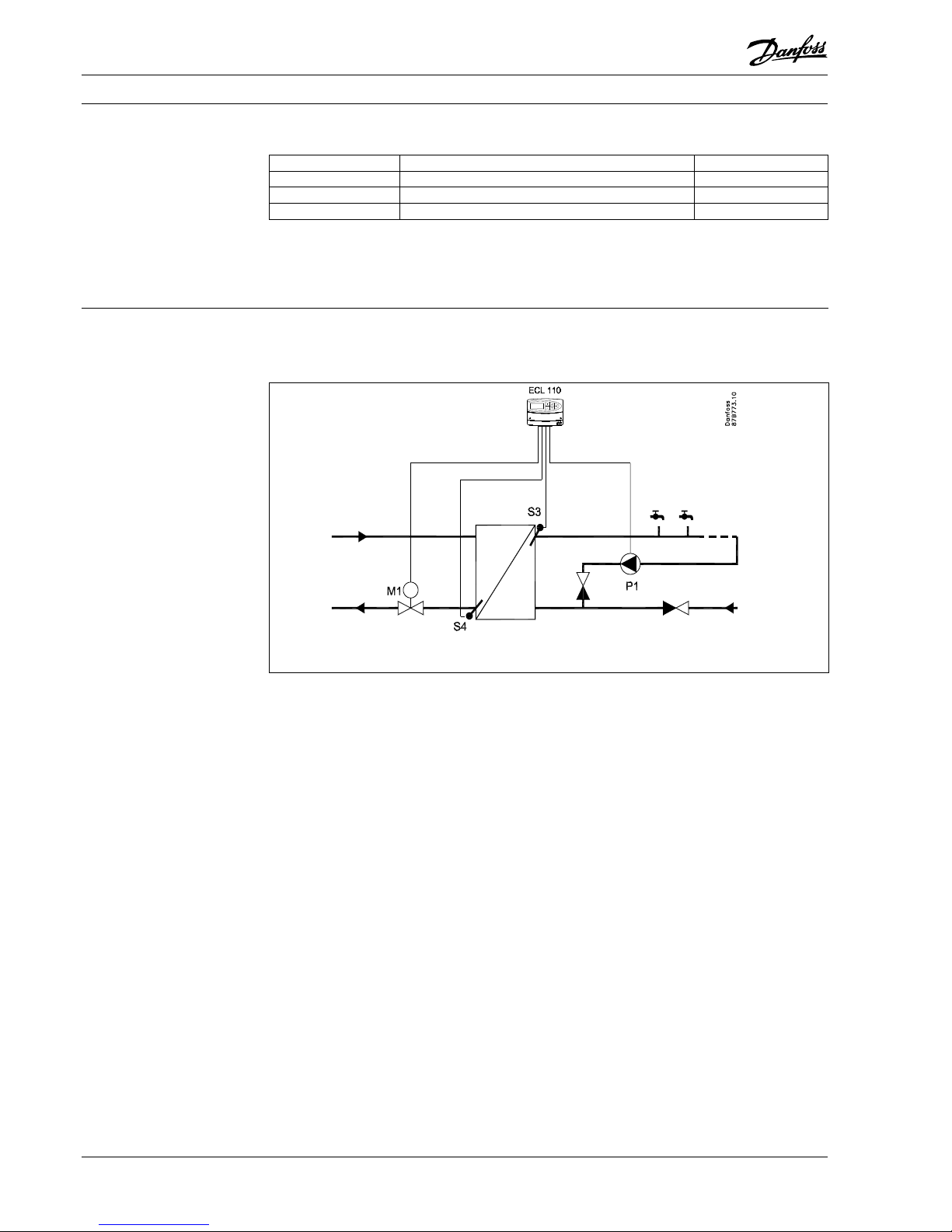

Application 116 example
Constant DHW temperature control with heat exchanger
Basic principles Constant DHW temperature control with heat
exchanger or storage tank
Typically,theowtemperatureisadjusted
accordingtothedesiredowtemperature.
• AdjustmentofDHWtemperature
IfthemeasuredDHWtemperatureislower
than the desired temperature, the motorized
control valve is opened gradually and vice
versa.
• Returntemperaturelimitation
The return temperature to the district heating
supply should not be too high. If so, the
desiredowtemperaturecanbeadjusted
(typically to a lower value) thus resulting in a
gradual closing of the motorized control valve.
In boiler-based heating supply the return
temperature should not be too low (same
adjustmentprocedureasabove).
• Circulationpumpcontrol
The circulation pump is ON when the desired
DHWtemperatureishigherthanauser-
defined value (factory setting: 20 °C).
ECL Comfort 110
Data sheet
DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 3
ECL Comfort 110
Key functions Flow temperature control
• Returntemperaturelimitation
The controller automatically changes the
desiredowtemperaturetoobtainan
acceptable return temperature when the
return temperature falls below or gets higher
than the set value. The return temperature
inuencecanbelimitedbythemin./max.
owlimitation.
Optimization
• Autotuning
A function for automatically setting the
proportional band (Xp) and integration time
constant (Tn).
Safety functions
• Frostprotection
The controller automatically switches
thecirculationpumpONwhentheow
temperature is lower than a user-defined
value (factory setting: 10 °C).
• Motorprotection
The controller prevents unstable temperature
control thus resulting in a longer life of the
actuator.
• Pumpexercise
Exercise of the pump to avoid blocking in
periods without heat demand.
Heating
(Application 130)

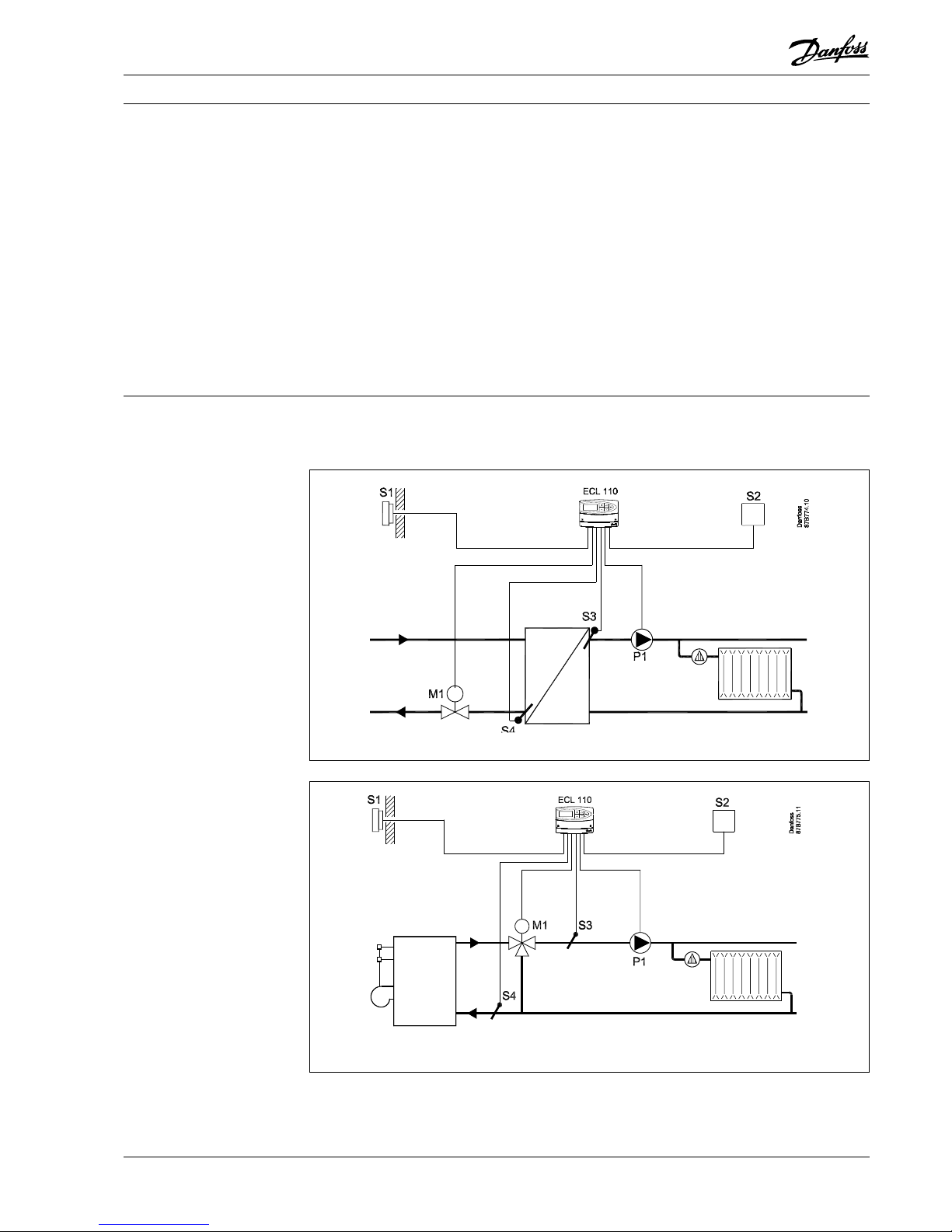

Application 130 examples
District heating circuit with heat exchanger
Boiler-based heating circuit
ECL Comfort 110Data sheet
DH-SMT/DK
VD.KT.C3.02 © Danfoss 09/2008
4
Basic principles Control of district heating circuits with or
without heat exchanger and for boiler-based
heating circuits
Typically,theowtemperatureisadjusted
accordingtothedesiredowtemperature.
• Adjustmentofowtemperature
Thedesiredowtemperatureiscalculated
in the ECL Comfort controller, based on the
outdoor temperature. The lower the outdoor
temperature,thehigherthedesiredow
temperature.
The motorized control valve is opened
graduallywhentheowtemperatureislower
thanthedesiredowtemperatureandvice
versa.
• Returntemperaturelimitation
The return temperature to the district heating
supply should not be too high. If so, the
desiredowtemperaturecanbeadjusted
(typically to a lower value) thus resulting in a
gradual closing of the motorized control valve.
In boiler-based heating supply the return
temperature should not be too low (same
adjustmentprocedureasabove).
• Roomtemperaturelimitation
If the measured room temperature does not
equal the desired room temperature, the
desiredowtemperaturecanbeadjusted.
• Circulationpumpcontrol
The circulation pump is ON when the desired
owtemperatureishigherthanauser-dened
value (factory setting: 20 °C ) or the outdoor
temperature is lower than a user-defined
value (factory setting: 2 °C).
Data sheet
DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 5
ECL Comfort 110
General data Ambient temperature 0 - 55 °C
Storage temperature -40 - + 70 °C
Enclosure DIN rail, wall or panel
Sensor type Pt 1000 (1000 Ω 0 °C)
Grade of enclosure IP 41 DIN 40050
- marking
in accordance with the standards
EMC-Directive: 2004/108/EC
Immunity: 61000-6-1
Emission: 61000-6-3
LVD-Directive: 2006/95/EC

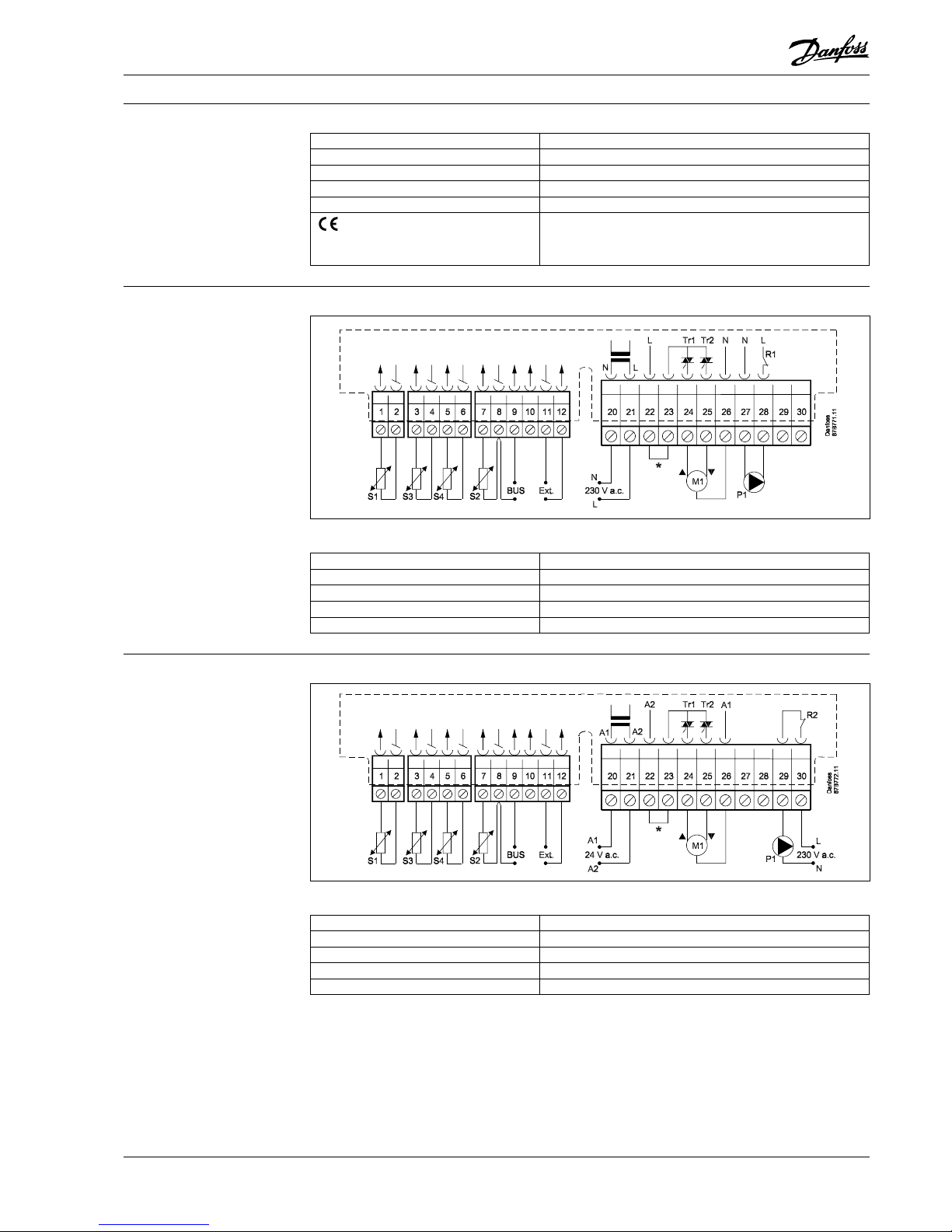

Wiring - 230 V a.c.
* Connections for safety thermostat
Supply voltage 230 V a.c. - 50 Hz
Voltage range 207 to 244 V a.c. (IEC 60038)
Power consumption 3 VA
Load on relay 1 outputs 4 (2) A - 230 V a.c.
Load on triac outputs 15 VA @ 230 V a.c.
Wiring - 24 V a.c.
* Connections for safety thermostat
Supply voltage 24 V a.c. - 50 Hz
Voltage range 21.6 to 26.4 V a.c. (IEC 60038)
Power consumption 3 VA
Load on relay 2 outputs 4 (2) A - 230 V a.c.
Load on triac outputs 15 VA @ 24 V a.c.
ECL Comfort 110Data sheet
DH-SMT/DK
VD.KT.C3.02 © Danfoss 09/2008
6

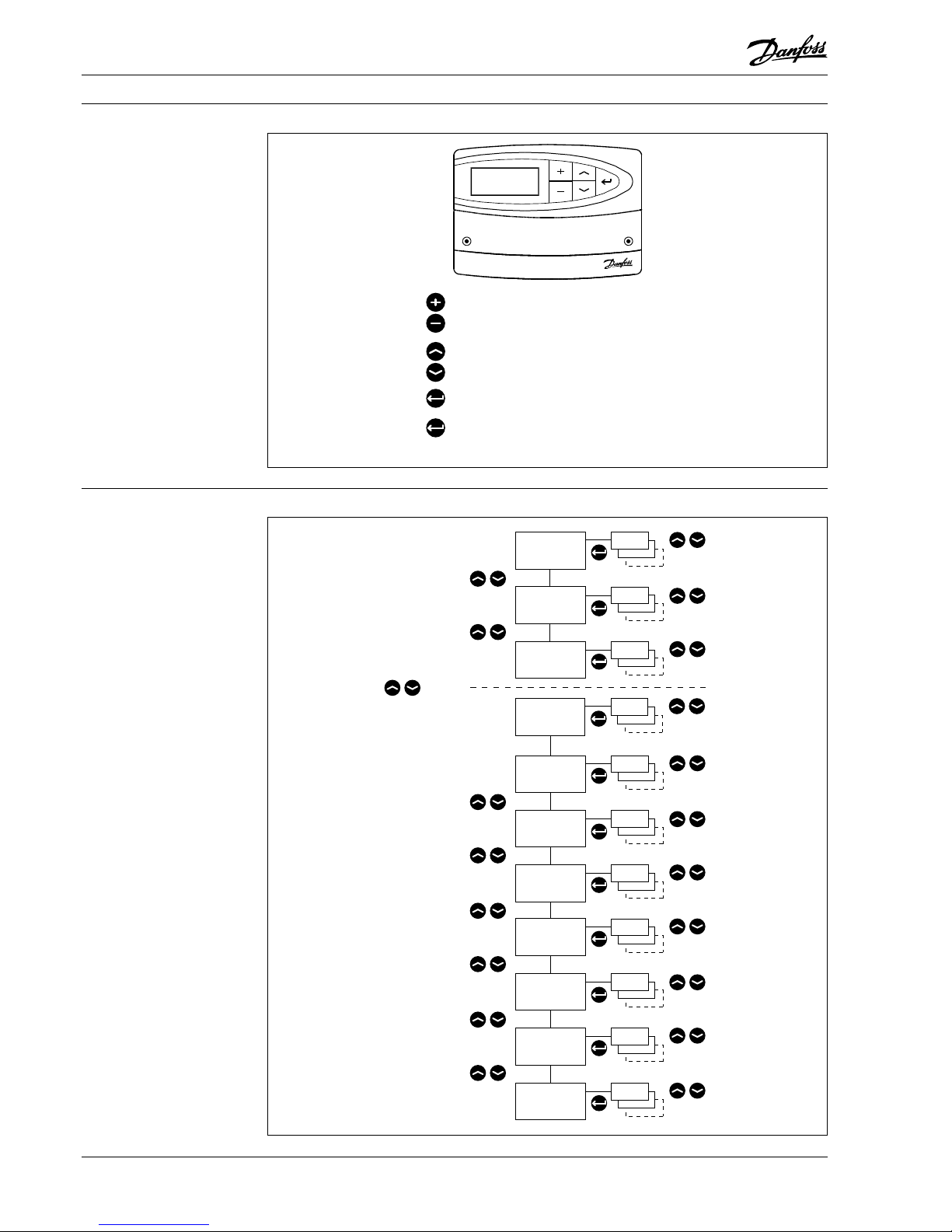

Operation
Adjust temperatures and values.
Switch between menu lines.
Select / return.
2 sec.
Return to daily user menu.
Menu navigation
5FNQ
A8FFLEBZ
'MPXUFNQ
3FUVSO5MJNJU
3PPN5MJNJU
0QUJNJ[F
"QQMJDBUJPO
$POUSPM
QBSBN
.PEF
4FSWJDF
TFD
%BUFUJNF
Data sheet
DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 7
ECL Comfort 110

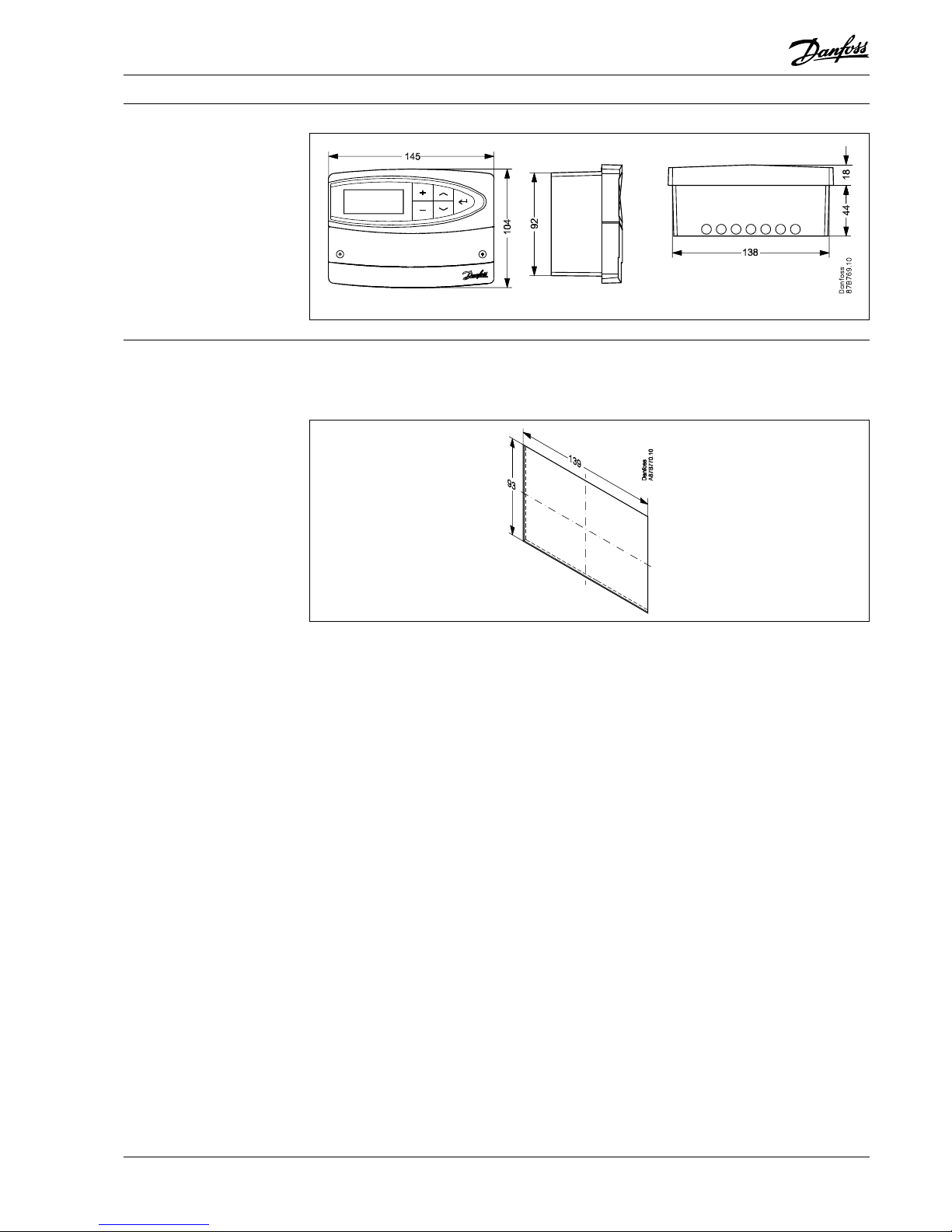

Dimensions
Cut-out for mounting Mounting in a panel (panel mounting kit,
code no.: 087B1249).
The panel thickness must not exceed 5 mm.
8
ECL Comfort 110Data sheet
VD.KT.C3.02 Produced by Danfoss A/S © 09/2008
Additional documentation for ECL Comfort 110 is available on http://heating.danfoss.com
