Danfoss Heating Solutions VIIDB222 09/2013

Installation and User Guide

living eco®

Electronic Radiator Thermostat

09/2013 VIIDB222 Danfoss Heating Solutions

Installation Guide

1. Installation

1.1 Identify your living eco® thermostat ..................................................4

1.2 In the package ......................................................................4

1.3 Overview of valve adapters ..........................................................5

1.4 Installing the right adapter ..........................................................6

1.5 Inserting the batteries...............................................................7

1.6 Using the buttons ...................................................................7

1.7 Setting time and date for the rst time ...............................................8

1.8 Installing living eco® .................................................................8

1.9 Automatic adjustments..............................................................9

1.10 Removing living eco®................................................................9

1.11 Resetting living eco®to default settings ............................................ 10

1.12 Removing an adapter from living eco®.............................................. 10

2. Technical specications................................................................. 11

Scan this QR code with your smartphone and go directly

to the living eco® Installation video on YouTube.

Scan this QR code with your smartphone and go directly

to the living eco® Programming video on YouTube.

Installation Guide living eco® Electronic Radiator Thermostat

Danfoss Heating Solutions VIIDB222 09/2013

User Guide living eco® Electronic Radiator Thermostat

User Guide

3. Display and menus

3.1 Home Screen ..................................................................... 12

3.2 Programme menu................................................................. 12

3.3 Function menu.................................................................... 13

3.4 Advanced menu .................................................................. 14

4. Temperature and programme settings

4.1 Setting the comfort temperature .................................................. 15

4.2 Default programme settings ...................................................... 16

4.3 Adjusting a setback period ........................................................ 17

4.4 Creating a new setback period..................................................... 18

4.5 Deleting a setback period ......................................................... 19

4.6 Creating a Travel programme ...................................................... 20

4.7 Overrule a Travel programme (early return) ........................................ 21

4.8 Changing an existing Travel programme ........................................... 21

4.9 Deleting a Travel programme ...................................................... 22

4.10 Creating a Frost Protection programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5. Additional settings

5.1 Setting the time................................................................... 23

5.2 Limiting the temperature setting range ............................................ 23

5.3 Deactivating automatic daylight saving time ....................................... 24

5.4 Child Lock ........................................................................ 24

5.5 Setting the Heating Control ....................................................... 25

5.6 Open-window function............................................................ 25

5.7 Adjusting to radiator/room conditions ............................................. 26

5.8 Automatic valve exercising ........................................................ 26

5.9 Deactivating intelligent Control (Forecast) ......................................... 27

6. Safety precautions...................................................................... 27

7. Disposal ................................................................................ 27

Pay a visit to the living web-site, where you nd a lot of additional information:

animations and videos, a FAQ section, literature and much, much more

living.danfoss.eu

09/2013 VIIDB222 Danfoss Heating Solutions

1. Installation

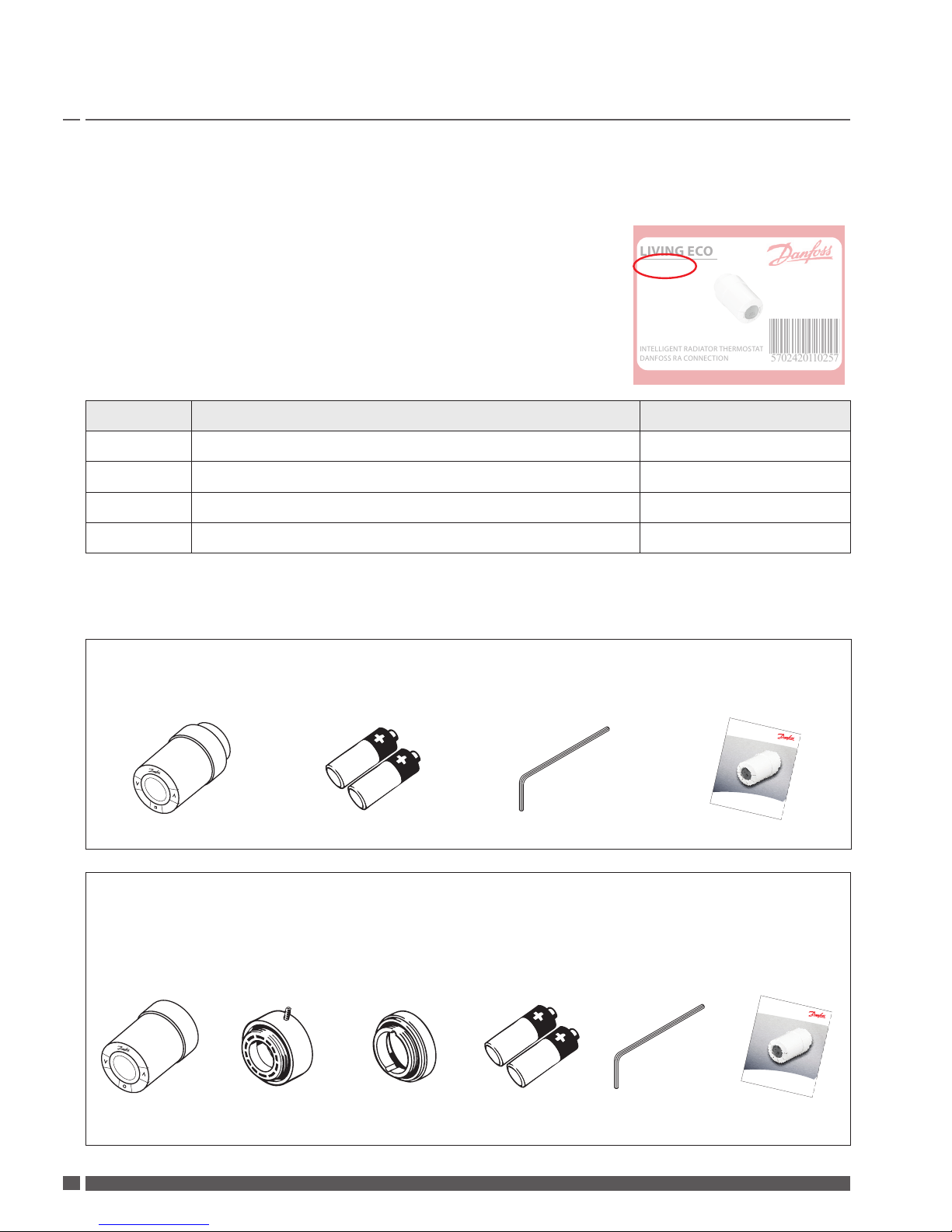

1.1 Identify your living eco® thermostat

LIVING ECO

INTELLIGENT RADIATOR THERMOSTAT

DANFOSS RA CONNECTION5702420110257

014G0050

living eco®comes in several versions to meet the demands of

dierent markets.

You identify your version by the code number on the box label.

Adapters for a range of dierent valves types are available as acces-

sories, see chapter 1.3.

Code no. Version characteristics Quick guide languages

014G0050 Incl. pre-mounted RA adapter UK, DE, DK, NL, FR, PL, SE, FI

014G0051 Incl. RA + M30 x 1.5 adapters UK, DE, DK, NL, FR, PL, SE, FI

014G0052 Incl. RA + M30 x 1.5 adapters UK, CZ, SK, RU, TR, HU, HR, SI

014G0064 Incl. RA + M30 x 1.5 adapters, Forecast disabled as default UK, DE, DK, NL, FR, PL, SE, FI

1.2 In the package

living eco® 014G0050 is supplied with a pre-mounted adapter for Danfoss RA valves, two

alkaline AA batteries, a 2 mm Allen key and a Quick Guide in languages English, German, Danish,

Dutch, French, Polish, Swedish and Finnish.

living eco®

Quick Start Guide

MAKING MODERN LIVING POSSIBLE

Danfoss Heating Solutions

living eco® sensor Alkaline AA batteries Allen key, 2 mm Quick Guide and “Hanger”

living eco® 014G0051, 014G0052 and 014G0064 are supplied with adapters for Danfoss RA

valves and valves with M30 x 1.5 (K) connections, two alkaline AA batteries, a 2 mm Allen key and

a Quick Guide in English, German, Danish, Dutch, French, Polish, Swedish and Finnish (014G0051

and 014G0064) or in English, Czech, Slovak, Russian, Turkish, Hungarian Croatian and Slovenian

(014G0052).

living eco®

Quick Start Guide

MAKING MODERN LIVING POSSIBLE

Danfoss Heating Solutions

living eco® sensor Adapter for

RA valves

Adapter for

M30 x 1.5 (K) valves

Alkaline

AA batteries Allen key, 2 mm Quick Guide

and “Hanger”

Installation Guide living eco® Electronic Radiator Thermostat

Danfoss Heating Solutions VIIDB222 09/2013

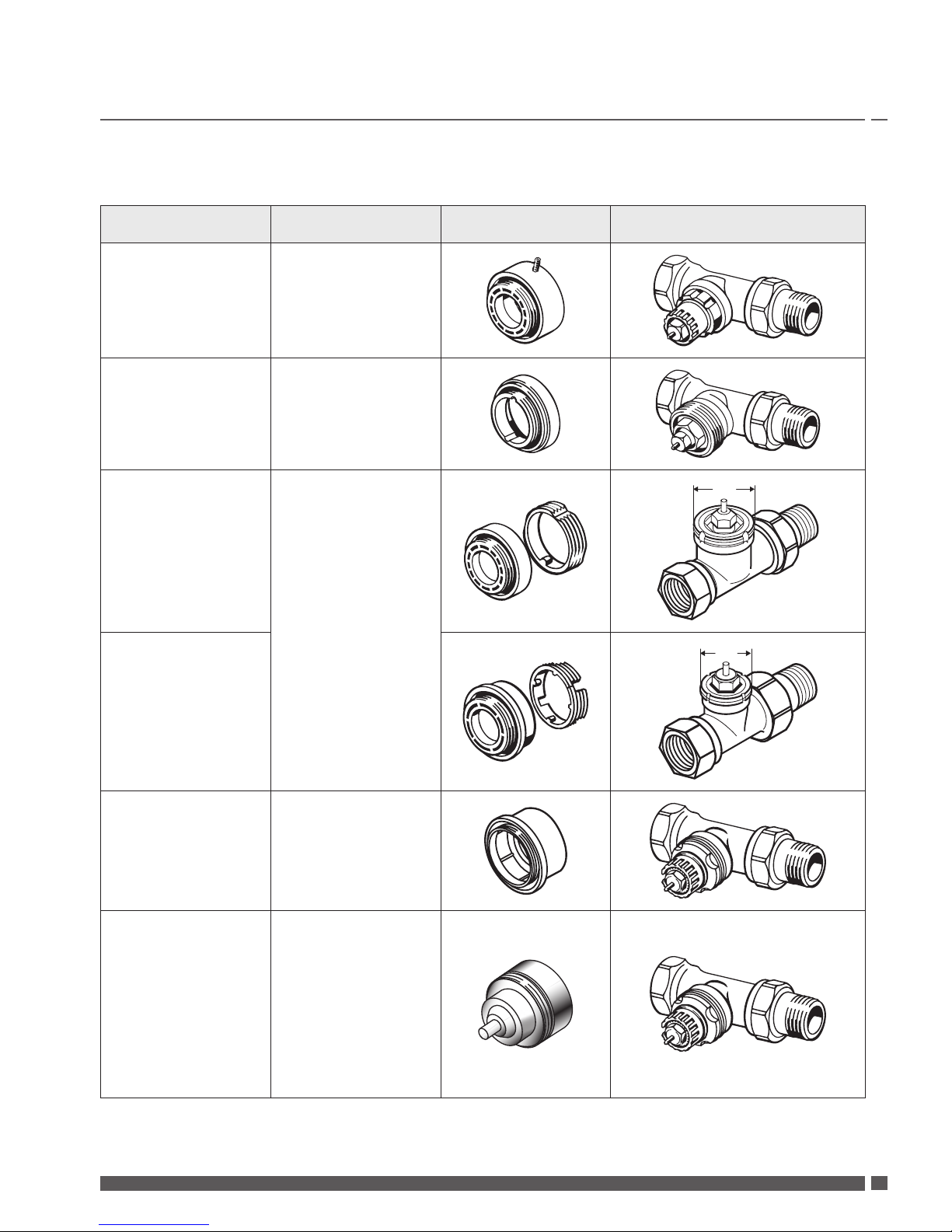

1.3 Overview of valve adapters

Adapters for a wide range of dierent valve types are available as accessories.

Adapter type Code no. Adapter Valve

For Danfoss

RA valves 014G0251

For M30 x 1.5 (K)

valves 014G0252

For Danfoss

RAV valves

014G0250

For Danfoss

RAVL valves

For Danfoss

RTD valves 014G0253

For M28 valves:

- MMA 014G0255

- Herz 014G0256

- Orkli 014G0257

- COMAP 014G0258

Installation Guide living eco® Electronic Radiator Thermostat

09/2013 VIIDB222 Danfoss Heating Solutions

1.4 Installing the right adapter

Adapter for RA valves (pre-mounted on 014G0050)

1. 2.

Place the RA adapter on the valve as shown. Tighten the adapter with the 2 mm Allen key.

Adapter for M30 x 1.5 (K) valves

1. 2.

Place the K adapter on the valve as shown. Hand-tighten the K adapter (max. 5 Nm).

Adapter for RAV valves (accessory)

1. 2.

Click the inner adapter on the valve. Hand-tighten the outer adapter (max. 5 Nm).

Adapter for RAVL valves (accessory)

1. 2.

Click the inner adapter on the valve. Hand-tighten the outer adapter (max. 5 Nm).

Installation Guide living eco® Electronic Radiator Thermostat

Danfoss Heating Solutions VIIDB222 09/2013

Adapter for RTD valves (accessory)

1. 2.

Place the RTD adapter on the valve as shown. Hand-tighten the RTD adapter (max. 5 Nm).

Adapters for M28 valves (accessories)

Please follow the instructions supplied with the valve adapter for the specific M28 valve.

1.5 Inserting the batteries

Remove the battery cover and insert two AA batteries. Make sure the

batteries are correctly oriented.

Rechargeable batteries must not be used.

When replacing batteries the programme settings will be preserved,

but after two minutes the settings for time and date are reset.

The low battery symbol is displayed approx. one month before the

batteries run out.

After approx. two weeks the symbol will ash 14 times from 19:00

to 21:00 hrs.

Before the batteries run out living eco®will leave the valve in Frost Pro-

tection position to protect the heating system from damage.

1.6 Using the buttons

living eco®has two arrow buttons which allow you to navigate the

display and the menus and to set the temperature.

The dot button is used to select and conrm.

If the display is o, press either button to activate the display.

Installation Guide living eco® Electronic Radiator Thermostat

09/2013 VIIDB222 Danfoss Heating Solutions

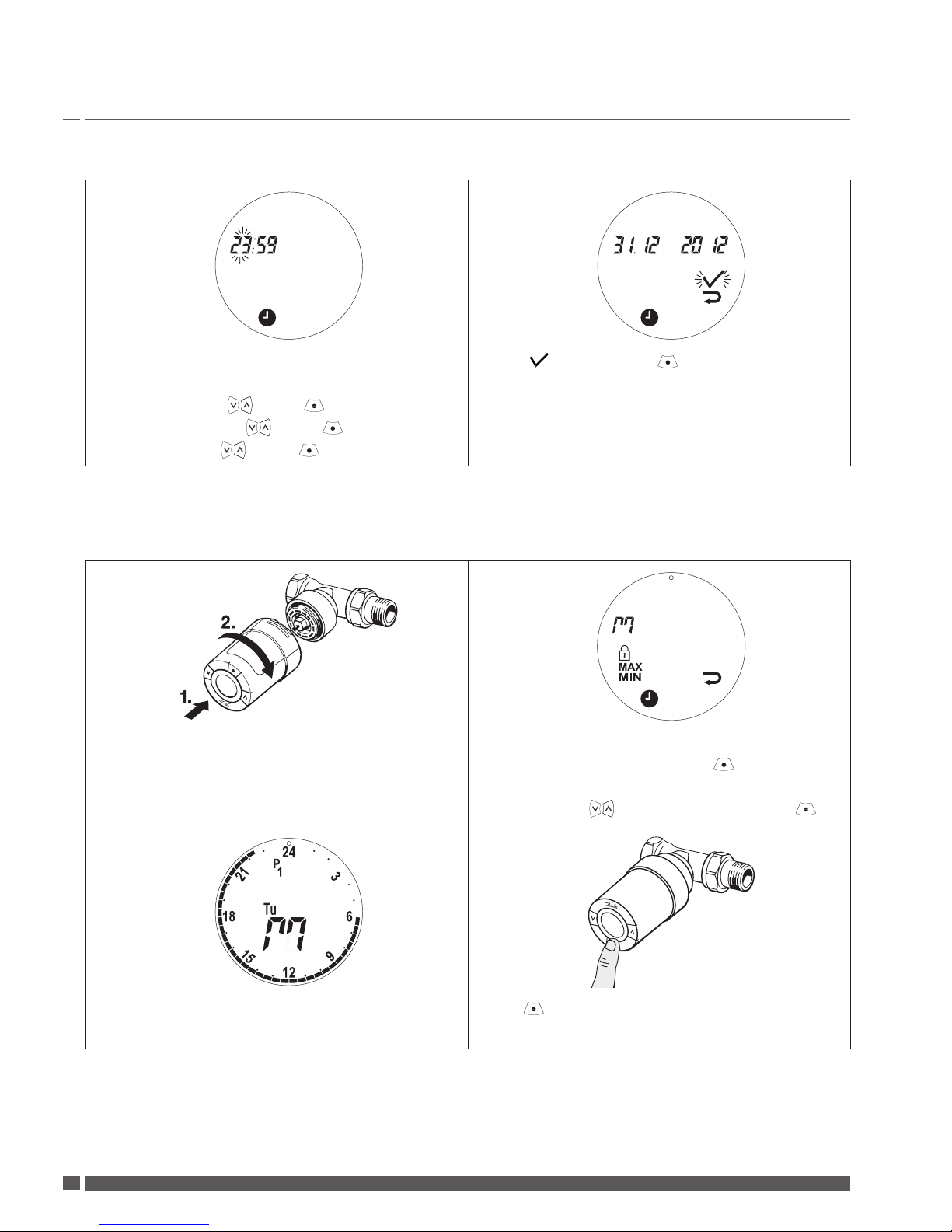

1.7 Setting time and date for the rst time

1. 2.

When the batteries are installed the time

ashes on the display - 23:59.

a. Set hours with , press to confirm.

b. Set minutes with , press to confirm.

c. Set date with , press to confirm.

When ashes, press to confirm your

settings.

The display now switches to the Home Screen

(see chapter 3.1).

1.8 Installing living eco®

1. 2.

Screw living eco®onto the adapter and tighten

by hand (max. 5 Nm).

While slightly pressing forward, turn living

eco®clockwise untill it locks, then tighten.

Activate Installation Mode to x living eco®

correctly onto the valve: Press for 3

seconds to select the Function Menu.

Select Mwith . When Mflashes, press .

3. 4.

A large Mis flashing in the display to indicate

that Installation Mode is activated.

Press to fix living eco®.

Installation Guide living eco® Electronic Radiator Thermostat

Danfoss Heating Solutions VIIDB222 09/2013

1.9 Automatic adjustments

When living eco®is installed it will automatically begin to adjust itself to your heating system.

During this process you might experience that the thermostat reacts slowly or turns the heat up

and down by itself. This is normal and a necessary part of the adjustment process.

1. Adjusting to the valve

During the first night of operation living eco®will shut off the radiator heat and then open again

to detect the exact opening point of the valve. This will allow living eco®to control the heat as ef-

ficiently as possible. If necessary, the procedure is repeated once a night for up to a week.

2. Intelligent Control (Forecast)

During the first week of operation living eco® learns when it is necessary to start heating the room

in order to reach the correct temperature at the correct time.

The intelligent control will continuously adjust the heating time compared to seasonal tempera-

ture changes.

Using Saving Program requires that your heating system has enough heat for a short period during

heat up. If your experience problems you should contact your installer.

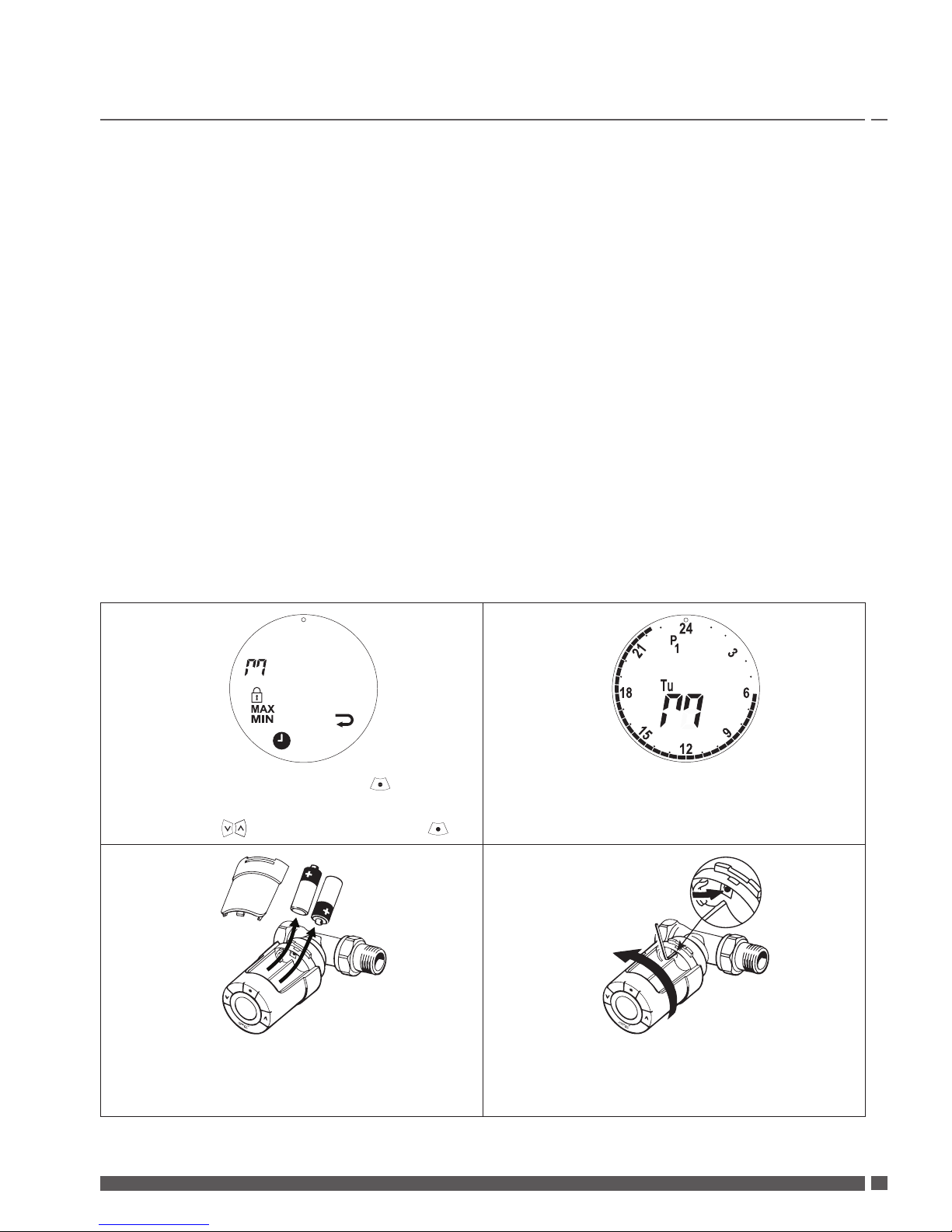

1.10 Removing living eco®

1. 2.

Activate Installation Mode: Press for 3

seconds to select the Function Menu.

Select Mwith . When Mflashes, press .

A large Mis flashing in the display to indicate

that Installation Mode is activated.

3. 4.

Remove the battery cover and the batteries. Insert the Allen key or similar into the hole to

lock the adapter ring. Turn counterclockwise

to unscrew living eco®from the adapter.

Installation Guide living eco® Electronic Radiator Thermostat

09/2013 VIIDB222 Danfoss Heating Solutions

1.11 Resetting living eco® to default settings

1. 2.

Remove the battery cover and take out one

battery.

Press and hold for approx. 5 seconds, while

reinserting the battery.

1.12 Removing an adapter from living eco®

1. 2.

Remove the battery cover. Insert a small hex key or similar into the locking

hole to lock the adapter ring.

3. 4.

With the hex key locking the adapter ring,

turn the adapter in the shown direction.

Put back the battery cover.

Mount living eco® on another valve adapter

according to the instructions supplied with

the adapter.

Installation Guide living eco® Electronic Radiator Thermostat

Andere Handbücher für Living Eco

Inhaltsverzeichnis

Andere Danfoss Thermostat Handbücher

Danfoss

Danfoss ECtemp 531 Bedienungsanleitung

Danfoss

Danfoss RAS-D2 Combi Bedienungsanleitung

Danfoss

Danfoss CET2000B-RF + RX1-S + CS2 Bedienungsanleitung

Danfoss

Danfoss FH-CWD Bedienungsanleitung

Danfoss

Danfoss TS715Si Bedienungsanleitung

Danfoss

Danfoss DEVIreg Touch Bedienungsanleitung

Danfoss

Danfoss REP24CO3 Bedienungsanleitung

Danfoss

Danfoss ECtemp Smart Bedienungsanleitung

Danfoss

Danfoss RET2000B-RF + RX1-S Bedienungsanleitung

Danfoss

Danfoss RTD 3120 Bedienungsanleitung

Danfoss

Danfoss 088U0215 Bedienungsanleitung

Danfoss

Danfoss TP4000 Range Bedienungsanleitung

Danfoss

Danfoss RET2000B-RF + RX1-S Bedienungsanleitung

Danfoss

Danfoss REP24 Bedienungsanleitung

Danfoss

Danfoss Icon Master Bedienungsanleitung

Danfoss

Danfoss TPONE-RF Bedienungsanleitung

Danfoss

Danfoss ECL Comfort 210 Bedienungsanleitung

Danfoss

Danfoss living connect Z Bedienungsanleitung

Danfoss

Danfoss TP5000 si range Bedienungsanleitung

Danfoss

Danfoss DEVIreg 330 Bedienungsanleitung

Danfoss

Danfoss living connect Z Bedienungsanleitung

Danfoss

Danfoss RET 230LS Bedienungsanleitung

Danfoss

Danfoss RAVV-RAV8 Bedienungsanleitung

Danfoss

Danfoss Eco Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
