Deerc DE51 Bedienungsanleitung
V 1.1
PRODUCT MANUAL
[email protected] (USA)
[email protected] (EU)
www.deerc.com
[email protected] (JP)
+1(855) 777-8866
< PREFACE >
To make your experience with this remote control car as easy
and convenient as possible, please read the instructions
provided before using the product. Enjoy and have fun with the
product while keeping the manual for future maintenance and
reference.
1. In order to protect the legitimate rights and interests of users,
please be sure to carefully read the contents of this manual
before using this product.
2. When using this product, please be sure to strictly observe
and perform the requirements which includes but not limited to
the instructions and safety guidelines. For any personal injury,
accident, property loss, legal dispute, or any other adverse event
causing a conflict of interest resulting from the use of the
product or any irresistible factors that are in violation of the safety
instructions, the user shall bear the related responsibilities and
losses. DEERC will not take any responsibility.
3. Once you start using the product, you are deemed to have
read, understood, recommended, and accepted all terms and
contents of the instructions (including disclaimers, safety
instructions, warning instructions, etc.) included with this
product.
4. In case you are having challenges on any aspect of the
product, may it be operation or maintenance, please contact
your local sales agent or contact customer support at DEERC.
< PACKAGE CONTENTS >
USB Charging
Cable
Product Manual
RC Helicopter
Battery
< REMOTE CONTROL FUNCTIONS >
Ascend and
Descend
Forward/Reverse
Rotate left/right
Take Off
Landing(press once)
Emergency stop(press and hold)
Lights on/off
Speed switch Power Indicator
No function
No function
Power switch
Right trim
Left trim
RC Helicopter Remote Control
Top B propeller Lower A propeller Tail propeller

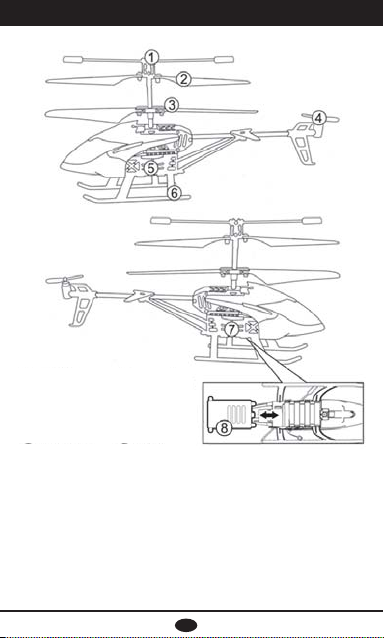

< HELICOPTER’S DETAILS >
① Balancing rod
② Top B propeller
③ Lower A propeller
④ Tail propeller
⑤ No function
⑥ Landing gear
⑦ Power switch
(”I” means on, “0” means off)
⑧ RC helicopter battery
USB Adapter
(5V @ 0.5-2.0A)
Power Bank
Computer USB Port
1. Plug the USB charging cable into the USB charging port of
the computer, power bank or USB adapter (5V@ 0.5~2.0A).
2. Plug the USB charging cable into the charging port.
3. Charging time: about 60 minutes.
4. The red indicator light on the USB charging cable will turn on
when it is charging and will turn off once fully charged.
ATTENTION:
Please keep the battery in sight when charging. DO NOT
put the battery on a flammable surface.
If battery pack and USB charging cable are damaged,
immediately stop using it and replace the accessories as
soon as possible.
●
●
< CHARGING >
When the helicopter runs out of power, the helicopter's power
indicator will flash. Please stop flying, power down and remove the
battery.
3 x 1.5V AAA
(Not included)
< BATTERY INSTALLATION >
①Unscrew and open the battery cover.
②Insert 3 AAA batteries in the correct direction.
③Close the battery cover and lock it.
Push the battery into the bottom battery compartment of the
helicopter in the correct direction.
① If the remote will not be used for a long time, make sure
to turn it off and remove the batteries.
② When the remote runs out of power, the remote's power
indicator will flash.
If the helicopter will not be used for a long time, make sure
to turn it off and remove the battery.
1. Remote’s Battery
2. Helicopter’s Battery
< OPERATION >
Once batteries are inserted to the helicopter and the remote
① Turn on the power switch of the helicopter, the power
indicator of the helicopter will flash quickly. Then Keep the
helicopter on level. DO NOT hold it in your hands.
② Turn on the power switch of the remote, you will hear the
“Di” sound and the power indicator of the remote will flash.
③ Push the left joystick up then down to pair with the
helicopter. You will hear the “Di” sound again, the power
indicator of the remote and the helicopter will turn soild when
they pair successful.
① Press the Take off button once, the helicopter will take off and
hover at 1 meter altitude.
② When the helicopter is flying, press the Landing button once,
the helicopter will land on the ground.
③ When the helicopter is flying, press and hold the Landing
button, the helicopter will crash.
1. Pairing
2. Take Off, Landing and Emergency Stop
Take Off
Landing and
Emergency stop
①
②
Push the left joystick forward, the helicopter will ascend. Push
the left joystick reverse, the helicopter will descend.
< OPERATION >
3. Ascend, Descend, Forward, Reverse,
Left Rotate and Right Rotate
Push the right joystick forward, the helicopter goes forward.
Push the right joystick reverse, the helicopter goes reverse.
Push the right joystick to the left, the helicopter will rotate to the
left. Push the right joystick to the right, the helicopter will rotate
to the right.
Press the lights switch button once to turn on or off the power
indicator of the helicopter.
If while the helicopter is rotating to the right without controlling,
then press the left trim button until the helicopter stop rotating.
Press the speed switch button once to switch the speed of the
helicopter. The remote will switch at a fast speed when you hear
the “Di Di” sound, and the remote will switch at a slow speed
when you hear the “Di” sound.
Lights on/off
Speed switch
Left trim
< OPERATION >
4. Lights Switch and Speed Switch
5. Trimmer Function
If while the helicopter is rotating to the left without controlling,
then press the right trim button until the helicopter stop rotating.
Right trim
< SPECIFICATIONS >
Operating Time: < 10 minutes
Dimensions: 25 × 12.7 × 5.2 cm
Battery Type For Car: 3.7V Polymer Li-ion Battery
Charging Time: about 60 minutes
Max Control Distance: < 50 m
Battery Type For Remote Control: 1.5V AAA battery
USB Charging Cable: Voltage 5V
5DWHG3RZHU:
Operating Temperature Range: 32° to 104°F (0° to 40°C)
QUESTIONS CAUSE SOLUTIONS
< FAQ >
Batteries installed
improperly
Failure to pair between
helicopter and remote
Lost Control in the wind Don't fly in strong wind
Both rebooting. Turn
on the plane and then
the remote
Insert batteries in the
correct direction
Replace the batteriesBattery's dead
The remote
doesn't work
The helicopter's
out of control
The chopper
can't ascend
The helicopter's too slow
The helicopter's battery
is low
Push up the left joystick
Charging
