Dell Precision T1650

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front And Back View

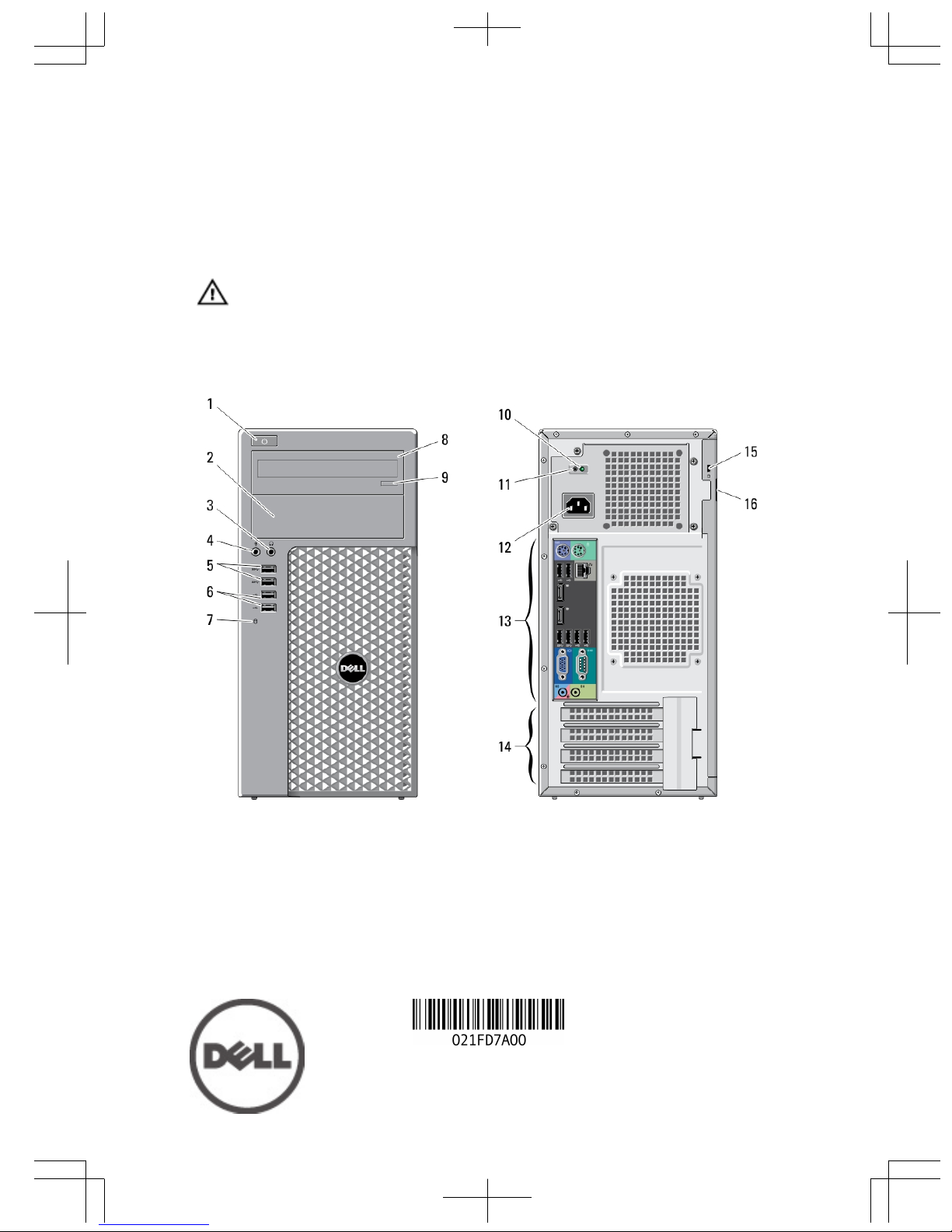

Figure 1. Front and Back View

1. power button, power light

2. optical-drive bay

3. headphone connector

4. microphone connector

5. USB 3.0 connectors (2)

6. USB 2.0 connectors (2)

7. drive activity light

8. optical drive

Regulatory Model: D09M

Regulatory Type: D09M004

2012 - 04

9. optical-drive eject button

10. power supply diagnostic light

11. power supply diagnostic button

12. power connector

13. back panel connectors

14. expansion-card slots (4)

15. security-cable slot

16. padlock ring

Back Panel View

Figure 2. Back Panel View

1. mouse connector

2. network link integrity light

3. network connector

4. network activity light

5. USB 2.0 connectors (2)

6. serial connector

7. line-out connector

8. keyboard connector

9. USB 2.0 connectors (2)

10. DisplayPort connectors (2)

11. USB 3.0 connectors (2)

12. VGA connector

13. line-in/microphone connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

1. Connect the monitor using only one of the following cables:

Figure 3. VGA Adapter

Figure 4. DisplayPort Cable

Figure 5. VGA To DisplayPort Adapter

2. Connect the USB keyboard or mouse (optional).

Figure 6. USB Connection

3. Connect the network cable (optional).

Figure 7. Network Connection

4. Connect the power cable(s).

Figure 8. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 9. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

Voltage 100 VAC to 240 VAC

Wattage 275 W/320 W

Input Current 5 A

Coin-cell battery 3 V CR2032 lithium coin cell

Maximum heat dissipation 4774.00 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical Mini-Tower

Height 360 mm (14.17 inches)

Width 175 mm (6.89 inches)

Depth 417 mm (16.42 inches)

Weight (minimum) 8.87 kg (19.55 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information para NOM (únicamente para México)

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz / 60 Hz

Consumo eléctrico 5,00 A
