A Tour of Your Computer: Dell Inspiron 8200

Back to Contents Page

A Tour of Your Computer

Dell™ Inspiron™ 8200

Front View

Left Side View

Right Side View

Back View

Bottom View

Front View

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (1 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

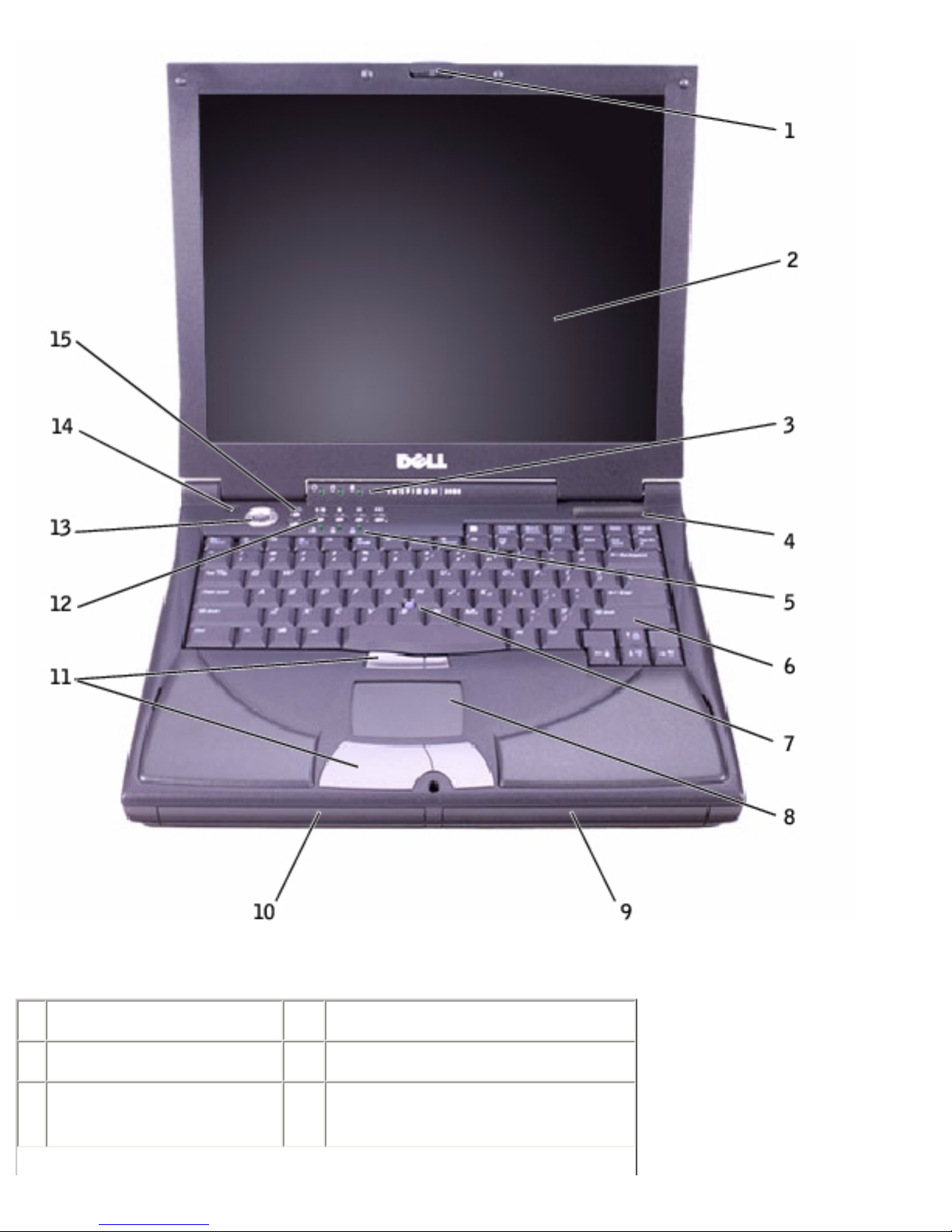

1 display latch 9 battery bay

2 display 10 module bay

3 device status lights 11 touch pad/track stick

buttons

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (2 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

4 air vent 12 Dell AccessDirect buttons

5 keyboard status

lights 13 power button

6 keyboard 14 microphone

7 track stick 15 volume control buttons

8 touch pad

Display Latch— Keeps the display closed.

Display— The computer has a color LCD.

Device Status Lights

Turns on when you turn on the computer.

Turns on when the computer reads or writes data.

NOTICE: To avoid loss of data, never turn off

the computer while the light is flashing.

Turns on steadily or blinks when the computer is in a

power management mode. It also blinks to indicate

battery charge status.

If the computer is connected to an electrical outlet, the light operates as follows:

❍Solid green: The battery is charging.

❍Flashing green: The battery is fully charged.

If the computer is running on a battery, the light operates as follows:

❍Off: The battery is adequately charged (or the computer is turned off).

❍Flashing orange: The battery charge is low.

❍Solid orange: The battery charge is critically low.

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (3 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

Air Vents— The computer uses an internal fan to create airflow through the vents,

which prevents the computer from overheating.

HINT: The computer turns on the fans when the computer gets hot. The fans

may make noise, which is normal and does not indicate a problem with the fans

or the computer

CAUTION: Do not block, push objects into, or allow dust to accumulate

in the air vents. Doing so can damage the computer or cause a fire.

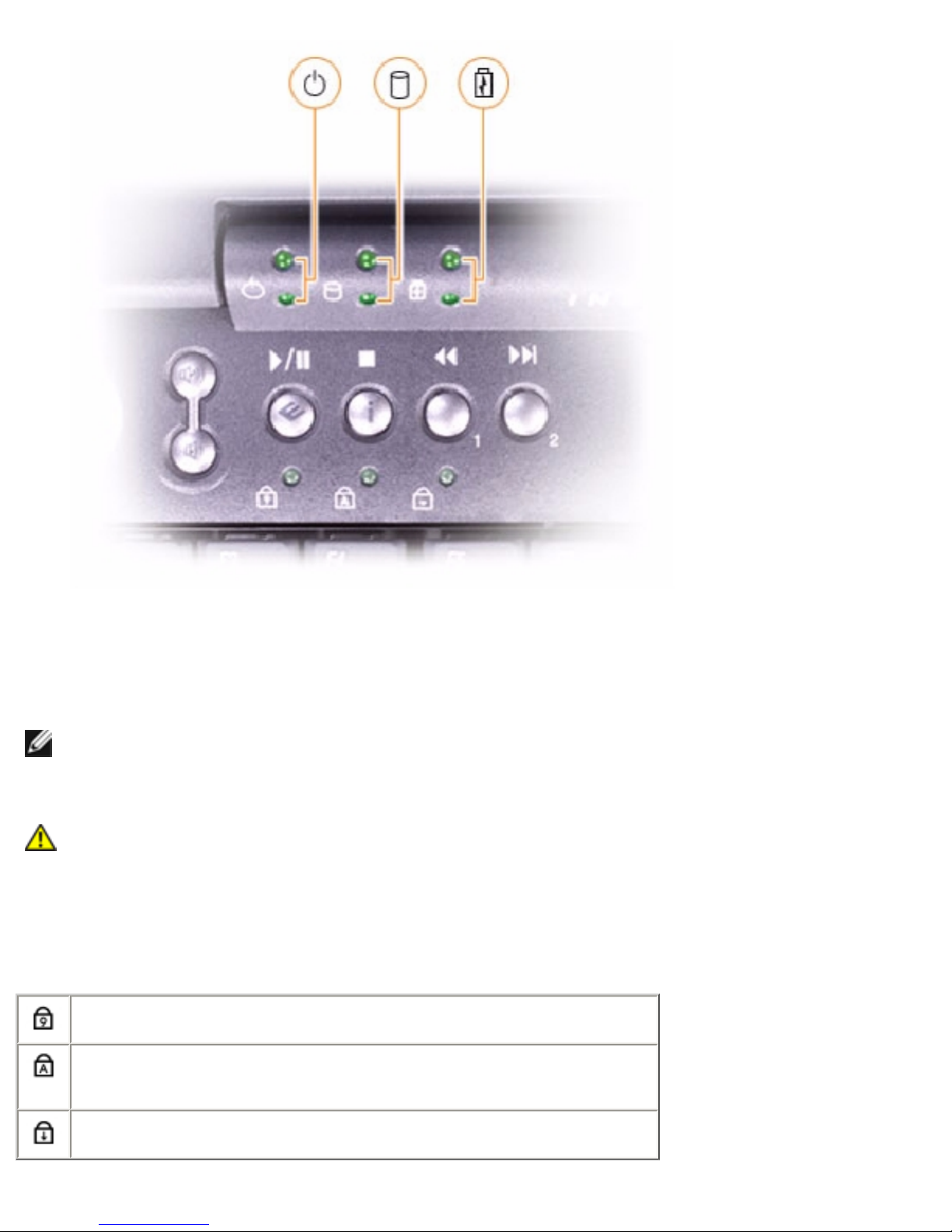

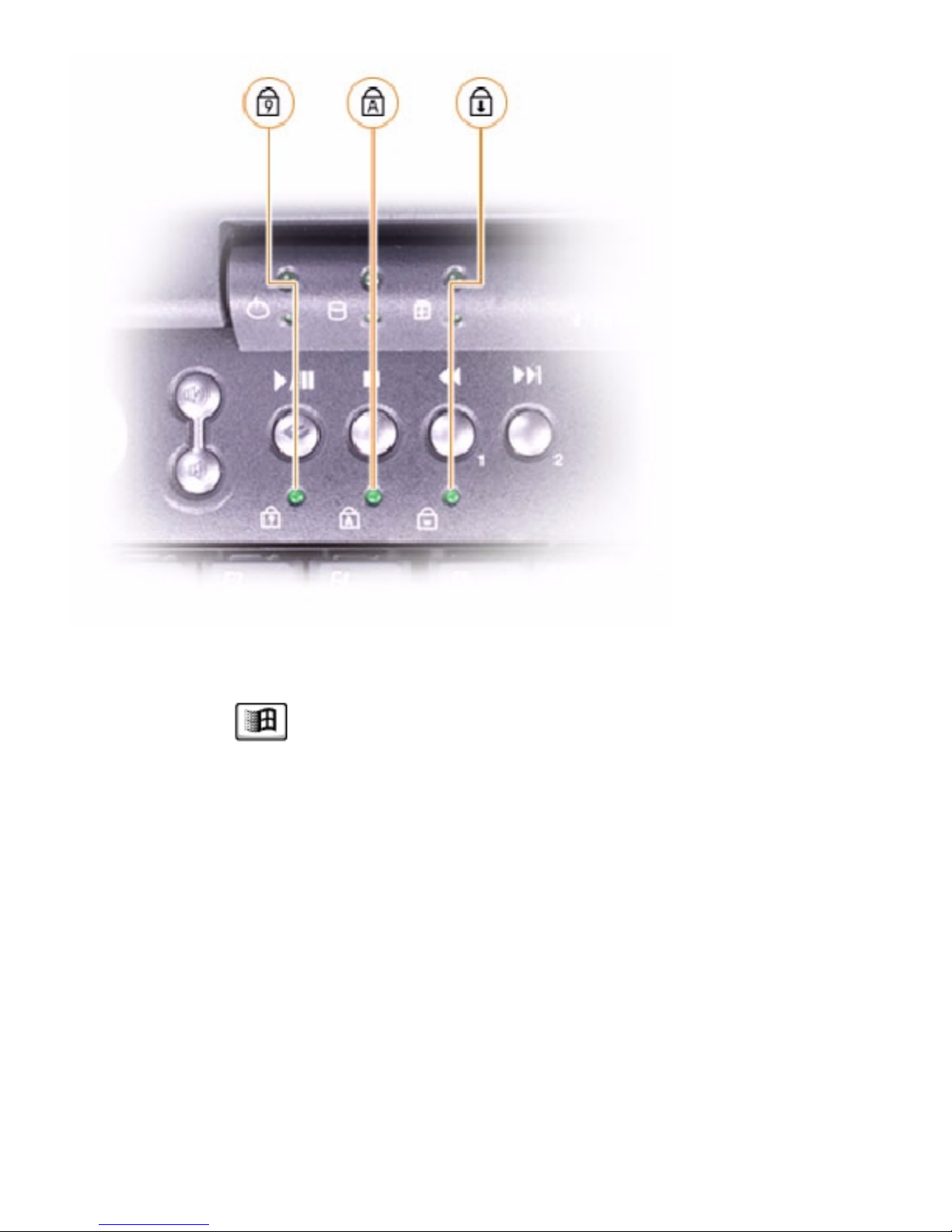

Keyboard Status Lights— The green lights located above the keyboard indicate the

following:

Turns on when the numeric keypad is enabled

Turns on when the uppercase letter function is

enabled

Turns on when the scroll lock function is enabled

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (4 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

Keyboard— The keyboard includes a numeric keypad as well as the Microsoft®

Windows® logo key .

Track Stick— Use the track stick and track stick buttons as you would use a mouse.

Touch Pad— Use the touch pad and touch pad buttons as you would use a mouse.

Battery Bay— When a battery is installed, you can use the computer without

connecting it to an electrical outlet.

Module Bay— You can install devices such as a CD drive, CD-RW drive, DVD drive, or

Dell TravelLite™ module in the module bay.

Touch Pad/Track Stick Buttons— Correspond to the left and right buttons on a

standard mouse.

Dell™ AccessDirect™ Buttons— Press the buttons to launch various resources, such

as your default Internet browser and e-mail program.

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (5 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

Power Button— Press the power button to turn on the computer or to enter or exit

standby or hibernate mode.

If the computer stops responding, press and hold the power button until the computer

turns off completely (which may take about 4 seconds).

NOTICE: Turn off your computer by performing a Windows shutdown.

Otherwise, you may lose data.

Microphone— Allows you to record audio.

Volume Control Buttons— Increase or decrease the speaker volume with these

buttons. Alternatively, you can increase speaker volume by pressing and

decrease speaker volume by pressing .

You can enable or disable (mute) the integrated stereo speakers or external speakers

by pressing . When you mute music, the computer may take a moment to

respond. Certain audio utilities installed on your computer also allow you to control

speaker volume. If no sound comes from the speakers, press and check

the volume control buttons to make sure that the sound is not disabled.

Left Side View

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (6 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

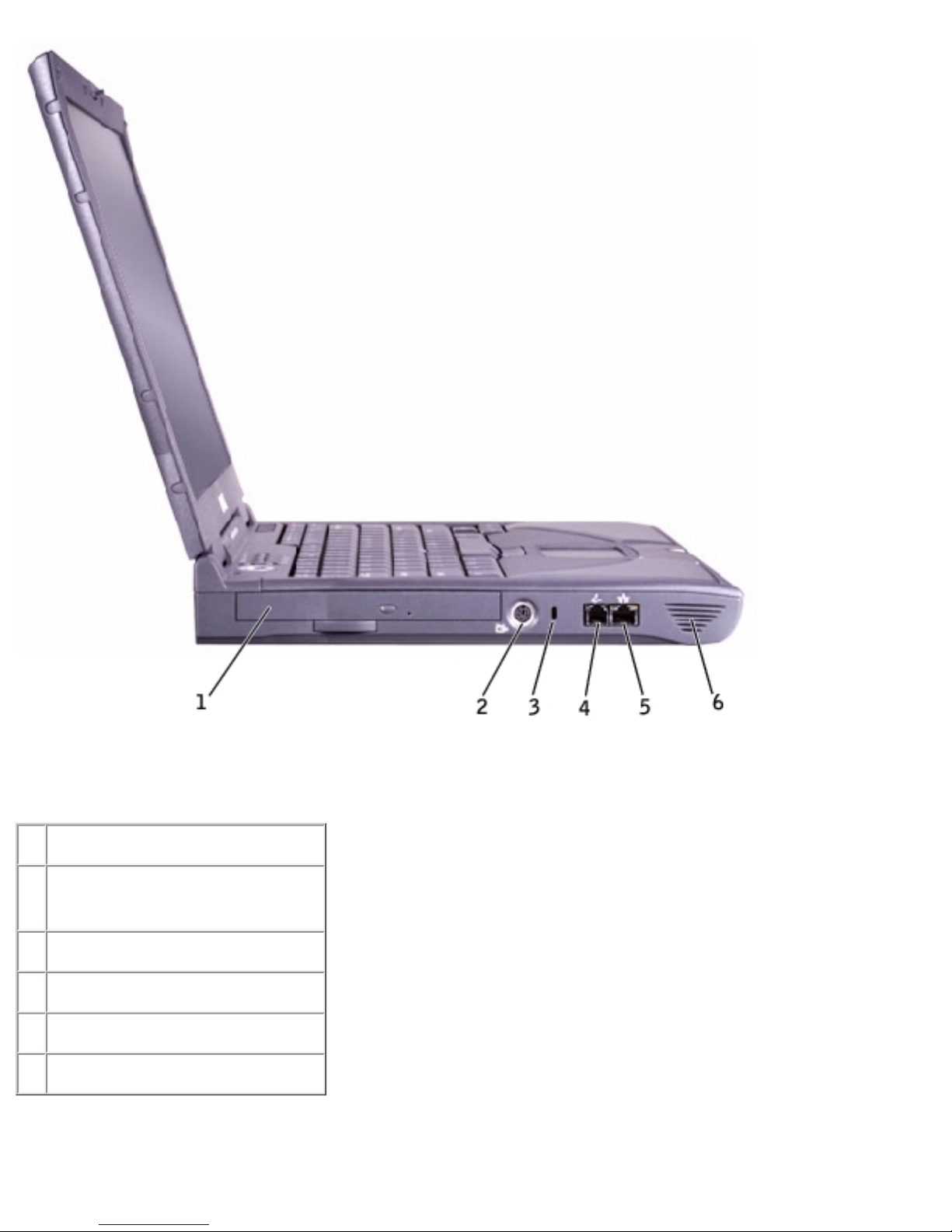

1 fixed optical drive

2 S-video TV-out

connector

3 security cable slot

4 modem connector

5 network connector

6 speaker

Fixed Optical Drive— Accommodates devices such as a CD drive, DVD drive, CD-RW

drive, or CD-RW/DVD combo drive.

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (7 of 18) [2/28/2004 7:40:13 AM]

A Tour of Your Computer: Dell Inspiron 8200

S-Video TV-Out Connector

Connects your computer to a TV. Also

connects S/PDIF capable devices using

the TV/digital audio adapter cable.

Security Cable Slot— Lets you attach a commercially available antitheft device to

the computer. Instructions for installing antitheft devices are usually included with the

device.

NOTICE: Before you buy an antitheft device, ensure that it will work with the

security cable slot.

Modem Connector

Connect the telephone line to the modem

connector.

For information on using the modem, see

the online modem documentation

supplied with your computer.

Network Connector

file:///F|/Service%20Manuals/Dell/Inspiron/8200/tour.htm (8 of 18) [2/28/2004 7:40:13 AM]
