Dell Inspiron Mini 10z Bedienungsanleitung

Dell™Inspiron™1010ServiceManual

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell

under license; Microsoft, Windows, Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model PP19S

February 2009 Rev. A00

Before You Begin

Battery

Keyboard

Palm Rest

Hard Drive

Communication Cards

Palm Rest Bracket

Battery Status Light Board

Speakers

Internal Card With Bluetooth®Wireless Technology

Power Button Board

Coin-Cell Battery

2-in-1 Memory and Processor Board

3-in-1 Media Card Reader (Daughter Board 1)

TV Tuner Card (Optional)

USB and SIM Card Board (Daughter Board 2)

AC Adapter Connector

Display

System Board

Flashing the BIOS

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

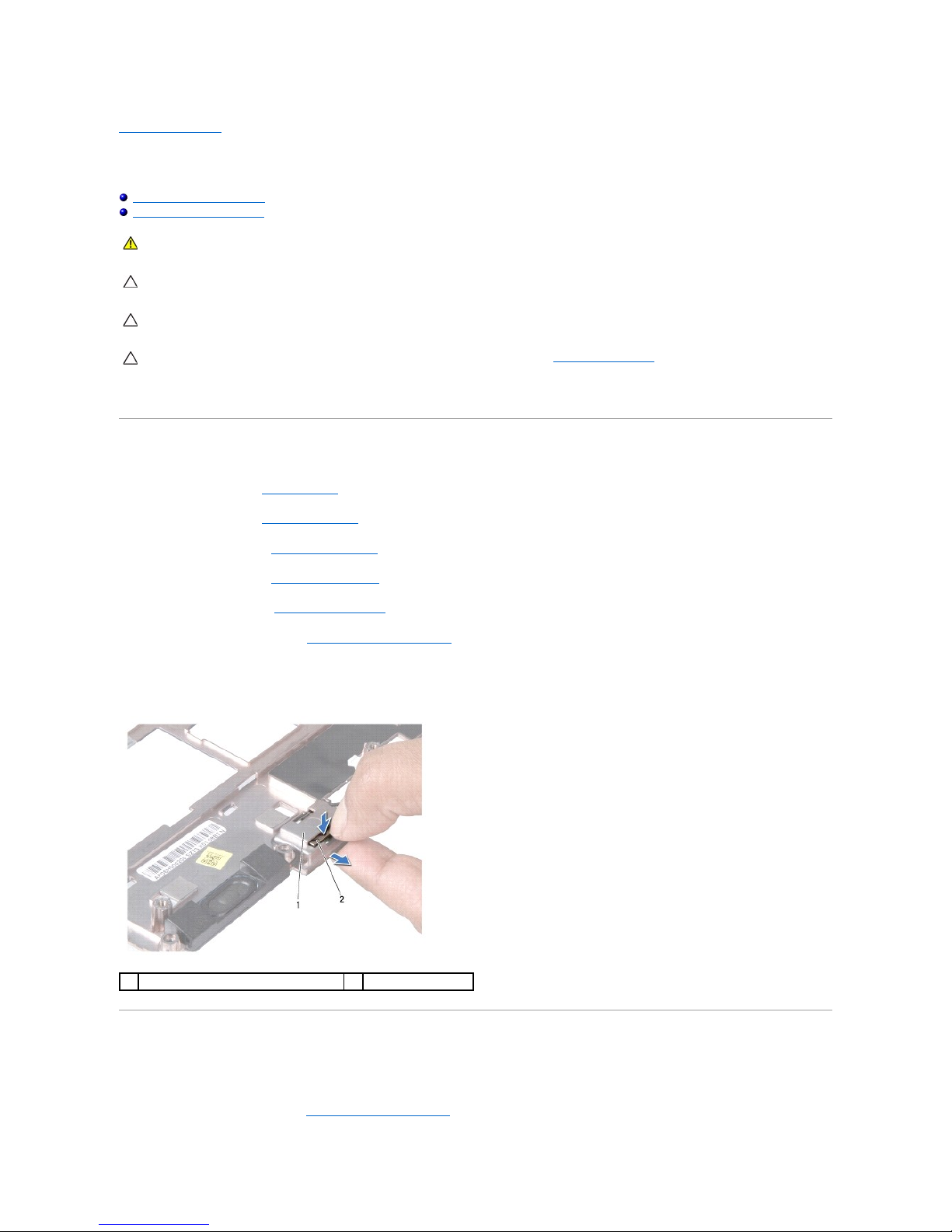

AC Adapter Connector

Dell™Inspiron™1010ServiceManual

Removing the AC Adapter Connector

Replacing the AC Adapter Connector



Removing the AC Adapter Connector



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Remove the USB and SIM card board (see Removing the USB and SIM Card Board).



8. Disconnect the AC adapter cable from the system board connector.



9. Remove the AC adapter connector bracket.



10. Slide the AC adapter cable connector out of the computer base.

Replacing the AC Adapter Connector



1. Place the AC adapter cable connector on the system board.



WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

AC adapter connector bracket

system board connector



2. Replace the AC adapter connector bracket.



3. Connect the AC adapter cable to the system board connector.



4. Replace the USB and SIM card board (see Replacing the USB and SIM Card Board).



5. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



6. Replace the hard drive (see Replacing the Hard Drive).



7. Replace the palm rest (see Replacing the Palm Rest).



8. Replace the keyboard (see Replacing the Keyboard).



9. Replace the battery (see Replacing the Battery).

Back to Contents Page



Back to Contents Page

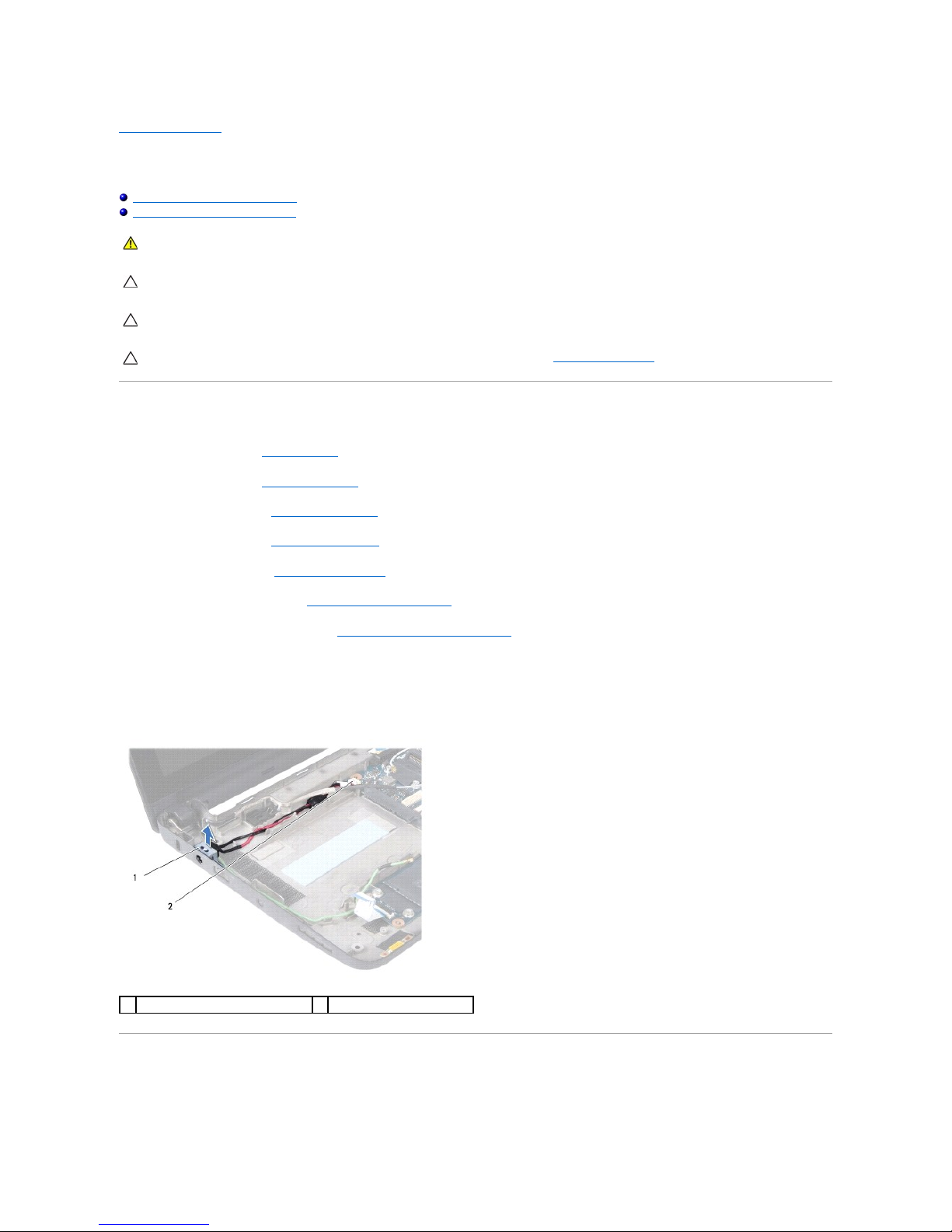

Battery Status Light Board

Dell™Inspiron™1010ServiceManual

Removing the Battery Status Light Board

Replacing the Battery Status Light Board



Removing the Battery Status Light Board



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Disconnect the battery status light board cable from the system board connector.



8. Lift the battery status light board off the computer base.

Replacing the Battery Status Light Board



1. Replace the battery status light board on the computer base.



2. Connect the battery status light board cable to the system board connector.



3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



4. Replace the hard drive (see Replacing the Hard Drive).



WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

battery status light board cable

connector

battery status light board

cable

battery status light board

5. Replace the palm rest (see Replacing the Palm Rest).



6. Replace the keyboard (see Replacing the Keyboard).



7. Replace the battery (see Replacing the Battery).

Back to Contents Page



Back to Contents Page

Before You Begin

Dell™Inspiron™1010ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYou have read the safety information that shipped with your computer.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in the reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lPlastic scribe

lBIOS upgrade CD or the BIOS executable update program available on the Dell Support website at support.dell.com

Turning Off Your Computer



1. Save and close all open files and exit all open programs.



2. Shut down the operating system:

Microsoft®Windows®Vista:

Click Start , click the arrow , and then click Shut Down.

Ubuntu®Dell Desktop:

Click ®Quit ®Shut down.

Ubuntu Classic Desktop:

Click ®Shut down.



3. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button until the computer turns off.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is

not covered by your warranty.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking

tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer. See Turning Off Your Computer.



3. Disconnect all telephone or network cables from the computer.



4. Press and eject any installed cards from the Memory Card Reader.



5. Disconnect your computer and all attached devices from their electrical outlets.



6. Remove the battery (see Removing the Battery).



7. Turn the computer top-side up, open the display, and press the power button to ground the system board.

Back to Contents Page



them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented

and aligned.

CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Back to Contents Page

Flashing the BIOS

Dell™Inspiron™1010ServiceManual

Flashing the BIOS From a CD

Flashing the BIOS From the Hard Drive

Flashing the BIOS in Ubuntu

If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the

BIOS from the hard drive.

Flashing the BIOS From a CD



1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.



2. Insert the BIOS-update program CD, and restart the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the

computer will automatically restart.



3. Press <F2> during POST to enter the system setup program.



4. Press <F9> to reset the computer defaults.



5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.



6. Remove the BIOS-update program CD from the drive and restart the computer.

Flashing the BIOS From the Hard Drive



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



3. Locate the latest BIOS update file for your computer at support.dell.com.



4. Click Download Now to download the file.



5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears.



6. Click Save this program to disk and then click OK.

The Save In window appears.



7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.

The file downloads to your desktop.



8. Click Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.



9. Double-click the file icon on the desktop and follow the instructions on the screen.

Flashing the BIOS in Ubuntu

NOTE: Your computer does not have an internal optical drive. Use an external optical drive or any external storage device for the procedures that

involve discs.

NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



3. Select ®Places®Documents.



4. Create a new folder and name it BIOS.



5. Locate the latest BIOS update file for your computer at support.dell.com.



6. Click Download Now to download the file.



7. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears.



8. Click Save this program to disk and then click OK.

The Save In window appears.



9. Click the down arrow to view the Save In menu, select Documents®BIOS, and then click Save.



10. Click Close if the Download Complete window appears.

The file icon appears on your BIOS folder and is titled the same as the downloaded BIOS update file.



11. Open the terminal command line application and proceed as follows:

a. Type sudo -s

b. Type your password

c. Type cd Documents

d. Type cd BIOS

e. Type ./1210a00

flash start... string appears.

The computer will restart automatically once the BIOS flash is complete.

Back to Contents Page



Back to Contents Page

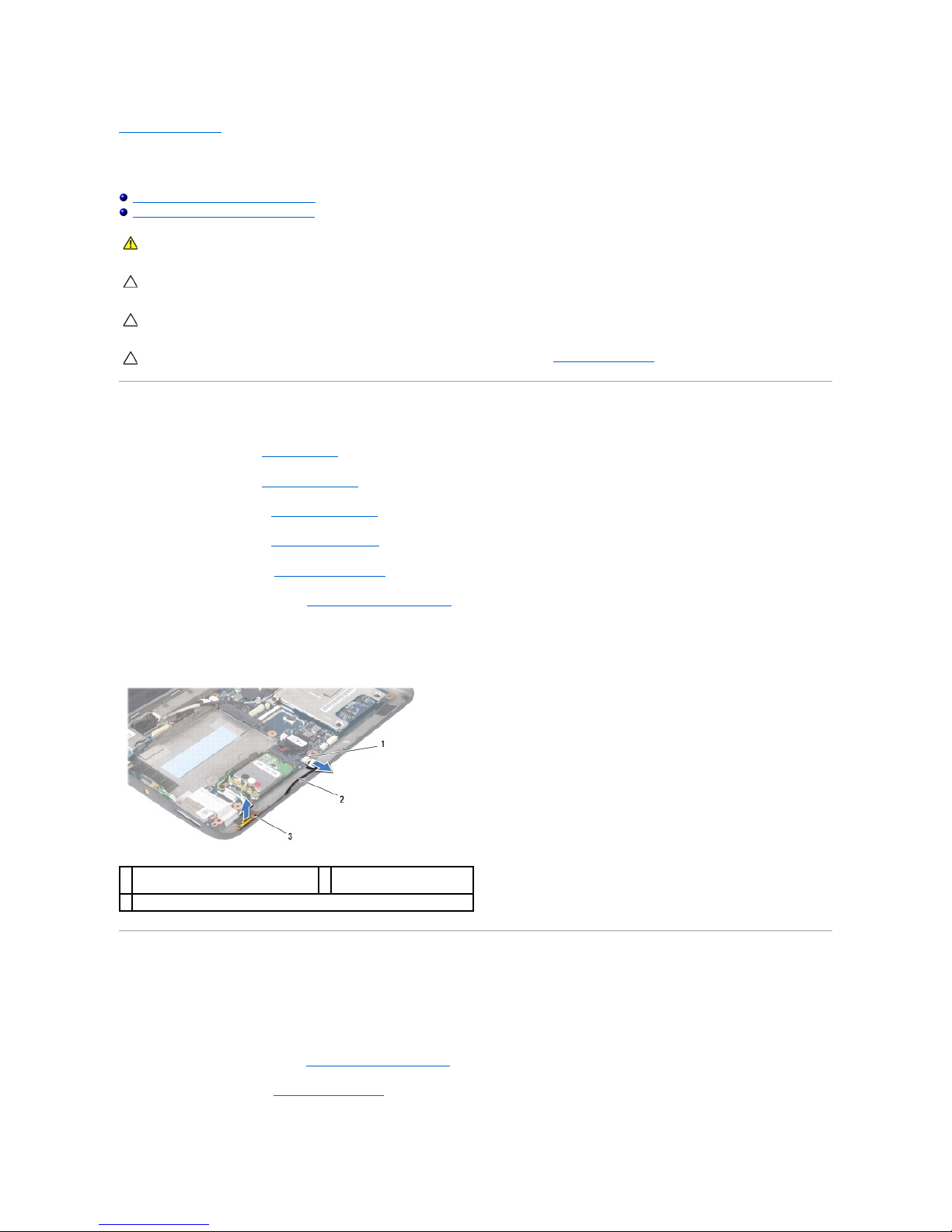

Internal Card With Bluetooth®Wireless Technology

Dell™Inspiron™1010ServiceManual

Removing the Bluetooth Card

Replacing the Bluetooth Card



If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.

Removing the Bluetooth Card



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Turn the palm rest bracket over.



8. While pulling the edge of the bluetooth card compartment push the bluetooth card out of the compartment as show in the figure.

Replacing the Bluetooth Card



1. Place the card in the bluetooth card compartment and snap it into place



2. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

bluetooth card compartment

bluetooth card

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dell Laptop Handbücher

Dell

Dell Vostro 1500 Bedienungsanleitung

Dell

Dell Inspiron 3910 Bedienungs- und Wartungshandbuch

Dell

Dell P97F001 Bedienungsanleitung

Dell

Dell NOT20348 Bedienungs- und Wartungshandbuch

Dell

Dell Vostro 3400 Bedienungsanleitung

Dell

Dell Inspiron 1501 Bedienungsanleitung

Dell

Dell Alienware M15x Bedienungsanleitung

Dell

Dell Inspiron 14 5000 Series Bedienungsanleitung

Dell

Dell Inspiron 16 Plus 7620 Bedienungs- und Wartungshandbuch

Dell

Dell Latitude D410 Bedienungsanleitung

Dell

Dell Networking 8100 Series Bedienungsanleitung

Dell

Dell Inspiron 2000 Gebrauchs- und Pflegehandbuch

Dell

Dell Inspiron 13 7000 Series Bedienungsanleitung

Dell

Dell Dimension 4100 Bedienungsanleitung

Dell

Dell Alienware m15 R3 Bedienungs- und Wartungshandbuch

Dell

Dell Precision Workstation M6400 Bedienungsanleitung

Dell

Dell Vostro 5502 Bedienungsanleitung

Dell

Dell Latitude D500 Bedienungsanleitung

Dell

Dell Inspiron 15 3525 Bedienungs- und Wartungshandbuch

Dell

Dell Inspiron 7590 2in1 Bedienungsanleitung

Dell

Dell XPS M1210 Bedienungsanleitung

Dell

Dell D630 - LATITUDE ATG NOTEBOOK Bedienungsanleitung

Dell

Dell Precision PP04X Bedienungsanleitung

Dell

Dell Latitude 5300 2-in-1 Chrome Bedienungs- und Wartungshandbuch

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung

Acer

Acer Aspire ONE 722 Bedienungsanleitung

Toshiba

Toshiba L300-EZ1524 Bedienungsanleitung
