Dell XPS 13 Bedienungsanleitung

XPS 13

Owner’s Manual

Computer model: XPS 9333

Regulatory model: P29G

Regulatory type: P29G003

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Trademarks used in this text: Dell™, the DELL logo, and XPS™are trademarks of Dell Inc.;

Microsoft®and Windows®

are registered trademarks of Microsoft corporation in the United

States and/or other countries; Bluetooth®is a registered trademark owned by Bluetooth SIG,

Inc. and is used by Dell under license; Intel®and Intel SpeedStep®are trademarks of Intel

Corporation in the U.S. and/or other countries.

2013 - 11 Rev. A00

Contents | 3

Contents

Before Working Inside Your Computer 7

Before You Begin 7

Recommended Tools 7

Safety Instructions 8

After Working Inside Your Computer 9

Removing the Base Cover 10

Procedure 10

Replacing the Base Cover 11

Procedure 11

Removing the Power-Light Board 12

Prerequisites 12

Procedure 12

Replacing the Power-Light Board 13

Procedure 13

Postrequisites 13

Removing the Battery 14

Prerequisites 14

Procedure 14

Replacing the Battery 15

Procedure 15

Postrequisites 15

Removing the Speakers 16

Prerequisites 16

Procedure 16

Replacing the Speakers 18

Procedure 18

Postrequisites 18

4| Contents

Removing the Wireless Card 19

Prerequisites 19

Procedure 19

Replacing the Wireless Card 20

Procedure 20

Postrequisites 20

Removing the Solid-State Drive 21

Prerequisites 21

Procedure 21

Replacing the Solid-State Drive 23

Procedure 23

Postrequisites 23

Removing the Heat Sink 24

Prerequisites 24

Procedure 24

Replacing the Heat Sink 25

Procedure 25

Postrequisites 25

Removing the Fan 26

Prerequisites 26

Procedure 26

Replacing the Fan 28

Procedure 28

Postrequisites 28

Removing the Power-Adapter Port 29

Prerequisites 29

Procedure 29

Replacing the Power-Adapter Port 30

Procedure 30

Postrequisites 30

Contents | 5

Removing the I/O Board 31

Prerequisites 31

Procedure 31

Replacing the I/O Board 33

Procedure 33

Postrequisites 33

Removing the System Board 34

Prerequisites 34

Procedure 35

Replacing the System Board 37

Procedure 37

Postrequisites 37

Entering the Service Tag in BIOS 37

Removing the Coin-Cell Battery 38

Prerequisites 38

Procedure 39

Replacing the Coin-Cell Battery 40

Procedure 40

Postrequisites 40

Removing the Display Assembly 41

Prerequisites 41

Procedure 41

Replacing the Display Assembly 44

Procedure 44

Postrequisites 44

Removing the Keyboard 45

Prerequisites 45

Procedure 46

Replacing the Keyboard 47

Procedure 47

Postrequisites 47

6| Contents

Removing the Palm-Rest Assembly 48

Prerequisites 48

Procedure 49

Replacing the Palm-Rest Assembly 50

Procedure 50

Postrequisites 50

System Setup 51

Overview 51

Entering System Setup 51

Boot Sequence 56

Flashing the BIOS 58

Before Working Inside Your Computer | 7

Before Working Inside Your Computer

Before You Begin

CAUTION: To avoid data loss, save and close all open files and exit all open

programs before turning off your computer.

1Save and close all open files, exit all open programs, and turn off your computer.

2Follow the instructions to shut down your computer based on the operating system

installed on your computer.

Windows 8:

Point to the lower or upper-right corner of the screen to open the charms sidebar

and click Settings→Power→Shut down.

Windows 7:

Click Start and click Shut down.

NOTE: If you are using a different operating system, see the documentation of

your operating system for shut-down instructions.

3After the computer shuts down, disconnect it from the electrical outlet.

4Disconnect all cables — such as power and USB cables — from your computer.

5Disconnect all peripherals connected to your computer.

Recommended Tools

The procedures in this document require the following tools:

•Phillips screwdriver

•Torx #5 (T5) screwdriver

•Plastic scribe

8| Before Working Inside Your Computer

Safety Instructions

Use the following safety guidelines to protect your computer from potential damage and

ensure your personal safety.

WARNING: Before working inside your computer, read the safety

information that shipped with your computer. For more safety best practices,

see the Regulatory Compliance home page at dell.com/regulatory_compliance.

WARNING: Disconnect all power sources before opening the computer

cover or panels. After you finish working inside the computer, replace all covers,

panels, and screws before connecting to the power source.

CAUTION: Only a certified service technician is authorized to remove the

computer cover and access any of the components inside the computer. See the

safety instructions for complete information about safety precautions, working

inside your computer, and protecting against electrostatic discharge.

CAUTION: To avoid damaging the computer, make sure that the work surface is

flat and clean.

CAUTION: Before touching anything inside your computer, ground yourself

by touching an unpainted metal surface, such as the metal at the back of the

computer. While you work, periodically touch an unpainted metal surface to

dissipate static electricity, which could harm internal components.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,

not on the cable itself. Some cables have connectors with locking tabs or

thumb-screws that you must disengage before disconnecting the cable.

When disconnecting cables, keep them evenly aligned to avoid bending any

connector pins. When connecting cables, make sure that the ports and

connectors are correctly oriented and aligned.

CAUTION: To avoid damaging the components and cards, handle them by

their edges and avoid touching pins and contacts.

After Working Inside Your Computer | 9

After Working Inside Your Computer

CAUTION: Leaving stray or loose screws inside your computer may severely

damage your computer.

1Replace all screws and make sure that no stray screws remain inside your

computer.

2Connect any cables, peripherals, and other parts you removed before working on

your computer.

3Connect your computer to the electrical outlet.

4Turn on your computer.

10 | Removing the Base Cover

Removing the Base Cover

WARNING: Before working inside your computer, read the safety information

that shipped with your computer and follow the steps in "Before Working Inside

Your Computer" on page 7. After working inside your computer, follow the

instructions in "After Working Inside Your Computer" on page 9.

For more safety best practices, see the Regulatory Compliance home page at

dell.com/regulatory_compliance.

Procedure

1Close the display and turn the computer over.

2Using a Torx 5 screwdriver, remove the screws that secure the base cover to the

palm-rest assembly.

3Starting from the back of the computer, pry up the base cover using your fingertips.

4Lift the base cover off the palm-rest assembly.

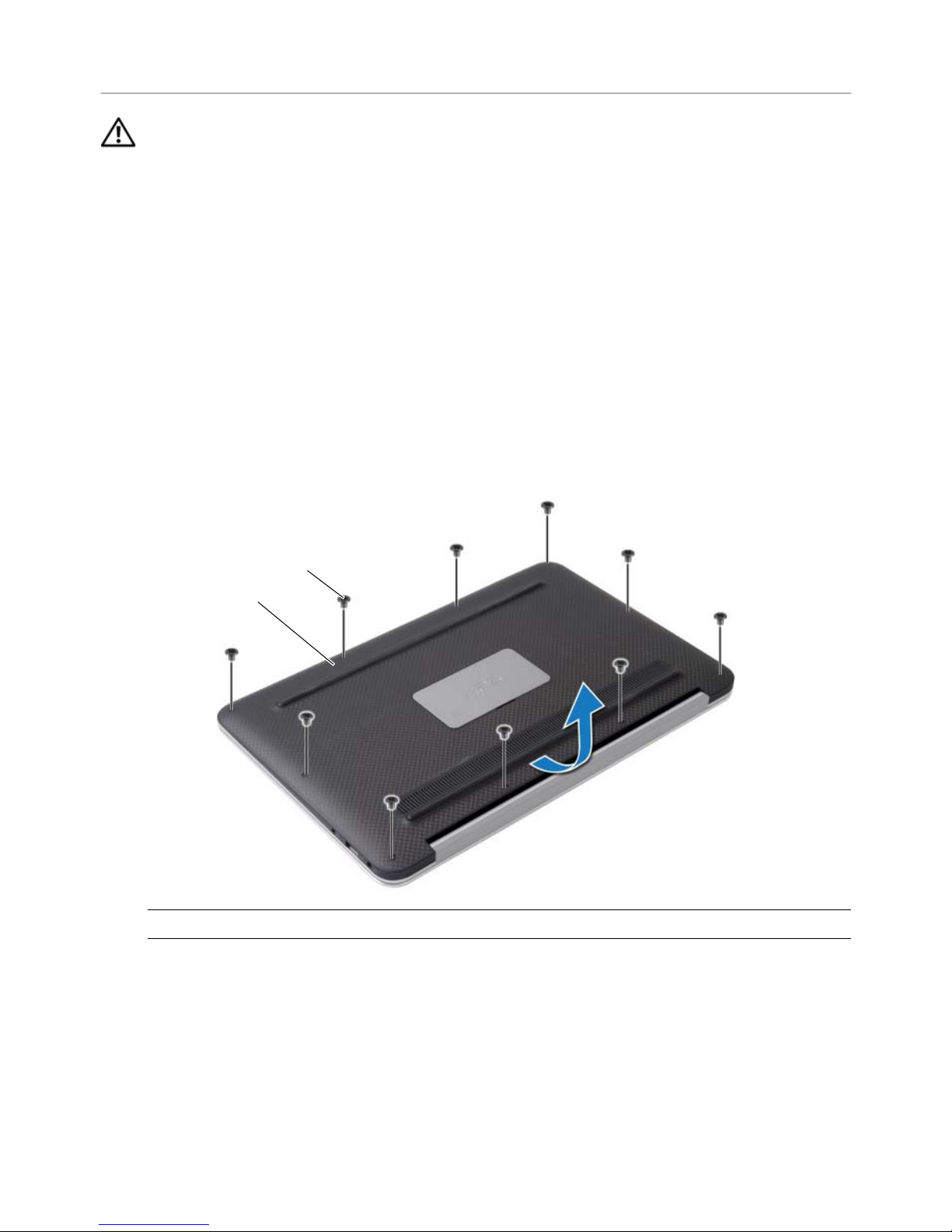

1base cover 2screws (10)
