1
Preface
Dear users,
To ensure better performance of your e-bike, please read through the
KM3209 product introduction carefully before using it. We will use the brief words
to inform you of all the details (including hardware installation, setting and normal
use of the display) when using our display. Meanwhile, the introduction will also
help you solve possible confusion and barriers.
Denago eBikes
3700 W Royal Lane #120
Irving, Texas 75063
www,denago.com
2

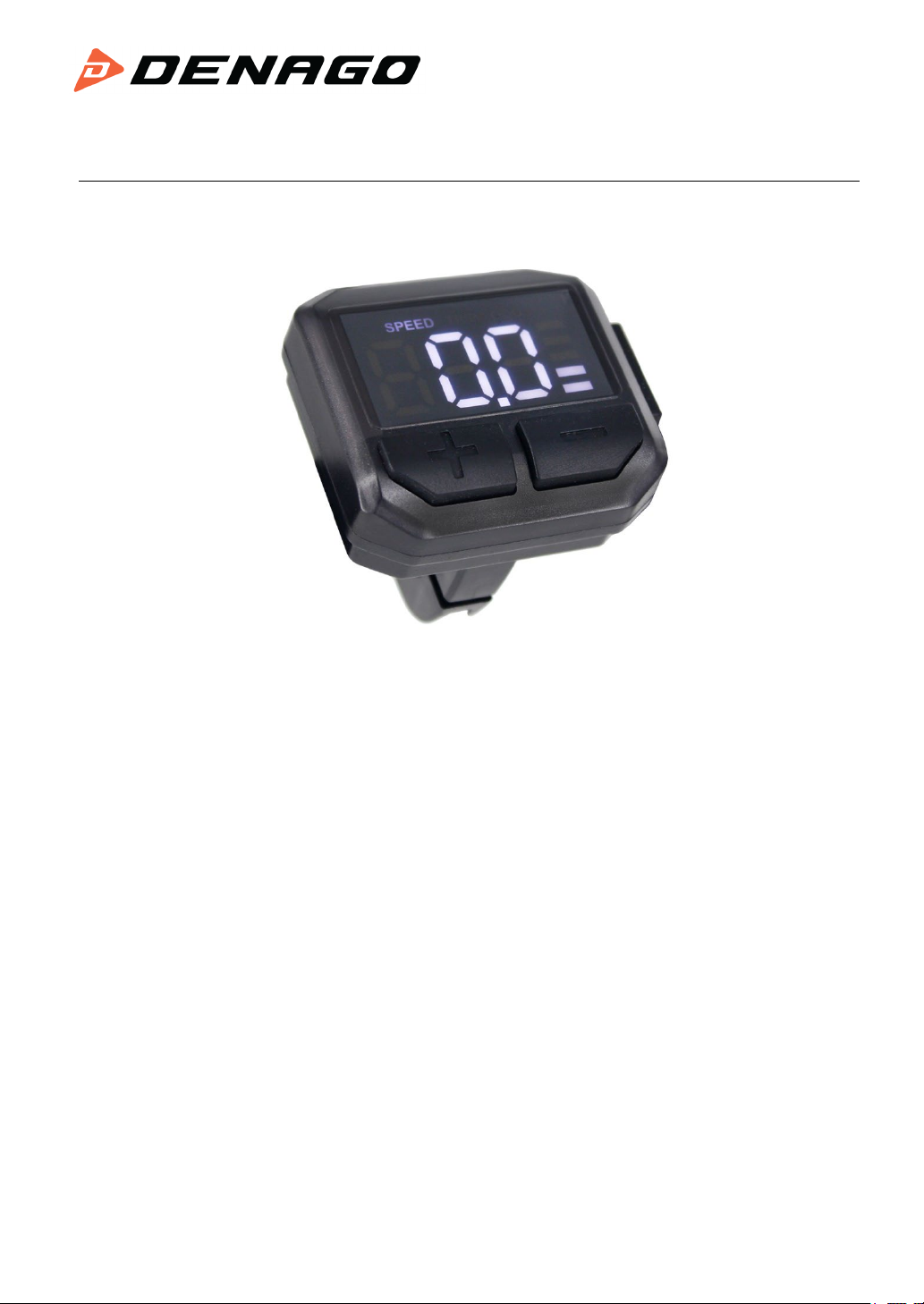

1.Appearance and Size
1.1 Material and Color
KM3209 uses PC materials. Under the temperature of -20℃to 60℃, the
housing material can ensure normal use and good mechanical performance of the
product.

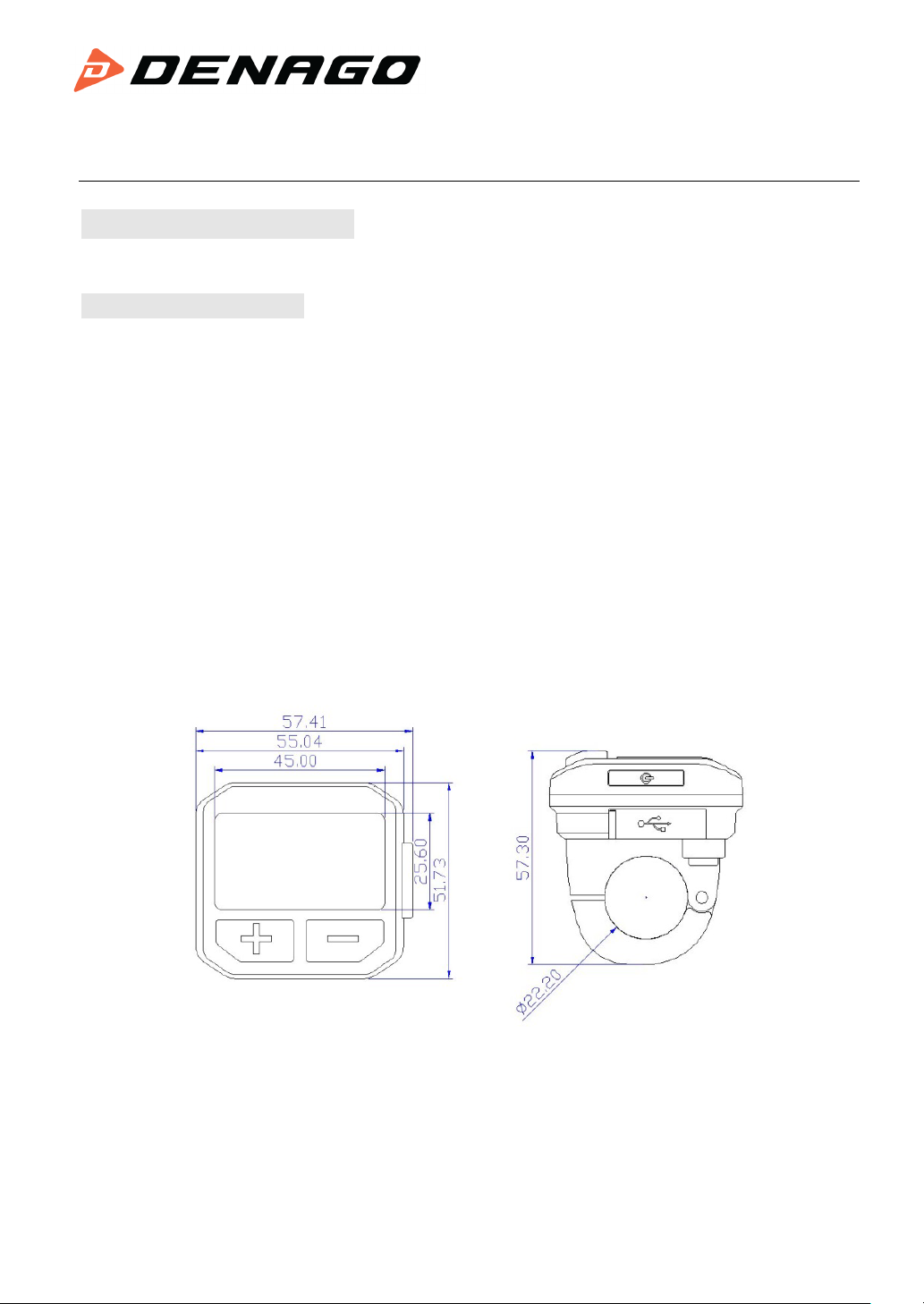

Display Size and Installation Size (Unit: mm)
Denago eBikes
3700 W Royal Lane #120
Irving, Texas 75063
www,denago.com
3
2.Function Summary and Button Definition
2.1 Function Summary

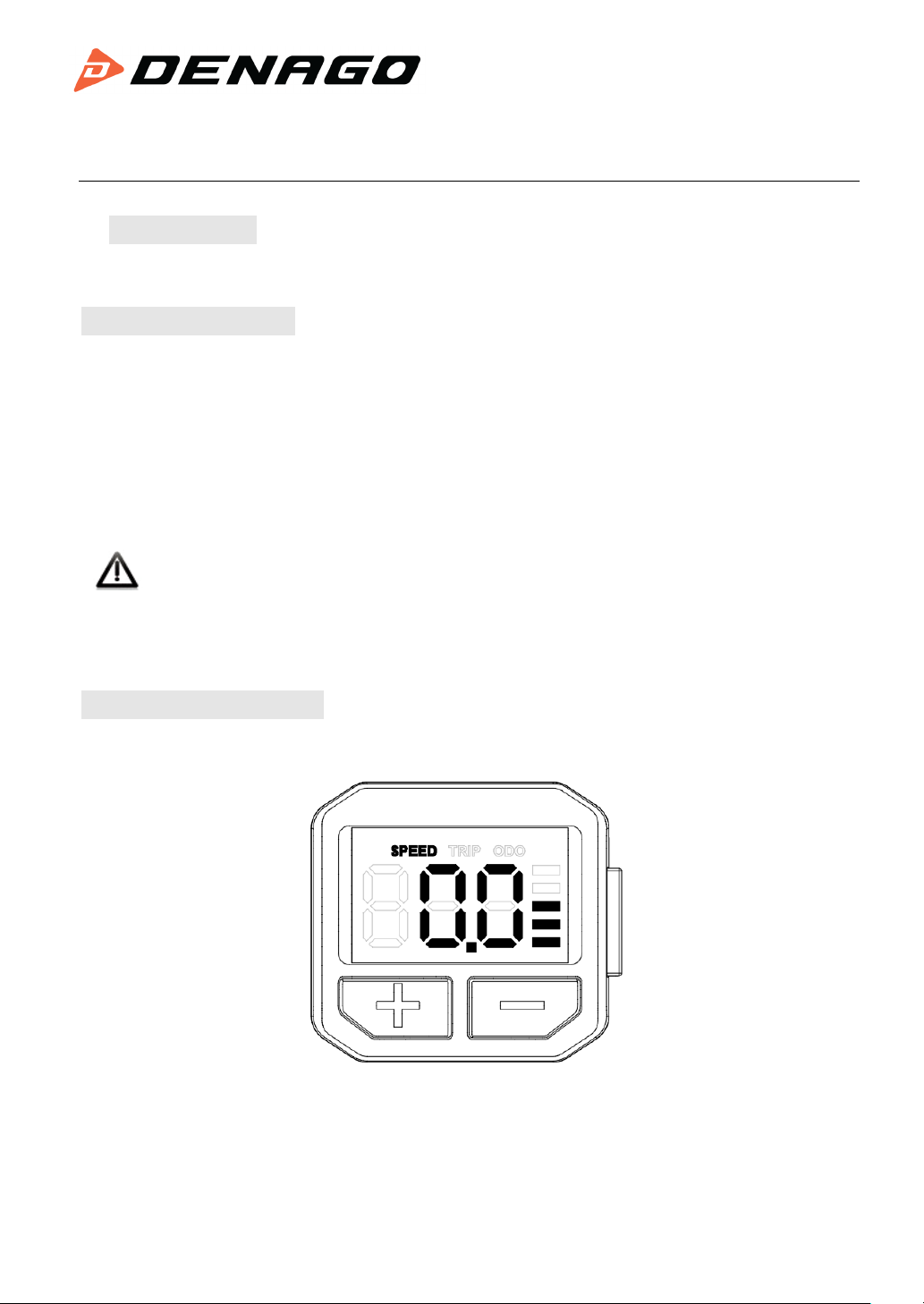

KM3209 offers plenty of functions and showing to meet your requirements.
The indicated contents are as following:
◆Battery indication
◆Real time speed
◆Trip distance and ODO
◆PAS level
◆Headlight
◆Error code
◆Parameter setting
◆USB charging function(only when the display is with USB port）
Denago eBikes
3700 W Royal Lane #120
Irving, Texas 75063
www,denago.com
5
3. Operation Cautions
Avoid collision.
Pay attention to safety use, do not connect or disconnect the display
when power is on.
The housing of display is made of waterproof technology, please do not
disassemble it, so as not to affect the waterproof performance.
Please do not modify system parameters to avoid parameter disorder.
Make the display repaired immediately when not working properly.
4. Installation Instruction
Fix the display on the handlebar, adjust the angel. Plug the two connectors
from display and controller when off power supply.
Denago eBikes
3700 W Royal Lane #120
Irving, Texas 75063
www,denago.com
6
5. User Setting
5.1 Power On/Off
Hold MODE button to start the display and supply power to the controller.
When at working state, press and hold MODE to shut off E-bike power. In the off
state, the display no longer uses the battery's power supply; leakage current is
less than 1uA.
If you do not use the E-bike for more than 10 minutes, the display will turn
off automatically.

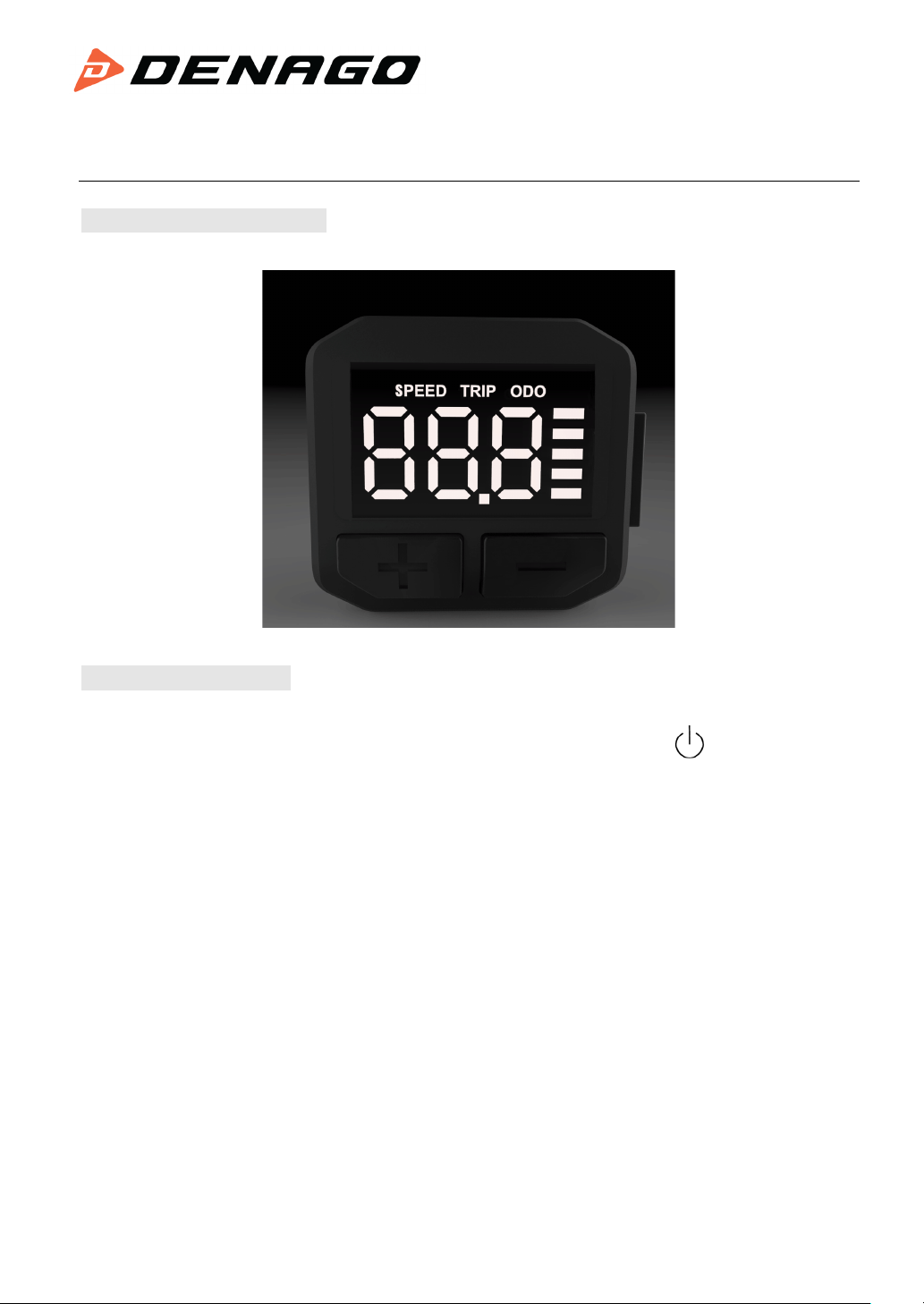

5.2 Display Interface
