Denso BHT-904B Bedienungsanleitung

Barcode Handy Terminal

BHT-904B/BHT-914B

User’s Manual

BHT-904B/BHT-914B

Preface

Thank you for using the BHT-904B/BHT-914B DENSO WAVE Barcode Handy Terminal.

Please read this manual thoroughly prior to operation to ensure full use of the product’s functionality, and store safely

in a convenient location for quick reference even after reading.

Liability Limitations

DENSO WAVE INCORPORATED does not assume any product liability (including damages for lost profits,

interruption of operations, or the loss of business-related information) arising out of, or in connection with, the

use of, or inability to use the BHT system software or related manuals.

DENSO WAVE INCORPORATED (“DENSO WAVE”) takes reasonable precautions to ensure its products do

not infringe upon any patents or other intellectual property rights of other(s), however, DENSO WAVE cannot

be responsible for any patent or other intellectual property right infringement(s) or violation(s) arising from any

of the following.

1) The use of DENSO WAVE’s products in connection or in combination with other components, products,

devices, data processing systems or software not supplied by DENSO WAVE.

2) The use of DENSO WAVE’s products in a manner for which they were not intended nor designed.

3) The modification of DENSO WAVE’s products by parties other than DENSO WAVE.

If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product

having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the

warranty period.

Barcode Handy Terminal

Customer Registration and Inquiries

Customer Registration

To allow us to provide our customers with comprehensive service and support, we request that all customers

complete a Member Registration Form. Registered members will be offered the following privileges.

The latest upgrade information

Free exhibition and event information for new products

Free Web-information service “QBdirect”.

QBdirect Service Contents

Information search service (FAQ) Offers detailed information on each product.

Download service Offers downloads of repair modules for the latest BHT Series

systems or software, and sample programs.

E-mail inquiries Product related queries can be sent in by e-mail.

* Please note that these privileges may be subject to change without prior notice.

How to Register

Access the URL below and follow the instructions provided.

http://www.qbdirect.net/

Inquiries

Technical Inquiries (QBdirect)

BHT product programming method

Product setup method, usage

Other technical questions

Inquires relating to the above can be made at our exclusive Web site for registered users (QBdirect).

Access the link below to log on or register.

http://www.qbdirect.net/

iii

BHT-904B/BHT-914B

About this Manual

Due to improvements and so on, the content of this manual may be subject to change without prior notice.

The reproduction or duplication of the whole or part of this manual is strictly prohibited without prior consent.

Every attempt has been made to ensure that the content of this manual is thorough and up to date, however,

we kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE.

The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.

Manual Composition

This manual is made up of the following 9 chapters.

Chapter 1 Outline

Describes the BHT system and provides an overall outline of the BHT.

Chapter 2 BHT Preparation

Describes information required by the user and procedures that must be performed prior to

commencing operation.

Chapter 3 Basic Operation

Describes basic operations performed by the operator and how to make basic changes to settings such

as the beeper volume

Chapter 4 System Operation

Describes how to initialize and update the system, start up a user program, and operate System Mode.

Chapter 5 Communication

Describes interfaces and communication specifications.

Chapter 6 Maintenance

Describes battery replacement and daily procedures for taking care of the BHT.

Chapter 7 Error Messages

Describes causes and countermeasures for error messages expected to occur during basic operation.

Chapter 8 Specifications

Describes specifications for hardware, readable barcodes, and interfaces.

Chapter 9-1 CU-900, CH-900 Specifications (Option)

Describes the main specifications for the CU-900, CH-900 Series (option).

Chapter 9-2 When File Transfer is Not Possible Using the Transfer Utility

Describes causes and countermeasures when unable to transfer files.

Barcode Handy Terminal

Viewing this Manual

About the Bookmark

The PDF Bookmark function can be used to jump to the Contents page.

(1) Click the “Bookmark” tab.

(2) Click “ ” to search for the desired item.

(3) Click the item to be read.

(1) Click the “Bookmark” tab.

(2) Click “+” to search for the desired item.

(3) Click the item to be read.

BHT-904B/BHT-914B

Searching by Word

The PDF search function can be used to jump to the target page by entering words or characters related to the

item being searched.

(1) Click the Search icon. (Or select “Edit” – “Search”.)

(2) Enter the word(s) or character(s) to be searched for.

(3) Click [Search].

(2) Enter the search

word(s) or character(s).

(1) Click the Search icon.

(3) Click [Search].

Barcode Handy Terminal

Related Documentation

BHT-BASIC Programmer’s Manual (BHT-900 Series)

This is an instruction manual used to create handy terminal programs with BHT-BASIC.

BHT-BASIC 4.0 Transfer Utility User’s Guide

This is an instruction manual for software relating to data transfer between the computer and BHT-900 and

comes bundled with the BHT-BASIC 4.0 Transfer Utility.

Easy Pack Ad for BHT-900 User’s Manual

This is an instruction manual for the easy operation application software installed before shipping of the

BHT-900.

vii

BHT-904B/BHT-914B

SAFETY PRECAUTIONS

Be sure to observe all these safety precautions.

Please READ through this manual carefully. It will enable you to use the BHT and CU correctly.

Always keep this manual nearby for speedy reference.

Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily

injury and substantial property damage. Make sure you fully understand all definitions of these terms and

symbols given below before you proceed to the text itself.

Alerts you to those conditions that could cause serious bodily injury or death if the

instructions are not followed correctly.

Alerts you to those conditions that could cause minor bodily injury or substantial property

damage if the instructions are not followed correctly.

Meaning of Symbols

A triangle ( ) with a picture inside alerts you to a warning of danger. Here you see the warning for

electrical shock.

A diagonal line through a circle ( ) warns you of something you should not do; it may or may not

have a picture inside. Here you see a screwdriver inside the circle, meaning that you should not

disassemble.

A black circle (●) with a picture inside alerts you to something you MUST do. This example shows

that you MUST unplug the power cord.

viii

Barcode Handy Terminal

Handling the battery

Mishandling of the battery may result in electrical shock, overheating, smoke generation, combustion, or blowout.

Please read the following items prior to use.

Never disassemble or modify the battery.

Never connect the battery (+) and (-) terminals with a metal object such as a piece of wire.

Do not carry or store the battery together with metallic ball-point pens, necklaces, coins, hairpins, etc.

Do not use or store the battery in places exceeding the service or storage temperature.

Never put the battery into a microwave oven or high-pressure container.

Never burn or heat the battery.

Never use, leave, or charge the battery in the vicinity of high-temperature locations (50C or higher)

such as a fire, stove, or under a scorching sun.

Never place the battery into or soak it in water or seawater.

Never charge the battery near a fire or in strong sunlight. Raised battery temperature may result in

leakage of battery fluid, blowout, or combustion.

Never charge or use the battery where any inflammable gases may be emitted.

Do not stick a needle into the battery, hammer at it, or tread on it.

Avoid dropping the battery or letting it undergo any shock or impact.

Do not use significantly damaged or deformed batteries.

Never apply solder directly to the battery.

Never charge alkaline batteries. Doing so may result in blowout or leakage of battery fluid.

During use, charging, or storage of the battery, if odors come from the battery, the battery is overheated,

discolored, deformed, or anything unusual is found, unload the battery from the BHT or charger. Do not

use the battery.

Do not use different types of batteries and used batteries at a time.

After the battery is charged or immediately after use, the battery may be warm.

If the battery fluid leaked from the battery gets into the eyes, wash thoroughly with clean water such as

tap water without rubbing and obtain medical treatment immediately. Failure to do so will result in eye

injuries.

If the battery does not finish recharging within the specified time, stop recharging.

BHT-904B/BHT-914B

Handling the BHT

Mishandling of the BHT-904B/BHT-914B may result in electrical shock, overheating, or smoke generation.

Please read the following items prior to use.

Never disassemble or modify the BHT.

Do not insert foreign materials in the BHT.

Never place the BHT into or soak it in water or seawater.

Never put the BHT into a microwave oven or high-pressure container.

Never put the BHT in places where there are excessively high temperatures, such as inside closed-up

automobiles or in places exposed to direct sunlight.

Avoid using the BHT in extremely humid or dusty areas or where there are drastic temperature changes.

Do not use the BHT with the damaged case.

Do not use the power supply other than the battery specified by DENSO WAVE.

When loading the battery in the BHT unit, set the battery selector switch on the BHT unit correctly in

accordance with the type of the battery.

If the LCD is damaged and the liquid crystal leaks, do not drink, inhale, or apply the liquid crystal on the

skin.

Never stare into the laser light. Failure to do so will result in eye injuries.

Never point the code reading window at someone’s eyes.

If smoke, abnormal odors, or noises come out from the BHT, immediately turn OFF the power and pull

out the batteries.

If the LCD is damaged and the liquid crystal gets into the eyes or mouth, wash thoroughly with clean

water such as tap water, and obtain medical treatment immediately.

Also, if leaked liquid crystal gets on the skin or clothes, wipe it off immediately and wash with soap and

water. It can cause loss of sight and skin problems.

If the LCD is damaged, be careful of broken glass. Failure to do so could result in injury.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Denso Barcode-Lesegerät Handbücher

Denso

Denso BHT-6000 Bedienungsanleitung

Denso

Denso BHT-4000 Bedienungsanleitung

Denso

Denso 400BW-CE Bedienungsanleitung

Denso

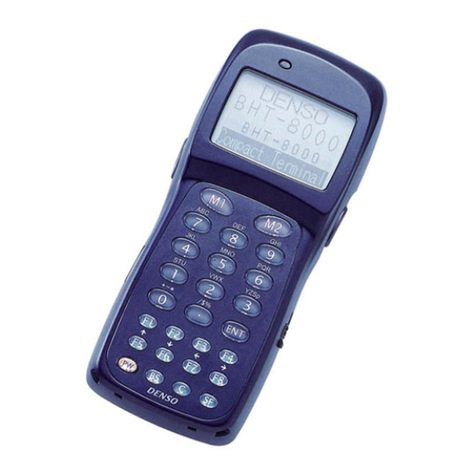

Denso BHT-8000 Installationshandbuch

Denso

Denso GT10Q-SR Bedienungsanleitung

Denso

Denso AT30Q-SM Bedienungsanleitung

Denso

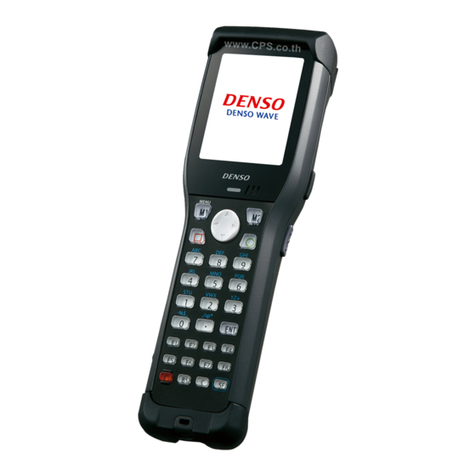

Denso BHT-604B Bedienungsanleitung
