DB7000

FM Radio Re-Broadcast Receiver

Quick User Guide

BEFORE YOU USE THIS PRODUCT

In order to be able to enjoy all the benefits of owning your new

DEVA product, please verify first that the latest software and

firmware release were installed.

Visit www.devabroadcast.com/downloads

recent software and firmware downloads, prior the installation.

for the most

Connect the device to a local network or to the Internet

by the applied LAN cable. Through the Front panel

navigational menu pressing the “OK” button you will enable

you to enter the device main menu .(A)

Using the "Right" navigational button find the “Status"

section located at the end of the menu (B).

Press the “OK” Button to enter the “Status Section”

.Via the Front panel navigational menu press the

“DOWN” button.

(C)

This operation will visualize the screen containing

information about the IP address of the device.

(D)

This Quick user guide will make the installation of DB7000 FM Radio re-Broadcast Receiver quick and

easy. Applying these principles, you can simplify the process and save yourself extra time and effort. For

more information about the Safety precautions and the Operating environment recommendations

please refer to the User Manual.

1. Install the unit on its operation place;

2. Before connecting the AC Power, make sure that the fuse rating is in accordance with the mains

supply at your location. DB7000 Power Supply Factory Settings are: 100-240 VAC; 1Amp Fuse.;

3. Connect the antenna cable to the RF antenna input connector located on the rear panel of the device;

4. Plug the headphones into the front panel jack;

5. Usethe "LEFT" or "RIGHT"Navigational Buttons to find strong local station that could be clearly

heard through the phones.

DB7000 can be operated in three methods. Through the Front panel navigational menu, Device

Manager Software or via a standard WEB Browser. For more information about the Front panel

navigational menu,please refer to the User Manual.

There are two options for access to the WEB Interface of DB7000 FM Radio Monitoring receiver. The

first one is through manual identification of the IP address of the device, and the second one is through the

Network discovery option (For Windows 7 users only).

Manual IP Address Identification

STEP 3.1

WEB Interface

STEP 3

Configuration

STEP 2

Connection

STEP 1

NOTE: If you have already enabled this function on your computer just open a new Explorer bar and click

on . The device must be displayed. If not follow the instructions from Step 3.1 or Step 3.2(1)

Network discovery is a network setting that defines whether your computer can see (find) other

computers and devices on the network and whether other computers on the network can see your

computer. By default, Windows Firewall blocks network discoverybut you can enable it.

1. Open Advanced sharing settings by clicking the Start button, and then on "Control Panel". In the

search box, type "network", click "Network and Sharing Center", and then, in the left pane click

"Change advanced sharing settings";

2. Select your current network profile;

3. Click Turn on network discovery, and then click Save changes. If you're prompted for an

administrator password or confirmation, type the password or provide confirmation.

NOTE: Due to the inability of some WEB Browsers to read the IP address format displayed on the screen

of the device, the numbers included in the IP Address must be written without the leading zeros.

For example: 192.168.020.068 must be written as 192.168.20.68

4. To access the device open a new Explorer bar and click on . If you have successfully enabled the

network discovery option, the device will be displayed. Double click on will open a new WEB

browser window requiring Username and password. (For more information refer to Step 4)

(1)

(2)

Network discovery for Windows 7

STEP 3.2

Open a new WEB Browser and enter the device IP

address in the address field then press “Enter” .

A window that requires username and password will

appear. (For more information refer to Step 4)

(E)

To restore DB7000 to its Factory Defaults you should first press "All except IP" button. A new window

will appear: confirm that you want to restore the factory defaults and wait for the process to complete.

This will reset all settings to its factory defaults, except Network and HTTP Port .

Device Accsess

STEP 4

Factory Defaults

STEP 5

The DB7000 provides you with a protected

access to the device settings. You can choose

between two types of log in:

1. As an ADMINISTRATOR – which will give you

full control over the settings (username: admin,

password: pass);

2. As a USER – this type of log-inwill allow you to

monitor the device and choose different stations

without applying settings(username: user,

password: pass).

In order to make the necessary adjustments to

the device please log in as ADMINISTRATOR.

After successful log in the Control Window will look like this:

8. Accept the default recommendations and click "Next>" at the end of each step;

9. Click "Finish" to complete the TAP Windows Setup Wizard;

10. Finally, select to launch the program.

DEVA Device Manager Installation

STEP 6

1. Use the Installation file which can be found on the supplied CD or downloaded from

www.devabroadcast.com/downloads;

2. Find DEVA Device Manager file, double click on the installation file to launch the Wizard;

3. Accept the default recommendations and click "Next>" at the end of each step;

4. When asked to place an icon on the Desktop of your computer and Install TAP Drivers, make sure that

the check boxes are enabled and click "Next>";

NOTE: The TAP Drivers should be installed in order for the computer to communicate with the device

trough the USB port. If you have already installed TAP Drivers on your PC disable this box and

press "Finish". If not, continue with the steps listed below:

5. Click install to continue with the installation process;

6. TAP Windows Setup Wizard will appear. Click "Next>", accept the License Agreement;

7. When asked to select the installation components check on "TAP Virtual Ethernet Adapter" box and

click "Next>";

DEVA Device Manager

STEP 7

Defining New Device

STEP 8

The new device can be added by three methods - using Network discovery feature, Manually or by

Import Device list option.Each of these options will be explained below.

Network discovery

STEP 8.1

Network discovery is a network setting that defines whether your computer can see (find) other

computers and devices on the network and whether other computers on the network can see your

computer. By default, Windows Firewall blocks network discoverybut you can enable it. For further

information refer to Step 3.2

If you have already enabled this function on your computer DB7000 will be automatically added to the

Device list section. The device will be ready for usage and no additional adjustments will be required

except user name and password. For more information about the access levels refer to Step 4 .

Right after the main window appears a dialog window requiring a Master Password will appear. We

recomend you to enter the password when DEVA Device Manager is activated for the first time.

Otherwise, you will be continuously reminded to enter it any time there is an operation regarding stored

passwords.

NOTE: Please make sure you remember the Master Password you have set. If you forget your Master

Password, you will be unable to access any of the information protected by it.

After the installation process is completed, a shortcut to DEVA Device Manager will

appear on the desktop of your PC.

Double click on the shortcut to run the Software. This will open the main application

window. Most of the functions will be disabled because no devices were listed in the Device

Manager so far.

Press the "New Device Button" . A dialog box requiring obligatory information about the device

will appear:

Manual Defining

STEP 8.2

?Serial Number - this field could be left blank. The Software will automatically assign a value to it from the

device;

?Alias is user-defined name for each device which makes it unique and easy for identification;

?User and Password -DB7000 provides you with a protected access to the device settings. For more

information about the access levels refer to Step 4;

?Connection - enter the connection Alias and the IP address of the device. The default value of the

Software Port is 1024;

?Fill in the requested information and press "OK".

Export/Import Device List

STEP 8.3

This option is very useful for those users, who want to install DEVA Device Manager on several

computers and monitor the condition of the devices from different locations.

Once you have defined all the devices and placed them on the User defined map, (refer to Step 10)

you could export all settings and import them into other PC with already installed DEVA Device Manager

Software.

Export Device List

1. Click on Device and select Export Device list;

2. Enter your Master password and press OK;

3. Save the file.

Import Device List

1. Click on Device and select Import Device list;

2. Select the desired file and press OK;

3. The information will be transferred and displayed in

DEVA Device Manager main window.

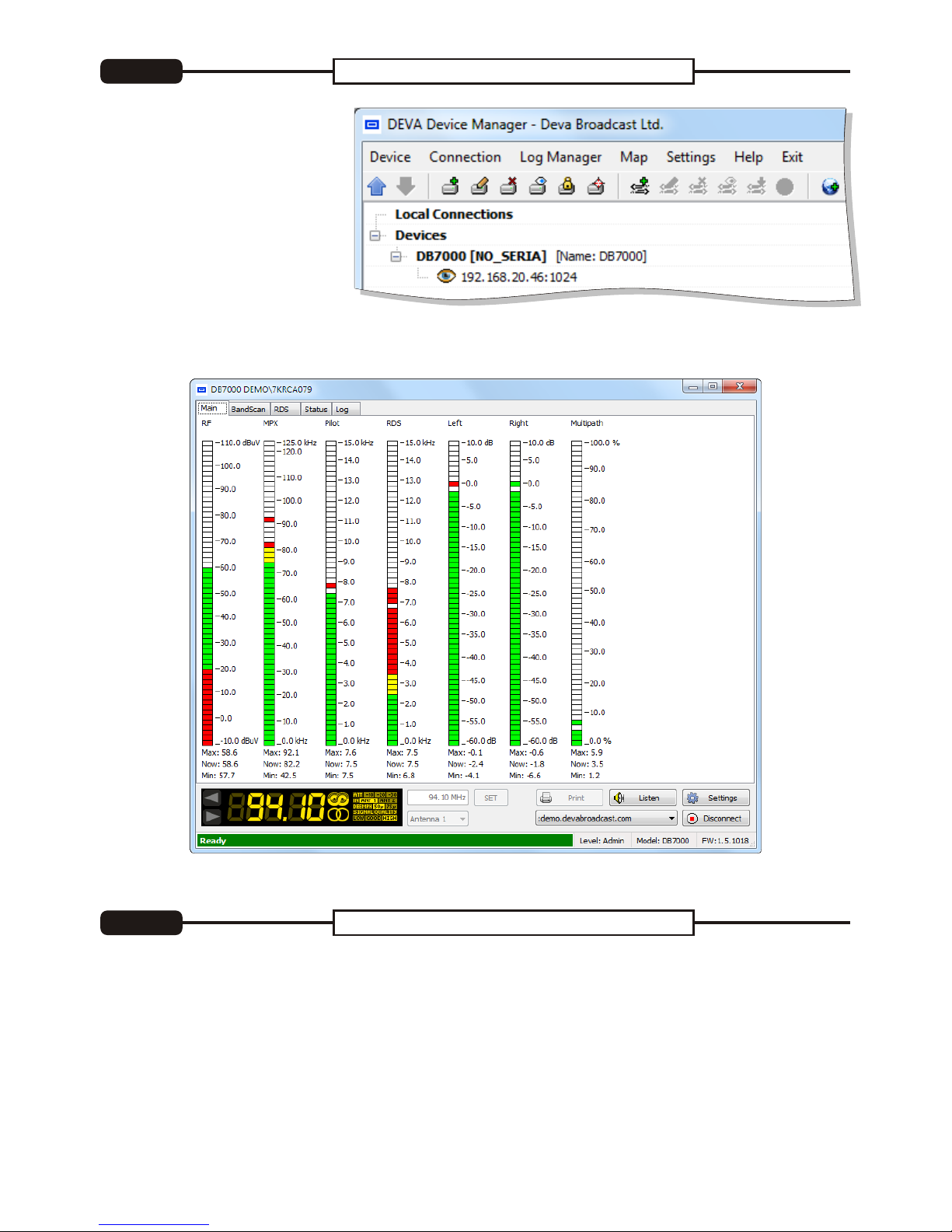

A f t e r y o u d e f i n e t h e

parameters, the device will

appear in the Device list and on

the Map.

Double click on to enter

the Device. This will open the

main application window. The

Device Manager Software will

automatically connect to the

device.

(1)

This is an additional tool for fast evaluation of DB7000 condition. Each device is visually represented

on the User Defined Picture (Map).

In order to define a new map, click on button. A dialog window acquiring map picture will

appear. JPEG, Bitmap or PNG files can be uploaded.

All new devices listed in Local Connections will appear in the center of the Map. Manually set the exact

position of the devices.

(2) New Map

Please refer to the User manual for detailed information on

how to configure and explore your device.

DB7000 Main control window looks like this:

Map Configuration

STEP 10

DEVA Device Manager

STEP 9
