EC510-SD/EC511-SD Installation Guide

Package Contents

www.dﬁ.com

Notes:

1. The PoE ports support PoE devices that comply with 802.3af and each port delivers 15.4W of

power to connected devices.

2. The system may be equipped with 4 Gigabit Ethernet ports without PoE depending on the SKU;

please refer to the Ordering Information for details.

•

1 EC510-SD/EC511-SD system unit

• 1 Quick Installation Guide

•

1 CD disk includes:

-Drivers / Manual

Panel

DFI reserves the right to change the speciﬁcations at any time prior to the product's release. For the latest revision and details of the

installation process, please refer to the user's manual.

COM 2

DC-in

DVI-I

(DVI-D signal)HDMI

USB 3.0LAN 1 LAN 2

VGA

Remote power on/off

Digital IO

Expansion slot

COM 1

Status LED (Orange)

HDD LED (Red)

Power Button

with LED (Green)

PoE 1~4(1)(2)

LAN 3~6

COM 3

Mic-in, Line-out

Removing the Chassis Cover

Please observe the following guidelines and follow the procedure to open the

system.

1. Make sure the system and all other peripheral devices connected to it have

been powered off.

2. Disconnect all power cords and cables.

3. The 6 mounting screws on the bottom and both sides of the system are used

to secure the cover to the chassis. Remove these screws and put them in a

safe place for later use.

Chassis screw

Chassis screw Chassis screw

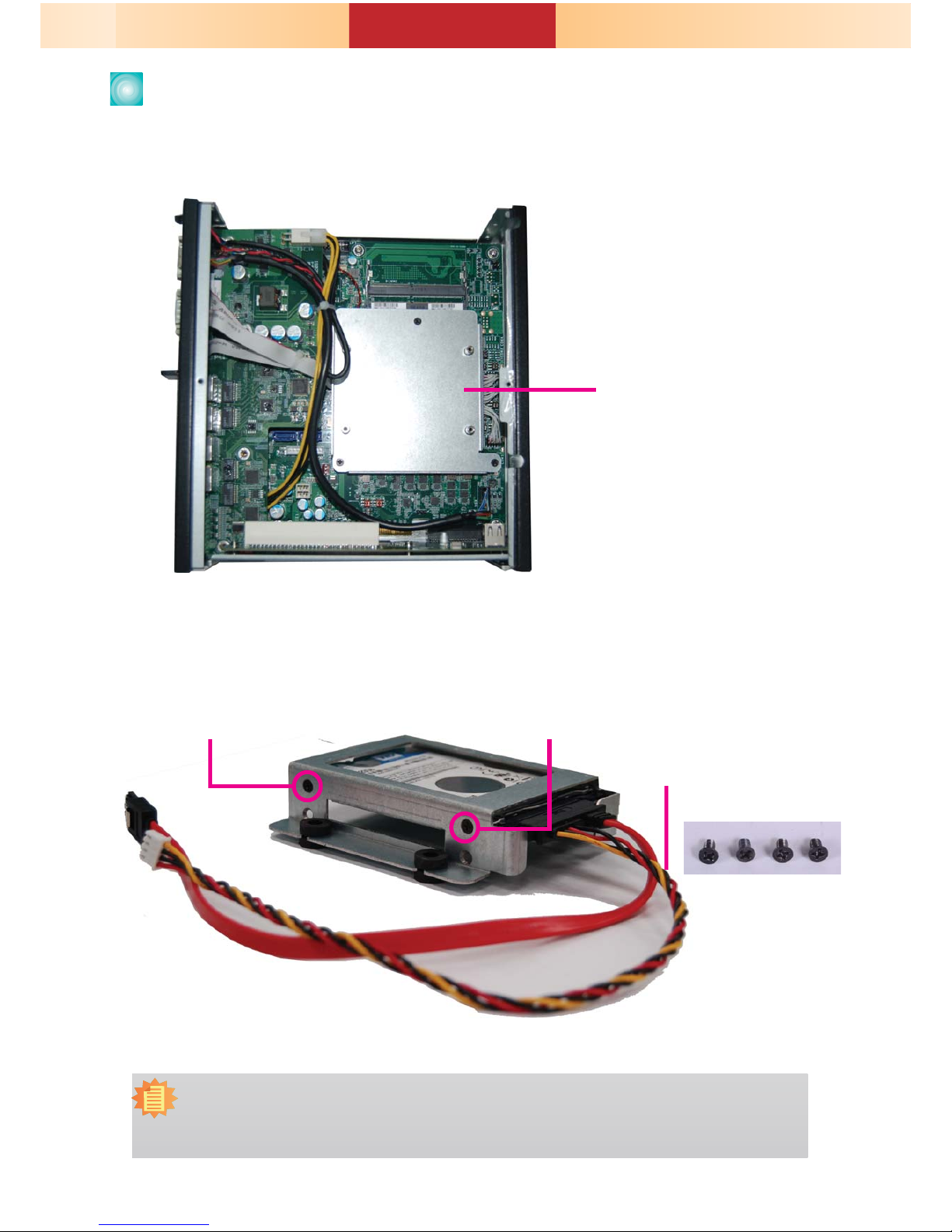

Installing a 2.5" SATA Drive

2. Insert the SATA drive into the HDD bracket and secure it in place with the

provided screws (black screws). The HDD bracket can accommodate two

SATA drives.

SATA power/data cable

Note:

Connect SATA cables before afﬁxing the SATA drive on the HDD bracket as the HDD

bracket would prevent access to the SATA connectors of the drive.

Supporting plate

1. The SATA HDD bracket is included in the product package. Locate the

supporting plate on which the SATA HDD bracket will be mounted.

Mounting screw

SATA cables

Mounting screw

Mounting screws

3. Place the SATA drive with the HDD bracket into the system. Align the

mounting holes on the HDD bracket with the mounting holes on the

supporting plate and use the provided screws to secure the drive in place.

Mounting Screw

4. Connect the other end of the SATA data cable and the SATA power cable to

the SATA data and SATA power connector on the mainboard respectively.

SATA data connector

SATA power connector

Installing a SODIMM

Grasp the module by its edges and align the SODIMM’s notch with the

socket’s key; then insert the SODIMM into the socket at an angle and push it

down until the retaining clips snap into place.

Notes:

1. The system supports dual-channel conﬁguration. To enable dual-channel,

populate both SODIMM sockets.

2. If you plan to install only one SODIMM, install it in the DIMM1 socket (lower

one and farther from the center of the mainboard).

3. The SODIMM sockets can only accept DDR4 memory modules. Please do not

install other types of memory modules.

To remove a SODIMM, gently spread the retaining clips at each end of the

SODIMM socket. The SODIMM should pop out of the socket. Lift the SODIMM

away from the socket on the mainboard.

The installed SODIMM

DIMM2

DIMM1

The Mini PCIe sockets are located on the mainboard. You need to revmove the

riser card and daughter board to access them.

The 2 mounting screws on the supporting bracket of the riser card are used

to secure the riser card to the chassis. Remove these screws and put them

in a safe place for later use. To disengage the riser card from the mainboard,

gently pull the card out of the connector on the mainboard.

The 4 mounting screws on the daughter board are used to secure the board

to the mainboard. Remove these screws and put them in a safe place for later

use. To disengage the daughter board from the mainboard, gently pull the card

out of the connector on the mainboard.

Installing a Mini PCIe Expansion Card

Mounting screw

on the riser card

Mounting screw

on the daughter board

Note:

The system also has a half-size Mini PCIe slot that can accommodate a Mini PCIe

card using mSATA or USB signals.

The mainboard is equipped with 2 Mini PCIe slots: one full-size and one half-size

slot. Here we will demonstrate the installation of a full-size Mini PCIe card.

1. Grasp the Mini PCIe card by its edges and align the notch in the connector

of the Mini PCIe card with the connector's key on the mainboard.

2. Secure the card on the mainboard with the provided mounting screw.

3. If the Mini PCIe card has antennas, route the antennas to the antenna

holes on the rear chassis of the device.

Wireless antenna

Mounting screw

Installing a PCI or PCIe Expansion Card

Important:

When inserting expansion cards into the system, please select a standard card

within 167.65mm (as shown in the picture below) in order to ﬁt into the expansion slot.

The PCI and PCIe slots on the riser card inside the system are used to install

expansion cards. To install an expansion card you need to first remove the slot

plate and bracket by uninstalling the screw on the front chassis.

Slot plate

Mounting screw and bracket

2. Insert the expansion card into a PCI or PCIe slot on the riser card. Ensure the

card is properly seated into the slot and secure the bracket in place.

Front View

PCI card

Note:

The EC511-SD has one PCIe x16 slot with the H120-1E riser card, whereas the EC510-

SD has one PCI slot with the H320-1P riser card.

Board Layout and Jumper Settings

www.dﬁ.com

USB 3-4 USB 3.0

USB 1-2 USB 3.0

J22

JP2 JP3

J21

HDMI (default)/DP

DVI

System

Fan 2

Front

Panel

SATA Power

DC-in

LAN 2

LAN 1

PCIe x16 (PCIE1)

SPI Flash

BIOS

VGA

Clear CMOS

Data (JP1)

Auto Power-on

Select (JP11)

(JP9)

(JP8) (JP15)

210

COM 3

(JP6) 6

210

COM 2

(JP7) (JP14)

210

COM 1

LPC

4-pin power

PCIe x4 (PCIE2)

Power

Button

Reset

DDR4_1 SODIMM

DDR4_2 SODIMM

(JP5) 6

Status LED

HDD LED

Parallel

DIO Power

DIO

S/PDIF

Front Audio

51 1

EXC

SATA 3.0

USB 2.0 13-14

(JP13)

(JP12)

SATA 0 SATA 1

Mini PCIe

mSATA

System

Fan 1

bettery

212

USB 2.0 9

Clear CMOS Data JP1

Normal (default) 1-2 On

Clear CMOS Data 2-3 On

RS232/422/485 Select:

COM 1 (JP5/JP12), COM 2 (JP7/JP14)

RS232 (default) 1-3, 2-4 On

RS422 Full Duplex/RS485 3-5, 4-6 On

RS232/422/485 Select:

COM 1 (JP6), COM 2 (JP13)

RS232 (default) 1-2 On

RS422 Full Duplex 3-4 On

RS485 5-6 On

RS232/Power Select:

COM 1 (JP3), COM 2 (JP2)

RS232 (default) 1-3 (RI), 2-4 (DCD) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

Auto Power-on Select JP11

Power-on via Power Button (default) 1-2 On

Power-on via AC Power 2-3 On

Notes:

1. When COM1 RS232/422/485 is selected,

JP5 and JP12 must be set in accordance to JP6.

2. When COM2 RS232/422/485 is selected,

JP7 and JP14 must be set in accordance to JP13.

3. When COM3 RS232/422/485 is selected,

JP8 and JP15 must be set in accordance to JP9.

RS232/422/485 Select:

COM 3 (JP8/JP15)

RS232 (default) 1-3, 2-4 On

RS422 Full Duplex/RS485 3-5, 4-6 On

RS232/422/485 Select: COM 3 (JP9)

RS232 (default) 1-2 On

RS422 Full Duplex 3-4 On

RS485 5-6 On
