DFI P5BV3+/e Bedienungsanleitung

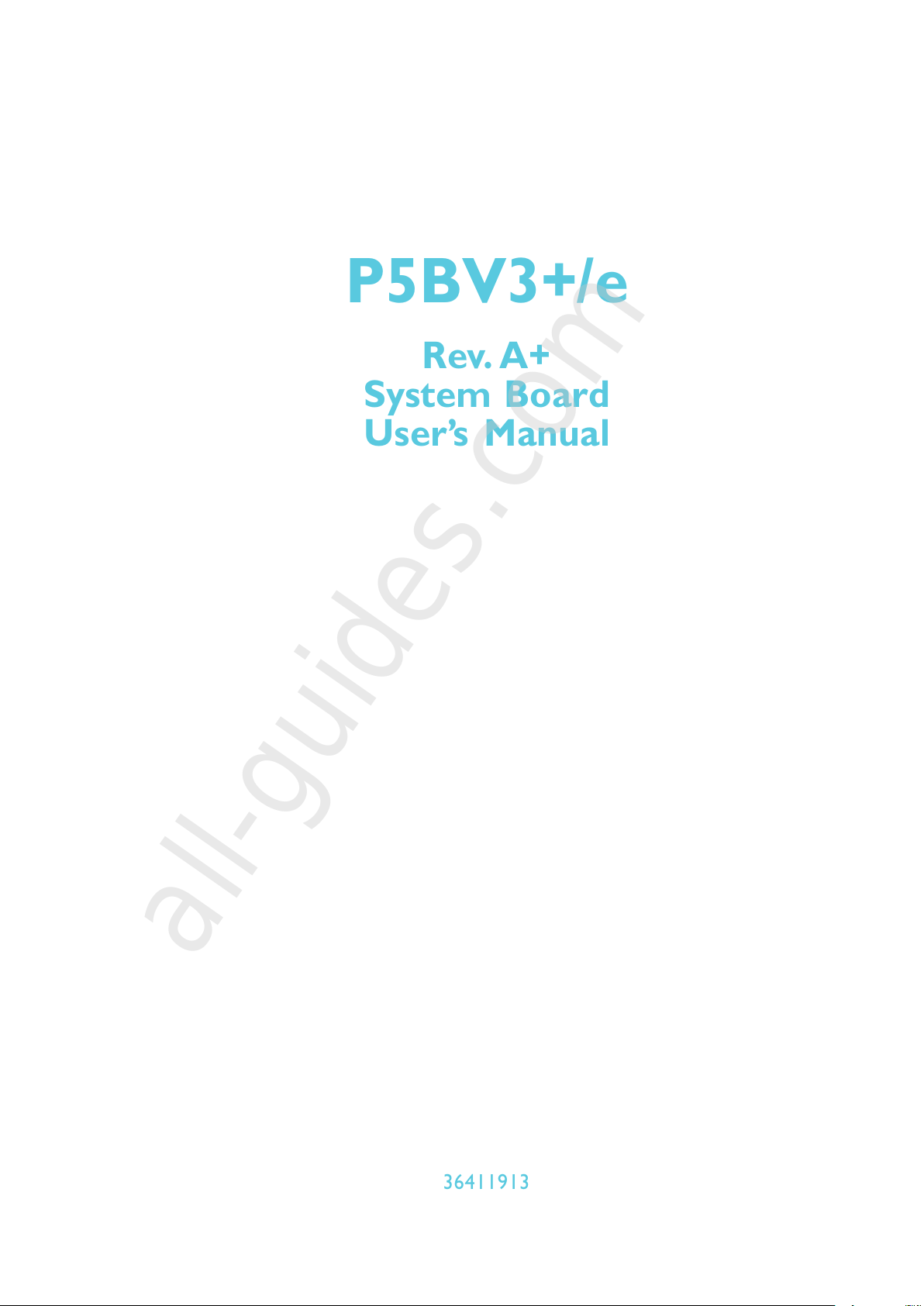

P5BV3+/e

Rev. A+

System Board

Users Manual

36411913

All manuals and user guides at all-guides.com

all-guides.com

This publication contains information that is protected by copyright. No

part of it may be reproduced in any form or by any means or used to

make any transformation/adaptation without the prior written permission

from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any express

or implied warranties of merchantability or fitness for any particular purpose.

The user will assume the entire risk of the use or the results of the use of

this document.Further,the manufacturer reserves the right to revise this

publication and make changes to its contents at any time, without obligation

to notify any person or entity of such revisions or changes.

Trademarks

Microsoft®MS-DOS®, WindowsTM, Windows®95 and Windows®98

are registered trademarks of Microsoft Corporation. Intel, Pentium

and Pentium with MMX technology are registered trademarks of

Intel Corporation. Cyrix, 6x86L, 6x86MX and M II are registered

trademarks of Cyrix Corporation. AMD, K5, K6, K6-2 and K-III are

registered trademarks of Advanced Micro Devices, Inc. IBM 6x86MX

is a registered trademark of International Business Machine

Corporation. IDT C6, WinChip2 and WinChip3 are registered

trademarks of IDT Corporation. Award is a registered trademark of

Award Software, Inc. Other trademarks and registered trademarks

of products appearing in this manual are the properties of their

respective holders.

Caution:

Danger of explosion if battery incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the battery manufacturers

instructions.

All manuals and user guides at all-guides.com

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

All manuals and user guides at all-guides.com

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications......................................................................

1.2 Package Checklist .........................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout .................................................................................

2.2 System Memory .............................................................................................

2.3 DIP Switch Settings of the Processors ............................................

2.4 Jumper Settings for Clearing CMOS Data. ...................................

2.5 Jumper Settings for SDRAM Clock (DIMM) ................................

2.6 Connecting the Ribbon Cables and Wires of the Ports

and Connectors .............................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System ...........................................................

3.1.1 Standard CMOS Setup .............................................................

3.1.2 BIOS Features Setup ..................................................................

3.1.3 Chipset Features Setup .............................................................

3.1.4 Power Management Setup ......................................................

3.1.5 PNP/PCI Configuration .............................................................

3.1.6 Load Fail-Safe Settings ...............................................................

3.1.7 Load Optimal Settings ..............................................................

3.1.8 Integrated Peripherals .................................................................

3.1.9 Supervisor Password ..................................................................

3.1.10 User Password ...............................................................................

3.1.11 IDE HDD Auto Detection .....................................................

3.1.12 Save & Exit Setup ........................................................................

3.1.13 Exit Without Saving .....................................................................

All manuals and user guides at all-guides.com

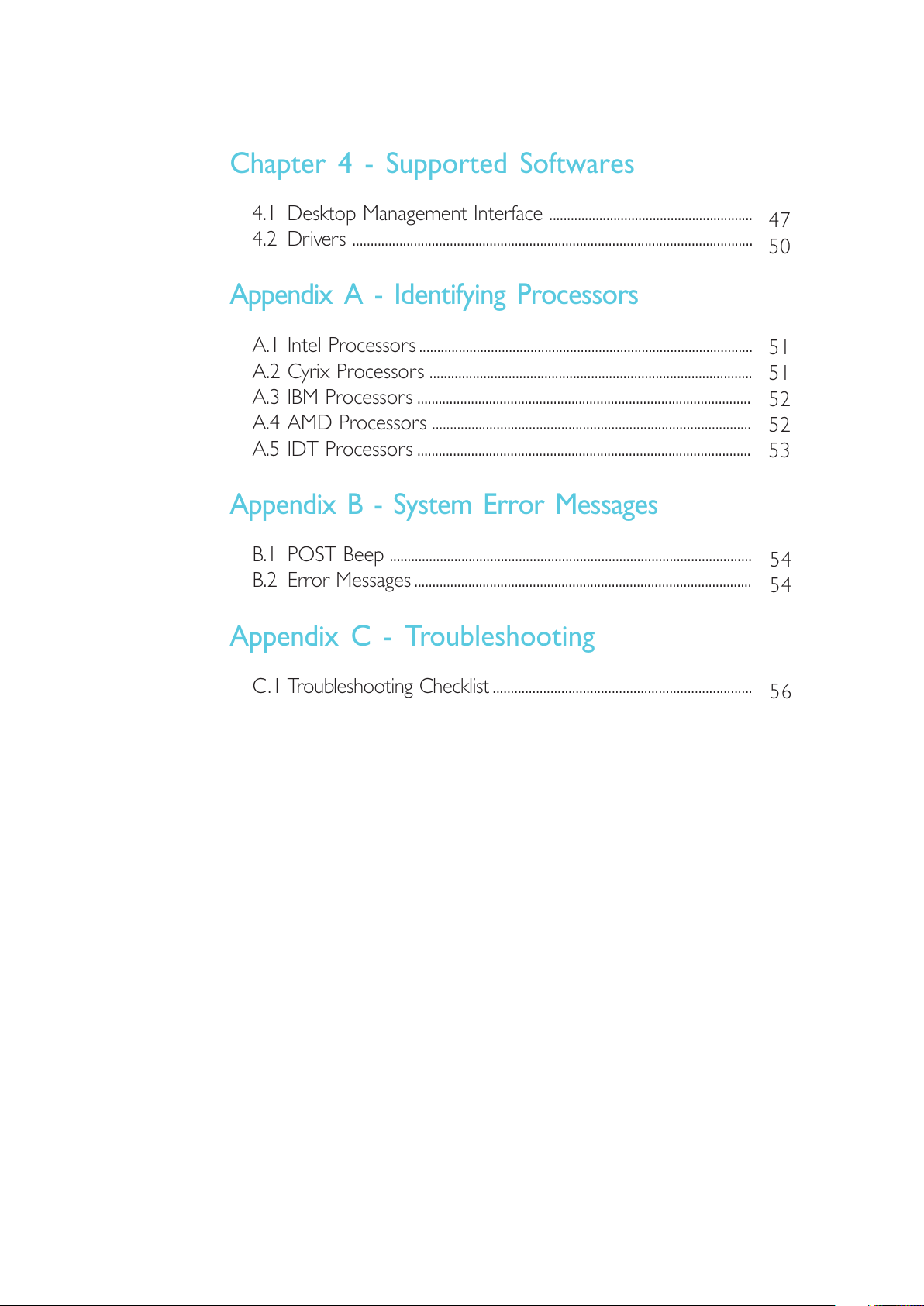

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface .........................................................

4.2 Drivers ...............................................................................................................

Appendix A - Identifying Processors

A.1 Intel Processors .............................................................................................

A.2 Cyrix Processors ..........................................................................................

A.3 IBM Processors .............................................................................................

A.4 AMD Processors .........................................................................................

A.5 IDT Processors .............................................................................................

Appendix B - System Error Messages

B.1 POST Beep .....................................................................................................

B.2 Error Messages ..............................................................................................

Appendix C - Troubleshooting

C.1 Troubleshooting Checklist ........................................................................

All manuals and user guides at all-guides.com

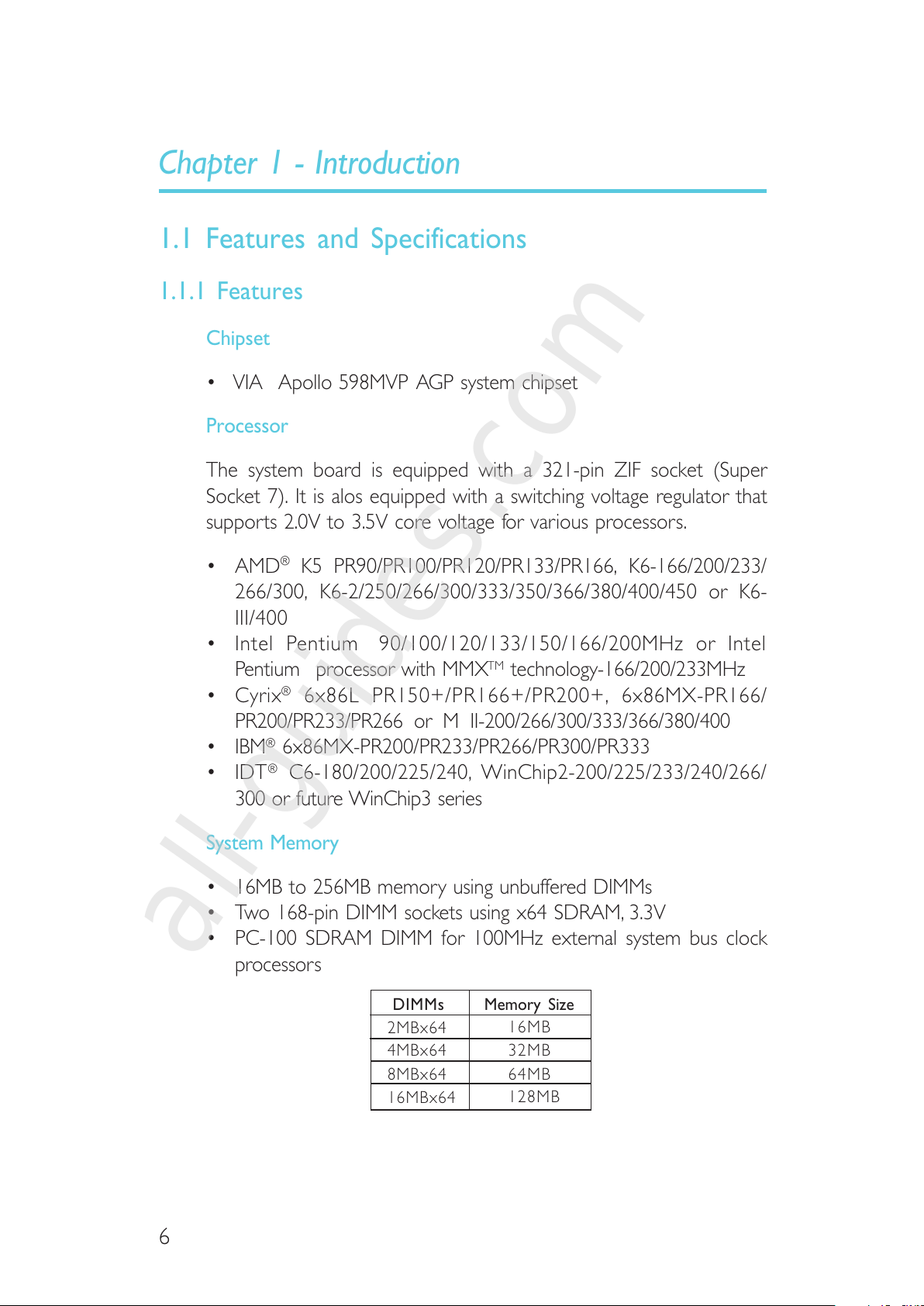

1.1 Features and Specifications

1.1.1 Features

Chipset

 VIAApollo 598MVP AGP system chipset

Processor

The system board is equipped with a 321-pin ZIF socket (Super

Socket 7). It is alos equipped with a switching voltage regulator that

supports 2.0V to 3.5V core voltage for various processors.

 AMD®K5 PR90/PR100/PR120/PR133/PR166, K6-166/200/233/

266/300, K6-2/250/266/300/333/350/366/380/400/450 or K6-

III/400

 Intel Pentium90/100/120/133/150/166/200MHz or Intel

Pentiumprocessor with MMXTM technology-166/200/233MHz

 Cyrix®6x86L PR150+/PR166+/PR200+, 6x86MX-PR166/

PR200/PR233/PR266 or M II-200/266/300/333/366/380/400

 IBM® 6x86MX-PR200/PR233/PR266/PR300/PR333

 IDT®C6-180/200/225/240, WinChip2-200/225/233/240/266/

300 or future WinChip3 series

System Memory

 16MB to 256MB memory using unbuffered DIMMs

 Two 168-pin DIMM sockets using x64 SDRAM, 3.3V

 PC-100 SDRAM DIMM for 100MHz external system bus clock

processors

Chapter 1 - Introduction

DIMMs

2MBx64

4MBx64

8MBx64

16MBx64

Memory Size

16MB

32MB

64MB

128MB

All manuals and user guides at all-guides.com

all-guides.com

Introduction

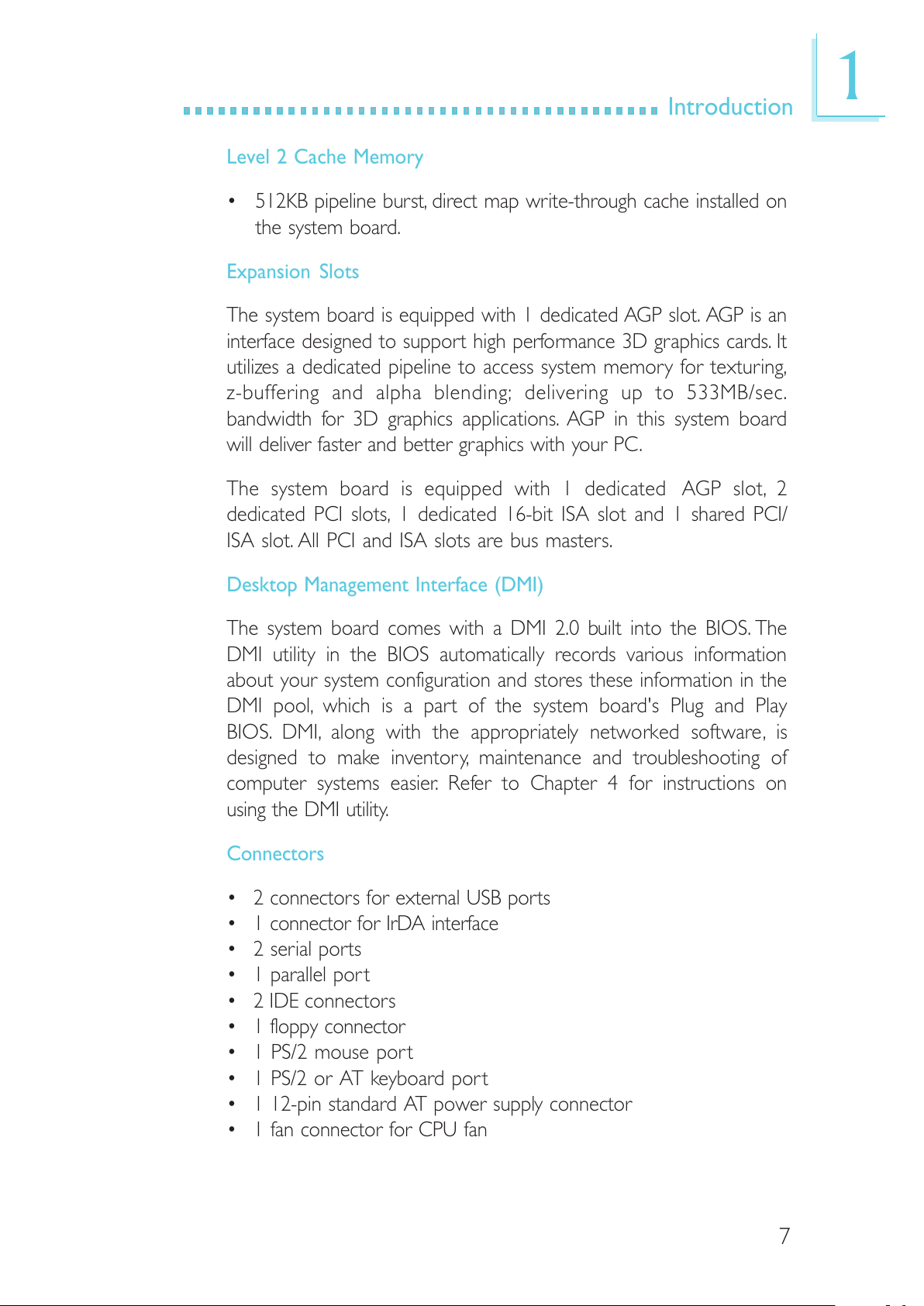

Level 2 Cache Memory

 512KB pipeline burst, direct map write-through cache installed on

the system board.

Expansion Slots

The system board is equipped with 1 dedicated AGP slot. AGP is an

interface designed to support high performance 3D graphics cards. It

utilizes a dedicated pipeline to access system memory for texturing,

z-buffering and alpha blending; delivering up to 533MB/sec.

bandwidth for 3D graphics applications. AGP in this system board

will deliver faster and better graphics with your PC.

The system board is equipped with 1 dedicated AGP slot, 2

dedicated PCI slots, 1 dedicated 16-bit ISA slot and 1 shared PCI/

ISA slot. All PCI and ISA slots are bus masters.

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The

DMI utility in the BIOS automatically records various information

about your system configuration and stores these information in the

DMI pool, which is a part of the system board's Plug and Play

BIOS. DMI, along with the appropriately networked software, is

designed to make inventory, maintenance and troubleshooting of

computer systems easier. Refer to Chapter 4 for instructions on

using the DMI utility.

Connectors

 2 connectors for external USB ports

 1 connector for IrDA interface

 2 serial ports

 1 parallel port

 2 IDE connectors

 1 floppy connector

 1 PS/2 mouse port

 1 PS/2 or AT keyboard port

 1 12-pin standard AT power supply connector

 1 fan connector for CPU fan

All manuals and user guides at all-guides.com

Introduction

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices

 Ultra DMA/33 supported (Synchronous Ultra DMA mode -

data transfer rate up to a maximum of 33MB/sec.)

 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up

to 16.6MB/sec.)

 Bus mastering reduces CPU utilization during disk transfer

 ATAPI CD-ROM, LS-120, ZIP supported and SCSI sequential

boot-up.

IrDA Interface

The system board is equipped with an IrDA connector for wireless

connectivity between your computer and peripheral devices. It

supports infrared peripheral devices that meet the ASKIR or HPSIR

standard.

USB Ports

The system board is equipped with two connectors for external

USB ports. USB allows data exchange between your computer and

a wide range of simultaneously accessible external Plug and Play

peripherals.

BIOS

 Award BIOS, Windows95/98 Plug and Play compatible

 Flash EPROM for easy BIOS upgrades

 1MB flash memory (2MB - optional, includes SDMS function)

1.1.2 Intelligence

Virus Protection

Most viruses today destroy data stored in hard drives. The system

board is designed to protect the boot sector and partition table of

your hard disk drive.

All manuals and user guides at all-guides.com

Introduction

1.2 Package Checklist

The system board package contains the following items:

þThe system board

þA users manual

þSerial, mouse and printer port cables

Option 1:

- One card-edge bracket with a 9-pin and 25-pin serial port

cables

- One card-edge bracket with a 25-pin printer port cable and

a PS/2 mouse port cable

Option 2:

- One card-edge bracket with two 9-pin serial port cables

and a PS/2 mouse port cable

- One 25-pin printer port cable for chassis mounting

þOne 40-pin IDE hard disk cable

þOne 34-pin floppy disk drive cable

þOne CD

¨One card-edge bracket with two USB ports (optional)

If any of these items are missing or damaged, please contact your

dealer or sales representative for assistance.

All manuals and user guides at all-guides.com

2.1 System Board Layout

Chapter 2 - Hardware Installation

Mounting hole used for installing

a mounting screw to secure the

system board to the chassis.

Warning:

Remember to remove the mounting screw located underneath the

processor prior to removing the system board from the chassis. To

access the mounting screw, you must first loosen the fan/heatsink

and remove the processor.

All manuals and user guides at all-guides.com

Andere Handbücher für P5BV3+/e

Inhaltsverzeichnis

Andere DFI Hauptplatine Handbücher

DFI

DFI MB331-CRM Bedienungsanleitung

DFI

DFI G5C100-N Bedienungsanleitung

DFI

DFI LanParty nF4 Bedienungsanleitung

DFI

DFI CS620-H310 Bedienungsanleitung

DFI

DFI KD300-H110 Bedienungsanleitung

DFI

DFI PB50-ZX Bedienungsanleitung

DFI

DFI CB50-V3 Bedienungsanleitung

DFI

DFI 915GM-MIGF Bedienungsanleitung

DFI

DFI E586-ICP Bedienungsanleitung

DFI

DFI CMS330-Q470E/H420E Bedienungsanleitung

DFI

DFI CMS100 Bedienungsanleitung

DFI

DFI AK34-SC Bedienungsanleitung

DFI

DFI 865pe infinity Bedienungsanleitung

DFI

DFI G4E620-N Bedienungsanleitung

DFI

DFI BT253 Bedienungsanleitung

DFI

DFI MB336-NRM Bedienungsanleitung

DFI

DFI HD636-H81CS Bedienungsanleitung

DFI

DFI CMS631-Q470E/H420E Bedienungsanleitung

DFI

DFI ICX610-C621A-000G Bedienungsanleitung

DFI

DFI HU101 Bedienungsanleitung

DFI

DFI KU173 Bedienungsanleitung

DFI

DFI NP100-N16C Bedienungsanleitung

DFI

DFI G7S620-N Bedienungsanleitung

DFI

DFI 915P-TAL Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
