Fill Kit Procedure for E-DWT

P/N 3462475

Instruction Sheet

Fill kit for E-DWT, P/N 3462475, includes:

DESCRIPTION QTY PART NO.

Aluminum Handheld

Vacuum Pump

1 3461640

Fluid Reservoir Kit, 4.5 OZ 1 3461657

Tubing, 1/4” Id, 3/8” OD 2x5 cm 3516775

Tubing, Pfa,1/4” OD 20 cm 3232378

Hose Clip 4 3516418

Elbow,

1/4 Push-In X 10-32unf

2 3142691

Slide Valve, Knurled Sleeve,

Brass

1 3461907

10-32 Hex Extension

Adapter, 2 In Length, Brass

1 3461706

O-Ring, Fluorocarbon (Fkm),

Brown

1 3461714

Introduction

This kit is a tool to completely fill the E-DWT-H

internal test volume with liquid test fluid, and

minimize residual air in the system.

Assembly

The fill kit is shipped partially assembled. To

complete assembly, connect as shown in Figure 1

by sliding the 3/8" tubing onto the reservoir ports

and 1/4" tubing and secure with the hose clips

included in the kit. The clips can be initially closed

by hand, then tightened using pliers. The tubing

will slide onto the barbed connection tightly

without a hose clip.

Procedure

nPlug the E-DWT-H test ports: Use the provided

DH500 plugs to plug both of the DH500 female

test ports on top of and on the rear of E-DWT-H.

oOpen the reservoir and test shut off valves:

Turn both valve handles on the E-DWT-H front

panel counter-clockwise.

pTurn the E-DWT-H variable volume handle

clockwise until it stops.

Figure 1: E-DWT-H Fill Kit, Assembled

qSet the range set valve to the Lo Q RPT:

rRemove the reservoir lid (shown removed in

Figure 2):

Figure 2: Fill kit connected to reservoir port

Fluke. Keeping your world up and running.®

Fluke Corporation

DH Instruments Division

4765 East Beautiful Lane

Phoenix, AZ 85044-5318 USA

Ph: 602.431.9100

Fax: 602.431.9559

Fluke Europe B.V.

PO Box 1186, 5602 BD

Eindhoven, The Netherlands

For more information call:

In the U.S.A. (800) 443-5853 or

Fax (425) 446-5116

In Europe/M-East/Africa +31 (0) 40 2675 200 or

Fax +31 (0) 40 2675 222

In Canada (800)-36-FLUKE or

Fax (905) 890-6866

From other countries: +1 (425) 446-5500 or

Fax +1 (425) 446-5116

Web access: http://www.dhinstruments.com

without notice. E-DWT-H and E-DWT are registered trademarks of

Fluke Corporation, DH Instruments Division.

Printed in U.S.A. 7/2009 3463534A D-EN-N

Modification of this document is not permitted

without written permission from Fluke Corporation.

sThread the brass standoff into the port at the

bottom of the reservoir.

tOpen the slide valve by sliding the shuttle up:

Valve operation is UP-OPEN and DOWN-CLOSED

when the kit is in the orientation shown in

Figure 1.

Squeeze the hand pump until vacuum is near

25 inHg. Read the vacuum on the gauge

attached to the hand pump.

Close the slide valve by sliding the shuttle

down.

Fill the reservoir cup halfway with the liquid test

media. Refer to E-DWT-H User’s Manual for

supported test fluids.

Remove the brass standoff from the reservoir

port. Liquid will be drawn into the evacuated

system.

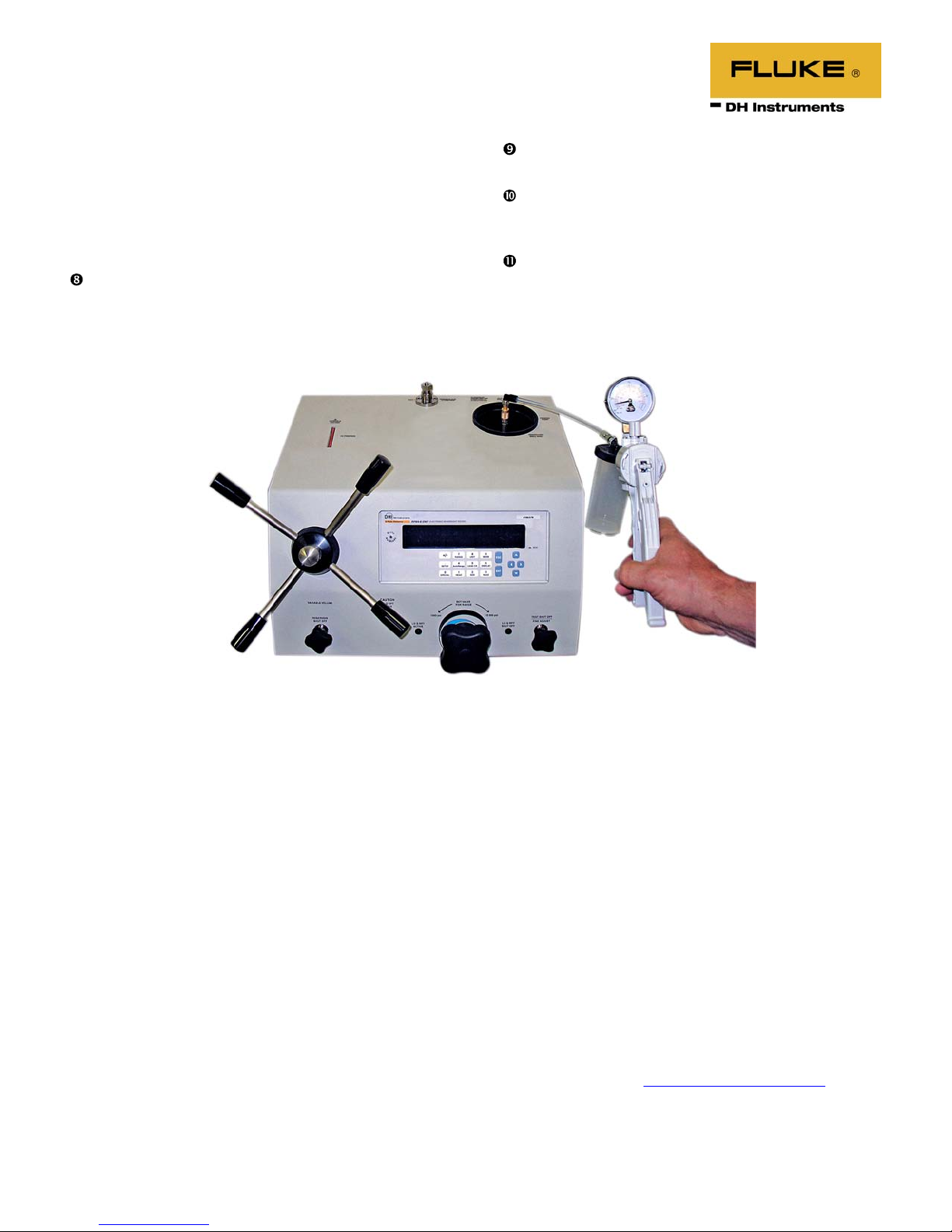

Figure 3: Evacuating the E-DWT-H with fill kit
