COMPUTER-CONTROLLED INDOOR CYCLE

OWNER’S MANUAL

910Ic Owner’s Manual

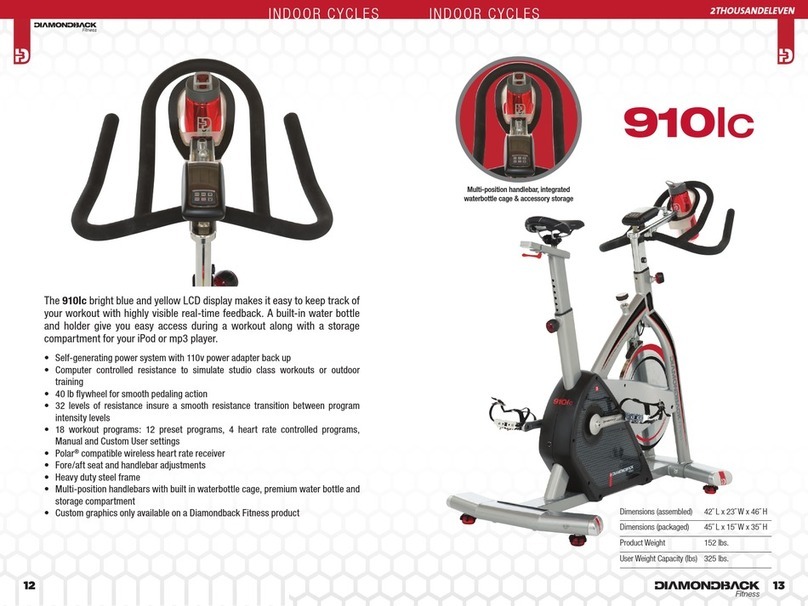

910Ic

Computer-Controlled Indoor Cycle

Diamondback Fitness

Release v.1 (10/10)

910Ic Owner’s Manual

INTRODUCTION

Congratulations on the purchase of your new Diamondback Fitness computer-controlled indoor cycle. You have

made a great choice and are about to enjoy one of the most effective and technically-advanced methods of low-

impact cardio-vascular exercise available today.

Founded in 1991 as an off-shoot of the legendary bicycle company, Diamondback Fitness was in many ways a

complimentary addition to the Diamondback brand. One might even say this extension grew as a natural

evolution…an evolution from classic outdoor bicycle usage, toward indoor-based cycling and cross training. It turns

out that many fitness enthusiasts were searching for ways to maintain conditioning during times of inclement

we at her or simply looking for new and different cross-training options.

This trend still continues today, twenty years later, as the strong Diamondback brand resonates with both the

boomers who grew up with the bicycles, as well as the younger generations riding them today.

Diamondback Fitness continues to build upon this legendary brand identity by offering the cardio enthusiast a full

line of upright exercise bikes, recumbent cycles, and elliptical trainers, each offering superior value and quality with

intuitive and visually-appealing design. Let’s just say, we are already planning our next twenty years.

Thank you for choosing Diamondback Fitness.

Diamondback Fitness

6004 South 190th Street, Suite 101 ●Kent WA 98032 ●Ph. 1.800.776.7642 ●Fax: 1.800.776.2073

For more information or questions regarding your equipment, please visit our website at DiamondbackFitness.com.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS & WARNINGS 7

CARTON CONTENTS 9

910Ic ASSEMBLY INSTRUCTIONS 10

WORKOUT GUIDELINES 15

WORKOUT QUALITY AND QUANTITY 19

CONSOLE OVERVIEW & GENERAL NOTES 20

CONSOLE LCD DISPLAY 20

CONSOLE KEYPAD FUNCTION 22

CONSOLE OPERATION AND FEATURES 22

PROGRAM CATEGORIES 24

TROUBLESHOOTING 29

MAINTENANCE 30

WARRANTY INFORMATION 30

WARRANTY REGISTRATION CARD 33

PURCHASER’S REFERENCE INFORMATION 35

910Ic Owner’s Manual

SAFETY INSTRUCTIONS & WARNINGS

Every piece of Diamondback Fitness equipment is built for maximum safety and meets or exceeds all applicable domestic and

international standards. However, certain precautions must be taken when operating any piece of fitness equipment.

NOTE: Please read the entire owner’s manual before operating the unit. Save this manual for future reference.

Cautions – For Safe O p e r a t ion

Keep hands and feet away from all moving parts and pinch points.

If you have a history of heart disease, high blood pressure, diabetes, chronic respiratory diseases, elevated cholesterol,

or if you smoke cigarettes or experience any other chronic diseases or physical complaints, consult with a physician

before beginning any exercise program.

If overweight, or above the age of 35, consult with your physician before beginning an exercise program.

Pregnant women should consult with their physician before beginning an exercise program.

If you experience dizziness, nausea, chest pains or other abnormal symptoms during exercise, stop the exercise session

immediately and consult your physician.

Consume water before, during and after each exercise session.

Warnings – To Reduce the Risk of Injury to Yourself and Others

To ensure proper functioning of your unit, do not install attachments or accessories not provided or recommended by

Diamondback Fitness.

Always wear proper clothing and shoes when exercising.

User weight is not to exceed 325 pounds (147.4 Kg) for the 910Ic.

Keep children away from the unit. Hands and feet may become entangled with the moving parts and could result in

serious injury.

Place the unit in an area that will meet minimum clearance requirements:

front & sides = 24 inches

rear = 12 inches.

The unit is intended for indoor use only.

Place the unit on a solid, level surface. Always adjust the leveling feet before using to ensure stability.

Ensure all adjustment knobs and levers are fastened securely before using the unit and after making an adjustment.

Use the handlebars when stepping on and off the unit.

The unit is heavy. Do not attempt to move alone.

Never operate the unit if it is damaged or broken. Contact your local authorized Diamondback Fitness Dealer for

service.

Please unplug the unit after exercising.

Always unplug the unit from the power source before moving or servicing.

Do not remove the covers or other components. Only Authorized Diamondback Fitness Dealers or Authorized

Technicians should perform service on the unit.

Assembly of Technical Items

Assembly of all Diamondback Fitness products should be performed by a Diamondback Fitness Dealer or Authorized Technician.

A significant amount of technical knowledge is required for the safe and complete assembly of the unit. Many retailers will offer

delivery and assembly as part of the sales agreement. If this unit was sold unassembled (in the carton) and you do not feel you

can perform the assembly successfully, please call the dealer for service. Service calls for improper assembly are not covered by

the Warranty Policy and any associated charges will be the responsibility of the owner.

910Ic Owner’s Manual

CARTON CONTENTS

Parts List

Item Description Quantity

A Console 1

A-1 Console Fixing Screw 4

B Handlebar Assembly 1

B-1 Handlebar Assembly Endcap 1

B-4 Fore-Aft Adjustment Lever 2

B-13 Water Bottle Cage Fixing Screw 3

B-15 Water Bottle Cage Assembly 1

B-16 Water Bottle 1

B-17 Wire Harness 1

B-20 Handlebar Assy Endcap Fixing Screw 1

D Front Stabilizer Assembly 1

D-2 Leveling Foot Assembly 4

E Rear Stabilizer Assembly 1

F-16 Power Input Jack 1

F (L & R) Pedal, Clip & Strap Assembly (pair) 1

G Main Frame 1

G-6 Stem / Seat Post Adjustment Knob 2

H-1 Stabilizer Assembly Fixing Screw 8

H-2 Stabilizer Assembly Curved Washer 4

H-3 Stabilizer Assembly Flat Washer 4

H-4 Handlebar Assembly Fixing Screw 2

H-5 Handlebar Assembly Lock Washer 2

H-6 Handlebar Assembly Flat Washer 2

J Stem Assembly 1

K Assembly Hardware / Tool Kit 1

L Saddle 1

M-1 Emergency Stop Knob 1

N Power Supply/Adaptor 1

910Ic ASSEMBLY INSTRUCTIONS

•Unpack the 910Ic from the carton. Please recycle.

•Verify the carton contains all parts from the list.

•Remove the blocking (the short section of tubing

installed at the factory to prevent damage to the

front frame during shipping) by removing the two

fixing screws shown in Figure 1 above. Discard this

piece.

•Align the front stabilizer (D) with the receiver located in the

front of the frame, and loosely install four (4) H-1 bolts, two

(2) curved washers (H-2) and two (2) flat washers (H-3),

making sure that the correct shape of washers are installed on

their corresponding surface profile; i.e. flat washer on the flat

surface, etc. When all bolts have been inserted, tighten for

final installation.

•Repeat this process for the rear stabilizer assembly (E).
