Digi ConnectPort X4 H Bedienungsanleitung

Quick Start Guide

ConnectPort® X4 H

Welcome to your Digi product

Get started: This guide helps you with initial product setup. Need more? Find additional

product support at www.digi.com/support/ConnectPortX4. Or connect to the online

documentation by scanning this code:

Digi Technical Support: Digi offers multiple support plans to help you get the most out of your

product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or

visit www.digi.com/support.

Documentation Feedback: To provide feedback on this documentation, send your comments

to techcomm@digi.com.

1Verify your components

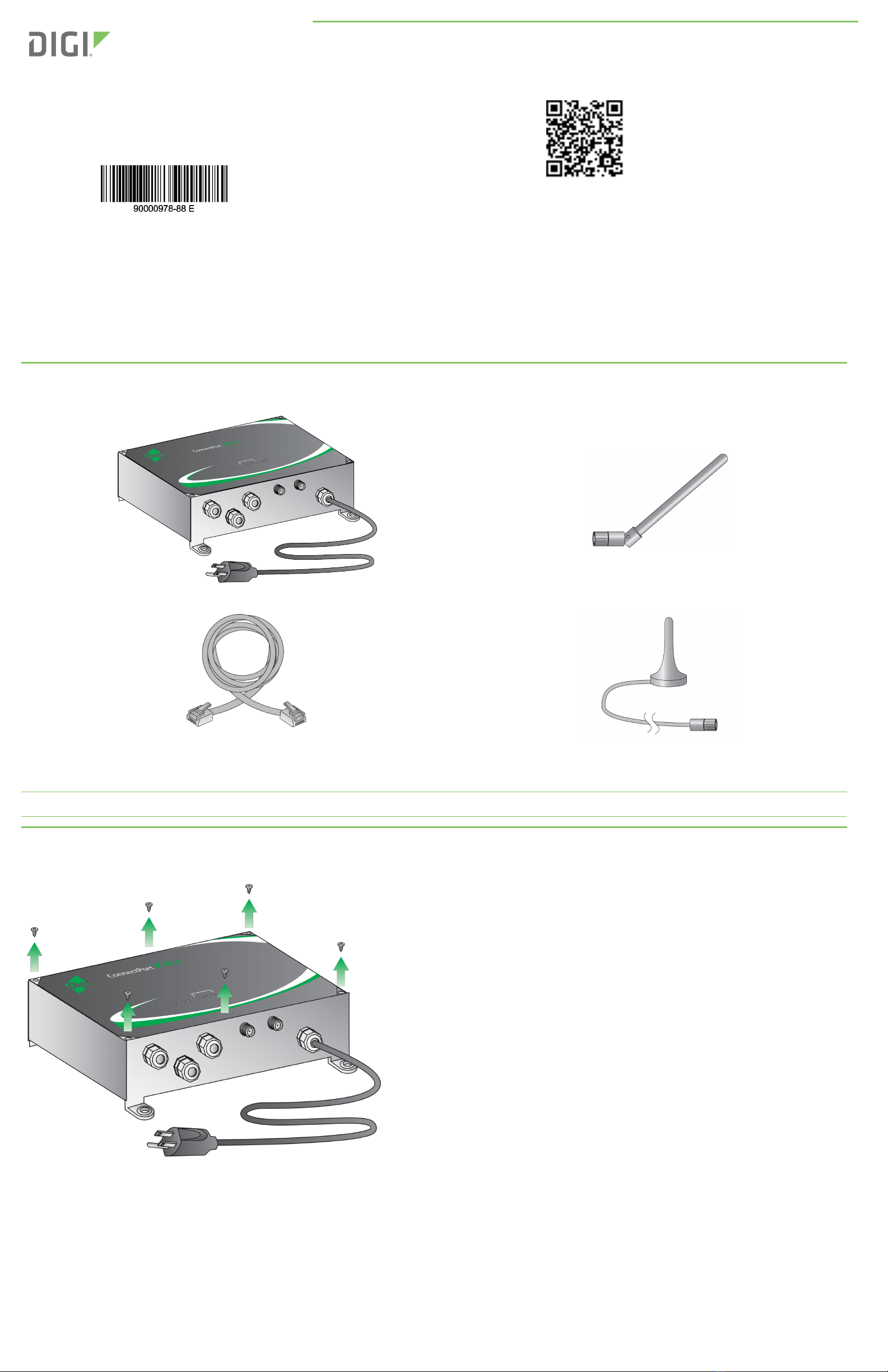

Included equipment

Connect Port X4 H Cellular/WiMAX antenna

Ethernet cable Wire whip antenna

Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.

Note If your device uses a SIM card, it must be supplied and activated by a cellular service provider for device operation.

2Open the device

Unscrew and open the lid. Be sure to note that the top of the enclosure is hinged to the base on the power cord side.

Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this

document are the property of their respective owners.

3Install SIM/Ethernet

Note If your device uses a SIM card, you must insert the SIMcard. If your device does not use a SIMcard, you can skip this step.

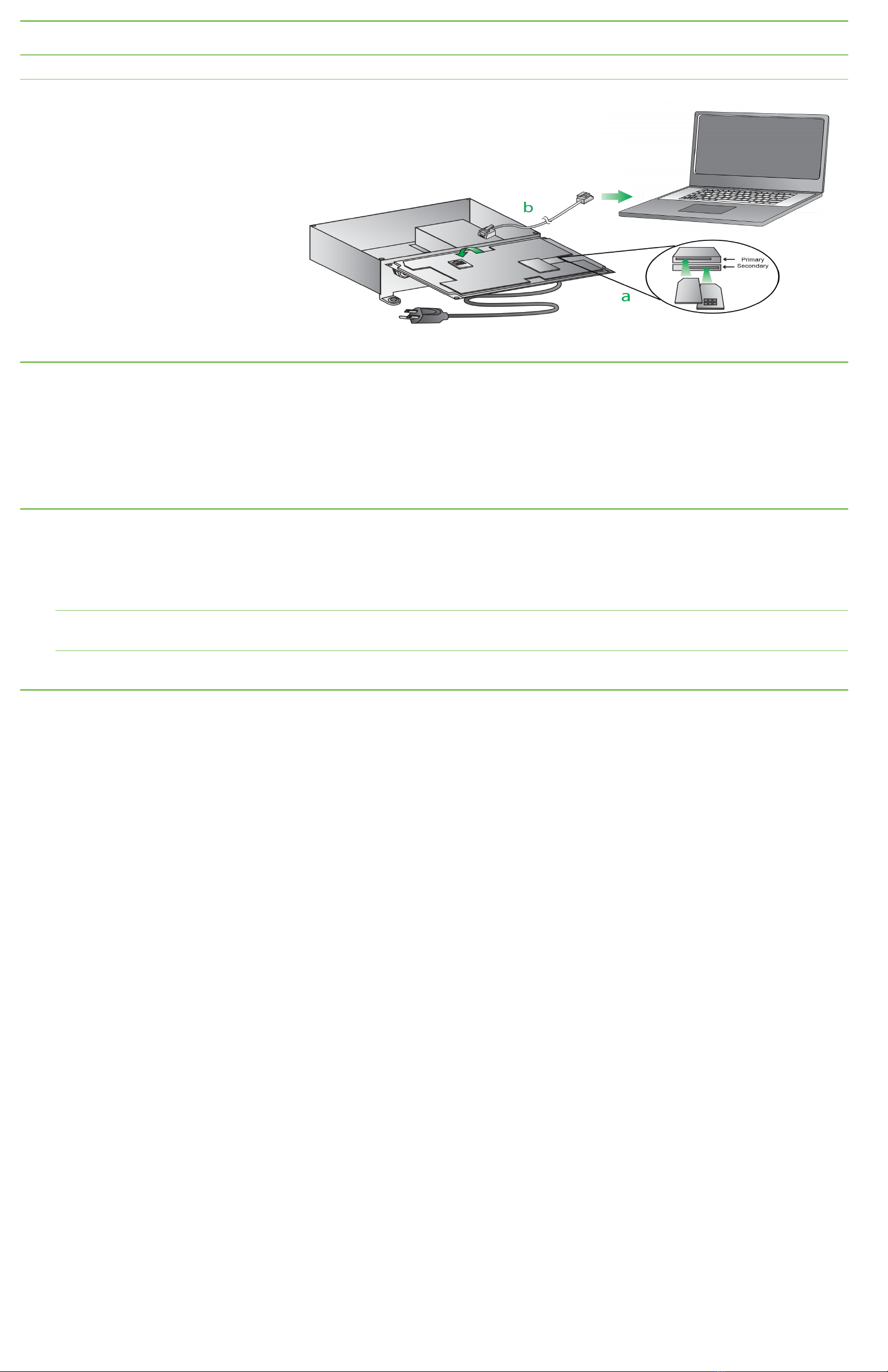

a. Insert the SIMcard as shown.

Install the primary SIMcard in the upper

SIMslot, with the contacts face down.

Install the secondary SIM card in the

lower slot, with the contacts face up. In

both cases, insert the end of the SIM

card with the chamfered corner first.

b. Connect one end of the Ethernet cable

to the ConnectPort X4 H and the other

end to the PC.

4Connect the hardware

a. Connect the wire whip antenna.

b. Connect the cellular antenna.

c. Power up the unit by connecting the ACpower cord to a proper power source.

d. After you have connected all the hardware, you must configure the unit. For configuration information, see the ConnectPort X4 Getting

Started Guide, which you can download from www.digi.com/ConnectPortX4.

5Complete the device setup

a. Remove power from the unit by disconnecting the power source.

b. Remove the Ethernet cable.

c. Replace the screws that were removed in Step 2.

Note Digi recommends that you use 4 to 5 inches per pound of torque when tightening the screws. You should tighten the screws in a

criss-cross pattern to ensure that the cover is not bent or skewed during this process.

a. Restore power to the unit by reconnecting the power source. The unit is now ready to use.

6Next steps

For more details about the ConnectPort X4 family, go to: www.digi.com/ConnectPortX4.
