ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

PIXIM Bullet Camera

DWC-B1365T

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Control Board

Adjusting the Camera Lens

13-24

26-27

28-29

Adjusting the Camera Angle 12

FEATURES*

1/3” PIXIM Seawolf CMOS Sensor

690 Horizontal TV Lines

3.3~12mm Varifocal Auto Iris Lens

TDN (True Day and Night/IR Cut Filter)

3D-DNR (3D Digital Noise Reduction)

Powerful Wide Dynamic Range

Ultra Low Light Sensitivity

Smear Canceling Circuit

AGC / BLC / AWB

Programmable Privacy Zones (6) & Motion Detection

OSD Menu with Built-in Joystick

IP66 Certified (Weatherproof)

No Fog or Condensation under Any Weather Condition

Auto Sensing 12VDC/24VAC with Line Lock

Secondary Video-BNC Output

Ball Neck Bracket (Simple Camera Positioning)

External Lens and OSD Control

Set Screw

RS 485

NO IR

PARTS & DESCRIPTION*

1 2 4 65 7 8

1Front Case

Zoom & Focus Housing

Sunshield

Lens

Rear Case

Control Board

Control Cap

8Double Arm Bracket

Second Video-BNC Output Connector

Power Input Connector (Dual Voltage)

Assembly Screw

Mounting Screw

Set Screw

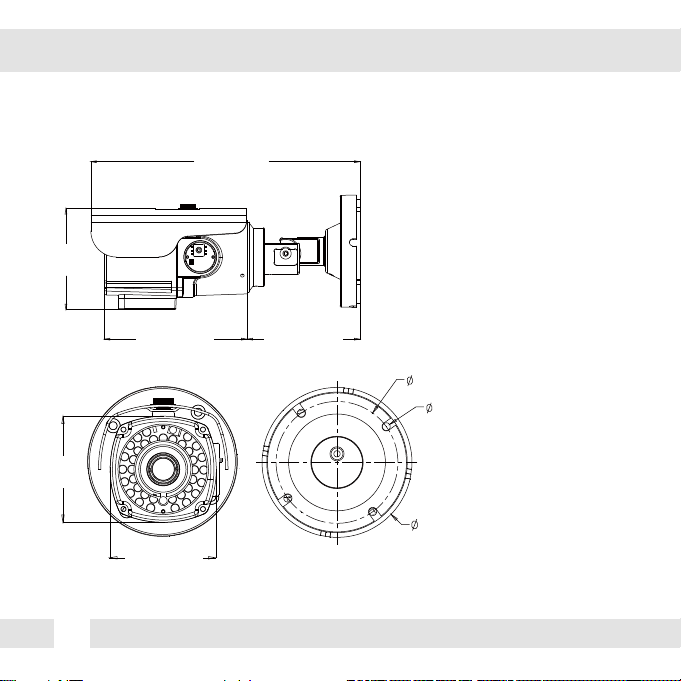

DIMENSIONS IN MILLIMETERS (IN)*

230(9.06”)

86.5

(3.41”)

122(4.80”) 96.5(3.80”)

68.0

(2.68”)

68.0(2.68”)

78.0(3.07”)

5.0(0.2”)

96.0(3.78”)

INSIDE THE BOX*

Included with B1 Bullet Camera

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

L-Key

Double-Sided TORX-T20 Hex Key

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Bullet Camera

DWC-B1363D

DWC-B1363TIR

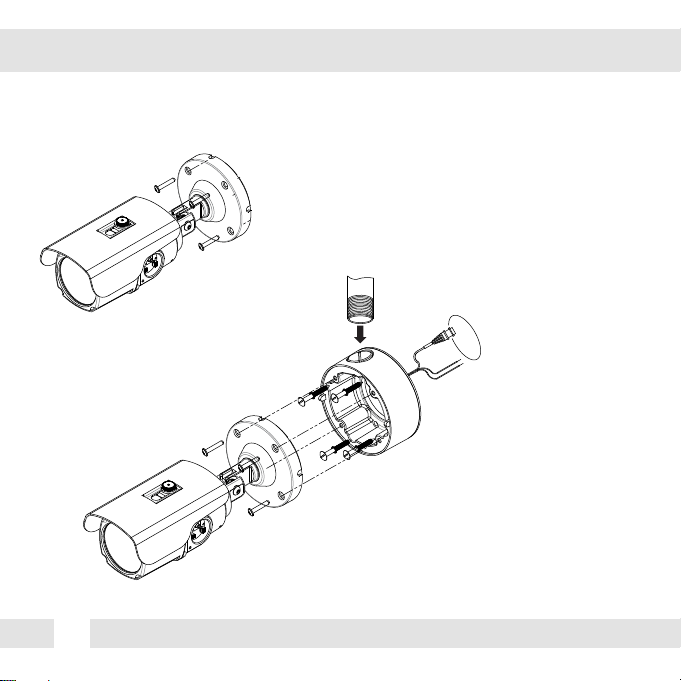

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

Use the 4 mounting screws to install the camera on the

wall or ceiling.

Then, follow the next step on pages 9-12.

NPT 3/4” Pipe



*Installation Using a Junction Box

*Note: Electrical junction box and required screws are sold separately.

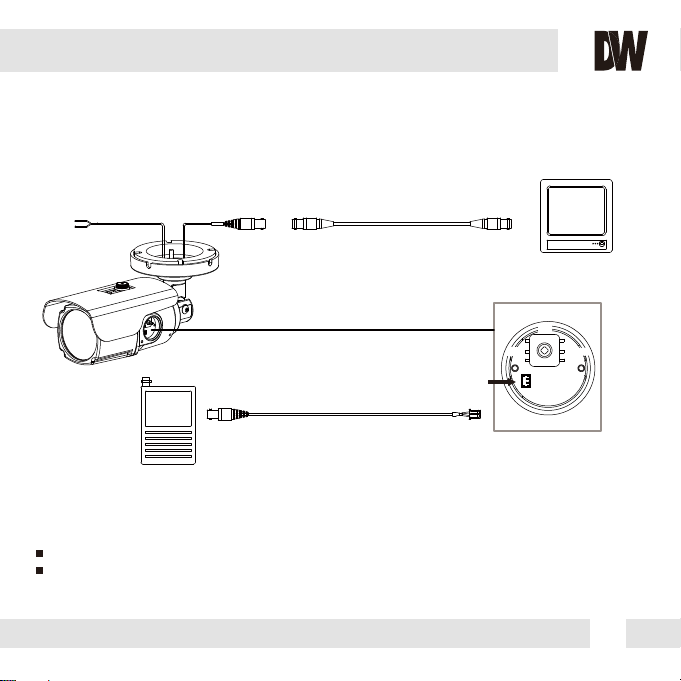

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC/24VAC

Monitor

CCTV Monitor

Second Video Output

Right

Left

Down

Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

CONNECTING TO MONITORS*

Joystick: Controls the OSD menu.

Secondary Connector:

Video Output Connector for

On-Site Configuration

CONTROL BOARD*

Remove clear plastic ring from the control cap.

Turn control cap counter-clockwise until cap separates completely from the camera body.
