Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

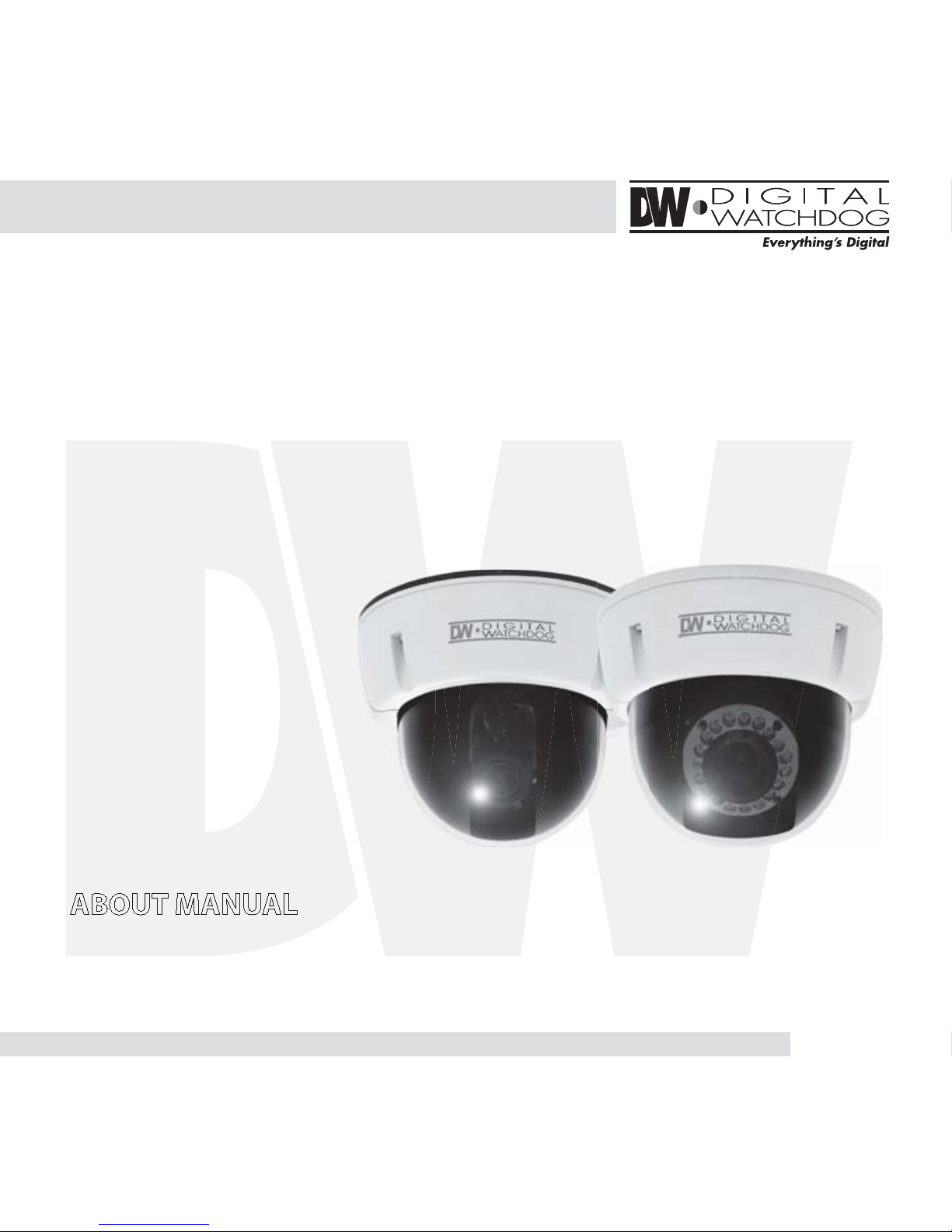

ABOUT MANUAL

12232010

User Manual

Indoor Dome Camera

DWC-D2252DIR, D2262DIR, D2362DIR

DWC-D2363D, D2363TIR

DWC-D2367WD, D2367WTIR

GGDonot open or modify.

GGDonot open the case except during maintenanceand installation,

for it may bedangerous and can cause damages.

GDonot put objects into the unit.

GGGG

or other damages.

GGGBe careful when handling the unit.

Toprevent damages, do not drop the camera or subjectit to shockor vibration.



Protectfrom humidity and dust.

Protectfrom high temperature.



Be careful when installing near the ceiling of akitchen or aboiler room,as the temperature may rise to

high levels.

Cleaning

Toremovedirt from the case, moisten asoft cloth with asoft detergent solution and wipe.

Mounting Surface

The material of the mounting surfacemust bestrong enough to support the camera. GGGGGGGGGGGGGGGGGGGGGGGGGGG

PRECAUTIONS

This equipment has been tested and found to complywith the limits for aClass Bdigital device, pursuant

to Part 15 of the FCC rules. These limits are designed to provide reasonableprotection against harmful

interference, when the equipment is operated in aresidential environment. This equipment generates, uses,

and radiates radio frequencyenergy; and if it is not installed and used in accordancewith the instruction

manual,it may cause harmful interferenceto radio communications.

WARNING

:Changes or modications are not expresslyapproved bythe manufacturer.

FCC COMPLIANCE

Before sending your camera for repair, checkthe following or contactour technical specialist.

No Video

Checkthe coaxial cableand make sure it is connected securely.

Checkthe lens’ iris adjustment at the menu setup of the camera.

Checkthe power supplyand make sure the camera has the proper voltage and current.

Out-of-Focus Video

Checkthe lens manual focal and zoom adjustment. Fieldtest monitor is recommended.

TROUBSHOOTING

1/3” Sony Super HAD II CCD

420 TV Lines

3.6mm Fixed Lens (D2252DIR)

3.3 ~ 12m Varifocal Auto Iris Lens (D2262DIR)

100ft Range IR with Intelligent Camera Sync

Electronic Day and Night

DRC (Dynamic Range Compressor)

HME (Highlight Masking Exposure)

SLC (Side Light Compensation)

AGC / BLC / AWB

NegativeImaging

Mirror Image Control

ProgrammablePrivacyZone (4) & Motion Detection

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 12VDC/24VAC with Line Lock

12VDC Transformer Included

Secondary Video-BNC Output

FEATURES*-D2252DIR, D2262DIR

FEATURES*-D2362DIR

1/3” Sony Super HAD II CCD

540TV Lines

3.3 ~ 12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

Electronic Day and Night

DRC (Dynamic Range Compressor)

HME (Highlight Masking Exposure)

SLC (Side Light Compensation)

AGC / BLC / AWB

NegativeImaging

Mirror Image Control

12VDC Transformer Included

ProgrammablePrivacyZone (4) & Motion Detection

Easy Icon Driven OSD Menu with Built-InJoystick

Secondary Video-BNC Output

FEATURES*-D2363D

1/3" Sony Super HAD II CCD560TV Lines

3.3~12mm Varifocal Auto Iris Lens

Electronic Day and Night

Star-Light (Super Low Light Technology)

DRC (Dynamic Range Compressor)

3D-DNR (3D Digital Noise Reduction)

HME (Highlight Masking Exposure)

FEATURES*-D2363TIR

1/3” Sony Super HAD II CCD

High Resolution 560TV Lines

3.3 ~ 12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

True Day and Night / TDN5

Star-Light (Super Low Light Technology)

DRC (Dynamic Range Compressor)

3D-DNR (3D Digital Noise Reduction)

HME (Highlight Masking Exposure)

AGC / BLC / AWB

ProgrammablePrivacyZone (8) & Motion Detection

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 12VDC/24VAC with Line Lock

Secondary Video-BNC Output

BLC (BackLight Compensation)

ProgrammablePrivacyZone (8) & Motion Detection

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 12VDC/24VAC with Line Lock

Secondary Video-BNC Output

FEATURES*-D2367WD

1/3”Sony Super HAD II CCD

560 TVLines

3.3 ~12mm Varifocal Auto Iris Lens

Electronic Day and Night

EWDR (Electronic Wide Dynamic Range)

Star-Light (Super LowLight Technology)

DSS (Digital SlowShutter)

3D-DNR (3DDigital Noise Reduction)

DIS (Digital Image Stabilizer)

HME (Highlight Masking Exposure)

AGC /BLC /AWB

Programmable Privacy Zone (6) &Motion Detection

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 12VDC/24VAC with Line Lock

Secondary Video-BNC Output

FEATURES*-D2367WTIR

1/3”Sony Super HAD II CCD

560 TVLines

3.3 ~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

True Day and Night /TDN5

EWDR (Electronic Wide Dynamic Range)

Star-Light (Super LowLight Technology)

DSS (Digital SlowShutter)

3D-DNR (3DDigital Noise Reduction)

DIS (Digital Image Stabilizer)

HME (Highlight Masking Exposure)

AGC /BLC /AWB

Programmable Privacy Zone (6) &Motion Detection

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 12VDC/24VAC with Line Lock

Secondary Video-BNC Output

DIMENSION (mm)*

109.6

103.1

41.3

6.5145

117.0

125.0

5.0

4.5

91.0

85.0

L= 300mm

RS485 (Black+ & White -)

VIDEO (YELLOW)

BNC JACK

DC 12V or AC24V

5mm TWIST SOLDERING

RED

BLACK

Power Requirement *

Power Wire Maximum Distance

Wire Gauge 12VDC 24VAC

24 AWG 80ft 323ft

22 AWG 128ft 513ft

20 AWG 203ft 815ft

18 AWG 323ft 1295ft

16 AWG 514ft 2056ft

14 AWG 816ft 3264ft

12AWG 1295ft 5183ft

10AWG 2057ft 8228ft

Coaxial Cable Type Maximum Distance

RG59/U 750ft

RG6/U 1,000feet

RG11/U 1,500feet

Power Requirement

12VDC at 1A

24VAC at 500mA
