Digital Watchdog DWC-V4783WD Bedienungsanleitung

05/2015

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

ANALOG HIGH DEFINITION

SnapIt Outdoor Dome Camera

DWC-V4783WD

DWC-V4783WTIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Ceiling Mount Installation Instructions

Corner Mount Installation Instructions 11

Installation Instructions

Connecting to Monitors 13

Wall Mount Installation Instructions

Control Board

8-9

16-29

31-32

33-34

Adjusting the Camera Angle

FEATURES*

Analog High Definition (AHD) HD over Coax Technology

STAR-LIGHT™ Super Low Light Technology

Panasonic 1/3" CMOS Sensor

1080P Resolution at 30fps

Wide Dynamic Range (WDR)

Varifocal Auto-Focus P-Iris Lens 2.8~12mm

CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease

Smart IR™ with Intelligent Camera Sync. 70ft Range [DWC-V4783WTIR Models]

Smart DNR™ 3D Digital Noise Reduction

Highlight Masking Exposure (HME)

True Day/Night Mechanical IR Cut Filter [DWC-V4783WTIR Models]

Auto Sensing 24VAC/12VDC with Line Lock

Secondary Video-BNC Output (While UTP in use)

Easy Icon Driven OSD Menu with Built-in Joystick

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Dynamic Range Compressor (DRC) Reveals Low Light Detail

Auto White Balance (AWB)

Junction Box Built-in

RS-485 Built-in

IP68 Certified (Water Resistant)

Set Screw

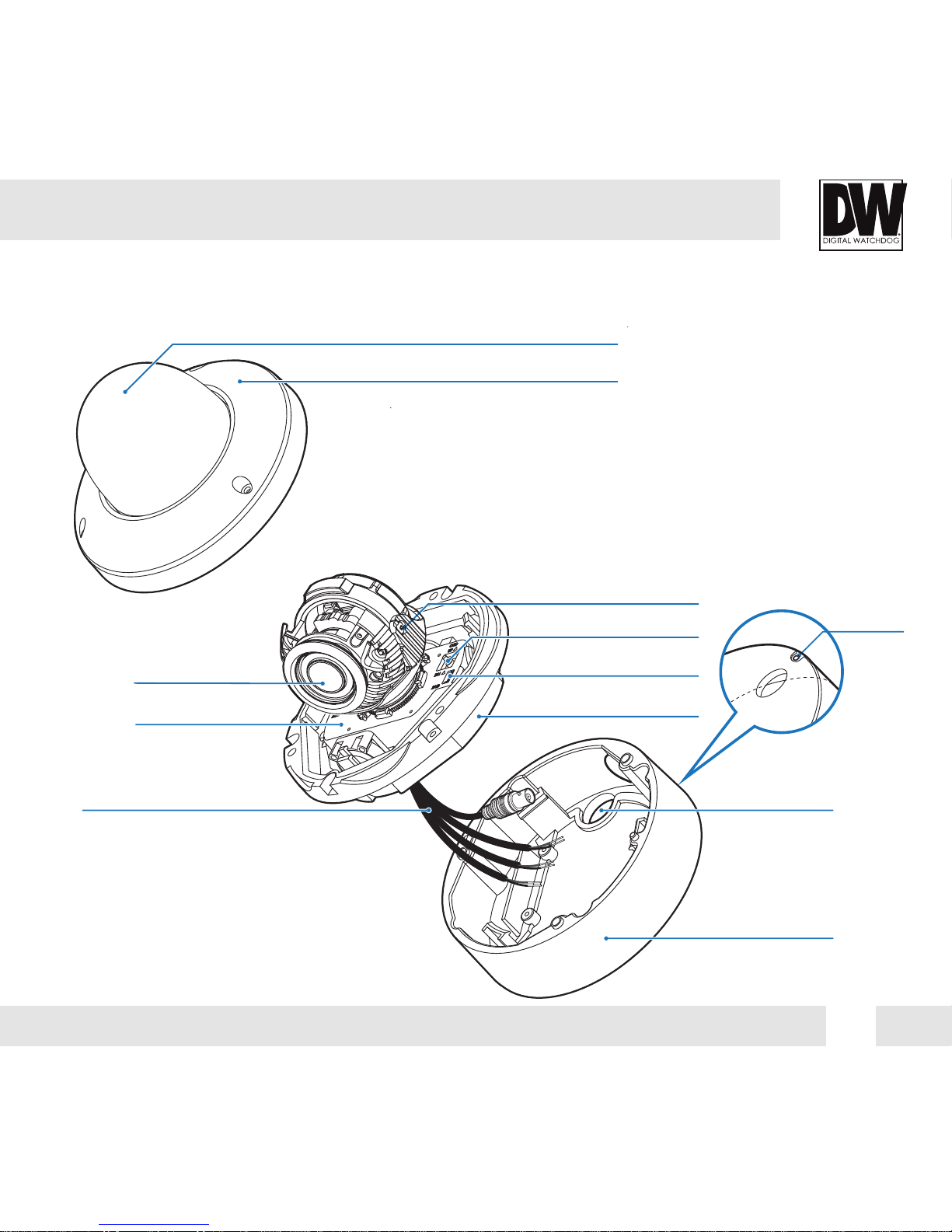

PARTS & DESCRIPTION*

Mounting Hole

Surface Mount Base

Cables: BNC, UTP, RS485

Joystick for OSD Menu

Test MotitorCable Slot

Flush Mount Base

Lens

Control Board

Tilt Stopper Screw

Bubble Dome

Upper Case

Set Screw

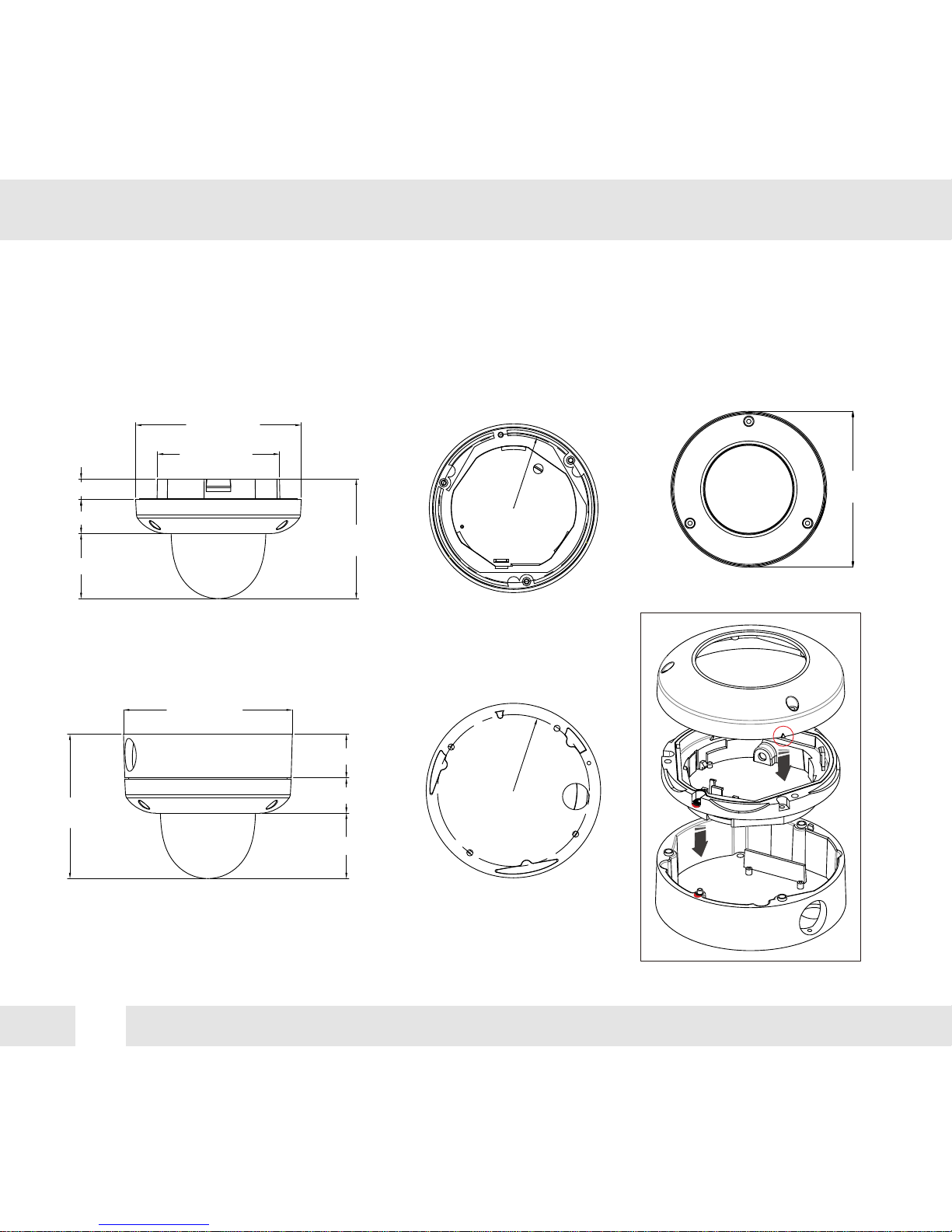

DIMENSIONS IN MILLIMETERS (IN)*

Flush Mount Top View

Surface Mount

137(5.39”)

101(3.97”)

17(0.66”)

28(1.10”)

54(2.12”)

98.8(3.88”)

139(5.47”)

118.8(4.67”)

36(1.41”)

29(1.14”)

53.8(2.11”)

121(4.76”)

INSIDE THE BOX*

Included with your camera:

Camera

Template Sheet

Cables

Screw &

Plastic Anchor-2pcs

Test Monitor Calbe

User’s Manual

DC Plug Cable

Hexagonal Wrench

(for tighten Set Screw)

Torx Screw Driver

INSTALLATION*

1. Use the included T-wrench to remove the

camera’s dome from the camerta module.

2. To detach the cameremodule from the junction

box, use a phillips head screw driver to loosen the

three screws on the module case. The camera’s

module will be secured to the junction box with the

security cable.

3. Use the mounting template or your camera’s

junction box and drill the necessary mounting

holes to the mounting surface.

3. Pull Wires through and make connections.

4. Mount the camera to the mounting surface using

the included screws.

DC 12V

AC 24V

UTP

RS485

If you need to keep the wiring within the

camera housing, refer to the diagram above.

INSTALLATION*

5. Adjust the camera’s lens position by using the 3-Axis gimbal.

6. Snap the camera dome over the camera module to complete the installation.

Flush Mount Installation

For a flush mount housing, remove the surface mount

base (junction box). Cut a large hole on the mounting

surface for the top part of the flush mount base.

Use the three screws fixed to the base to secure it to

the mounting surface. Follow steps 4 through 6 to

complete the installation.

ST4X35

INSTALLATION - WALL MOUNT*

1. Verify all parts are in the box.

2. Insert the wires from the

camera through the wall

mount housing.

3. Use the mounting template to

make pilot holes. Use the dry

wall anchors and woods screws

to attach the assembly.

4. Attach the camera’s surface

mount base (junction box) to

the wall mount.

5. Connect all cables and snap

the camera module onto the

base.

6. Adjust the camera and

secure the dome cover over

the camera module.
