PRECAUTIONS
Do not open or modify.
Do not open the case except during maintenance and installation, for it may be dangerous and can cause
damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or
other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect the camera from humidity and dust.
Protect the camera from high temperature.
Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high
levels.
Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface: The material of the mounting surface must be strong enough to support the camera.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference, when the
equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency
energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference
to radio communications.
WARNING: Changes or modifications are not expressly approved by the manufacturer.
FCC COMPLIANCE
TABLE OF CONTENTS*
FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PARTS & DESCRIPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSIDE THE BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
NETWORK CONNECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IP FINDER SOFTWARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CAMERA REBOOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
WEBVIEWER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
WARRANTY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LIMITS & EXCLUSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3
ONVIF Conformant
1/2.7” CMOS Sensor (12% Larger than 1/3” CMOS Sensor)
Highest Resolution 2.1 Megapixels
1080P (1920X1080) at 30fps
4.3mm Fixed Lens
8X Digital Zoom
Power over Ethernet [PoE] & DC12V
Web Server Built-in
H.264 and MJPEG Dual Stream
Electronic Day and Night
3D-DNR (3D Digital Noise Reduction)
Programmable Privacy Zones (30) & Motion Detection
Mirror
E-mail Event Notifications
Max 20 Users
Panic Recording
Export & Print Image
IP66 Certified (Weatherproof)
4
FEATURES*

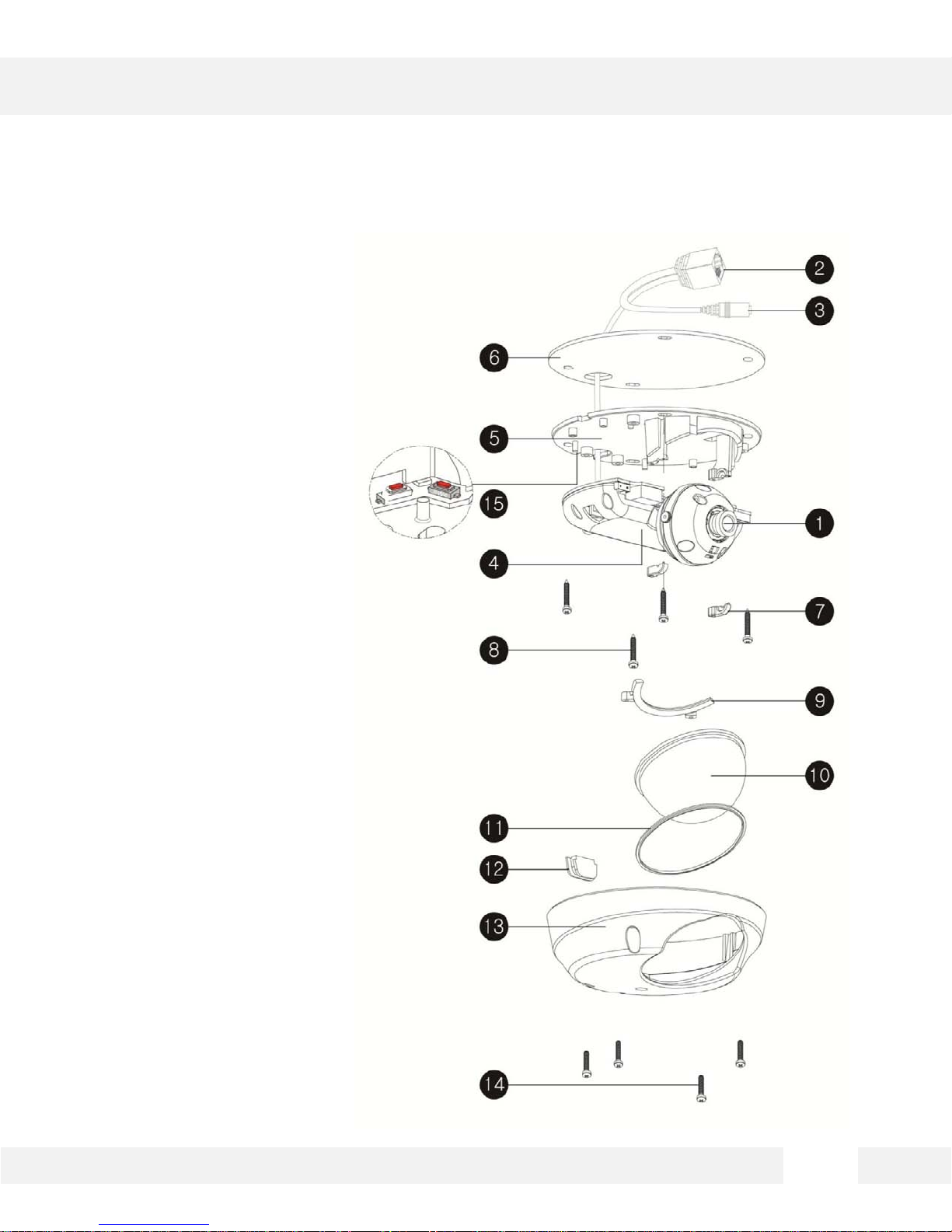

1. Lens
2. RJ45 Cable
3. DC Cable
4. IP Module
5. Bottom
6. Bottom Pad
7. Gimbal Tilt Stopper
8. Mounting Screws
9. Dome Cover Support
10. Dome Cover
11. Gasket Rubber
12. Upper Case Rubber
13. Upper Case
14. Assembly Screws
M3.0 X 15.0
15. FA Buttons
PARTS & DESCRIPTIONS*
5
DIMENSIONS*
6
The following items are included with the MEGAPIX camera.
7

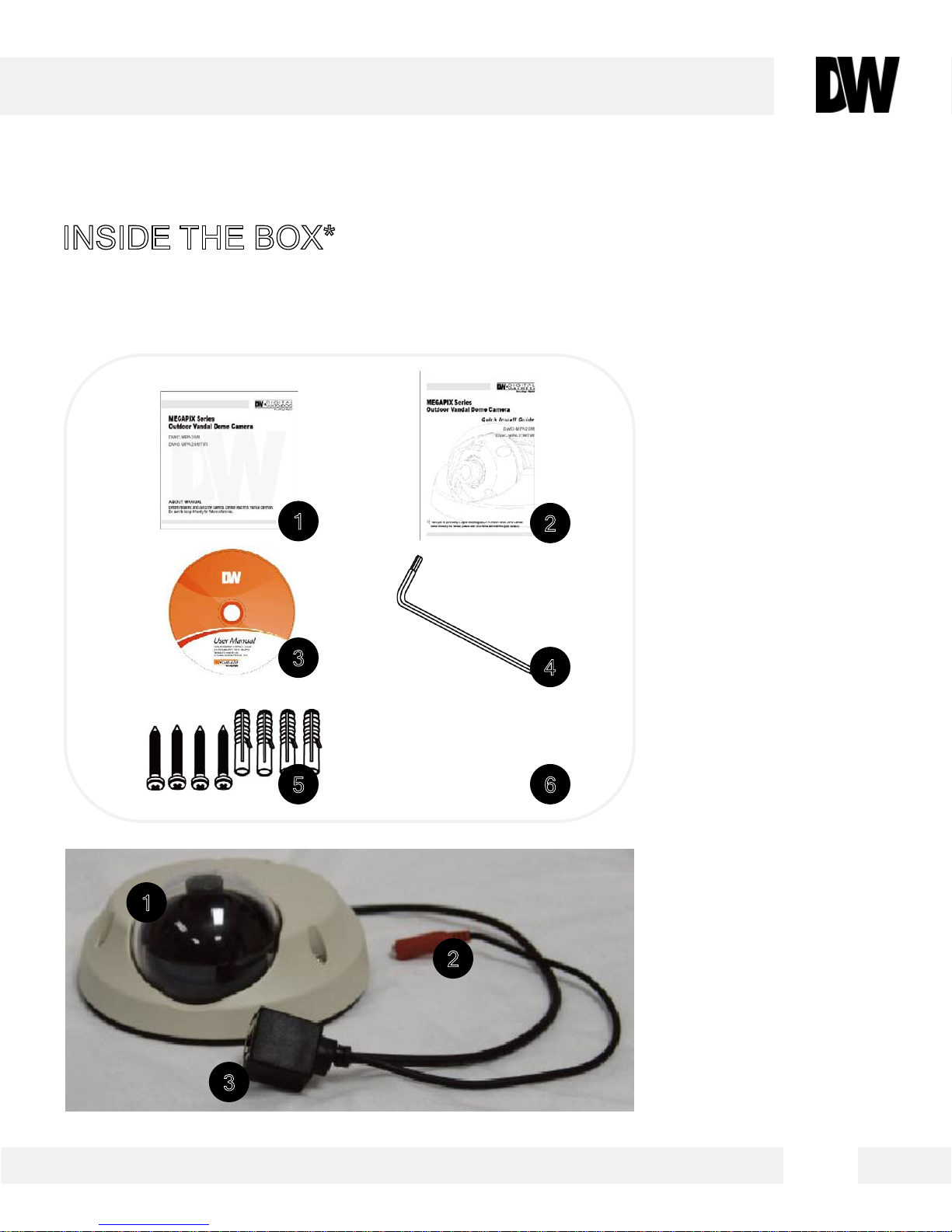

INSIDE THE BOX*
1
2
3
1 2
3
5
4
6
1. User Manual
2. Quick Start Guide
3. CD (Manual & Software)
4. L-Wrench (T10-M3X15.0)
5. 4 Screws & 4 Dry Wall
Anchors
6. Mounting Template
1. Camera Input Sensor
2. Power Supply DC12V
Max 5.16W, 430mA
3. RJ45 Connector
T h e r e a r e t w o o p t i o n s .
U s e a P o E - e n a b l e d s w i t c h t o c o n n e c t d a t a a n d p o w e r t h r o u g h a s i n g l e
c a b l e a n d b e g i n v i e w i n g a n d r e c o r d i n g i m a g e s i n s t a n t l y . A n o n - P o E
s w i t c h w i l l r e q u i r e a n a d a p t o r f o r p o w e r t r a n s m i s s i o n .
1. Using a PoE-Enabled Switch
The MEGAPIX Camera is PoE compliant, allowing transmission of power and data via a single Ethernet cable.
PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the
illustrations below to connect the camera to a PoE-enabled switch using an Ethernet cable.
1. Using a Non-PoE Switch
If a PoE-enabled swithc is not u sed, use a power adaptor for power transmission and a non-PoE switch for data
transmission. Follow the illustrations below to connect the camera without a PoE-Enabled Switch.
8
NETWORK CONNECTION *
1. Using the supplied L-Wrench (T10-M3X15.0), loosen the four security screws. Carefully remove the dome cover.
2. The MEGAPIX camera comes with a safety wire attached.
The Safety Wire will secure the dome cover to the camera module during the installation process. To remove
the safety wire, remove the screw that is keeping the wire in place. We recommend that you use the safety wire.
INSTALLATION*
3. Use the camera mounting template or your camera to mark the holes as required.
4. Drill the holes into the drywall and insert the drywall mounts into the holes.
1 2
3 4
9
10
INSTALLATION*
5. Pull wires through and make connections. Connect the RJ45 to a CAT5 cable or power adaptor. Refer to
“NETWORK CONNECTIONS” for further explanation.
6. Mount the camera to the wall or ceiling, using the screws provided with the camera.
7. Adjust the camera pan and tilt. See page11 for details. Check the LED light. Green light flickers when the
camera is booting, and Red light turns on when booting is complete.
8. Tighten the four locking screws with the L-Wrench.
5 6
7 8
