Chapter 2

Receiver Description and Installation

Receiver Front Panel

Smart Card Door

Behind this door is a slot for a future smart card. No smart card is included with

this receiver.

Indicators

•TV1 Power - The green light indicates that the receiver is providing

programming to the nearby TV through the TV1 output connections.

•TV2 Power - The blue light indicates that the receiver is providing

programming to the remote TVs through the TV2 output connections.

•Recording - Indicates that the receiver is recording. TV1 and TV2 each

have recording indicators.

•Mode - Indicates if the receiver is in Single or Dual mode (see page 49 for

details).

Buttons

The buttons on the receiver give you some control of the receiver. Most of the

time you will want to use the remote controls that came with your receiver.

•Mode - Press the receiver MODE button to switch between Single and

Dual mode (see page 49 for details).

•System Info - Displays the System Info screen on the nearby TV.

•Menu - Displays the Main Menu. After you press this button, use the

ARROWS and SELECT buttons to navigate through TV1’s menus.

•Arrows/Select - Use the ARROWS and SELECT the same way as the

ARROW and SELECT buttons on Remote Control 1.

•Power - Press the POWER button to turn the TV1 programming on or off

to the nearby TV.

IR Sensor

The INFRARED (IR) SENSOR receives IR signals from Remote Control 1.

Chapter 2

Page 24

Receiver Description and Installation

Receiver Back Panel

The receiver connections on the back panel are placed in three groups:

•TV1 Connections - Use these connections with the nearby TV.

•TV2 Connections - Use these connections with the remote TV(s).

•Other Connections - Use these connections with the dish antenna, UHF

antenna, and phone line.

TV1 Connections

The following connections provide TV1 menus and programming to the nearby

TV.

TV CH 3–4 Out

The TV CH 3–4 connection provides good quality video and

mono (non-stereo) audio to your nearby TV. Use a coaxial

cable to make the connection. The TV CH 3–4 connection is

color coded white.

RCA Out

The RCA audio/video outputs provide high quality picture and stereo

sound to your nearby TV (if your TV has these connections). Use an

RCA-type cable assembly to make the connection. If the TV has

only one input for this type of audio, connect it to the right (R) phono

(RCA) audio output on the receiver.

S-Video Out

The S-VIDEO connection provides the highest quality video

available to your nearby TV (if your TV has this connection).

Use an S-Video cable to make the connection. If you use this

back panel output for video between your receiver and nearby

TV, you must still connect the audio using the PHONO (RCA)

AUDIO LEFT/RIGHT OUTPUTS and Phono (RCA) cables.

Tip: The six coaxial

connections on the

back of your

receiver are color

coded to make the

connectors easy to

identify. Inside the

front cover of this

guide are stickers

that are color

coded the same

way as the coaxial

connections. See

the installation

instructions

starting on page 29

for information on

how to use the

stickers that go on

the coaxial cables.

Page 25

Receiver Back Panel

Digital Audio Out

The DIGITAL AUDIO OUTPUT is for use with high-quality digital

sound decoding systems. Connect the DIGITAL AUDIO OUTPUT

with a Digital Audio Optical cable (available at consumer

electronics stores).

TV Antenna/Cable In

The TV ANTENNA/CABLE INis used if you want the satellite

receiver to connect the tuner of the nearby TV to an off-air

antenna or cable TV system when the satellite receiver is turned

off or when using the TV/VIDEO button on Remote Control 1.

Use a coaxial cable to make this connection to an off-air antenna

or cable TV system. The TV ANTENNA/CABLE INconnection is

color coded black. Your nearby TV must be connected to the

CHANNEL 3-4 output to use this feature.

TV2 Connections

The following connections provide menus and programming to the remote TVs.

These connections are active when the satellite receiver is in Dual Mode or in

Single Mode with Shared View enabled.

CH 21–69 Out

The CH 21–69 OUT connection provides good quality video and

stereo audio for the remote TV(s). Use a coaxial cable to make

this connection to your home cable system. Remote TVs

connected to the home cable system can receive programming

from this receiver output. The CH 21–69 OUT connection is

color coded yellow.

Note: When connecting to the home distribution (CH 21-69 OUT)

coaxial port, you must meet requirements covered under FCC

Compliance in the Appendix. To meet these requirements, an in-line

coaxial attenuator has been included with your receiver and may

need to be installed using the following guidance:

• If connecting directly to a TV tuner port, you must install the

attenuator in the cable between the CH 21-69 OUT port and the

TV tuner.

• If connecting to your in-home cabling system to distribute the

signal to a TV(s) in other rooms, in most cases you will not have

to install the attenuator for typical in-home cabling systems.

Tip: If you connect

a cable to the TV/

Antenna In port,

attach the black

cable sticker to the

cable near where it

attaches to the

receiver. The

stickers are

located inside the

front cover of this

guide.

Chapter 2

Page 26

Receiver Description and Installation

RCA Out

The RCA audio/video outputs provide high picture quality and

stereo sound to your TV (if your TV has these connections). These

outputs can be used to provide TV2 menus and programming to a

wireless audio/video transmitter or to a second input on a nearby

TV. Use an RCA-type cable assembly to make the connection. If

the TV has only one input for this type of audio, connect it to the

right (R) phono (RCA) audio output on the receiver.

Other Connections

Satellite In

The SATELLITE INconnections are used to

receive satellite TV signals from the dish

antenna. The connection is made using

RG-6 coaxial cable. The SATELLITE IN

connections are color coded blue.

Note: Both SATELLITE INconnections must be used for proper operation of the

receiver.

Remote Antenna

The REMOTE ANTENNA port receives UHF signals from

the Remote Control 2 so that it can control TV2 menus

from another room. Connect the UHF antenna here, and

place it so that it does not touch anything. If you do not

connect the antenna, you cannot use Remote Control 2 to

control the receiver for TV2 menus and programming. The

REMOTE ANTENNA port is color coded green.

Telephone Jack

The TELEPHONE JACK is used to connect the receiver to an

active telephone line. Use a standard RJ-11 telephone cable

assembly to make the connection. You must keep the receiver

connected to an active telephone line. Otherwise, you may not

be able to order pay per view programs, use all of the DISH

Interactive features, or other services from DISH Network.

Remote Controls

The two remote controls give you easy access to all the features of your satellite

receiver. You can set up each remote to control the satellite receiver and up to

three other devices. These devices can be a TV, a VCR or DVD player, and a

third device.

Page 27

Remote Controls

Types of Remote Controls

Remote Control 1 uses infrared (IR)

light signals to:

• Control TV 1 menus for the

nearby TV in Dual Mode.

• Control the satellite receiver in

Single Mode.

IR signals travel only short distances

(40 feet or less), and cannot go

through walls or other solid objects.

You must point the remote control

directly at the device, with no objects

blocking the line of sight.

Remote Control 1 uses IR signals to

control other devices that the remote

is programmed to control. You must

point the remote control directly at

these devices, with no objects

blocking the line of sight.

This remote control is identified by

the green number 1 at the bottom of

the remote control.

Remote Control 2 uses UHF Pro

signals to:

• Control TV 2 menus for the

remote TVs in Dual Mode.

• Control the satellite receiver in

Single Mode (with Shared View

enabled as described on page 51).

UHF Pro signals travel long distances

and go through walls and other solid

objects.

To use Remote Control 2 to control

the receiver, you must attach the UHF

antenna to the receiver back panel

(see page 28).

Remote Control 2 uses IR signals to

control other devices that the remote

is programmed to control. You must

point the remote control directly at

these devices, with no objects

blocking the line of sight.

This remote control is identified by

the blue number 2 at the bottom of the

remote control.

Chapter 2

Page 28

Receiver Description and Installation

Batteries

The remote controls come with AAA batteries, which need to be installed when

you first receive your system. When you replace old batteries, you should

replace all of the batteries. Use batteries of the same kind, for example alkaline

or carbon zinc, and don’t mix batteries of different kinds. Alkaline batteries last

longer than carbon zinc.

Installing or Changing the Batteries

1. Press down on the battery cover’s top latch and slide the

cover off.

2. If you are changing the batteries, take out all of the old

batteries.

3. Put the new batteries in. Make sure you match the plus

(“+”) ends with the plus markings on the battery case.

4. Slide the cover back into place.

Low Battery Warning

When you see a low battery warning message below the Program Banner, the

batteries in your remote control are weak and need to be replaced.

Attach a UHF Antenna

You need to attach the UHF remote antenna to the

receiver’s back panel REMOTE ANTENNA input so you can

use UHF Pro Remote Control 2.

Note: Be sure to set the antenna straight up so you can use the remote control

from as far away as possible. Don’t let the antenna touch anything.

Page 29

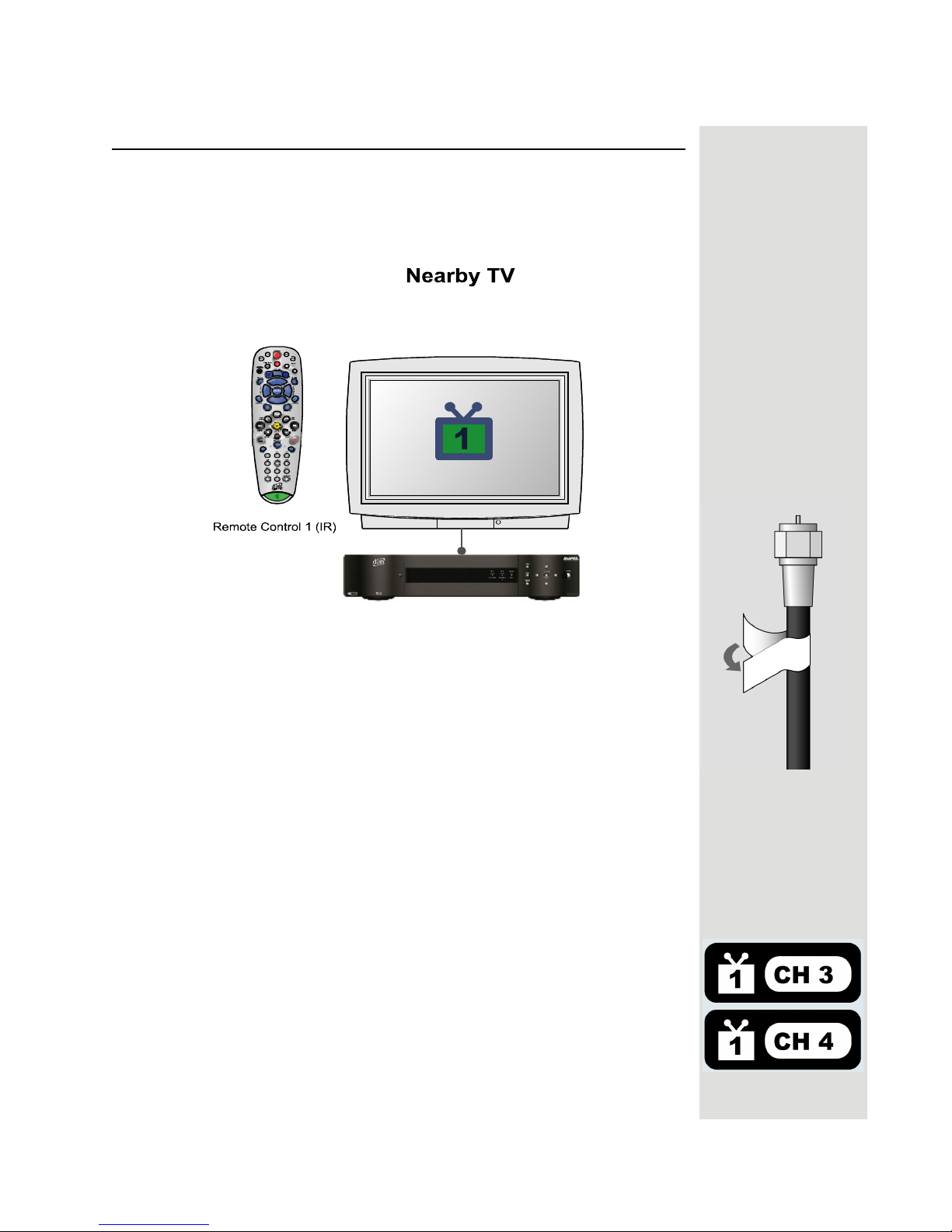

Connecting the Receiver to a Nearby TV

This section describes how to connect receiver TV 1 output ports to a nearby TV.

The easiest way to connect the receiver to the TV is using coaxial cable

connections, but you may also use RCA or S-Video outputs.

Coaxial Cable Connections

1. Connect a coaxial cable from the CH 3-4 output on the receiver to the

nearby TV’s tuner port.

2. Place the white CH 3-4 sticker on the cable near where the cable connects to

the receiver (see the picture in the margin).

3. Plug in the power cord for the receiver.

4. Turn on the receiver with the front panel power button and make sure the

green TV1 indicator is lit.

5. Turn on the nearby TV.

6. Tune the TV to channel 3.

7. You should see the Point Dish screen.

8. If you do not see the Point Dish screen, tune the TV to channel 4.

Note: If you want to change the channel that the CH 3-4 port provides to

your TV, see Changing the TV1 and TV2 Output Channels on page 37.

9. If desired to remind you of which TV channel (3 or 4) to tune to watch

satellite programming, place one of the channel stickers (3 or 4) near or on

your TV. The stickers are located in the inside front cover of this guide.

Tip: Using cable

labels makes it easy

to tell which cables

connect to the

receiver ports.

Inside the front

cover of this guide

are stickers that are

color coded the

same way as the

coaxial

connections.

Chapter 2

Page 30

Receiver Description and Installation

RCA and S-Video Connections (TV1)

1. Connect one of the following video cables:

• RCA video cable (yellow) from the receiver TV1 outputs to the nearby

TV’s RCA video input.

•S-VIDEO cable from the receiver TV1 outputs to the nearby TV’s S-

VIDEO input.

2. Connect the RCA audio cables (red and white) from the receiver TV1

outputs to the nearby TV’s audio inputs. If the TV has only one input for

this type of audio, connect it to the right (R) phono (RCA) audio output on

the receiver.

3. Make sure your nearby TV is on and set to receive TV from the correct

audio and video inputs. Refer to the instructions that came with your TV.

4. Plug in the power cord for the receiver.

5. Turn on the receiver with the front panel power button and make sure the

green TV1 indicator is lit.

6. You should see the Point Dish screen.

Confirm Remote Control 1 Operation

After the nearby TV has been connected to a TV1 output using one of the

methods above, do the following to confirm that the IR Remote Control 1

controls the receiver:

1. Make sure that fresh batteries are installed properly in the IR Remote

Control 1.

2. Press the SAT button to put the IR Remote Control 1 in SAT mode to

control the satellite receiver.

3. Use the Remote Control 1 arrow keys to move around the Point Dish

screen. If you are able to move around in the Point Dish screen, you

confirmed that Remote Control 1 is controlling the receiver.

Tip: In Dual Mode,

Remote Control 1

is used to control

TV1 menus on the

nearby TV. Remote

Control 2 is used to

control TV2 menus

on the remote

TV(s).

Page 31

Connecting the Receiver to the TV(s) in Another Room(s)

Connecting the Receiver to the TV(s) in Another

Room(s)

This section describes how to connect the receiver CH 21–69 OUT connection to

the cable-ready remote TV located in another room away from the receiver. This

installation uses your in-home cable system. If your house does not have built-in

cabling, it will be necessary to run cables from the receiver to each remote TV.

Due to the difficulty of this installation, you should consider having this

professionally installed. Call DISH Network at 1-800-333-DISH (3474).

Note: When connecting to the home distribution (CH 21–69 OUT) coaxial port,

you must meet the FCC requirements in the Appendix. To meet these

requirements, an in-line coaxial attenuator has been included with your receiver

and may need to be installed using the following guidance:

• If connecting to your in-home cabling system to distribute the signal to a

TV(s) in other rooms, in most cases you will not have to install the

attenuator on the CH 21–69 port for typical in-home cabling systems.

• If connecting directly to a TV tuner port, you must install the attenuator in

the cable between the CH 21–69 OUT port and the TV tuner.

Chapter 2

Page 32

Receiver Description and Installation

1. Connect the tuner input of the remote TV(s) in other rooms to an existing

wall cable outlet using a coaxial cable.

2. Turn on every remote TV connected to the in-home cabling system.

3. Find three channels next to each other on one of your remote TVs that do

not pick up any signals from off-air or cable broadcasts (they should show

nothing but snow or static). These channels must fall in one of the two

ranges below. For example, if you find that cable channels 75, 76, and 77 do

not pickup any broadcasts, pick these channels since they fall into the range

below for cable channels. Make sure these three channels on other remote

TVs also do not pick up broadcasts.

•Air Mode - Select a channel between 21 and 69 if your TV(s) will be set

in Air Mode.

•Cable Mode - Select a channel between 73 and 125 if your TV(s) will

be set in Cable Mode.

Note: The remote TV(s) will have to be set to the same channel mode,

either off-air or cable channel mode for this installation. See your TV user’s

guide for instructions on how to set your TV to off-air or cable channel

modes.

4. Pick the channel in the middle of the three you selected in step 3. Write that

channel down in the blank provided in the margin by step 5. For example, if

the three channels you picked in the preceding step were air channels 60,

61, and 62, pick channel 61 and write it in space provided in the margin by

step 5.

5. If your TV is in off-air mode for the channels you picked in step 4, circle

“Air” in the margin. If your TV is in cable mode for the channels you

picked in step 4, circle “Cable” in the margin.

6. Set all of your remote TV(s) to the channel mode (Air or Cable) you circled

in step 5.

7. Tune all of your remote TV(s) to the channel you wrote in step 5. This is the

channel you will use to receive your satellite programming.

If you have an off-air antenna or cable connected to your in-

home cable system, see Optional - Connecting to an Off-

Air Antenna or Cable following this section.

Make sure you are familiar with how to change channels on

your TV and if necessary how to switch your TV between

off-air and cable channels. During this procedure, it will be

necessary to change the channels on your TV(s) to tune to

these channels to see the video from the receiver. See your

TV user guide for instructions.

Tip: Using cable

labels makes it

easy to tell which

cables connect to

the receiver ports.

Inside the front

cover of this guide

are stickers that

are color coded the

same way as the

coaxial

connections.

Channel:

Air/Cable

Inhaltsverzeichnis

Andere Dish Network Empfänger Handbücher

Dish Network

Dish Network Hopper Bedienungsanleitung

Dish Network

Dish Network SoloDVR ViP 612 Bedienungsanleitung

Dish Network

Dish Network 123698 Bedienungsanleitung

Dish Network

Dish Network WALLY Bedienungsanleitung

Dish Network

Dish Network 311 Series Bedienungsanleitung

Dish Network

Dish Network DISH322 Bedienungsanleitung

Dish Network

Dish Network DishPro 322 Bedienungsanleitung

Dish Network

Dish Network 196812 Bedienungsanleitung

Dish Network

Dish Network DISHPlayer 500 Bedienungsanleitung

Dish Network

Dish Network Satellite Television Bedienungsanleitung

Dish Network

Dish Network DISH 351 Bedienungs- und Montageanleitung

Dish Network

Dish Network Satellite Television Bedienungsanleitung

Dish Network

Dish Network DuoDVR ViP 722_TOC Bedienungsanleitung

Dish Network

Dish Network Home Network Bedienungsanleitung

Dish Network

Dish Network High-Definition ViP 22k Duo Receiver and... Bedienungsanleitung

Dish Network

Dish Network ViP 222K Bedienungsanleitung

Dish Network

Dish Network SR200 Bedienungsanleitung

Dish Network

Dish Network 111 Series Bedienungsanleitung

Dish Network

Dish Network 512 Bedienungsanleitung

Dish Network

Dish Network HDE-8C-QAM Bedienungsanleitung

Dish Network

Dish Network Duo ViP 222 Bedienungsanleitung

Dish Network

Dish Network DISH411 Bedienungsanleitung

Dish Network

Dish Network Satellite Television Bedienungsanleitung

Dish Network

Dish Network DVR Satellite System Bedienungsanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
