Dish Network Digital PVR Bedienungsanleitung

Digital PVR

Remote Control

User Guide

SAT

VCR

AUX

UHF

outside_front.fm Page 0 Monday, March 4, 2002 2:19 PM

IMPORTANT REGULATORY FACTORS

WIRELESS REMOTE CONTROL

This device complies with Part 15 of Federal Communications

Commission (FCC) Rules. Operation is subject to the following

conditions:

•This device may not cause harmful interference.

•This device must accept any interference that may cause

undesired operation.

•Unauthorized equipment changes may void FCC certification.

IMPORTANT SAFETY INSTRUCTIONS

You must keep safety in mind while using this device. Keep these

and any other instructions for future reference.

Installation

Observe Warnings: Carefully follow all warnings on the device

and in the operating instructions.

Heat: DO NOT place the device near heat sources such as radiators,

stoves, heat registers, or other appliances that produce heat.

Care and Use

Cleaning: DO NOT use liquid, abrasive, solvent, or aerosol

cleaners. Use a damp cloth for cleaning.

When Not in Use: Remove the batteries if this device is to be

left unattended or unused for a long period of time.

Refer servicing to qualified personnel

when a solid object or liquid has fallen

onto or into the device.

DO NOT attempt to service this device.

Refer all servicing to qualified personnel.

Opening covers other than the battery cover

will void the warranty.

113737_02_text.fm Page 0 Monday, March 11, 2002 3:53 PM

Contents of This Guide

113737 Page 1

CONTENTS OF THIS GUIDE

About the Remote Control.................................. 2

If Your Receiver Does Not Respond................... 2

Remote Control Signals...................................... 3

How to Install the Batteries ................................. 3

Remote Control Modes ....................................... 3

How to Use the Buttons......................................4

SAT (Satellite Receiver) Mode............................ 4

TV Mode.............................................................11

AUX Mode for a Second TV.........................11

VCR Mode......................................................... 13

AUX Mode for a Second VCR......................13

AUX Mode for Cable TV Box ............................ 15

AUX Mode for Tuner or Amplifier...................... 17

Remote Control Procedures.............................18

How to Set Up the Remote to Control

Other Devices.............................................. 18

How to Scan for Device Codes......................... 20

How to Check the Device Codes ...................... 21

How to Switch Between TV and Device

Volume Control .............................. 21

How to Change the Address............................. 23

Device Codes ....................................................25

TVs.................................................................... 25

VCRs................................................................. 27

DVD Players...................................................... 28

Cable TV Boxes................................................ 28

Tuners and Amplifiers .......................................29

How to Trouble-Shoot.......................................30

Limited Warranty ...............................................31

If You Need Help................................................34

Index...................................................................35

113737_02_text.fm Page 1 Monday, March 11, 2002 3:53 PM

Page 2 113737

ABOUT THE REMOTE CONTROL

•This remote control gives you easyaccess to the features of DISH

NetworkTM satellite TV receivers.

•You can set up the remote to control as many as three devices

along with the receiver. These may be TVs, VCRs, DVD players,

cable TV boxes, tuners, or audio amplifiers.

•This remote can be used with both IR only and IR/UHF receivers

(a UHF receiver has an antenna attached to its back panel).

•This remote cannot be used with the DISH Network Model 7100/

7200 (DishPlayer) receiver.

•On most non-DishPVR receivers, the SKIP BACK button is now

the SYSTEM INFORMATION button.

•With a DishPVR receiver, the DVR List, PTV List or PVR list

button functions as the PVR button. Pressing it when the remote

is in SAT mode will open the PVR Recorded Events menu.

•With the JVC Model HM-DSR100-D-VHS, when the remote is

in SAT mode, the VCR buttons function as labelled. For

example, PLAY will start playing a videotape, STOP will stop the

tape, etc.

•When this remote is used with a DishPVR receiver,pressingthe

POUND (#) Button opens the Alpha Search menu.

IF YOUR RECEIVER DOES NOT RESPOND TO THIS

REMOTE

It may be that the receiver’s address was changed and is no longer set

to #1. This is important because if the receiver and remote are not set to

thesameaddress,theremotecannotcontrolthereceiver.

To check the receiver’s address, turn offthe receiver (leave the TV on),

and press the System Information or Info button on the front panel to

open the Important System Information screen. If the receiver

does not have such a button, pull the Smart Card to open the

Important System Information screen. If the remote address is not

1, you will need to change address (see page 23 for instructions).

113737_02_text.fm Page 2 Monday, March 11, 2002 3:53 PM

Remote Control Modes

113737 Page 3

REMOTE CONTROL SIGNALS

The remote control uses both Infra-Red (IR) light and UHF signals to

control the satellite receiver and other devices.

•IR light travels only short distances (40 feet or less), and cannot

go through walls or other solidobjects. You mustpoint the remote

control directly at the device, with no objects blocking the signal

path.

•UHF signals can go through

walls but IR signals can’t. To

use UHF signals to control the

receiver, the receiver must

have a UHF antenna attached

to it

’s

back panel.

HOW TO INSTALL THE

BATTERIES

When you replace old batteries, you should

replace all of the batteries. Use batteries of

thesamekind,for example, alkaline or

carbon zinc, and do not mix batteries of

different kinds.

Alkaline batteries last longer.

1.Pressdownontheslotinthebattery

cover (on the back of the remote

control) and slide the cover off.

2.Remove all of the old batteries.

3.Insert the new batteries. Make sure to

match the plus (“+”) ends with the plus

markings on the battery case.

4.Put thebattery cover back on by sliding

it back up into place.

REMOTE CONTROL MODES

To use the remote to control a device, do the following:

Note: Theremotecomesalready set up to control a receiver

113737_02_text.fm Page 3 Monday, March 11, 2002 3:53 PM

Page 4 113737

(unless the receiver’s address is not 1, in which case you will need

to change its address per the instructions on page 23).

1.For a device other than the receiver, set up the remote to control

the device. See How to Set Up the Remote to Control Other

Devices on page 18 for instructions.

2.Use the remote control mode buttons to control the satellite

receiver (SAT),aTV,VCR,andAUX devices (a cable TV box, a

tuner, or an audio amplifier) devices. To change themodesetting,

press the button for the device you want the remote to control.

3.The mode button’s backlight flashes once to show the remote is

settothatmode.

HOW TO USE THE BUTTONS

SAT (SATELLITE RECEIVER)MODE

SAT MODE BUTTON

You must press the SAT mode button to set the remote to SAT mode.

The SAT mode button’s back light goes on briefly to show the remote

is set to SAT mode. Make sure the remote is in SAT mode to use the

buttons described below.

•Some of the features described below may not

apply to your receiver. See the receiver User

Guide for details about the receiver’s features.

Only the remote control buttons described in this

sectionworkinSAT mode.

•There are two buttons reserved for functions that

may be added in the future for certain receivers.

These are Skip Ahead and DVR (or PTV) List.

For DishPVR receivers, these buttons function as

Skip Ahead and PVR, respectively.

•On non-DishPVR receivers, the Skip

Back button will work as the System

Information button.

113737_02_text.fm Page 4 Monday, March 11, 2002 3:53 PM

How to Use the Buttons

113737 Page 5

AUX MODE BUTTON FOR TV POWER

You can use this button to turn the television on or off without leaving

SAT mode. However, to do this, you must set up the remote to control

the television and not setitupinAUX mode to control another device.

(See page 18 for information on setting up the remote to control other

devices.)

TV/VIDEO BUTTON

If you connect another signal such as cable or a TV antenna to the

receiver’s TV ANTENNA/CABLE IN port on the back panel, you can

use this button to switch the receiver between the satellite signal and

the other signal. If the TV has video format options, use this button to

switch the TV among those options. For example, if the TV supports

High Definition (HD) video, use this button to switch the satellite

receiver between HD mode and Standard Definition (SD) video mode

while using an EchoStar HDTV capable receiver.

VOLUME BUTTON

Some DISH Network satellite receivers have their own volume control.

For those that do, you can press this button (+) to raise the sound level

or (-) to lower the sound level.

Note: If the remote is programmed to control a TV, pressing this

button to raise or lower the sound volume, will raise or lower the sound

volume of the TV.

MUTE BUTTON

Some DISH Network receivers have their own Mute control. For those

that do, you can press this button to mute the satellite receiver’s sound.

113737_02_text.fm Page 5 Monday, March 11, 2002 3:53 PM

Page 6 113737

Note: If the remote is programmed to control a TV, pressing this

button will mute the sound of the TV.

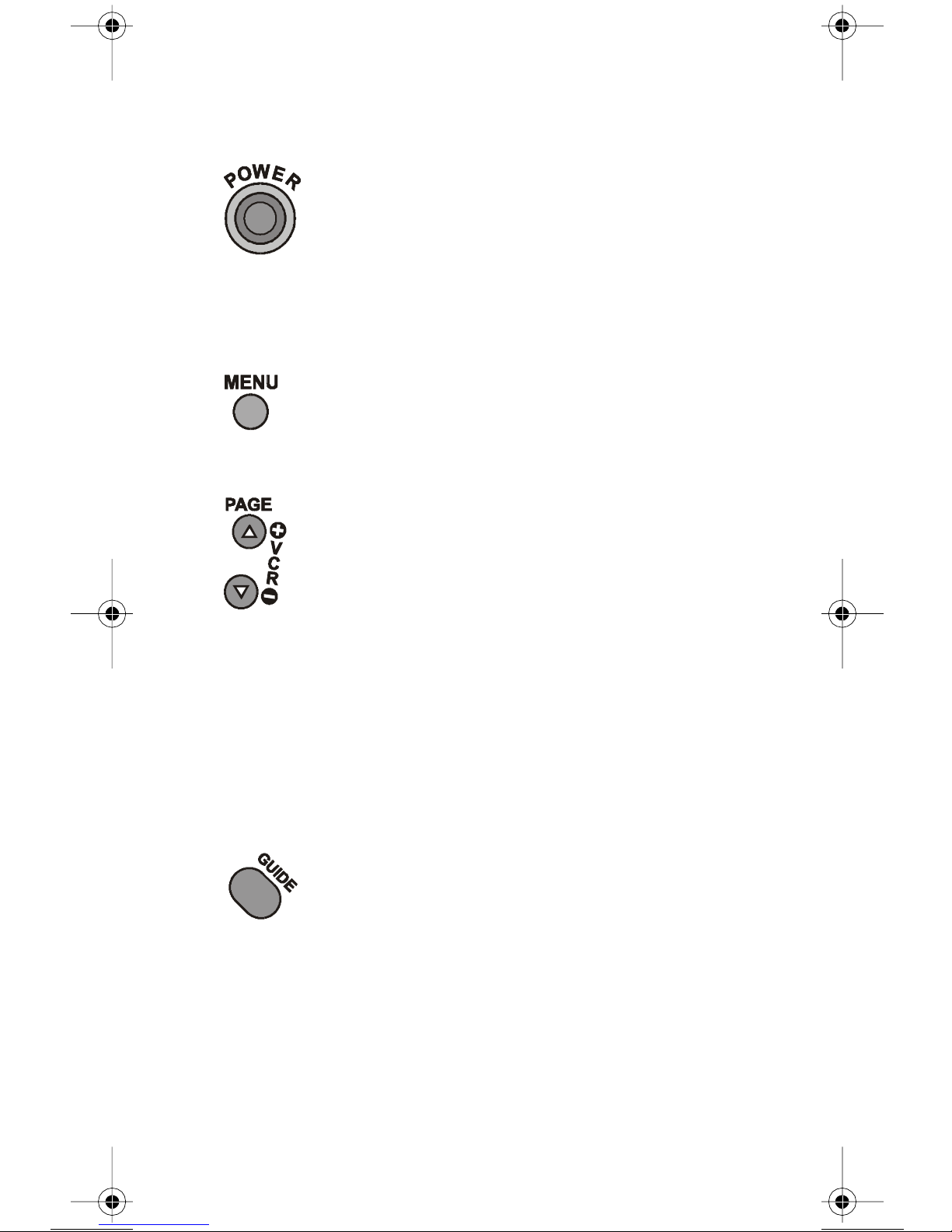

POWER BUTTON

Press this button to turn the receiver on or off. The green POWER

light on the receiver front panel lights up to show the receiver is on,

and goes out to show the receiver is off.

MENU BUTTON

Press this button to open the Main Menu.

PAGE UP AND PAGE DOWN

Press the PAGE UP button or the PAGE DOWN button to scan, page

by page, through the Program Guide,aThemes menu, a Favorite

List, an Event Timers list, or a list of channels.

Note: With the JVC Model HM-DSR100-D-VHS, Page Up will Fast

Forward the videotape, and Page Down will rewind the tape, except

when you are in the Program Guide. In this case, these buttons will

function as PAGE UP and PAGE DOWN.

. GUIDE BUTTON

Press this button to open the Program Guide. When the Program

Guide is open, continue pressing this button to switch among your

Favorite Lists.

113737_02_text.fm Page 6 Monday, March 11, 2002 3:53 PM

How to Use the Buttons

113737 Page 7

UP/DOWN/LEFT/RIGHT

(ARROW)BUTTONS

•When you are in a menu, press these buttons to move the

highlight to an option.

•When you watch a program, press the UP or DOWN button to

change channels on the satellite receiver.

•When you watch a program, press the RIGHT button to open the

Browse Banner.

•When you have the Browse Banner open, press the UP or

DOWN buttontoseetheBrowse Banner for the next channel

above or below the one you are watching.

•When you have the Browse Banner open, press the RIGHT

button to display information on the program that is on next on

thesamechannel.

•When a menu offers you a list of choices (different from menu

options), press the UP or DOWN buttontoseemorechoices.

•When you have the Program Guide open, press these buttons

to move the highlight among the programs.

•To enter a number in a menu, highlight the place where you need

to enter the number. Then, press the UP or DOWN button to

increase or decrease the number in the highlighted place.

Or you can use the number buttons as described on page 9.

•When you watch a program, press the LEFT button to open the

Themes menu.

SELECT BUTTON

Press this button to select a highlighted option, or a program in the

Program Guide or Browse Banner.

113737_02_text.fm Page 7 Monday, March 11, 2002 3:53 PM

Page 8 113737

RECALL BUTTON

Press this button to return to the last channel you watched.

INFORMATION (INFO) BUTTON

•Press this button for more information when you have the

Program Guide or the Browse Banner open, or when you

watch a program.

•When you have a menu open with a Help option, press this

button to see help information for that menu.

•Highlight a program in a Themes list and then press this button

for more information on the program.

•You can turn the receiver off (make sure the TV is on) and then

press this button to open the Important System Information

menu. Note: Even when the receiver is “off,” it keeps working

and it needs electrical power. Do not unplug the power cord.

VIEW BUTTON

•Press this button to immediately go back to watching a program.

•When you watch a program, press this button to briefly display

the Program Banner.

•When you are in a menu, press this button to cancel a procedure

and go back to watching a program.

CANCEL BUTTON

Press this button to cancel a procedure and go back to the previous

menu or to watch a program.

113737_02_text.fm Page 8 Monday, March 11, 2002 3:53 PM

Inhaltsverzeichnis

Andere Dish Network Fernbedienung Handbücher

Dish Network

Dish Network 54.0 Bedienungsanleitung

Dish Network

Dish Network 129418 Bedienungsanleitung

Dish Network

Dish Network Platinum Plus 121150 Bedienungsanleitung

Dish Network

Dish Network ViP 211 Series Bedienungsanleitung

Dish Network

Dish Network 54.0 Bedienungsanleitung

Dish Network

Dish Network Duo ViP 222 Bedienungsanleitung

Dish Network

Dish Network 301 IR 123271 Bedienungsanleitung

Dish Network

Dish Network 20.0 Bedienungsanleitung

Dish Network

Dish Network digital remote control Bedienungsanleitung

Dish Network

Dish Network 167820 Bedienungsanleitung

Dish Network

Dish Network Platinum Remote Control Bedienungsanleitung

Dish Network

Dish Network SoloDVR ViP 612 Gebrauchs- und Wartungshandbuch

Dish Network

Dish Network 176842 Bedienungsanleitung

Dish Network

Dish Network 40.0 Bedienungsanleitung

Dish Network

Dish Network 52.0 Bedienungsanleitung

Dish Network

Dish Network Duo ViP 222 Gebrauchs- und Wartungshandbuch

Dish Network

Dish Network 54.0 Bedienungsanleitung

Dish Network

Dish Network 311k Bedienungsanleitung

Dish Network

Dish Network DISHPlayer 500 Bedienungsanleitung

Dish Network

Dish Network 3.1 Bedienungsanleitung

Dish Network

Dish Network Platinum 121716 Bedienungsanleitung

Dish Network

Dish Network Remote Control Bedienungsanleitung

Dish Network

Dish Network 159263 Bedienungsanleitung

Dish Network

Dish Network 52.0 Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
